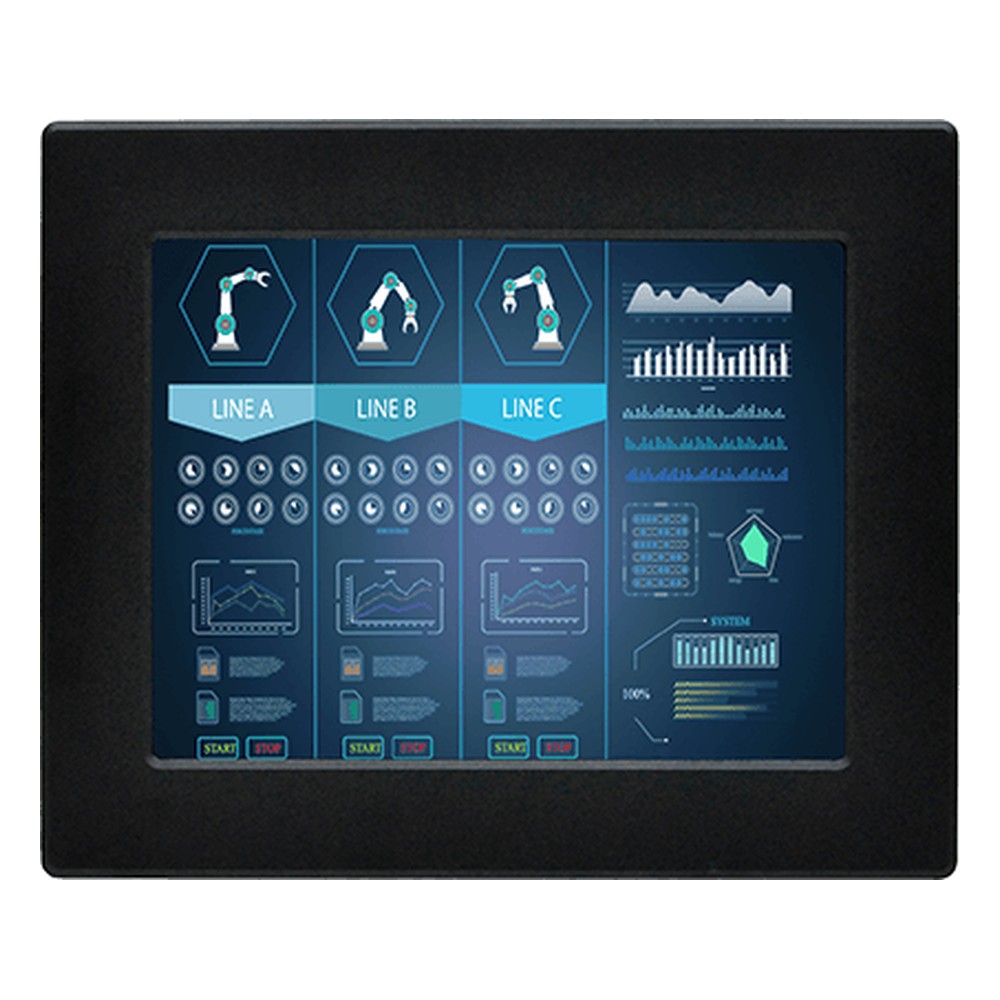

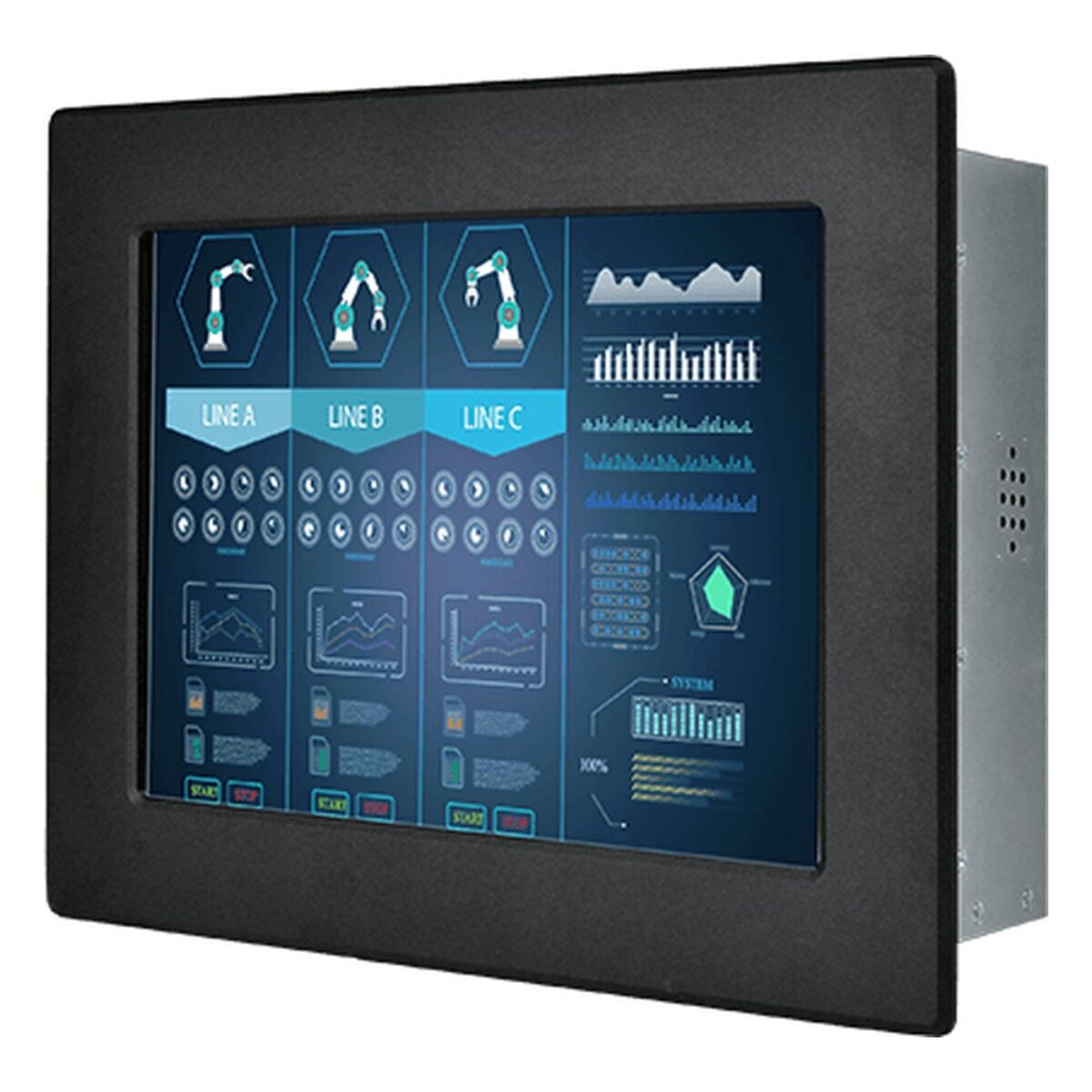

Winmate R10L600-PMP1 10.4″ Panel Mount Monitor with Resistive Touch and SVGA LCD

Small machines and control panels often run HMI software written for an 800 x 600 screen, and a 10.4 inch SVGA monitor keeps that software and the panel cut-out unchanged. The R10L600-PMP1 is Winmate’s 10.4 inch panel mount monitor for that work, with resistive touch and a 600 nit panel, and it connects to a separate PC in factory automation, kiosks and control rooms.

The 10.4″ panel shows 800 x 600 (SVGA) at 600 nits, with 400:1 contrast and viewing angles of 140 degrees horizontal and 130 degrees vertical. Resistive touch is fitted as standard, with SAW touch or protection glass without touch as options. Five keys (minus, plus, power, Esc and Enter) handle the on-screen menu, and a remote controller is optional.

The R10L600-PMP1 connects to a separate industrial PC or controller over VGA as standard, with HDMI and DVI inputs available as options, and both a VGA and an HDMI cable come in the box. A USB port carries touch data back to the host. An audio line-in and two speakers are optional. Within the Winmate range the R10L600-PMP1HB is the same panel mount design with a 1000 nit panel for bright areas, and the R10L600-RMP1 is the rear mount version.

Power is 12 V DC, with a 24 V DC input listed as an option, and an AC adapter and power cord are supplied. The fanless metal housing with an aluminum bezel runs from 0 to 50 °C at 10 to 90% humidity, non-condensing, and stores from -10 °C to 60 °C. Mounting is VESA or panel mount, with VESA screws supplied. It carries CE and FCC marks. We supply the R10L600-PMP1 configured and tested before dispatch, and we can help pair it with the right host computer.
