Winmate R10L600-OFP1 10.4″ Open Frame Monitor with 800 x 600 LCD, 600 Nits and 1200:1 Contrast
Resistive
Fanless
CE
FCCR10L600-OFP1 Overview

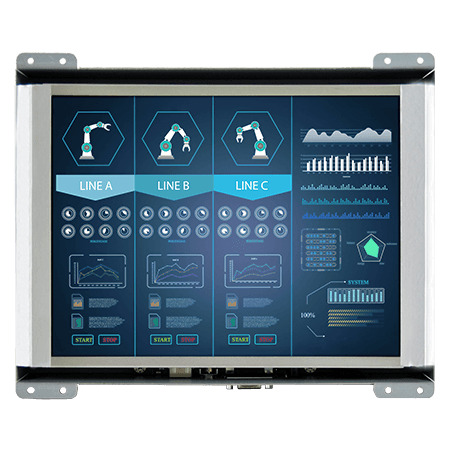

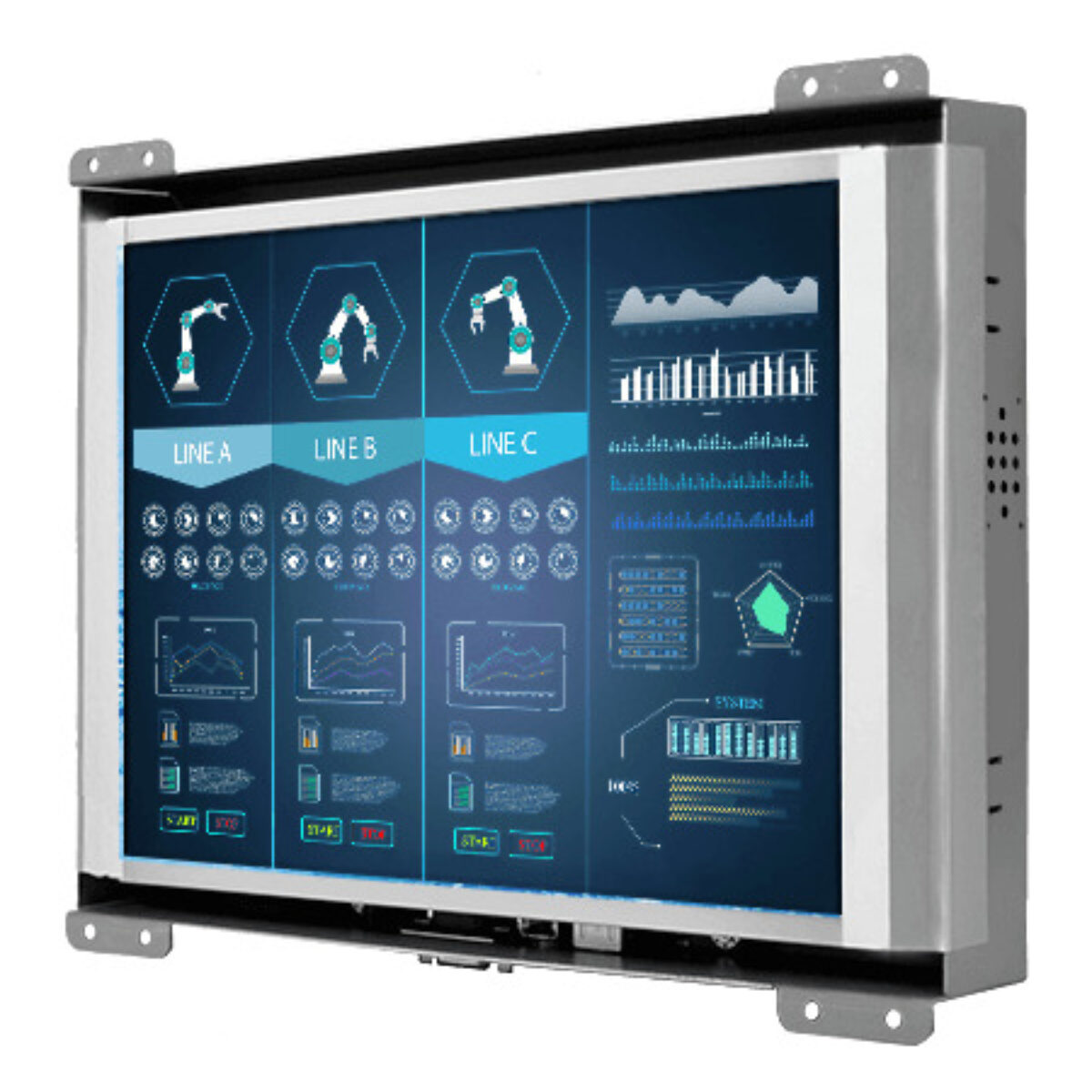

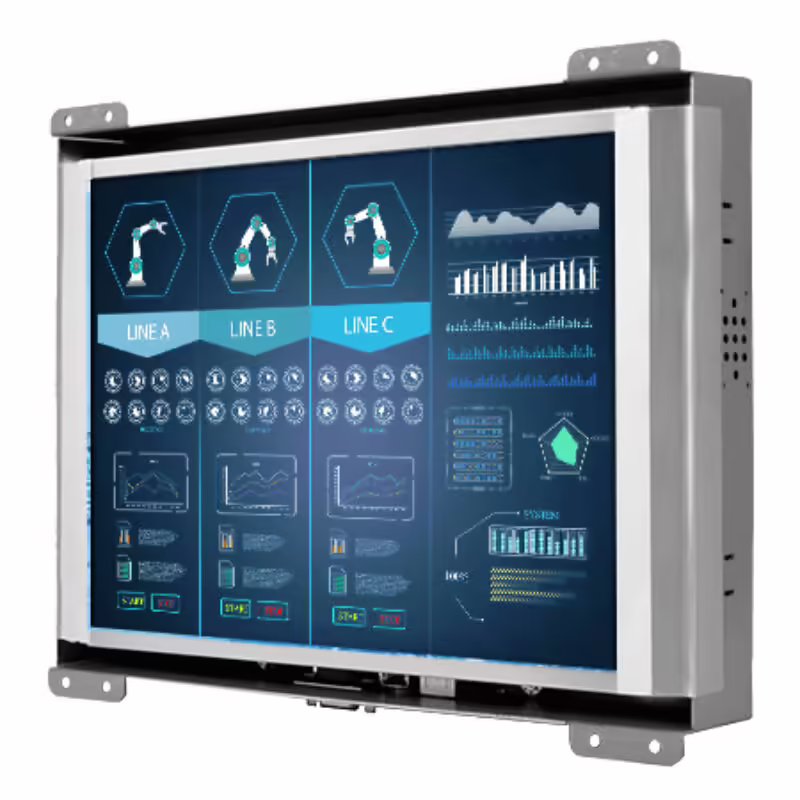

A 10.4 inch screen is a common size for machine control panels and kiosks, and many builders want it without a housing of its own. The R10L600-OFP1 is Winmate’s 10.4 inch open frame monitor: an 800 x 600 SVGA LCD at 600 nits with a 1200:1 contrast ratio, in a metal frame that sits behind your own front panel.
The panel shows 262,000 colors across an active area of 211.2 x 158.4 mm, and Winmate quotes viewing angles of 88° in each direction, so the image holds up for operators standing to one side. Touch is optional: specify a resistive touch screen for gloved or stylus input, or protection glass without touch for a display-only screen. The higher contrast ratio helps dark interface themes and trend lines stay distinct.
VGA is the default video input, with HDMI or DVI available as options, and a USB connection for the touch screen is optional. An optional 3.5 mm audio line-in and speakers add sound for kiosk prompts. For brighter surroundings the R10L600-OFP1HB is the high brightness version of this frame, and the R10L600-OFP1TR uses a transflective panel for screens in direct ambient light.

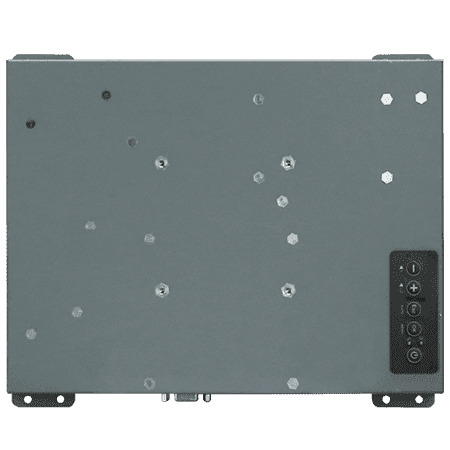

The R10L600-OFP1 runs from 12 V DC, with 24 V DC available as an option, and is fanless. It operates from 0 °C to 50 °C and 10 to 90% non-condensing humidity, and stores from -10 °C to 60 °C. The metal frame measures 260 x 215 x 38 mm and is VESA mounted as standard, with panel mounting as an option. It carries CE and FCC marks. Winmate lists industrial visualization, control rooms and equipment monitoring as typical uses for its open frame range, along with ATMs, vending machines, airport information displays and mall kiosks.
R10L600-OFP1 Specifications
| Overview | |
|---|---|
| Brand & Model | Winmate R10L600-OFP1 |
| Features | Fanless Industrial |
| Display | |
| Display | 10.4"[4:3, 800 x 600, SVGA] |
| Display Treatment | Protective Glass Transflective |
| Touch Interface | USB |
| Touch Controller | Optional Resistive Touch Optional Surface Acoustic Wave Touch |
| Brightness | 600 Nits |
| 140° Horizontal, 130° Vertical | |
| Aspect Ratio | 4:3 |
| Format | Standard |
| Contrast | 400:1 |
| Number of Display Inputs | 3x Display Ports |
| Video Inputs | 1x DVI Input 1x HDMI Input 1x VGA Input |
| Power | |
| Power Input | 12V DC |
| Environmental Conditions | |
| Thermal Dissipation | Fanless Passively Cooled Chassis |
| Operating Temperature | 0°C to 50°C [32°F to 122°F] |
| Storage Temperature | -10°C to 60°C [14°F to 140°F] |
| Humidity | 10-90% (Non-condensing) |
| Certification | CE FCC |
| Mechanical Properties | |
| Dimensions | 260mm x 215mm x 35mm (10.24" x 8.46" x 1.38") |
Official Winmate USA Distributor
Things Embedded is an official Winmate USA distributor, supplying the R10L600-OFP1 for USA machine builders and kiosk integrators. Within the Winmate range the R10L600-OFP1HB is the high brightness version of this 10.4 inch frame, and the R10L600-OFP1TR uses a transflective panel for screens in direct light.
As a 10.4 inch embedded screen the R10L600-OFP1 sits among our open frame monitors, our 10" industrial monitors and our resistive touch monitors. Where a machine needs a high-contrast 800 x 600 screen behind its own bezel, this is the Winmate model to specify.
