Winmate R10L600-OFP1HB 10.4″ High Brightness Open Frame Monitor with 1000 Nit SVGA LCD
Resistive
High Bright
Fanless
CE
FCCR10L600-OFP1HB Overview

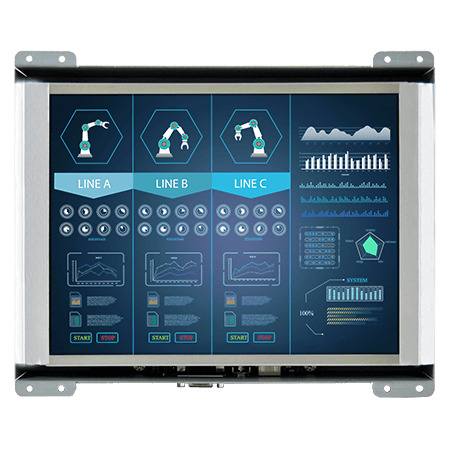

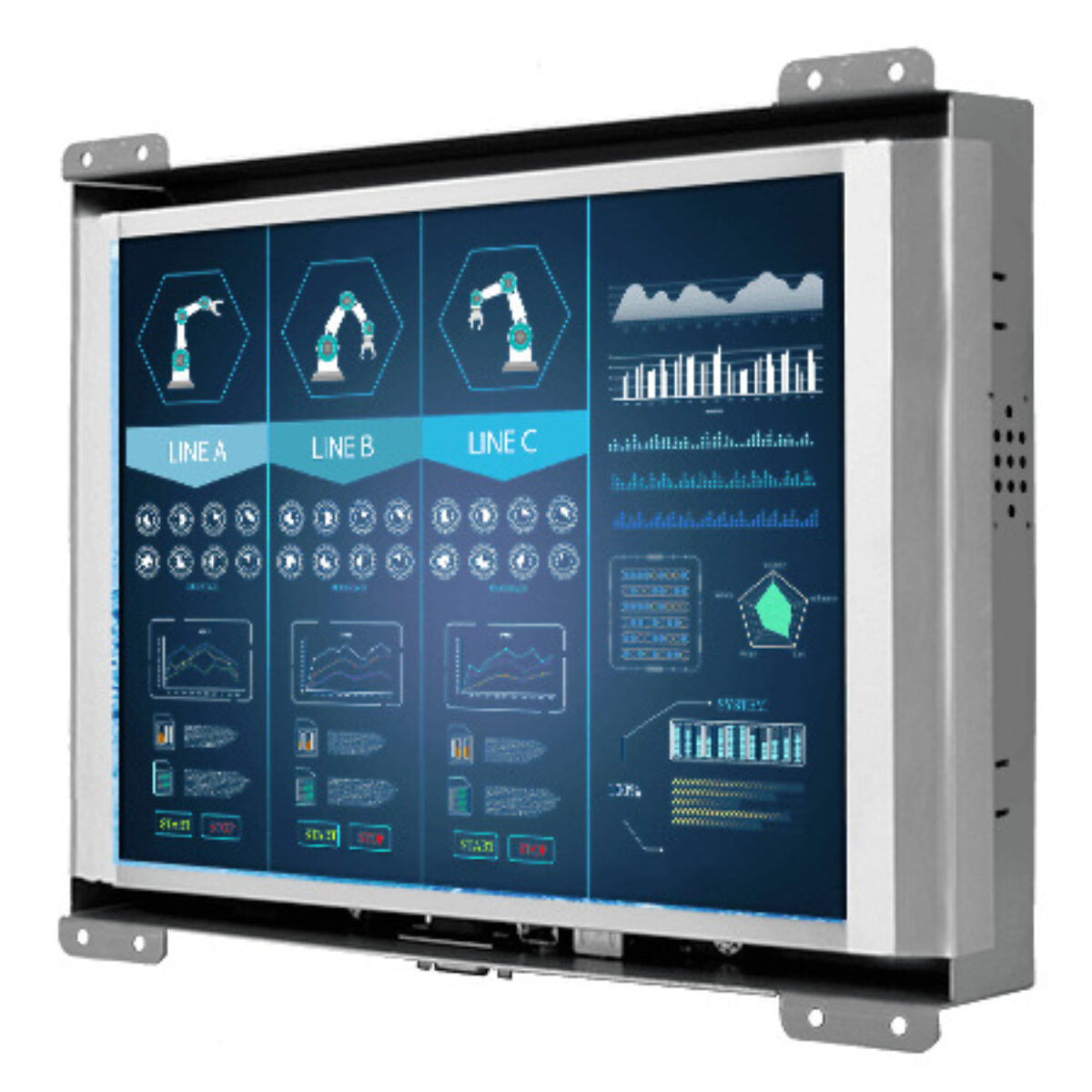

A kiosk or machine screen placed near a window or under strong lighting needs extra brightness to stay readable. The R10L600-OFP1HB is Winmate’s 10.4 inch open frame monitor for those installs: an 800 x 600 SVGA display at 1000 nits in a metal enclosure, fitted from behind on panel or VESA mounting.
Winmate describes it as a high brightness display. The panel pairs the 1000 nit backlight with a 400:1 contrast ratio, 262K colors and viewing angles of 140° horizontally and 130° vertically. Touch is chosen at order: resistive touch for gloved or stylus input, SAW touch for a clear glass surface that responds to a finger, or protection glass alone where the screen only displays information.
Video comes in over one VGA input, with HDMI and DVI inputs as options, so the monitor pairs with kiosk PCs, PLCs and controllers. One USB port serves the touch screen, a five-key OSD panel handles settings, and an optional 3.5 mm audio line-in drives two optional speakers. The R10L600-OFP1TR is the transflective twin at 700 nits, and the R10L600-OFP1 is the standard brightness model in the same 10.4 inch line.
Power is 12 V DC, with a 100 to 240 V AC adapter supplied. The R10L600-OFP1HB is fanless, operates from 0 to 50 °C at 10 to 90% non-condensing humidity and stores from -10 to 60 °C. It measures 260 x 215 x 35 mm and takes panel mounting or 75 x 75 mm VESA mounting. Winmate names industrial visualization, control rooms, equipment monitoring, ATMs, vending machines, casino monitors, airport information displays and mall kiosks.
R10L600-OFP1HB Specifications
| Overview | |
|---|---|
| Brand & Model | Winmate R10L600-OFP1HB |
| Features | Fanless Industrial |
| Display | |
| Display | 10.4"[4:3, 800 x 600, SVGA] |
| Display Treatment | Protective Glass |
| Touch Interface | USB |
| Touch Controller | Optional Resistive Touch Optional Surface Acoustic Wave Touch |
| Brightness | 1,000 Nits |
| 140° Horizontal, 130° Vertical | |
| Aspect Ratio | 4:3 |
| Format | Standard |
| Contrast | 400:1 |
| Number of Display Inputs | 3x Display Ports |
| Video Inputs | 1x DVI Input 1x HDMI Input 1x VGA Input |
| Power | |
| Power Input | 12V DC |
| Environmental Conditions | |
| Thermal Dissipation | Fanless Passively Cooled Chassis |
| Operating Temperature | 0°C to 50°C [32°F to 122°F] |
| Storage Temperature | -10°C to 60°C [14°F to 140°F] |
| Humidity | 10-90% (Non-condensing) |
| Certification | CE FCC |
| Mechanical Properties | |
| Dimensions | 260mm x 215mm x 35mm (10.24" x 8.46" x 1.38") |
- R10L600-OFP1HB Datasheet Download
Official Winmate USA Distributor
Things Embedded is an official Winmate USA distributor, supplying the R10L600-OFP1HB configured for USA kiosk integrators and machine builders. Within the Winmate range the R10L600-OFP1TR is the transflective twin at 700 nits, and the R10L600-OFP1 is the standard brightness model in the same 10.4 inch line.
As a bright built-in display the R10L600-OFP1HB sits among our 10 inch industrial monitors, our open frame displays and our SAW touch monitors. Where a 10.4 inch screen must stay readable in strong light, this is the model to specify.
