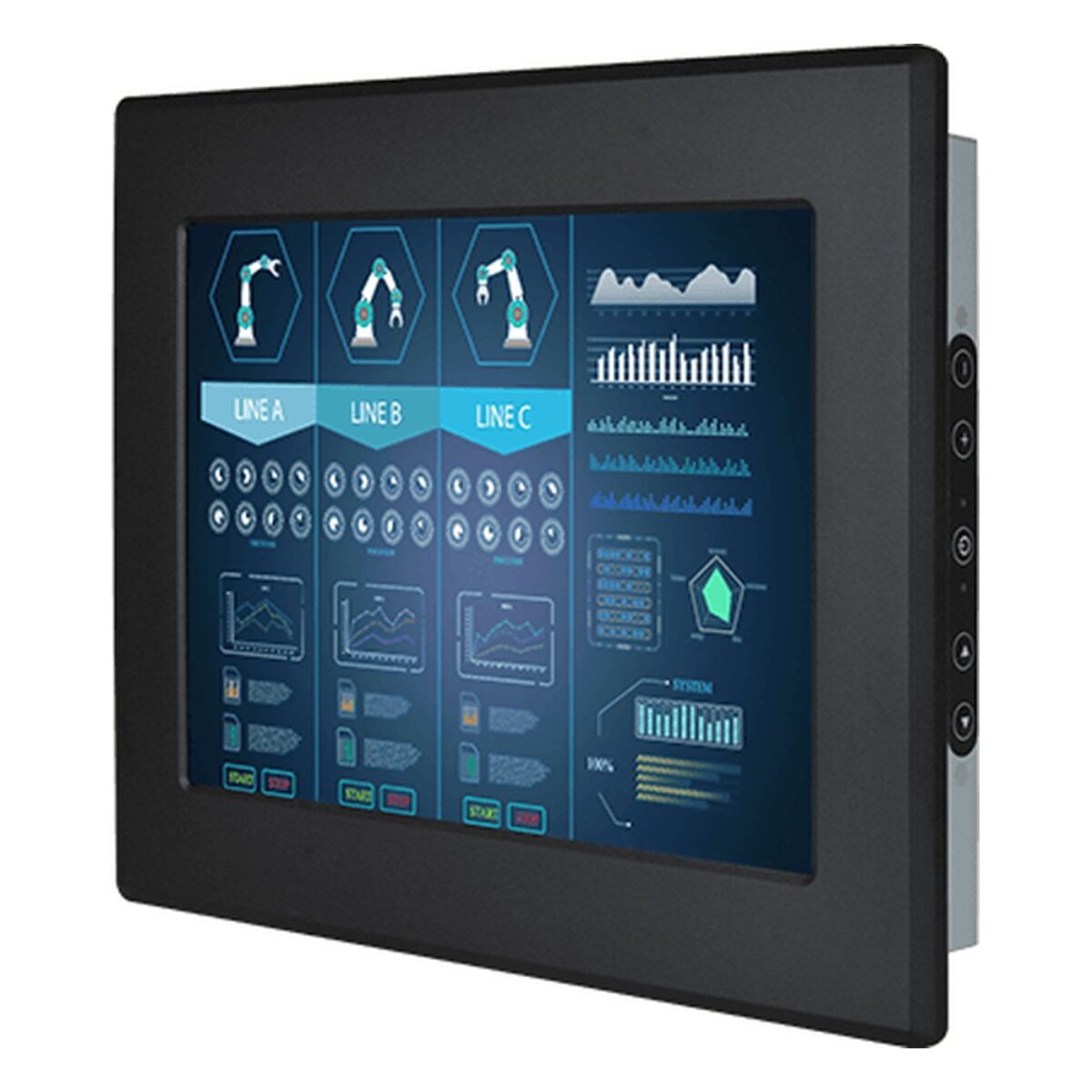

Winmate R10L600-PMP1HB 10.4″ Panel Mount Monitor with 1000 Nit SVGA Display and Resistive Touch

A small operator screen near a roller door or skylight can be unreadable for half the day if the panel is not bright enough. The R10L600-PMP1HB is Winmate’s 10.4 inch panel mount monitor with a 1000 nit high-brightness panel and resistive touch, and it connects to a separate PC in factory automation, kiosks and control rooms.

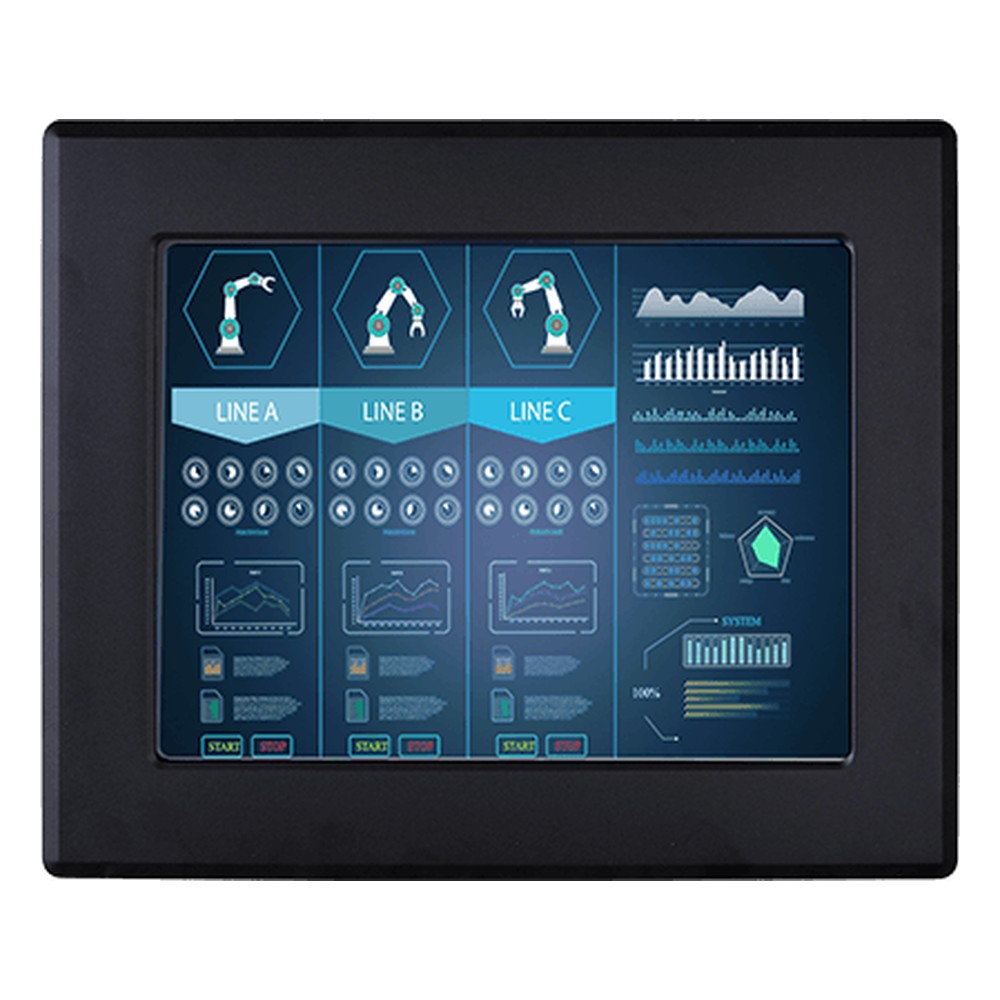

The 10.4″ panel shows 800 x 600 (SVGA) at 1000 nits, with 400:1 contrast and viewing angles of 140 degrees horizontal and 130 degrees vertical. At 1000 nits the panel is bright enough to read in direct sunlight or under strong lighting, which a standard 300 to 500 nit screen can struggle with. Resistive touch is fitted as standard, with SAW touch or protection glass without touch as options. Five keys (minus, plus, power, Esc and Enter) handle the on-screen menu, and a remote controller is optional.

The R10L600-PMP1HB connects to a separate industrial PC or controller over VGA as standard, with HDMI and DVI inputs available as options, and both a VGA and an HDMI cable come in the box. A USB port carries touch data back to the host. An audio line-in and two speakers are optional. Within the Winmate range the R10L600-PMP1 is the same panel mount design with a 600 nit panel for indoor lighting, and the R10L600-RMP1 is the rear mount version.

Power is 12 V DC, with a 24 V DC input listed as an option, and an AC adapter and power cord are supplied. The fanless metal housing with an aluminum bezel runs from 0 to 50 °C at 10 to 90% humidity, non-condensing, and stores from -10 °C to 60 °C. VESA mounting is standard and panel mounting is listed as an option, with VESA screws supplied. It carries CE and FCC marks. We supply the R10L600-PMP1HB configured and tested before dispatch, and we can help pair it with the right host computer.
