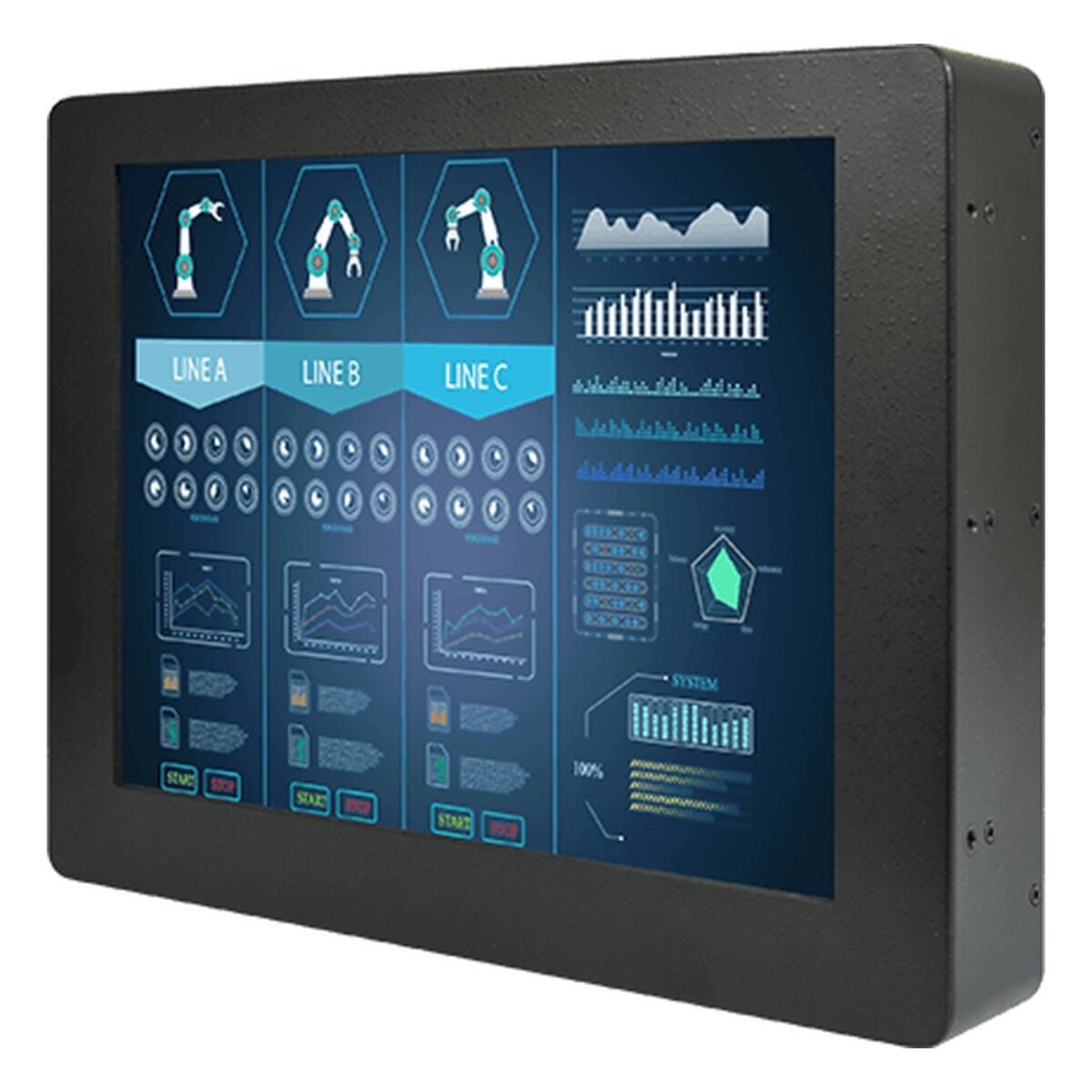

Winmate R12L600-RMM2WT 12.1″ Rear Mount Monitor with Wide Temperature and Resistive Touch

Control panels in unheated buildings, cold stores and outdoor cabinets can drop well below the 0 °C limit of a standard monitor. The R12L600-RMM2WT is Winmate’s 12.1 inch rear mount monitor with a -20 °C to 60 °C operating range, a 500 nit XGA panel and resistive touch, and it connects to a separate PC in control systems, kiosks and industrial sites.

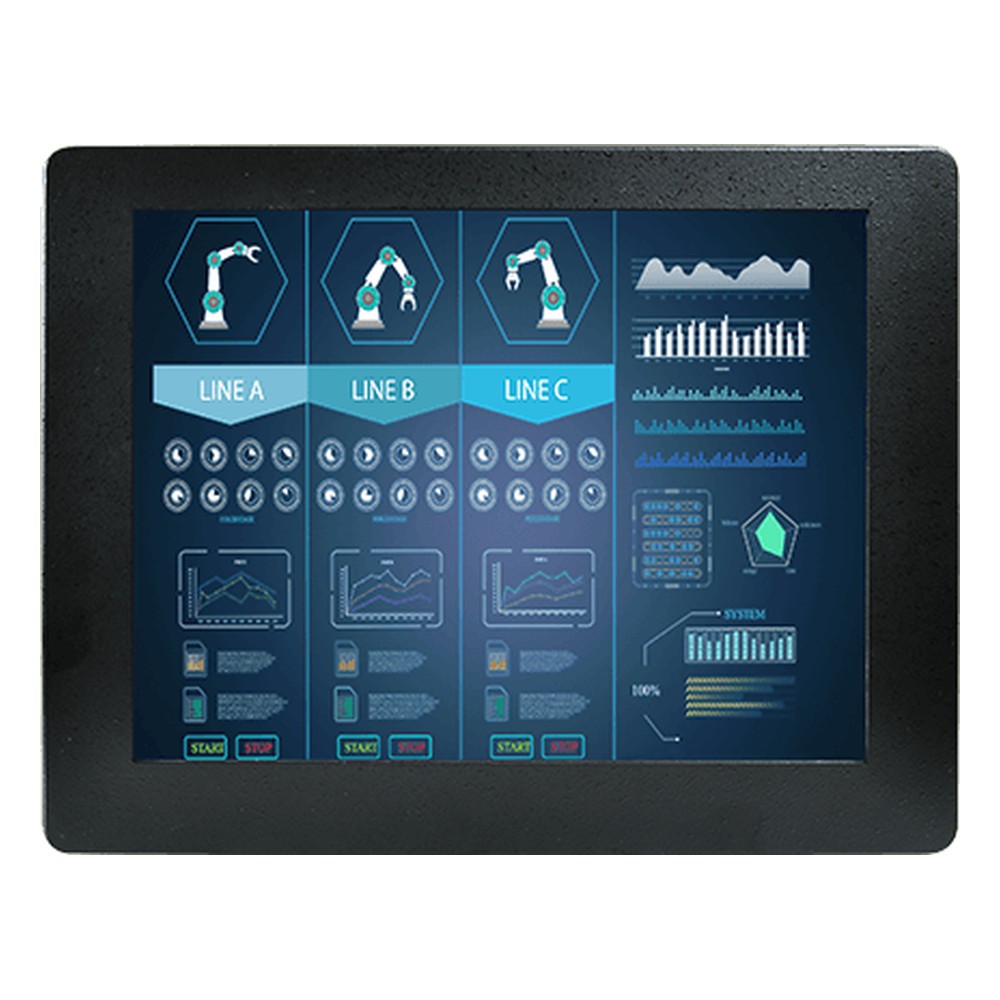

The 12.1″ panel shows 1024 x 768 (XGA) at 500 nits, with 1000:1 contrast and viewing angles of 178 degrees horizontal and 178 degrees vertical. Resistive touch is fitted as standard, with SAW touch or protection glass without touch as options. Five keys (minus, plus, power, Esc and Enter) handle the on-screen menu, and a remote controller is optional.

The R12L600-RMM2WT connects to a separate industrial PC or controller over VGA as standard, with HDMI and DVI inputs available as options, and both a VGA and an HDMI cable come in the box. A USB port carries touch data back to the host. An audio line-in and two speakers are optional. Within the Winmate range the R12L600-RMM2 is the same 12.1″ rear mount design for 0 to 50 °C sites, and the R12L600-IPM2WT is the front IP65 model with a wide temperature range.

Power is 12 V DC, with a 24 V DC input listed as an option, and an AC adapter and power cord are supplied. The fanless metal housing runs from -20 °C to 60 °C at 30 to 90% humidity, non-condensing, and stores from -25 °C to 65 °C. Winmate designs it to mount from the rear, with VESA and panel mounting listed and VESA screws supplied. It carries CE and FCC marks. We supply the R12L600-RMM2WT configured and tested before dispatch, and we can help pair it with the right host computer.
