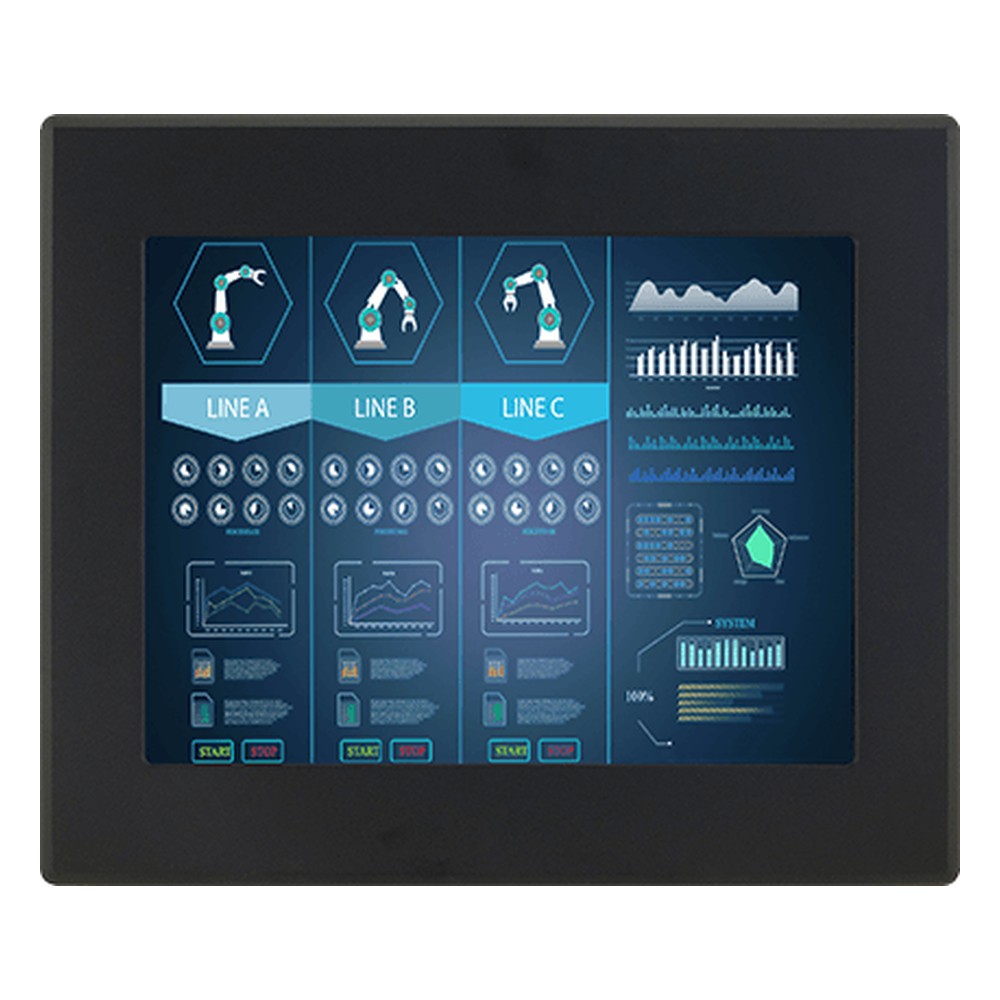

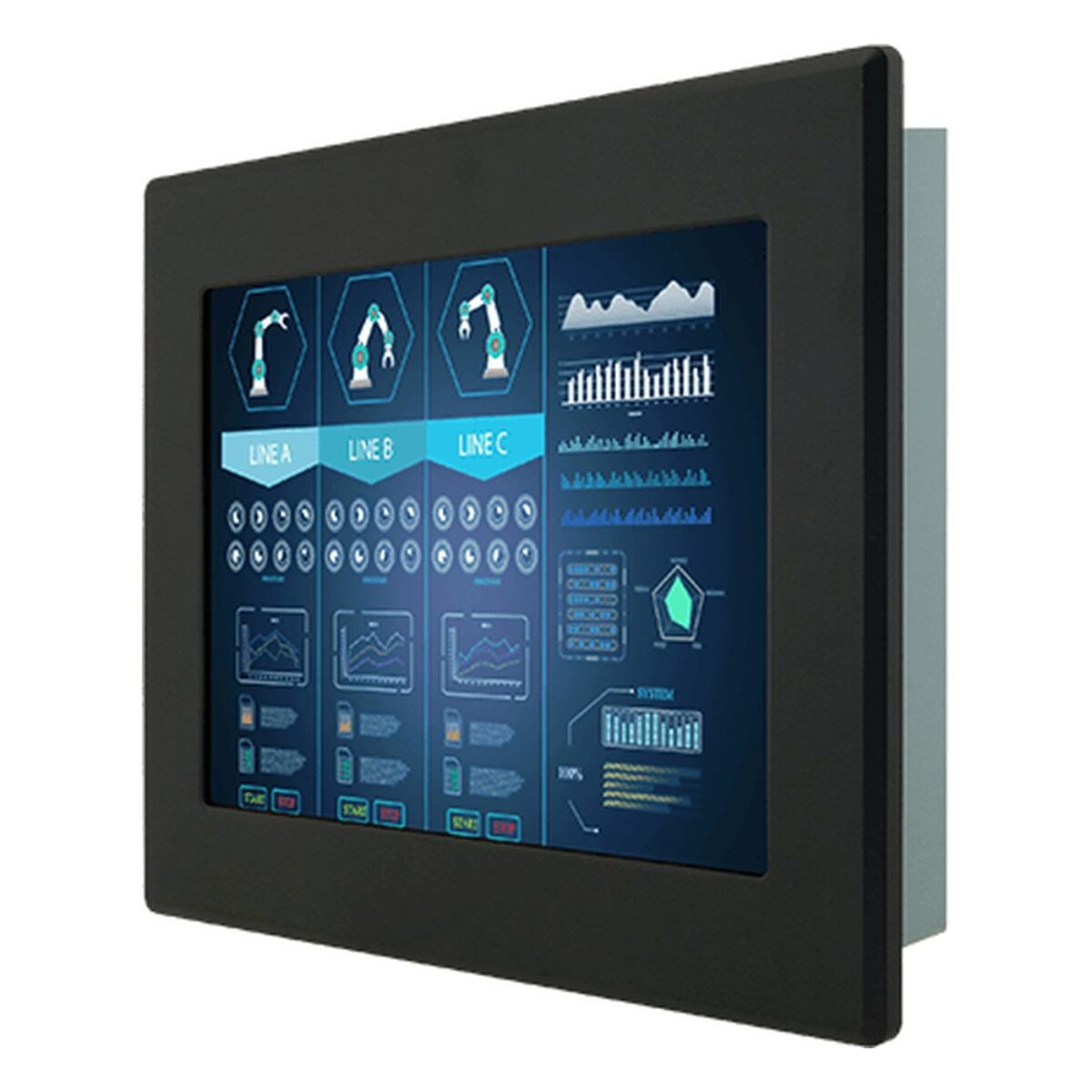

Winmate R12L600-IPM2WT 12.1″ Front IP65 Monitor with Wide Temperature and Resistive Touch

Equipment in cold stores, unheated sheds and outdoor enclosures needs an HMI display rated well beyond office temperatures, and the front still has to seal. The R12L600-IPM2WT is Winmate’s 12.1 inch industrial monitor for that job: an XGA panel, with front IP65 protection against dust and low-pressure water jets in a fanless metal housing with an aluminum bezel. It connects to a separate industrial computer or controller and fits into cabinets, racks and fixtures.

The 12.1″ 1024 x 768 panel runs at 500 nits with 1000:1 contrast and 178 degree viewing angles, and the whole monitor is rated for wide temperatures. The 4:3 format matches many existing HMI and SCADA screen layouts. Resistive touch is fitted as standard, and it works with gloved fingers or a stylus. SAW touch or a plain protection glass without touch can be specified instead.

Video comes in over VGA as standard, with HDMI or DVI inputs as options. Touch connects over a single USB port. Set-up is through a five-key OSD. An audio line-in and two speakers are optional, as is a remote controller. The R12L600-IPM2 is the standard 0 °C to 50 °C version, and the R12IAN3S-IPM2WT is the wide temperature panel PC on the same front, with an Intel N150 inside.

The 12.1 inch monitor is rated IP65 at the front and mounts into a panel cut-out or on VESA. It runs from 12 V DC, with a 24 V DC input as an option, and a 100 to 240 V AC adapter, power cord and VGA and HDMI cables are supplied. It operates from -20 °C to 60 °C at 30 to 90% humidity, non-condensing, and stores from -25 °C to 65 °C, and it carries CE and FCC marks. We supply the R12L600-IPM2WT configured and tested before dispatch, ready to pair with the computer that drives it.
