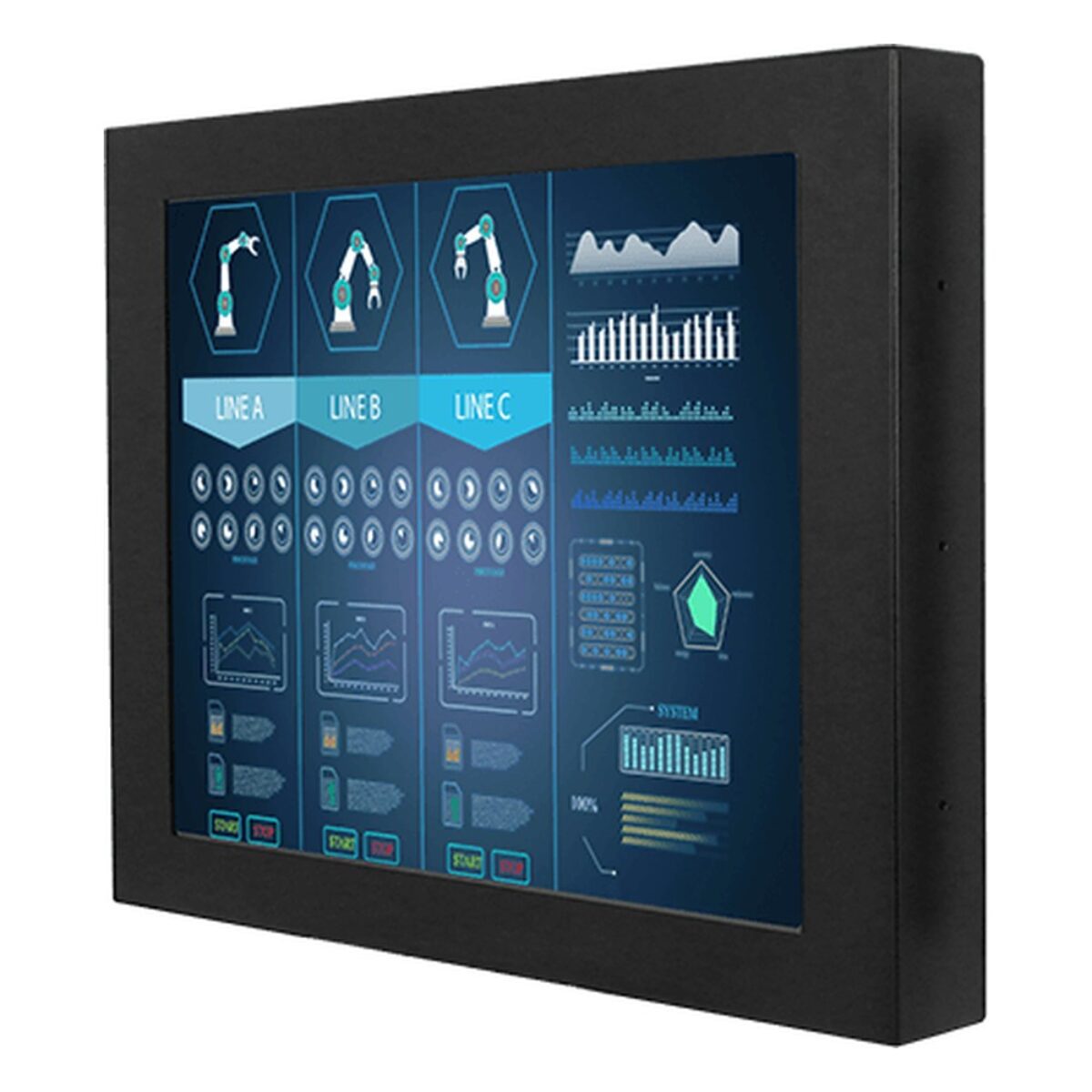

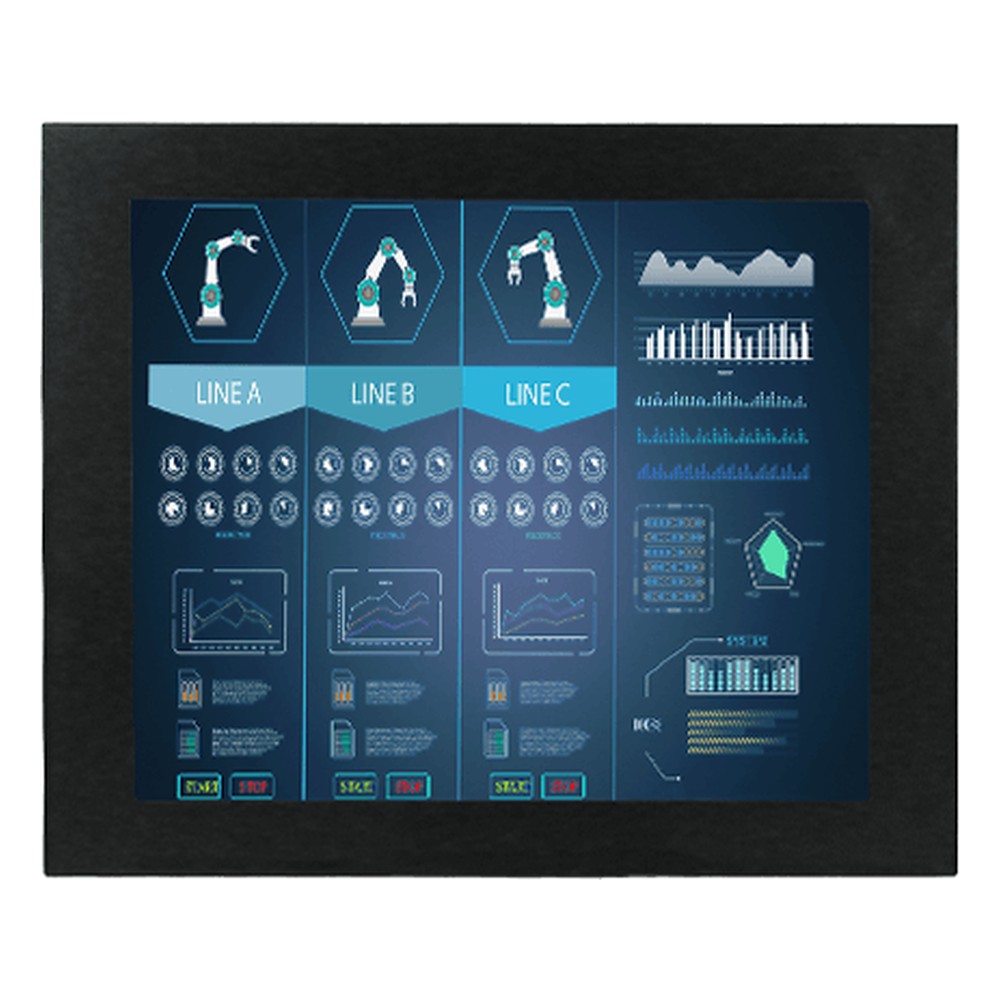

Winmate R19L300-RMM2 19″ Rear Mount Monitor with Resistive Touch and 300 Nits

Operators at a wide control desk often read a screen from well off centre, so contrast and viewing angle matter as much as size. The R19L300-RMM2 is Winmate’s 19 inch rear mount monitor with a 2000:1 SXGA panel, 178 degree viewing and resistive touch, and it connects to a separate PC in control systems, kiosks and industrial sites.

The 19″ panel shows 1280 x 1024 (SXGA) at 300 nits, with 2000:1 contrast and viewing angles of 178 degrees horizontal and 178 degrees vertical. Resistive touch is fitted as standard, with SAW touch or protection glass without touch as options. Five keys (minus, plus, power, Esc and Enter) handle the on-screen menu, and a remote controller is optional.

The R19L300-RMM2 connects to a separate industrial PC or controller over VGA as standard, with HDMI and DVI inputs available as options, and both a VGA and an HDMI cable come in the box. A USB port carries touch data back to the host. An audio line-in and two speakers are optional. Within the Winmate range the R19L300-PMM2 is the panel mount version with the same 2000:1 panel, and the R19L300-RMM1 is the 19″ rear mount model with a 250 nit, 1000:1 panel.

Power is 12 V DC, with a 24 V DC input listed as an option, and an AC adapter and power cord are supplied. The fanless metal housing runs from 0 to 50 °C at 10 to 90% humidity, non-condensing, and stores from -10 °C to 60 °C. Winmate designs it to mount from the rear, with VESA and panel mounting listed and VESA screws supplied. It carries CE and FCC marks. We supply the R19L300-RMM2 configured and tested before dispatch, and we can help pair it with the right host computer.
