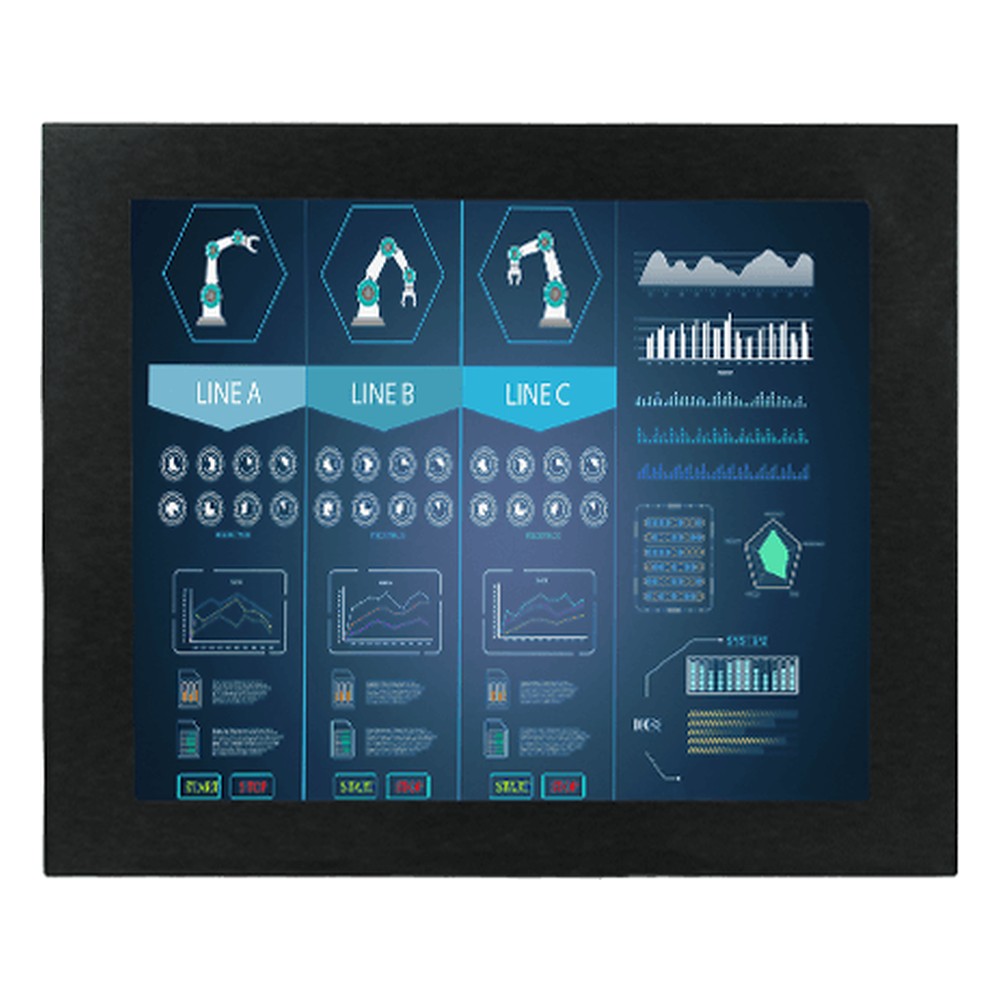

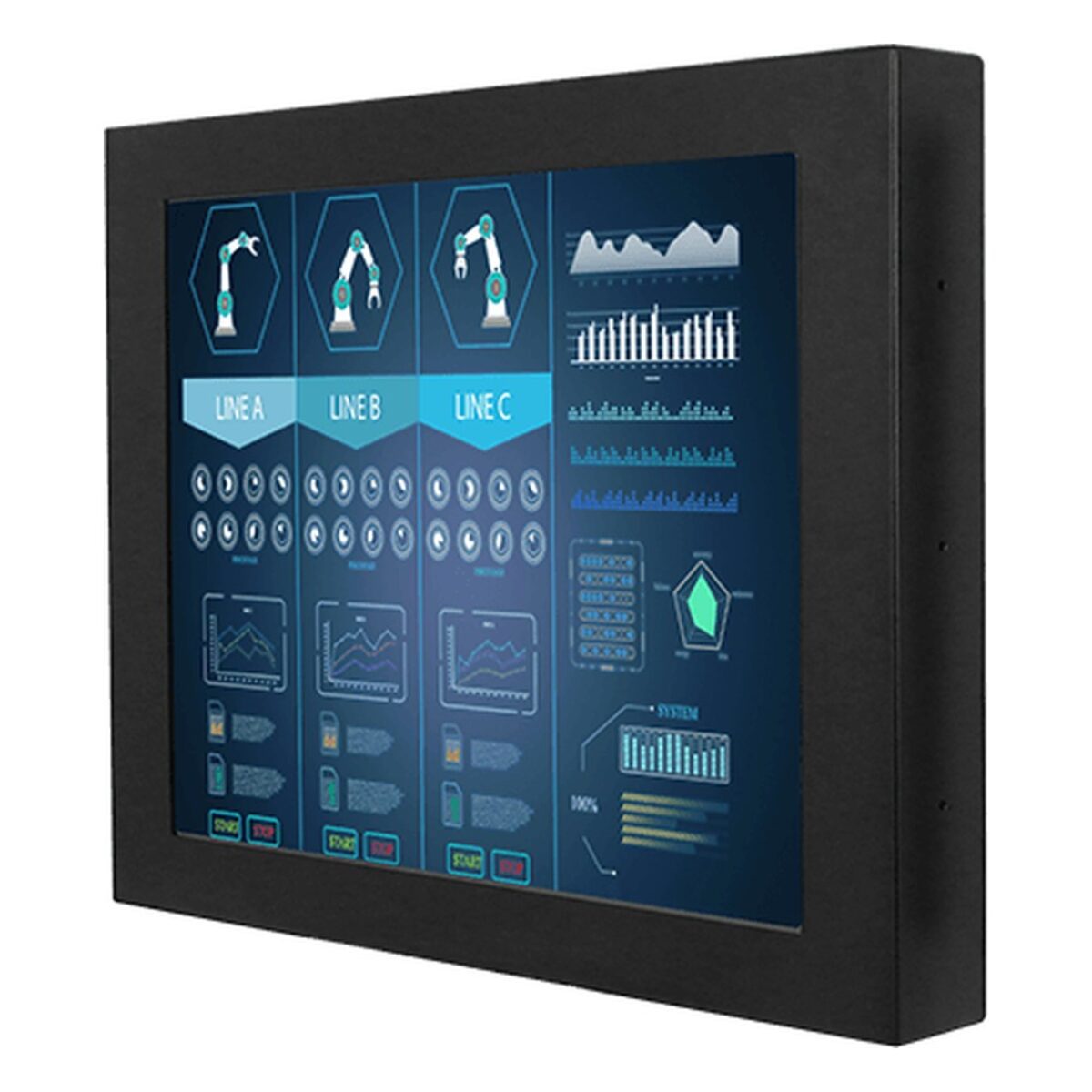

Winmate R19L300-RMM1 19″ Rear Mount Monitor with Resistive Touch and SXGA LCD

Many control desks and machine fronts were built for a 19 inch 5:4 screen, and a rear mount monitor lets the builder keep their own front panel. The R19L300-RMM1 is Winmate’s 19 inch rear mount monitor for that job, with a 250 nit SXGA panel and resistive touch, and it connects to a separate PC in control systems, kiosks and industrial sites.

The 19″ panel shows 1280 x 1024 (SXGA) at 250 nits, with 1000:1 contrast and viewing angles of 170 degrees horizontal and 160 degrees vertical. Resistive touch is fitted as standard, with SAW touch or protection glass without touch as options. Five keys (minus, plus, power, Esc and Enter) handle the on-screen menu, and a remote controller is optional.

The R19L300-RMM1 connects to a separate industrial PC or controller over VGA as standard, with HDMI and DVI inputs available as options, and both a VGA and an HDMI cable come in the box. A USB port carries touch data back to the host. An audio line-in and two speakers are optional. Within the Winmate range the R19L300-RMM2 is the 19″ rear mount version with a 300 nit, 2000:1 contrast panel, and the R19L300-PMM2 is the panel mount model with that panel.

Power is 12 V DC, with a 24 V DC input listed as an option, and an AC adapter and power cord are supplied. The fanless metal housing runs from 0 to 50 °C at 10 to 90% humidity, non-condensing, and stores from -10 °C to 60 °C. Winmate designs it to mount from the rear, with VESA and panel mounting listed and VESA screws supplied. It carries CE and FCC marks. We supply the R19L300-RMM1 configured and tested before dispatch, and we can help pair it with the right host computer.
