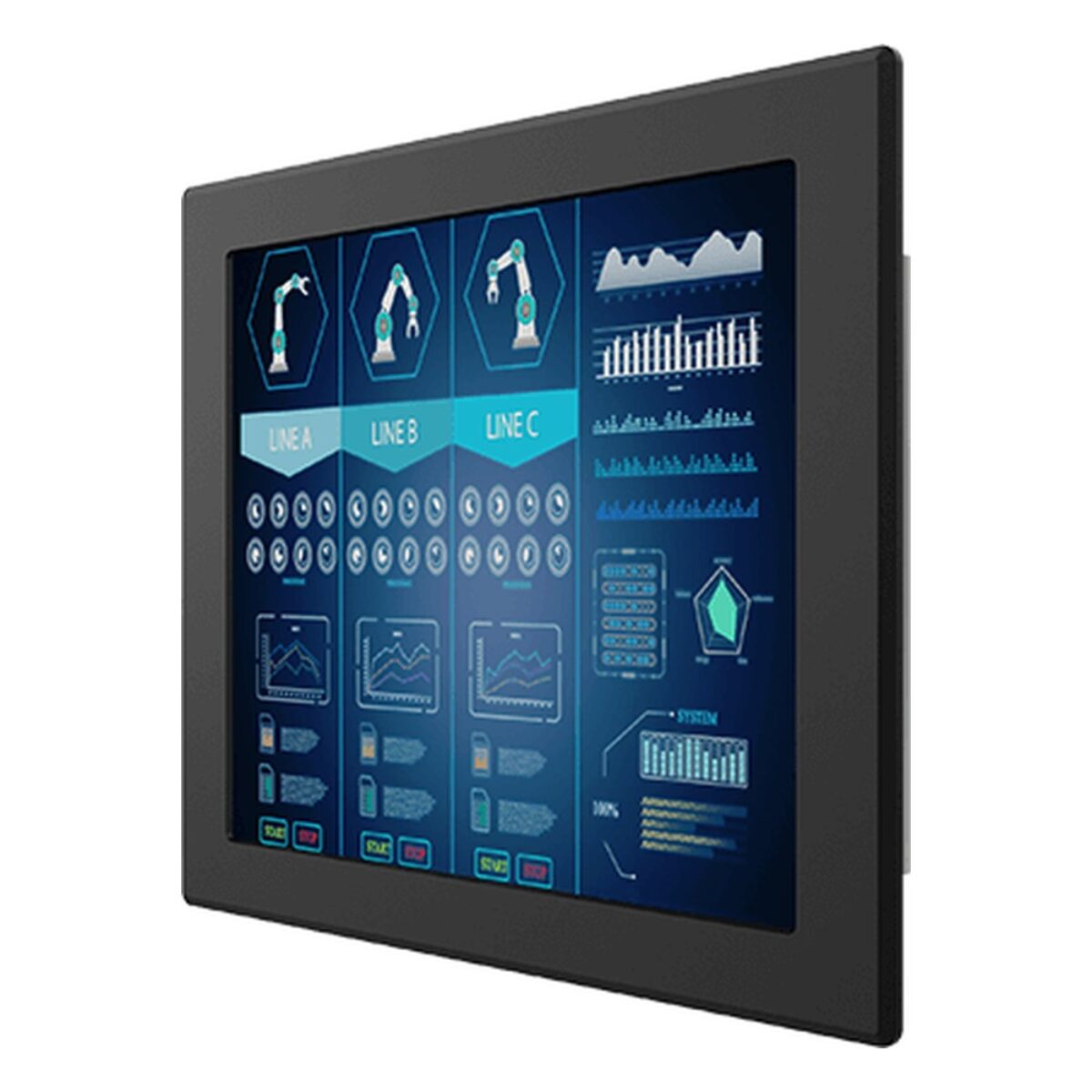

Winmate R19L300-PMM1 19″ Panel Mount Monitor with Resistive Touch and SXGA LCD

Factory automation panels, kiosks and control rooms often need a display fitted into a cabinet door or console, driven by a computer that sits elsewhere. The R19L300-PMM1 is Winmate’s 19 inch panel mount monitor for that kind of install, with a 19″ SXGA panel at 250 nits and optional resistive touch. It connects to the host computer over VGA, with HDMI or DVI as options.

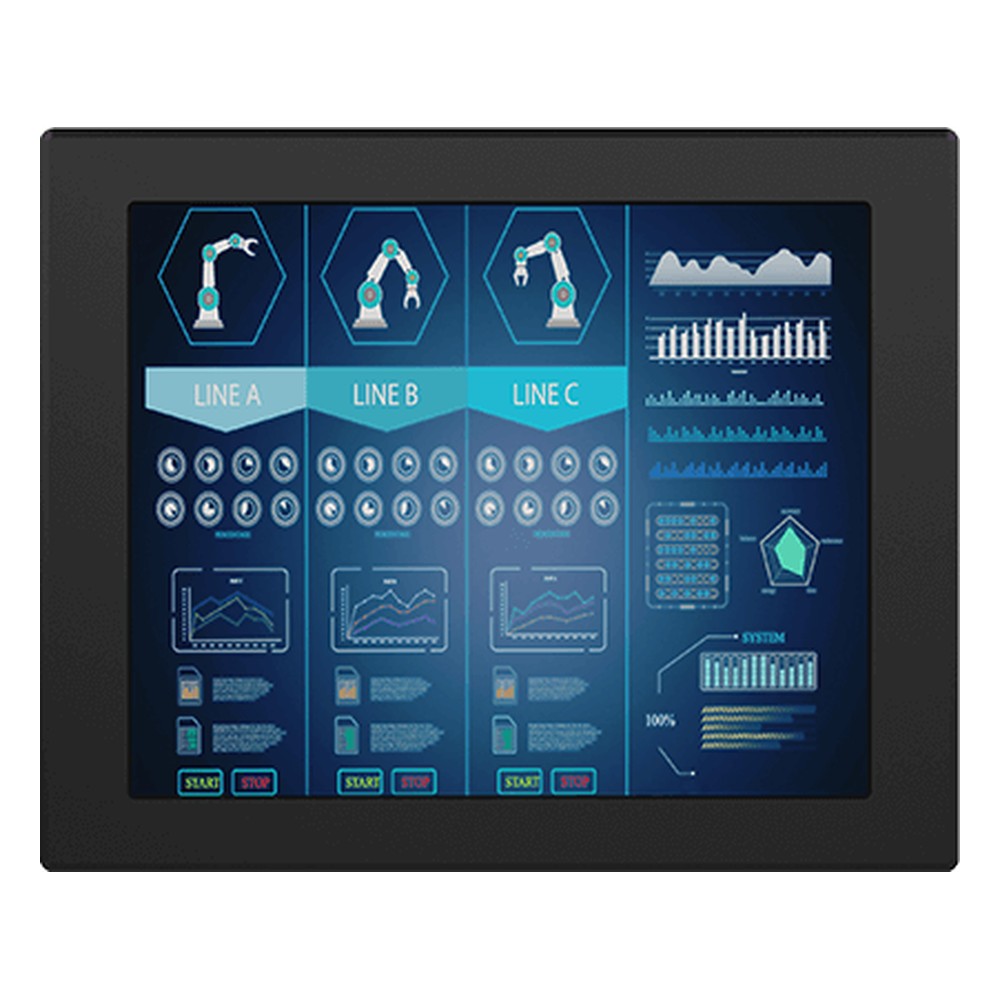

The 19″ SXGA panel runs at 250 nits with 1000:1 contrast, 16.7 million colors and 170 degree horizontal and 160 degree vertical viewing angles, which suits indoor lighting in control rooms and enclosures. Resistive touch is optional, as is protection glass without touch, and one USB port carries the touch signal where touch is fitted.

Video comes in on VGA as standard, with HDMI and DVI inputs as options, so the R19L300-PMM1 pairs with most industrial PCs and box PCs. An audio line in and two speakers are optional, and five keys (power, plus, minus, Esc and Enter) run the on-screen menu. VGA and HDMI cables and a manual come in the box. Within the Winmate range the R19IT7T-PMM1 is the panel PC version with an Intel Core i5-1135G7 built in, and the R19L300-PMA1HB is the high brightness version at 1000 nits.

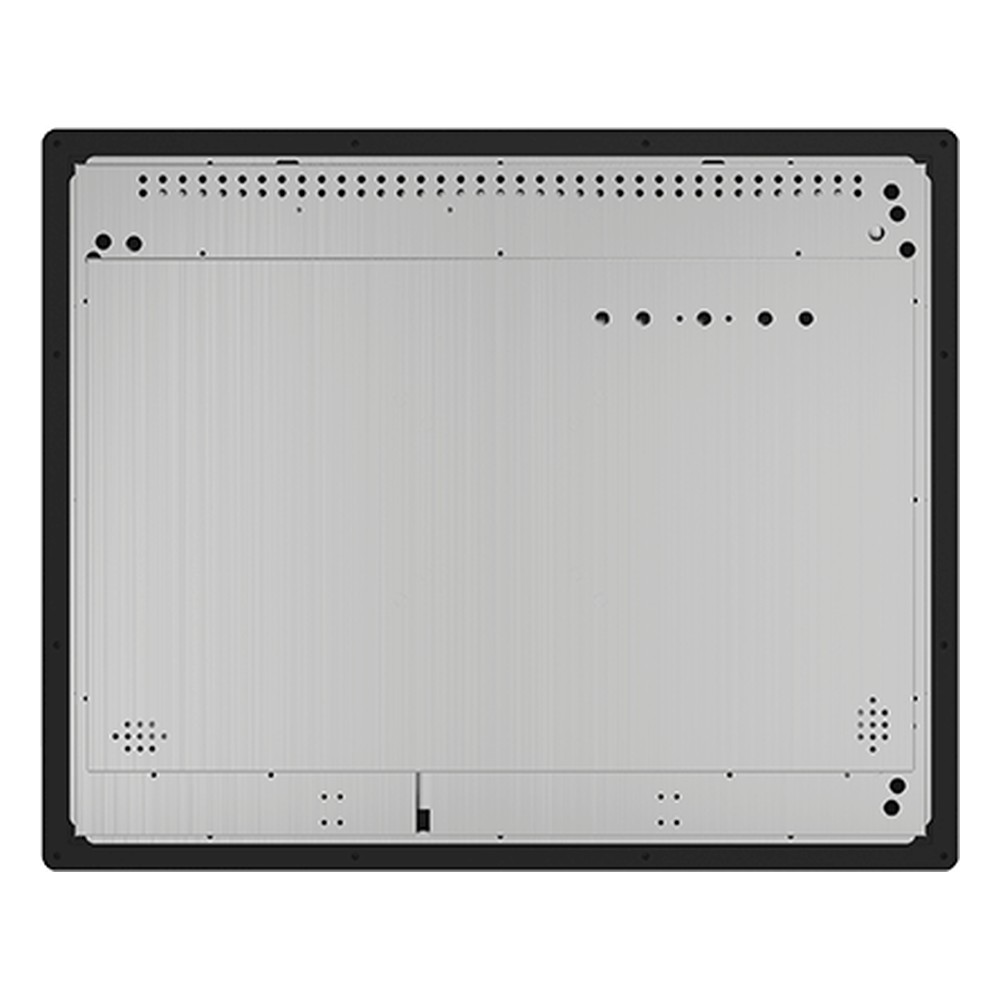

Power is 12 V DC in, with a 24 V DC input as an option, and an AC adapter and power cord are supplied. The fanless metal housing with an aluminum bezel runs from 0 to 50 °C and stores from -10 °C to 60 °C, at 10 to 90% humidity, non-condensing, which suits indoor cabinets and control rooms. VESA mounting is standard and panel mounting is an option, and it carries CE and FCC marks. We supply the R19L300-PMM1 configured and tested before dispatch.
