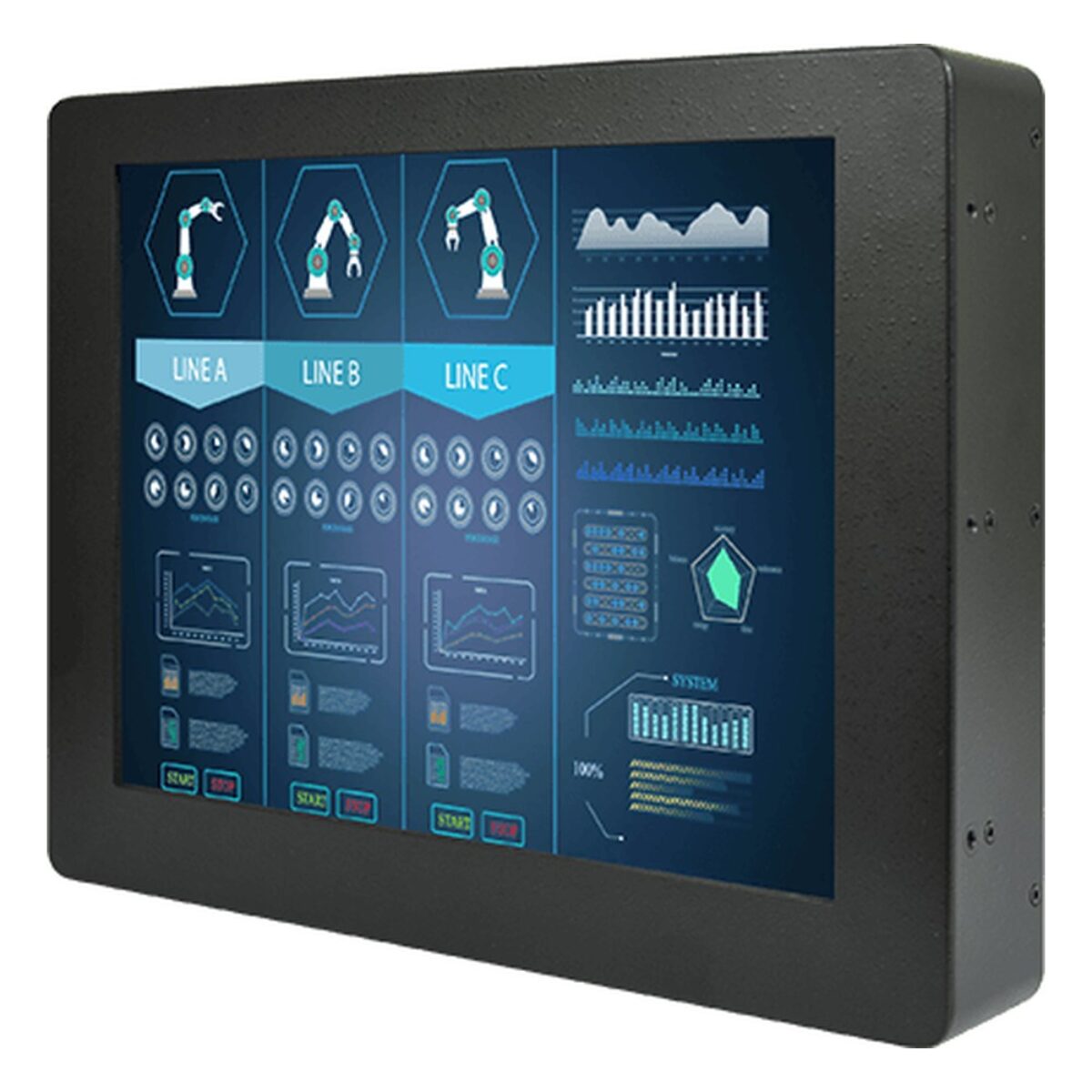

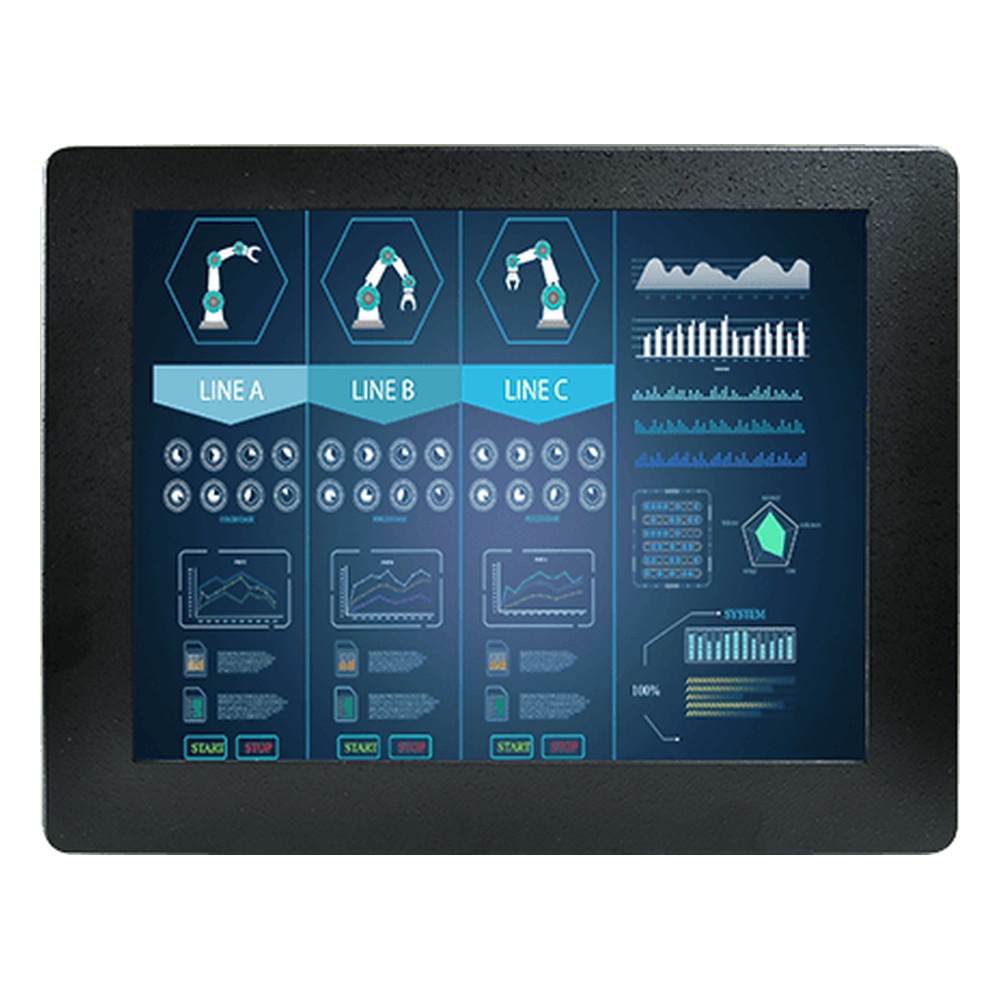

Winmate R12T600-RML1 12.1″ Rear Mount Monitor with Resistive Touch and SVGA LCD

SVGA HMI projects are still common on older machines, and a 12.1 inch screen fitted from behind a custom front plate shows them at a comfortable size. The R12T600-RML1 is Winmate’s 12.1 inch rear mount monitor for that work, with a 450 nit panel and resistive touch, and it connects to a separate PC in control systems, kiosks and industrial sites.

The 12.1″ panel shows 800 x 600 (SVGA) at 450 nits, with 700:1 contrast and viewing angles of 160 degrees horizontal and 140 degrees vertical. Resistive touch is fitted as standard, with SAW touch or protection glass without touch as options. Five keys (minus, plus, power, Esc and Enter) handle the on-screen menu, and a remote controller is optional.

The R12T600-RML1 connects to a separate industrial PC or controller over VGA as standard, with HDMI and DVI inputs available as options, and both a VGA and an HDMI cable come in the box. A USB port carries touch data back to the host. An audio line-in and two speakers are optional. Within the Winmate range the R12T600-PML1 is the panel mount version with the same 450 nit panel, and the R12T600-PML1HB is the 12.1″ panel mount model with a 1000 nit panel.

Power is 12 V DC, with a 24 V DC input listed as an option, and an AC adapter and power cord are supplied. The fanless metal housing runs from 0 to 50 °C at 10 to 90% humidity, non-condensing, and stores from -10 °C to 60 °C. Winmate designs it to mount from the rear, with VESA and panel mounting listed and VESA screws supplied. It carries CE and FCC marks. We supply the R12T600-RML1 configured and tested before dispatch, and we can help pair it with the right host computer.
