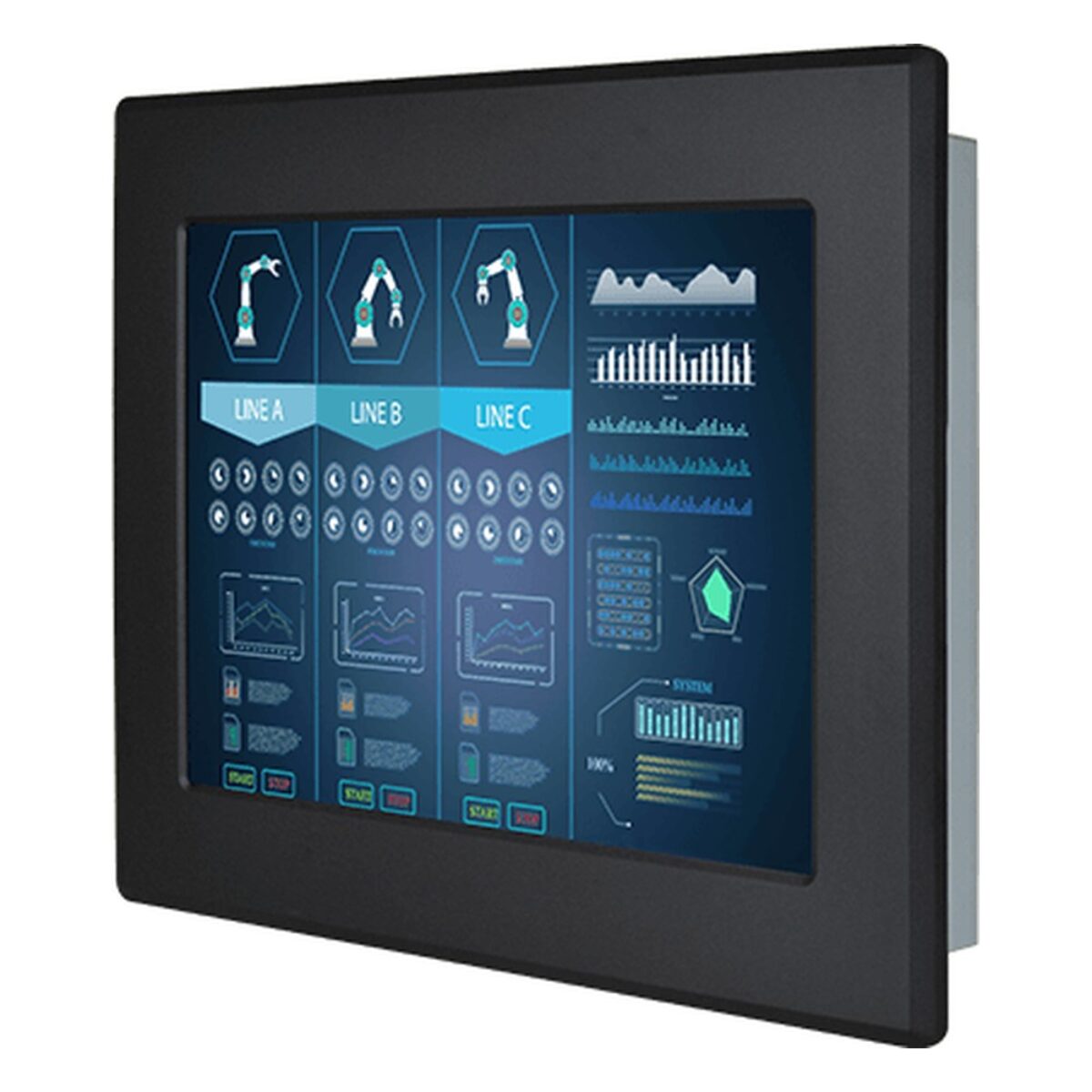

Winmate R12T600-PML1 12.1″ Panel Mount Monitor with Resistive Touch and SVGA LCD
Resistive
Fanless
CE
FCCR12T600-PML1 Overview
Older HMI projects written for 800 x 600 are still common, and a 12.1 inch SVGA screen shows them at a size operators can press with a gloved finger. The R12T600-PML1 is Winmate’s 12.1 inch panel mount monitor for that work, with a 450 nit panel and resistive touch, and it connects to a separate PC in factory automation, kiosks and control rooms.
The 12.1″ panel shows 800 x 600 (SVGA) at 450 nits, with 700:1 contrast and viewing angles of 160 degrees horizontal and 140 degrees vertical. Resistive touch is fitted as standard, with SAW touch or protection glass without touch as options. Five keys (minus, plus, power, Esc and Enter) handle the on-screen menu, and a remote controller is optional.
The R12T600-PML1 connects to a separate industrial PC or controller over VGA as standard, with HDMI and DVI inputs available as options, and both a VGA and an HDMI cable come in the box. A USB port carries touch data back to the host. An audio line-in and two speakers are optional. Within the Winmate range the R12T600-PML1HB is the same panel mount design with a 1000 nit panel for bright areas, and the R12T600-RML1 is the rear mount version.
Power is 12 V DC, with a 24 V DC input listed as an option, and an AC adapter and power cord are supplied. The fanless metal housing with an aluminum bezel runs from 0 to 50 °C at 10 to 90% humidity, non-condensing, and stores from -10 °C to 60 °C. Mounting is VESA or panel mount, with VESA screws supplied. It carries CE and FCC marks. We supply the R12T600-PML1 configured and tested before dispatch, and we can help pair it with the right host computer.
R12T600-PML1 Specifications
| Overview | |
|---|---|
| Brand & Model | Winmate R12T600-PML1 |
| Features | Fanless Industrial |
| Display | |
| Display | 12.1"[4:3, 800 x 600, SVGA] |
| Display Treatment | Protective Glass |
| Touch Interface | USB |
| Touch Controller | Optional Surface Acoustic Wave Touch Resistive Touch |
| Brightness | 450 Nits |
| Viewing Angle | Wide Viewing Angle |
| 160° Horizontal, 140° Vertical | |
| Aspect Ratio | 4:3 |
| Format | Standard |
| Contrast | 700:1 |
| Number of Display Inputs | 3x Display Ports |
| Video Inputs | 1x Optional DVI Input 1x Optional HDMI Input 1x VGA Input |
| Power | |
| Power Input | 12V DC AC Power Supply Included |
| Environmental Conditions | |
| Thermal Dissipation | Fanless Passively Cooled Chassis |
| Operating Temperature | 0°C to 50°C [32°F to 122°F] |
| Storage Temperature | -10°C to 60°C [14°F to 140°F] |
| Humidity | 10-90% (Non-condensing) |
| Certification | CE FCC |
| Mechanical Properties | |
| Weight | 2.3 Kg (5.1 Lbs) |
| Dimensions | 324mm x 274mm x 43mm (12.76" x 10.79" x 1.69") |
- R12T600-PML1 Datasheet Download
Official Winmate USA Distributor
Things Embedded is an official Winmate USA distributor, supplying the R12T600-PML1 configured and tested for USA machine building and factory automation projects. Within the Winmate range the R12T600-PML1HB is the 1000 nit high-brightness version of this monitor, and the R12T600-OFL1 is the open frame model with a 450 nit SVGA panel.
The R12T600-PML1 sits among our 12 inch industrial monitors, our panel mount monitors and our resistive touch monitors. Where an SVGA HMI needs a larger screen in an existing panel, this is a sensible model to shortlist.
