Giada EN-J6412DL Intel Celeron J6412 (Elkhart Lake) 3.5″ Single Board Computer with 12 to 24 V DC Input and Dual GbE

Digital signage, information kiosks and line-side displays often need three screens, local storage for content and a mobile link where there is no wired network. The EN-J6412DL is a Giada 3.5″ single board computer built for that mix, on the Intel Celeron J6412 from Intel’s Elkhart Lake family, measuring 146 x 102 mm.

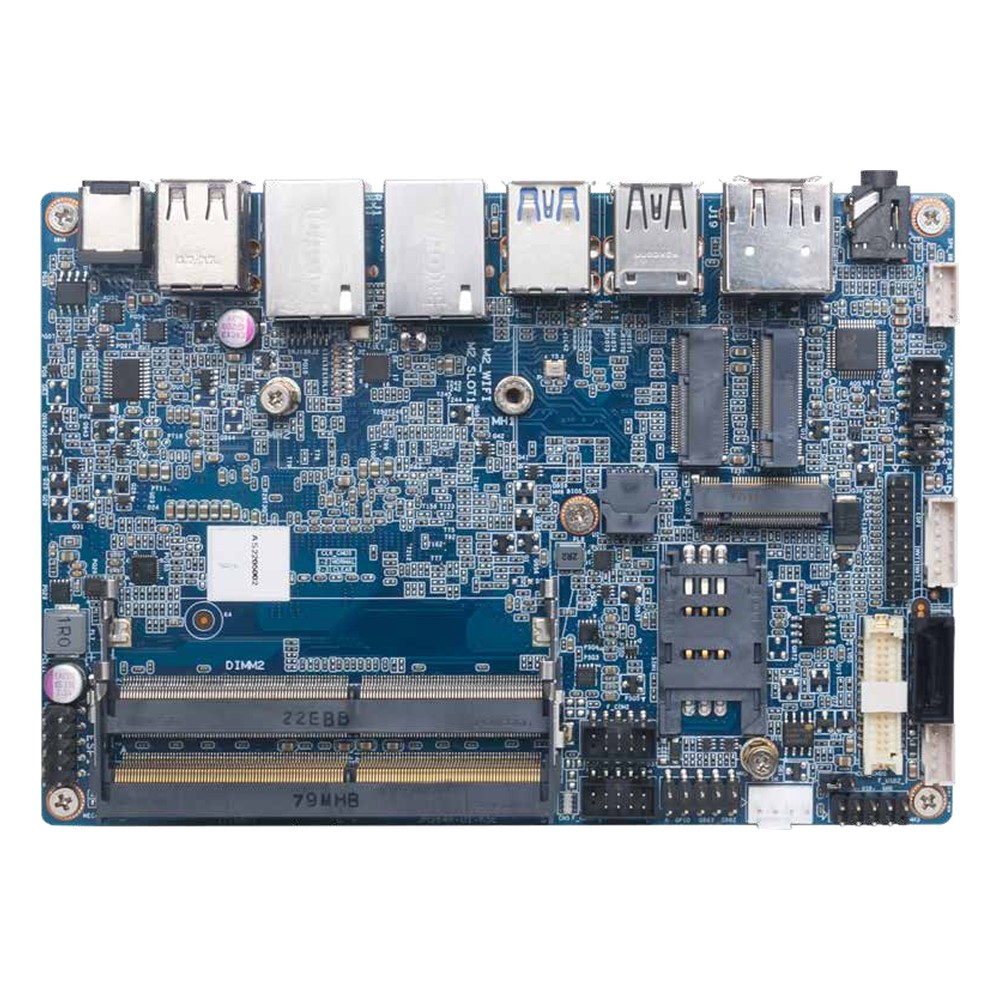

The Celeron J6412 has four cores and four threads at a 10 W TDP. Two DDR4 SO-DIMM sockets take up to 32 GB at 3200 MHz, enough for a browser-based player or an HMI with a local database. Storage is flexible: an M.2 M-key 2280 socket for an NVMe SSD and a SATA III port for a 2.5″ drive, with onboard eMMC listed as an option. Intel UHD Graphics drives HDMI and DisplayPort at up to 4096 x 2304 at 60 Hz and dual-channel 24-bit LVDS at up to 1920 x 1200, all three at once. Windows 10, Windows 11 and Ubuntu Linux are supported.

Two GbE ports on Realtek RTL8111H controllers separate the content network from a local device network. Three USB 3.2 Gen 2 and three USB 2.0 Type-A ports sit on the edge, with two more USB 2.0 ports on a header for a touch controller. An RS-232 header and an RS-232/422/485 header connect printers, readers and controllers, and four inputs and four outputs of GPIO handle buttons and relays. Three M.2 sockets cover expansion: the M-key for storage, an E-key 2230 for Wi-Fi 6 and Bluetooth, and a B-key 3042 with a SIM slot for 4G. A rear headset jack, an optional TPM 2.0 and a watchdog timer complete the list.

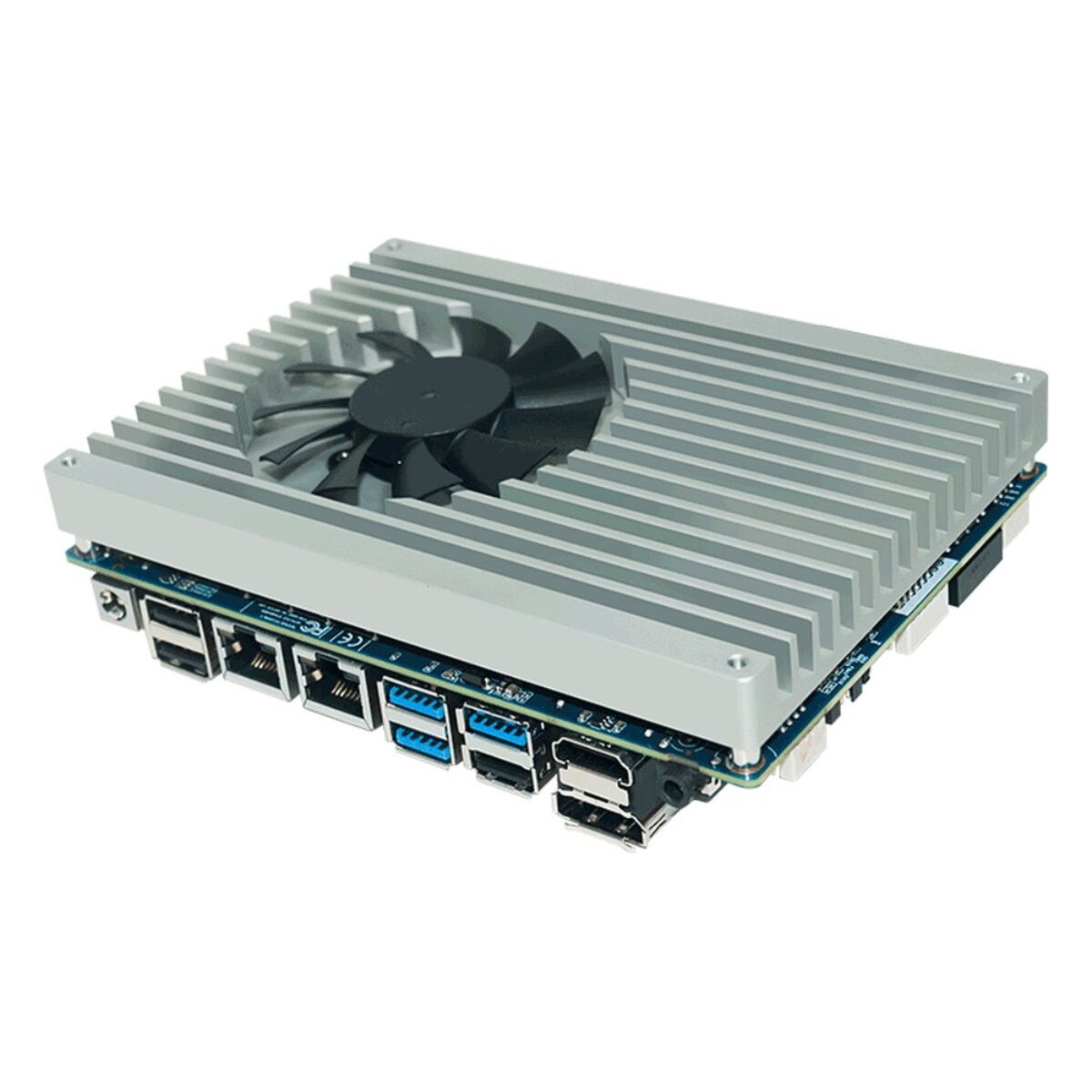

The EN-J6412DL runs from 12 to 24 V DC through a DC jack, with auto power-on after a supply interruption. It uses an active smart-fan cooler and operates from 0 to 60 °C with 0.7 m/s of airflow, which suits indoor signage housings, kiosks and control cabinets.
