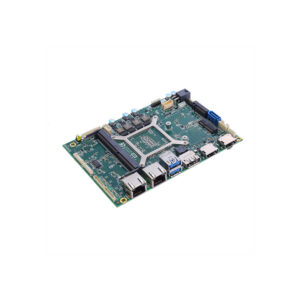

AMD Ryzen SBCs : R1000, V1000, R2000, V2000 Embedded CPU

Performance

Graphics

I/O

Expansion

Storage

Environmental Conditions

Displaying of 6 items

View All

Nexcom

AMD Ryzen V1605B Mini ITX Motherboard with Quad Display

V1000

AMD Ryzen V1605B Mini ITX Motherboard with Quad Display

View V1000 V1000 Datasheet

V1000

AMD Ryzen V1605B Mini ITX Motherboard with Quad Display

CPU: V-Series
Memory: 2x DDR4 2400MHz SO-DIMM Slots, 32GB
OS: Linux
Display Outputs: 4x HDMI
Ethernet: 2 x GbE LAN [RJ45]
USB: 2 x USB 2.0 [Board], 4 x USB 3.1 Gen 1 [Type A]
Serial: 1 x RS232/422/485 [Board], 3 x RS232 [Board]
M.2: 1x M.2 E-Key [USB/PCIe] [2230], 1x M.2 M-Key [PCIe x1/SATA] [2242/2280]
PCIe: 1x PCIe [x8 Slot][Gen3]
Storage: 1x M.2 SSD, 1x SATA Port
Power: 12V DC [4-Pin]
Temp: -5°C to 60°C [23°F to 147°F]
Certification: CE, FCC, UKCA

DFI

AMD Ryzen 3.5″ Single Board Computer with LVDS

GH551

AMD Ryzen 3.5″ Single Board Computer with LVDS

Available in 10 variations

View GH551-BC1-R2312 GH551 Datasheet

View GH551-BC1-R2314 GH551 Datasheet

View GH551-BC1-R2514 GH551 Datasheet

View GH551-EC1-R1606G GH551 Datasheet

View GH551-EC1-V1605B GH551 Datasheet

View GH551-BC1-R1505G GH551 Datasheet

View GH551-BC1-R1606G GH551 Datasheet

View GH551-EC1-V1404I GH551 Datasheet

View GH551-BC1-V1202B GH551 Datasheet

View GH551-BC1-V1605B GH551 Datasheet

GH551

Available in 10 variations

CPU: R-Series
Memory: 1x DDR4 3200MHz SO-DIMM Slot, 16GB
OS: Linux, Windows 10
Display Outputs: 1x LVDS, 2x Display Port
Ethernet: 3 x GbE LAN [RJ45]
USB: 1 x USB 2.0 [Board], 1 x USB 2.0 [Type A], 2 x USB 3.1 Gen 1 [Type A]
Serial: 1 x RS232/422/485 [Board]
M.2: 1x M.2 M-Key [PCIe x4] [2242/2280]
mPCIe: 1 x mPCIe [PCIe/USB]
Storage: 1x M.2 SSD, 1x SATA Port
Power: 12V DC [4-Pin]
Temp: -5°C to 65°C [23°F to 149°F]
Certification: CE, FCC, RoHS

CPU: R-Series
Memory: 1x DDR4 3200MHz SO-DIMM Slot, 16GB
OS: Linux, Windows 10
Display Outputs: 1x LVDS, 3x Display Port
Ethernet: 3 x GbE LAN [RJ45]
USB: 1 x USB 2.0 [Board], 1 x USB 2.0 [Type A], 2 x USB 3.1 Gen 1 [Type A]
Serial: 1 x RS232/422/485 [Board]
M.2: 1x M.2 M-Key [PCIe x4] [2242/2280]
mPCIe: 1 x mPCIe [PCIe/USB]
Storage: 1x M.2 SSD, 1x SATA Port
Power: 12V DC [4-Pin]
Temp: -5°C to 65°C [23°F to 149°F]
Certification: CE, FCC, RoHS

CPU: R-Series
Memory: 1x DDR4 3200MHz SO-DIMM Slot, 16GB
OS: Linux, Windows 10
Display Outputs: 4x Display Ports
Ethernet: 3 x GbE LAN [RJ45]
USB: 1 x USB 2.0 [Board], 1 x USB 2.0 [Type A], 2 x USB 3.1 Gen 1 [Type A]
Serial: 1 x RS232/422/485 [Board]
M.2: 1x M.2 M-Key [PCIe x4] [2242/2280]
mPCIe: 1 x mPCIe [PCIe/USB]
Storage: 1x M.2 SSD, 1x SATA Port
Power: 12V DC [4-Pin]
Temp: -5°C to 65°C [23°F to 149°F]
Certification: CE, FCC, RoHS

CPU: R-Series
Memory: 1x DDR4 3200MHz SO-DIMM Slot, 16GB
OS: Linux, Windows 10
Display Outputs: 3x Display Port
Ethernet: 3 x GbE LAN [RJ45]
USB: 1 x USB 2.0 [Board], 1 x USB 2.0 [Type A], 2 x USB 3.1 Gen 1 [Type A]
Serial: 1 x RS232/422/485 [Board]
M.2: 1x M.2 M-Key [PCIe x4] [2242/2280]
mPCIe: 1 x mPCIe [PCIe/USB]
Storage: 1x M.2 SSD, 1x SATA Port
Power: 12V DC [4-Pin]
Temp: -30°C to 80°C [-22°F to 176°F]
Certification: CE, FCC, RoHS

CPU: V-Series
Memory: 1x DDR4 3200MHz SO-DIMM Slot, 16GB
OS: Linux, Windows 10
Display Outputs: 4x Display Ports
Ethernet: 3 x GbE LAN [RJ45]
USB: 1 x USB 2.0 [Board], 1 x USB 2.0 [Type A], 2 x USB 3.1 Gen 1 [Type A]
Serial: 1 x RS232/422/485 [Board]
M.2: 1x M.2 M-Key [PCIe x4] [2242/2280]
mPCIe: 1 x mPCIe [PCIe/USB]
Storage: 1x M.2 SSD, 1x SATA Port
Power: 12V DC [4-Pin]
Temp: -30°C to 80°C [-22°F to 176°F]
Certification: CE, FCC, RoHS

CPU: R-Series
Memory: 1x DDR4 3200MHz SO-DIMM Slot, 16GB
OS: Linux, Windows 10
Display Outputs: 1x LVDS, 2x Display Port
Ethernet: 3 x GbE LAN [RJ45]
USB: 1 x USB 2.0 [Board], 1 x USB 2.0 [Type A], 2 x USB 3.1 Gen 1 [Type A]
Serial: 1 x RS232/422/485 [Board]
M.2: 1x M.2 M-Key [PCIe x4] [2242/2280]
mPCIe: 1 x mPCIe [PCIe/USB]
Storage: 1x M.2 SSD, 1x SATA Port
Power: 12V DC [4-Pin]
Temp: -5°C to 65°C [23°F to 149°F]
Certification: CE, FCC, RoHS

CPU: R-Series
Memory: 1x DDR4 3200MHz SO-DIMM Slot, 16GB
OS: Linux, Windows 10
Display Outputs: 3x Display Port
Ethernet: 3 x GbE LAN [RJ45]
USB: 1 x USB 2.0 [Board], 1 x USB 2.0 [Type A], 2 x USB 3.1 Gen 1 [Type A]
Serial: 1 x RS232/422/485 [Board]
M.2: 1x M.2 M-Key [PCIe x4] [2242/2280]
mPCIe: 1 x mPCIe [PCIe/USB]
Storage: 1x M.2 SSD, 1x SATA Port
Power: 12V DC [4-Pin]
Temp: -5°C to 65°C [23°F to 149°F]
Certification: CE, FCC, RoHS

CPU: V-Series
Memory: 1x DDR4 3200MHz SO-DIMM Slot, 16GB
OS: Linux, Windows 10
Display Outputs: 4x Display Ports
Ethernet: 3 x GbE LAN [RJ45]
USB: 1 x USB 2.0 [Board], 1 x USB 2.0 [Type A], 2 x USB 3.1 Gen 1 [Type A]
Serial: 1 x RS232/422/485 [Board]
M.2: 1x M.2 M-Key [PCIe x4] [2242/2280]
mPCIe: 1 x mPCIe [PCIe/USB]
Storage: 1x M.2 SSD, 1x SATA Port
Power: 12V DC [4-Pin]
Temp: -30°C to 80°C [-22°F to 176°F]
Certification: CE, FCC, RoHS

CPU: V-Series
Memory: 1x DDR4 3200MHz SO-DIMM Slot, 16GB
OS: Linux, Windows 10
Display Outputs: 1x LVDS, 3x Display Port
Ethernet: 3 x GbE LAN [RJ45]
USB: 1 x USB 2.0 [Board], 1 x USB 2.0 [Type A], 2 x USB 3.1 Gen 1 [Type A]
Serial: 1 x RS232/422/485 [Board]
M.2: 1x M.2 M-Key [PCIe x4] [2242/2280]
mPCIe: 1 x mPCIe [PCIe/USB]
Storage: 1x M.2 SSD, 1x SATA Port
Power: 12V DC [4-Pin]
Temp: -5°C to 65°C [23°F to 149°F]
Certification: CE, FCC, RoHS

CPU: V-Series
Memory: 1x DDR4 3200MHz SO-DIMM Slot, 16GB
OS: Linux, Windows 10
Display Outputs: 4x Display Ports
Ethernet: 3 x GbE LAN [RJ45]
USB: 1 x USB 2.0 [Board], 1 x USB 2.0 [Type A], 2 x USB 3.1 Gen 1 [Type A]
Serial: 1 x RS232/422/485 [Board]
M.2: 1x M.2 M-Key [PCIe x4] [2242/2280]
mPCIe: 1 x mPCIe [PCIe/USB]
Storage: 1x M.2 SSD, 1x SATA Port
Power: 12V DC [4-Pin]
Temp: -5°C to 65°C [23°F to 149°F]
Certification: CE, FCC, RoHS

C&T Solution

3.5″ AMD Ryzen Biscuit SBC with R1606G CPU

CT-DR101

3.5″ AMD Ryzen Biscuit SBC with R1606G CPU

Available in 2 variations

View CT-DR101-R1606G CT-DR101 Datasheet

CT-DR101

Available in 2 variations

CPU: R-Series
Memory: 2x DDR4 2400MHz SO-DIMM Slots, 32GB
OS: Linux, Windows 10
Display Outputs: 1x Display Port, 1x HDMI, 1x LVDS
Ethernet: 2 x GbE LAN [RJ45]
USB: 2 x USB 2.0 [Type A], 2 x USB 3.2 Gen 2 [Type A]
Serial: 2 x RS232/422/485 [Board]
M.2: 1x M.2 B-Key [SATA] [3042]
mPCIe: 1 x mPCIe [PCIe/USB]
Storage: 1x M.2 SSD, 1x SATA Port
Power: 12V DC [4-Pin]
Temp: -40°C to 75°C [-40°F to 167°F]
Certification: CE, FCC

C&T Solution

1.8″ Femto ITX AMD Ryzen Single Board Computer with R1606G CPU

CT-NR101

1.8″ Femto ITX AMD Ryzen Single Board Computer with R1606G CPU

View CT-NR101-R1606G CT-NR101 Datasheet

CT-NR101

1.8" Femto ITX AMD Ryzen Single Board Computer with R1606G CPU

CPU: R-Series
Memory: 1x DDR4 2400MHz SO-DIMM Slot, 8GB
OS: Linux, Windows 10
Display Outputs: 2x HDMI
Ethernet: 1 x GbE LAN [RJ45]
USB: 1 x USB 2.0 [Board], 1 x USB 3.1 Gen 1 [Type-C]
mPCIe: 1 x mPCIe [PCIe/USB]
Storage: 64GB eMMC
Power: 12V DC [Terminal Block]
Temp: 0°C to 60°C [32°F to 147°F]
Certification: CE, FCC

ASRock Industrial

AMD 7000U 4×4 Motherboard with 7735U CPU

4X4 7000/D5 Motherboard Series

AMD 7000U 4×4 Motherboard with 7735U CPU

Available in 2 variations

View 4X4-7735U/D5

4X4 7000/D5 Motherboard Series

Available in 2 variations

CPU: Ryzen 7
Memory: 2x DDR5 4800MHz SO-DIMM Slot, 64GB
OS: Windows 10, Windows 11
Display Outputs: 1x Display Port, 1x HDMI, 2x USB Type C
Ethernet: 1 x 2.5 GbE LAN [RJ45], 1 x GbE LAN [RJ45]
USB: 1 x USB 3.2 Gen 2 [Type A], 2 x USB 2.0 [Type A], 2 x USB 4 [Type C]
M.2: 1x M.2 E-Key [PCIe x1/USB 2.0] [2230], 1x M.2 M-Key [PCIe x4] [2242/2260/2280]
Storage: 1x M.2 SSD, 1x SATA Port
Power: 12-19V DC [Barrel Connector], Optional AC Power Supply
Temp: 0°C to 60°C [32°F to 147°F]
Certification: CE, FCC
