HDMI Video Capture Cards

Loading...

Video Capture

Displaying of 71 items
View All

UB575G HDMI2.1 HDR HID+

USB3 8K60 HDMI2.1 HDR UVC Capture with Loop and HID+ Control

  • Host: USB3.0
  • Simultaneous Video Inputs: 1
  • Video Input: 1x HDMI2.1
  • Max Input Resolution: 4K120 [4096×2160p @ 120/100fps], 8K60 [7680×4320p @ 60/50fps]
  • Video Output: 1x HDMI2.1
  • Max Video Capture Resolution: 4K30 [3840×2160p @ 30/25fps]
  • Color Formats: I420, NV12, P010, YUY2

UB570G PRO HDMI2.0 HDR HID+

USB3 HDR HDMI2.0 4K60 UVC Card with HDMI2.0 Output and HID+

  • Host: USB3.0
  • Simultaneous Video Inputs: 1
  • Video Input: 1x HDMI2.0
  • Max Input Resolution: 4K60 [4096×2160p @ 60/50fps]
  • Video Output: 1x HDMI2.0
  • Max Video Capture Resolution: 4K60 [4096x2160p @ 60/50/30/25/24fps]
  • Color Formats: I420, NV12, P010, YUY2

UB575G HDMI2.0 HDR HID+

USB3 HDR HDMI2.0 4K60 UVC Capture with Loop Through and HID+

  • Host: USB3.0
  • Simultaneous Video Inputs: 1
  • Video Input: 1x HDMI2.0
  • Max Input Resolution: 4K60 [3840×2160p @ 60/50fps]
  • Video Output: 1x HDMI2.0
  • Max Video Capture Resolution: 4K30 [3840×2160p @ 30/25fps]
  • Color Formats: NV12, P010, YUY2

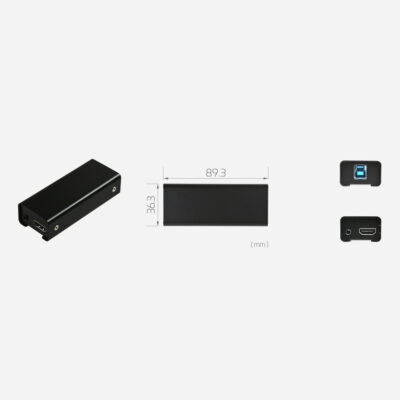

PD570 PRO HDMI2.0 HDR

USB3 HDMI.20 4K60 Type C UVC Capture Dongle

  • Host: USB3.0
  • Simultaneous Video Inputs: 1
  • Video Input: 1x HDMI2.0
  • Max Input Resolution: 4K60 [4096×2160p @ 60/50fps]
  • Max Video Capture Resolution: 4K60 [4096x2160p @ 60/50/30/25/24fps]
  • Color Formats: I420, NV12, P010, YUY2

PD575 HDMI2.0 HDR

USB3 HDMI2.0 4K30 Type C UVC Capture Card

  • Host: USB3.0
  • Simultaneous Video Inputs: 1
  • Video Input: 1x HDMI2.0
  • Max Input Resolution: 4K60 [3840×2160p @ 60/50fps]
  • Max Video Capture Resolution: 4K30 [3840×2160p @ 30/25fps]
  • Color Formats: NV12, P010, YUY2

UB570 Pro SDI+HDMI

USB3 SDI+HDMI UXGA/HD60 Video Capture Dongle

  • Host: USB3.0
  • Simultaneous Video Inputs: 1
  • Video Input: 1x HDMI, 1x SDI
  • Max Input Resolution: HD60 [1920x1080p @ 60/50fps], UXGA60 [1920x1200 @ 60/50fps]
  • Max Video Capture Resolution: HD60 [1920x1080p @ 60/50fps], UXGA60 [1920x1200 @ 60/50/30/25/24fps]
  • Color Formats: YUY2

UB570 PRO AIO

USB3 1080P60 SDI+AIO Frame Grabber

  • Host: USB3.0
  • Simultaneous Video Inputs: 1
  • Video Input: 1x Composite, 1x DVI-I, 1x HDMI, 1x S-Video, 1x SDI, 1x YPbPr
  • Max Input Resolution: HD60 [1920x1080p @ 60/50fps], UXGA60 [1920x1200 @ 60/50fps]
  • Max Video Capture Resolution: HD60 [1920x1080p @ 60/50fps], UXGA60 [1920x1200 @ 60/50/30/25/24fps]
  • Color Formats: YUY2

UB570G PRO HDMI

USB3 HDMI Frame Grabber with Loop Through

  • Host: USB3.0
  • Simultaneous Video Inputs: 1
  • Video Input: 1x HDMI
  • Max Input Resolution: HD60 [1920x1080p @ 60/50fps], UXGA60 [1920x1200 @ 60/50fps]
  • Video Output: 1x HDMI
  • Max Video Capture Resolution: HD60 [1920x1080p @ 60/50fps], UXGA60 [1920x1200 @ 60/50/30/25/24fps]
  • Color Formats: YUY2

Yuan

UB575 AIO

USB3 SDI+AIO 1080P60 Capture Device
View UB575 AIO

UB575 AIO

USB3 SDI+AIO 1080P60 Capture Device

  • Host: USB3.0
  • Simultaneous Video Inputs: 1
  • Video Input: 1x Composite, 1x DVI-I, 1x HDMI, 1x S-Video, 1x SDI, 1x YPbPr
  • Max Input Resolution: HD60 [1920x1080p @ 60/50fps], UXGA60 [1920x1200 @ 60/50fps]
  • Max Video Capture Resolution: HD60 [1920x1080p @ 60/50fps], UXGA60 [1920x1200 @ 60/50/30/25/24fps]
  • Color Formats: NV12, YUY2

SC720N4 HDMI2.0

PCIe 4-ch 10-Bit 4K60 HDMI2.0 Frame Grabber

  • Host: PCIe [x8, Gen2]
  • Simultaneous Video Inputs: 4
  • Video Input: 4x HDMI2.0
  • Max Input Resolution: 4K60 [4096×2160p @ 60/50fps]
  • Max Video Capture Resolution: 4K60 [4096x2160p @ 60/50/30/25/24fps]
  • Color Formats: NV12 4:2:0 8Bit, P010 4:2:0 10Bit, RGB24 4:4:4 8Bit, RGB32 4:4:4 8Bit, YUY2 4:2:2 8Bit, YV12 4:2:0 8Bit

SC710N2-L HDMI2.0

PCIe 2-ch 4K60 10-Bit HDM2.0 Video Capture Card

  • Host: PCIe [x4, Gen2]
  • Simultaneous Video Inputs: 2
  • Video Input: 2x HDMI2.0
  • Max Input Resolution: 4K60 [4096×2160p @ 60/50fps]
  • Max Video Capture Resolution: 4K60 [4096x2160p @ 60/50/30/25/24fps]
  • Color Formats: NV12 4:2:0 8Bit, P010 4:2:0 10Bit, RGB24 4:4:4 8Bit, RGB32 4:4:4 8Bit, YUY2 4:2:2 8Bit, YV12 4:2:0 8Bit

SC710N1-L 12G-SDI+HDMI2.0

PCIe 10-Bit HDR 4K60 12G-SDI/HDMI2.0 Frame Grabber

  • Host: PCIe [x4, Gen2]
  • Simultaneous Video Inputs: 1
  • Video Input: 1x 12G-SDI, 1x HDMI2.0
  • Max Input Resolution: 4K60 [4096×2160p @ 60/50fps]
  • Max Video Capture Resolution: 4K60 [4096x2160p @ 60/50/30/25/24fps]
  • Color Formats: NV12 4:2:0 8Bit, P010 4:2:0 10Bit, RGB24 4:4:4 8Bit, RGB32 4:4:4 8Bit, YUY2 4:2:2 8Bit, YV12 4:2:0 8Bit

Yuan

SC710N1-L HDMI2.0

PCIe 4:4:4 10-Bit HDR HDMI2.0 4K60 Frame Grabber with Loop Through

SC710N1-L HDMI2.0

PCIe 4:4:4 10-Bit HDR HDMI2.0 4K60 Frame Grabber with Loop Through

  • Host: PCIe [x4, Gen2]
  • Simultaneous Video Inputs: 1
  • Video Input: 1x HDMI2.0
  • Max Input Resolution: 4K60 [4096×2160p @ 60/50fps]
  • Video Output: 1x HDMI2.0
  • Max Video Capture Resolution: 4K60 [4096x2160p @ 60/50/30/25/24fps]
  • Color Formats: NV12 4:2:0 8Bit, P010 4:2:0 10Bit, RGB24 4:4:4 8Bit, RGB32 4:4:4 8Bit, YUY2 4:2:2 8Bit, YV12 4:2:0 8Bit

Yuan

SC710N1 HDV

PCIe 10-Bit HDR 4K60 HDMI2.0/DVI-DL/DP1.2 Capture Card
View SC710N1 HDV

SC710N1 HDV

PCIe 10-Bit HDR 4K60 HDMI2.0/DVI-DL/DP1.2 Capture Card

  • Host: PCIe [x4, Gen2]
  • Simultaneous Video Inputs: 1
  • Video Input: 1x DP, 1x DVI-D, 1x HDMI2.0
  • Max Input Resolution: 4K60 [4096×2160p @ 60/50fps]
  • Max Video Capture Resolution: 4K60 [4096x2160p @ 60/50/30/25/24fps]
  • Color Formats: NV12 4:2:0 8Bit, P010 4:2:0 10Bit, RGB24 4:4:4 8Bit, RGB32 4:4:4 8Bit, YUY2 4:2:2 8Bit, YV12 4:2:0 8Bit

Yuan

SC410N4 HDMI

PCIe 4-ch 10-Bit 4K30 HDMI Frame Grabber
View SC410N4 HDMI

SC410N4 HDMI

PCIe 4-ch 10-Bit 4K30 HDMI Frame Grabber

  • Host: PCIe [x4, Gen2]
  • Simultaneous Video Inputs: 4
  • Video Input: 4x HDMI
  • Max Input Resolution: 4K30 [4096x2160p @ 30/25fps]
  • Max Video Capture Resolution: 4K30 [4096x2160p @ 30/25fps]
  • Color Formats: NV12 4:2:0 8Bit, P010 4:2:0 10Bit, RGB24 4:4:4 8Bit, RGB32 4:4:4 8Bit, YUY2 4:2:2 8Bit, YV12 4:2:0 8Bit
Displaying of 71 items

Need Help Choosing HDMI Video Capture Cards?

Tell us about your application and a member of the team will get right back to you.
