COM Express SBCs

Our range of COM Express SBCs (Single Board Computers) are engineered with x86 technology, specifically tailored to meet the demanding requirements of industrial and military environments. These computer-on-module based SBCs deliver the following key features and advantages:

Shock & Vibration Resistant

Rugged Designs

Built for extreme conditions, our COM Express boards support wide temperature tolerance (-40 to +85ºC) and conduction cooling utilising bottom-mounted heat spreaders. They are constructed with thicker PCBs and secure latching I/O connectors, ensuring resilience in high-shock and vibration settings.

COM Express

COM-Based Flexibility

Our COM-based SBCs offer quick and easy upgrades, addressing potential obsolescence by allowing the CPU module to be replaced with newer or higher-performance options as needed.

DAQ

Integrated DAQ

Several of our COM Express SBCs incorporate a comprehensive data acquisition system with precision analog I/O and digital I/O. The analog I/O includes autocalibration for enhanced accuracy. These features are supported by our Universal Driver programming library for C language, which includes a wide range of example programs to accelerate development time.

Browse Our COM Express Single Board Computers

Performance

Graphics

I/O

Expansion

Storage

Environmental Conditions

Displaying of 4 items

View All

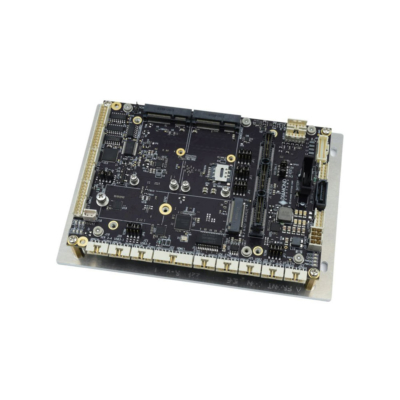

JASPER Rugged 3.5″ COM Express SBC with Latching Connectors

Diamond Systems

Rugged 3.5″ COM Express SBC with Latching Connectors

JASPER

Rugged 3.5″ COM Express SBC with Latching Connectors

Available in 5 variations

View JSP-BB01D JASPER Datasheet

View JSP-1185G7E-64G-03A JASPER Datasheet

View JSP-1185G7E-64G-02D JASPER Datasheet

View JSP-BB03A JASPER Datasheet

View JSP-BB02D JASPER Datasheet

JASPER

Available in 5 variations

Memory: 2x DDR4 3200MHz SO-DIMM Slots, 64GB
OS: Linux, Windows 10
Display Outputs: 2x HDMI, 2x LVDS
Ethernet: 2 x GbE LAN [Board]
USB: 2 x USB 2.0 [Board], 2 x USB 3.1 Gen 1 [Board]
Serial: 4 x RS232/422/485 [Board]
M.2: 1x M.2 E-Key [PCIe x1/USB 2.0] [2230], 1x M.2 M-Key [PCIe x4/SATA] [2280]
mPCIe: 2 x mPCIe [SATA/USB/PCIe]
Storage: 1x M.2 SSD, 2x mSATA
Power: 12V DC, 18-36V DC [Terminal Block]
Temp: -40°C to 85°C [-40°F to 185°F]
Certification: CE, FCC

CPU: 11th Gen Tiger Lake
Memory: 2x DDR4 3200MHz SO-DIMM Slots, 64GB
OS: Linux, Windows 10
Display Outputs: 2x HDMI, 2x LVDS
Ethernet: 2 x GbE LAN [Board]
USB: 2 x USB 2.0 [Board], 2 x USB 3.1 Gen 1 [Board]
Serial: 4 x RS232/422/485 [Board]
M.2: 1x M.2 E-Key [PCIe x1/USB 2.0] [2230], 1x M.2 M-Key [PCIe x4/SATA] [2280]
mPCIe: 2 x mPCIe [SATA/USB/PCIe]
Storage: 1x M.2 SSD, 2x mSATA
Power: 12V DC, 18-36V DC [Terminal Block]
Temp: -40°C to 85°C [-40°F to 185°F]
Certification: CE, FCC

CPU: 11th Gen Tiger Lake
Memory: 2x DDR4 3200MHz SO-DIMM Slots, 64GB
OS: Linux, Windows 10
Display Outputs: 2x HDMI, 2x LVDS
Ethernet: 2 x GbE LAN [Board]
USB: 2 x USB 2.0 [Board], 2 x USB 3.1 Gen 1 [Board]
Serial: 4 x RS232/422/485 [Board]
M.2: 1x M.2 E-Key [PCIe x1/USB 2.0] [2230], 1x M.2 M-Key [PCIe x4/SATA] [2280]
mPCIe: 2 x mPCIe [SATA/USB/PCIe]
Storage: 1x M.2 SSD, 2x mSATA
Power: 12V DC, 18-36V DC [Terminal Block]
Temp: -40°C to 85°C [-40°F to 185°F]
Certification: CE, FCC

Memory: 2x DDR4 3200MHz SO-DIMM Slots, 64GB
OS: Linux, Windows 10
Display Outputs: 2x HDMI, 2x LVDS
Ethernet: 2 x GbE LAN [Board]
USB: 2 x USB 2.0 [Board], 2 x USB 3.1 Gen 1 [Board]
Serial: 4 x RS232/422/485 [Board]
M.2: 1x M.2 E-Key [PCIe x1/USB 2.0] [2230], 1x M.2 M-Key [PCIe x4/SATA] [2280]
mPCIe: 2 x mPCIe [SATA/USB/PCIe]
Storage: 1x M.2 SSD, 2x mSATA
Power: 12V DC, 18-36V DC [Terminal Block]
Temp: -40°C to 85°C [-40°F to 185°F]
Certification: CE, FCC

Memory: 2x DDR4 3200MHz SO-DIMM Slots, 64GB
OS: Linux, Windows 10
Display Outputs: 2x HDMI, 2x LVDS
Ethernet: 2 x GbE LAN [Board]
USB: 2 x USB 2.0 [Board], 2 x USB 3.1 Gen 1 [Board]
Serial: 4 x RS232/422/485 [Board]
M.2: 1x M.2 E-Key [PCIe x1/USB 2.0] [2230], 1x M.2 M-Key [PCIe x4/SATA] [2280]
mPCIe: 2 x mPCIe [SATA/USB/PCIe]
Storage: 1x M.2 SSD, 2x mSATA
Power: 12V DC, 18-36V DC [Terminal Block]
Temp: -40°C to 85°C [-40°F to 185°F]
Certification: CE, FCC

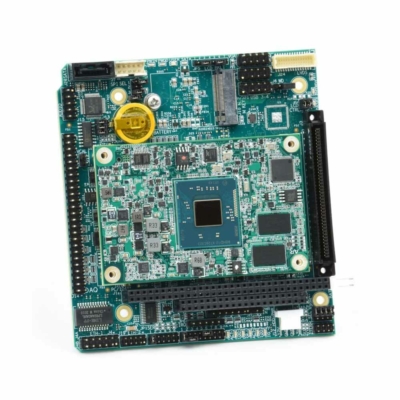

ATHENA IV COM Express PC/104 SBC with Apollo Lake Intel Atom Quad Core CPU

Diamond Systems

COM Express PC/104 SBC with Apollo Lake Intel Atom Quad Core CPU

ATHENA IV

COM Express PC/104 SBC with Apollo Lake Intel Atom Quad Core CPU

Available in 3 variations

View ATH4-E3845-4GA ATHENA IV Datasheet

View ATH4-E3845-8G128A ATHENA IV Datasheet

View ATH4-E3845-8G064A ATHENA IV Datasheet

ATHENA IV

Available in 3 variations

Temp: -40°C to 85°C [-40°F to 185°F]

Temp: -40°C to 85°C [-40°F to 185°F]

Temp: -40°C to 85°C [-40°F to 185°F]

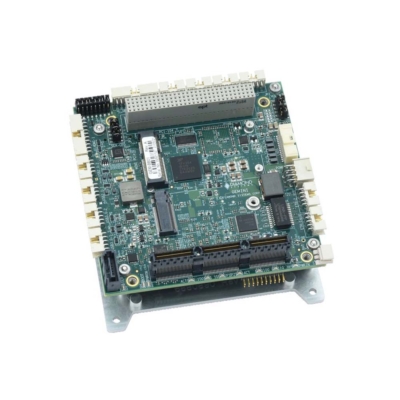

GEMINI Rugged PCIe 104 SBC with COM Express Type 6 Intel Core and Xeon Modules

Diamond Systems

Rugged PCIe 104 SBC with COM Express Type 6 Intel Core and Xeon Modules

GEMINI

Rugged PCIe 104 SBC with COM Express Type 6 Intel Core and Xeon Modules

Available in 3 variations

View GEM-BB01 GEMINI Datasheet

View GEM-1185G7E-64G GEMINI Datasheet

View GEM-1185G7E-32G GEMINI Datasheet

GEMINI

Available in 3 variations

CPU: 11th Gen Tiger Lake
Memory: 32GB Soldered On-board, 64GB Soldered On-board
OS: Linux, Windows 10
Ethernet: 3 x GbE LAN [Board]
USB: 2 x USB 3.0 [Board], 4 x USB 2.0 [Board]
Storage: 1x M.2 SSD, 1x SATA Port

CPU: 11th Gen Tiger Lake
Memory: 32GB Soldered On-board, 64GB Soldered On-board
OS: Linux, Windows 10
Ethernet: 3 x GbE LAN [Board]
USB: 2 x USB 3.0 [Board], 4 x USB 2.0 [Board]
Storage: 1x M.2 SSD, 1x SATA Port

CPU: 11th Gen Tiger Lake
Memory: 32GB Soldered On-board, 64GB Soldered On-board
OS: Linux, Windows 10
Ethernet: 3 x GbE LAN [Board]
USB: 2 x USB 3.0 [Board], 4 x USB 2.0 [Board]
Storage: 1x M.2 SSD, 1x SATA Port

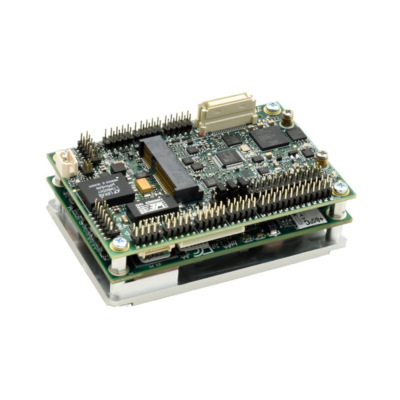

ZETA Wide Temperature Mini COM Express Single Board Computer with PCI Expansion

Diamond Systems

Wide Temperature Mini COM Express Single Board Computer with PCI Expansion

ZETA

Wide Temperature Mini COM Express Single Board Computer with PCI Expansion

Available in 4 variations

View ZETA-E3950-8G128D ZETA Datasheet

View ZETA-E3950-8G128A ZETA Datasheet

View ZETA-E3940-8G064D ZETA Datasheet

View ZETA-E3940-8G064A ZETA Datasheet

ZETA

Available in 4 variations

CPU: Atom X Series Apollo Lake
Memory: 8GB Soldered On-board
OS: Linux, Windows 10
Display Outputs: 1x LVDS, 1x VGA
Ethernet: 2 x GbE LAN [Board]
USB: 1 x USB 3.0 [Board], 4 x USB 2.0 [Board]
Serial: 4 x RS232/422/485 [Board]
mPCIe: 1x mPCIe [PCIe/USB/SATA]
Storage: 1x Micro SD, 1x SATA Port, 64GB eMMC
Power: 6-36V DC Input [Terminal Block]
Temp: -40°C to 85°C [-40°F to 185°F]

CPU: Atom X Series Apollo Lake
Memory: 8GB Soldered On-board
OS: Linux, Windows 10
Display Outputs: 1x LVDS, 1x VGA
Ethernet: 2 x GbE LAN [Board]
USB: 1 x USB 3.0 [Board], 4 x USB 2.0 [Board]
Serial: 4 x RS232/422/485 [Board]
mPCIe: 1x mPCIe [PCIe/USB/SATA]
Storage: 1x Micro SD, 1x SATA Port, 64GB eMMC
Power: 6-36V DC Input [Terminal Block]
Temp: -40°C to 85°C [-40°F to 185°F]

CPU: Atom X Series Apollo Lake
Memory: 8GB Soldered On-board
OS: Linux, Windows 10
Display Outputs: 1x LVDS, 1x VGA
Ethernet: 2 x GbE LAN [Board]
USB: 1 x USB 3.0 [Board], 4 x USB 2.0 [Board]
Serial: 4 x RS232/422/485 [Board]
mPCIe: 1x mPCIe [PCIe/USB/SATA]
Storage: 1x Micro SD, 1x SATA Port, 64GB eMMC
Power: 6-36V DC Input [Terminal Block]
Temp: -40°C to 85°C [-40°F to 185°F]

CPU: Atom X Series Apollo Lake
Memory: 8GB Soldered On-board
OS: Linux, Windows 10
Display Outputs: 1x LVDS, 1x VGA
Ethernet: 2 x GbE LAN [Board]
USB: 1 x USB 3.0 [Board], 4 x USB 2.0 [Board]
Serial: 4 x RS232/422/485 [Board]
mPCIe: 1x mPCIe [PCIe/USB/SATA]
Storage: 1x Micro SD, 1x SATA Port, 64GB eMMC
Power: 6-36V DC Input [Terminal Block]
Temp: -40°C to 85°C [-40°F to 185°F]

Displaying of 4 items

Need Help Choosing a COM Express SBC?

Tell us about your application and a member of the team will get right back to you.
