M.2 Video Capture Cards for Compact Embedded Systems
An M.2 capture card adds HDMI, SDI, DVI or TVI capture to a compact embedded PC or edge AI system through an M.2 socket, where there is no room for a PCIe card. Available in 2242, 2260 and 2280 sizes, with single and multi-channel models from 1080p60 to 12G-SDI and HDMI 2.0 at 4K.
Options include two and four-input cards, loop-through on selected models and Linux support for embedded builds, suited to medical devices, vehicle systems and edge AI boxes that need video in a small enclosure.
Speak to a video capture specialist to match the M.2 key, size and inputs to your system.
Browse Our M.2 Capture Cards
- Host: M.2 [3080, M-Key]
- Simultaneous Video Inputs: 2
- Video Input: 2x HDMI2.0
- Max Input Resolution: 4K60 [4096×2160p @ 60/50fps]
- Max Video Capture Resolution: 4K60 [4096x2160p @ 60/50/30/25/24fps]
- Host: M.2 [2280, M-Key]
- Simultaneous Video Inputs: 1
- Video Input: 1x RJ45 (10G)
- Max Input Resolution: 4K60 [4096×2160p @ 60/50fps]
- Video Output: 1x HDMI2.0
- Max Video Capture Resolution: 4K60 [4096x2160p @ 60/50/30/25/24fps]
- Colour Formats: NV12 4:2:0 8Bit, RGB24 4:4:4 8Bit, RGB32 4:4:4 8Bit, YUY2 4:2:2 8Bit, YV12 4:2:0 8Bit
- Host: M.2 [3030, A-Key/E-Key]
- Simultaneous Video Inputs: 1
- Video Input: 1x HDMI
- Max Input Resolution: HD60 [1920x1080p @ 60/50fps]
- Max Video Capture Resolution: HD30 [1920x1080p @ 30/25fps]
- Colour Formats: NV12 4:2:0 8Bit, RGB24 4:4:4 8Bit, RGB32 4:4:4 8Bit, YUY2 4:2:2 8Bit, YV12 4:2:0 8Bit
- Host: M.2 [2230, A-Key/E-Key]
- Simultaneous Video Inputs: 1
- Video Input: 1x HDMI
- Max Input Resolution: HD60 [1920x1080p @ 60/50fps], UXGA60 [1920x1200 @ 60/50fps]
- Max Video Capture Resolution: HD60 [1920x1080p @ 60/50fps], UXGA30 [1920x1200 @ 30/25fps]
- Colour Formats: NV12 4:2:0 8Bit, RGB24 4:4:4 8Bit, RGB32 4:4:4 8Bit, YUY2 4:2:2 8Bit, YV12 4:2:0 8Bit
- Host: M.2 [3030, A-Key/E-Key]
- Simultaneous Video Inputs: 1
- Video Input: 1x HDMI
- Max Input Resolution: HD60 [1920x1080p @ 60/50fps]
- Max Video Capture Resolution: HD30 [1920x1080p @ 30/25fps]
- Recording Mode: Hardware Compression
- Colour Formats: NV12 4:2:0 8Bit, RGB24 4:4:4 8Bit, RGB32 4:4:4 8Bit, YUY2 4:2:2 8Bit, YV12 4:2:0 8Bit
- Host: M.2 [3080, M-Key]
- Simultaneous Video Inputs: 8
- Video Input: 8x TVI
- Max Input Resolution: HD30 [1920x1080p @ 30/25fps]
- Max Video Capture Resolution: HD30 [1920x1080p @ 30/25fps]
- Colour Formats: NV12 4:2:0 8Bit, RGB24 4:4:4 8Bit, RGB32 4:4:4 8Bit, YUY2 4:2:2 8Bit, YV12 4:2:0 8Bit
- Host: M.2 [2280, B-Key/M-Key]
- Simultaneous Video Inputs: 1
- Video Input: 1x HDMI
- Max Input Resolution: HD60 [1920x1080p @ 60/50fps]
- Video Output: 1x HDMI
- Max Video Capture Resolution: HD60 [1920x1080p @ 60/50fps], UXGA30 [1920x1200 @ 30/25fps]
- Colour Formats: NV12 4:2:0 8Bit, RGB24 4:4:4 8Bit, RGB32 4:4:4 8Bit, YUY2 4:2:2 8Bit, YV12 4:2:0 8Bit
- Host: M.2 [2260, B-Key/M-Key]
- Simultaneous Video Inputs: 1
- Video Input: 1x SDI
- Max Input Resolution: HD60 [1920x1080p @ 60/50fps]
- Video Output: 1x SDI
- Max Video Capture Resolution: HD60 [1920x1080p @ 60/50fps]
- Colour Formats: NV12 4:2:0 8Bit, RGB24 4:4:4 8Bit, RGB32 4:4:4 8Bit, YUY2 4:2:2 8Bit, YV12 4:2:0 8Bit
- Host: M.2 [3080, M-Key]
- Simultaneous Video Inputs: 1
- Video Input: 1x 12G-SDI, 1x HDMI2.0
- Max Input Resolution: 4K60 [4096×2160p @ 60/50fps]
- Max Video Capture Resolution: 4K60 [4096x2160p @ 60/50/30/25/24fps]
- Colour Formats: NV12 4:2:0 8Bit, P010 4:2:0 10Bit, RGB24 4:4:4 8Bit, RGB32 4:4:4 8Bit, YUY2 4:2:2 8Bit, YV12 4:2:0 8Bit
- Host: M.2 [3080, M-Key]
- Simultaneous Video Inputs: 1
- Video Input: 1x HDMI2.1
- Max Input Resolution: 8K60 [7680×4320p @ 60/50fps]
- Video Output: 1x HDMI2.1
- Colour Formats: NV12 4:2:0 8Bit, P010 4:2:0 10Bit, RGB24 4:4:4 8Bit, RGB32 4:4:4 8Bit, YUY2 4:2:2 8Bit, YV12 4:2:0 8Bit
- Host: M.2 [2280, M-Key]
- Simultaneous Video Inputs: 2
- Video Input: 2x HDMI2.0
- Max Input Resolution: 4K60 [4096×2160p @ 60/50fps]
- Max Video Capture Resolution: 4K60 [4096x2160p @ 60/50/30/25/24fps]
- Colour Formats: NV12 4:2:0 8Bit, P010 4:2:0 10Bit, RGB24 4:4:4 8Bit, RGB32 4:4:4 8Bit, YUY2 4:2:2 8Bit, YV12 4:2:0 8Bit
- Host: M.2 [2280, M-Key]
- Simultaneous Video Inputs: 1
- Video Input: 1x HDMI2.0
- Max Input Resolution: 4K60 [4096×2160p @ 60/50fps]
- Max Video Capture Resolution: 4K60 [4096x2160p @ 60/50/30/25/24fps]
- Colour Formats: NV12 4:2:0 8Bit, P010 4:2:0 10Bit, RGB24 4:4:4 8Bit, RGB32 4:4:4 8Bit, YUY2 4:2:2 8Bit, YV12 4:2:0 8Bit
- Host: M.2 [3080, M-Key]
- Simultaneous Video Inputs: 4
- Video Input: 1x 12G-SDI, 1x 6G-SDI, 2x 3G-SDI
- Max Input Resolution: 4K60 [4096×2160p @ 60/50fps]
- Max Video Capture Resolution: 4K60 [4096x2160p @ 60/50/30/25/24fps]
- Colour Formats: NV12 4:2:0 8Bit, P010 4:2:0 10Bit, RGB24 4:4:4 8Bit, RGB32 4:4:4 8Bit, YUY2 4:2:2 8Bit, YV12 4:2:0 8Bit
- Host: M.2 [2280, M-Key]
- Simultaneous Video Inputs: 1
- Video Input: 1x 12G-SDI
- Max Input Resolution: 4K60 [4096×2160p @ 60/50fps]
- Video Output: 1x 12G-SDI
- Max Video Capture Resolution: 4K60 [4096x2160p @ 60/50/30/25/24fps]
- Colour Formats: NV12 4:2:0 8Bit, P010 4:2:0 10Bit, RGB24 4:4:4 8Bit, RGB32 4:4:4 8Bit, YUY2 4:2:2 8Bit, YV12 4:2:0 8Bit
- Host: M.2 [2280, M-Key]
- Simultaneous Video Inputs: 1
- Video Input: 1x HDMI2.0
- Max Input Resolution: 4K60 [4096×2160p @ 60/50fps]
- Video Output: 1x HDMI2.0
- Max Video Capture Resolution: 4K60 [4096x2160p @ 60/50/30/25/24fps]
- Colour Formats: NV12 4:2:0 8Bit, P010 4:2:0 10Bit, RGB24 4:4:4 8Bit, RGB32 4:4:4 8Bit, YUY2 4:2:2 8Bit, YV12 4:2:0 8Bit
M.2 Capture Card Ranges Configured by Things Embedded
We work with a leading manufacturer of M.2 capture cards, so the ranges below are the ones we specify for compact embedded and edge AI systems. Compare them by M.2 key, size and inputs, then browse the models above or ask a video capture specialist which range suits your system.

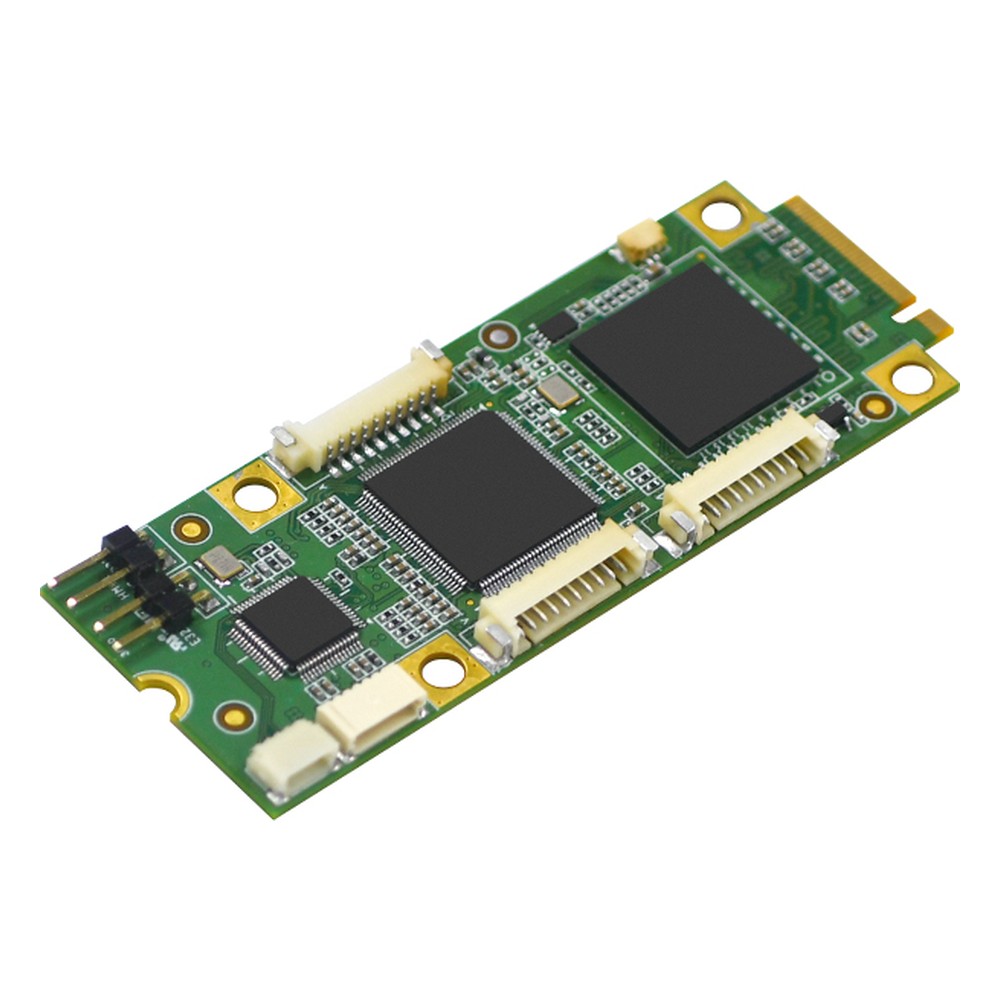

SC400 and SC410 Yuan Capture Cards
HDMI, 3G-SDI, 6G-SDI and TVI capture on PCIe, M.2 and Mini PCIe, from single-input all-in-one cards to four-channel 4K30 models.
SC540 and SC542 Yuan HD Capture Cards
One to eight channels of HDMI, SDI, DVI-I and analogue capture at up to 1080p on PCIe, M.2 and Mini PCIe.
SC550 Yuan HD Capture Cards
One to eight channels of HDMI, 3G-SDI and DVI capture at 1080p60 on PCIe, M.2 and Mini PCIe, with GPIO on selected cards.
SC5A0 Yuan HD Frame Grabbers
One to eight channels of HDMI, SDI, DVI and analogue capture on PCIe, M.2 and Mini PCIe for recording and monitoring PCs.
SC710, SC720 and SC750 Yuan 4K and 8K Capture Cards
HDMI 2.0, HDMI 2.1, 12G-SDI, DisplayPort 1.4a and SDVoE capture at 4K60 and up to 8K on PCIe and M.2.
Not sure which range fits? Tell us the application and we will recommend the right model.
What to Specify in an M.2 Capture Card
Our video capture specialists specify every M.2 capture card against the sources, the host system and the software that will use the video. These are the choices we work through with you before recommending a range.
Key and Size
Check the M.2 key (B+M, M or A+E) and length (2242, 2260, 2280) the board supports.
Inputs
HDMI, SDI, DVI or TVI, with multi-channel models for several cameras.
Operating System
Linux support for embedded and Jetson builds, Windows for PC-based systems.
