UK Jetson Nano
NVIDIA Jetson Nano Hardware and the Move to Orin Nano

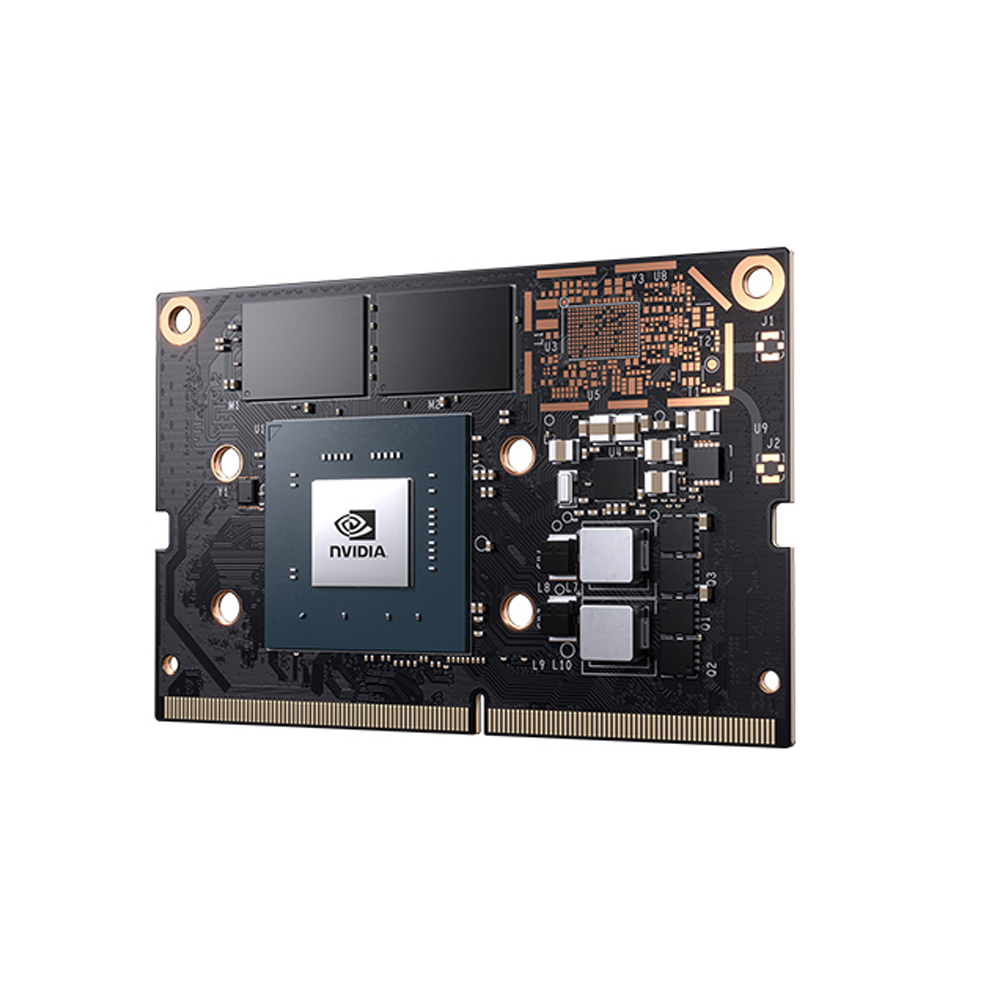

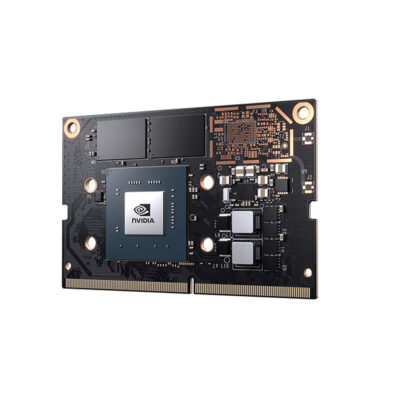

NVIDIA Jetson Nano is the original entry-level Jetson module, still running in many fielded vision and IoT systems. The range covers the Jetson Nano computers, carrier boards and modules we still list for those systems.
The Jetson Nano has been succeeded by the Jetson Orin Nano, which uses the same 260-pin SO-DIMM connector and gives up to 80 times the AI performance. For new designs, see our Jetson Orin Nano computers or Orin Nano carrier boards.
Speak to a Jetson Nano specialist about remaining stock and the move to Orin Nano.
Browse Our Jetson Nano Systems
- AI Performance: 0.5 TOPS
- SOM: NVIDIA Jetson Nano 4GB
- Display Outputs: 1x HDMI
- Ethernet: 1x GbE LAN [RJ45], 1x GbE LAN [RJ45] [PoE]
- USB: 1x USB 2.0 [Type A], 1x USB 3.2 Gen 2 [Type A]
- M.2: 1x M.2 M-Key [PCIe x4] [2280]
- mPCIe: 1x mPCIe [PCIe/USB]
- Storage: 1x M.2 SSD, 1x Micro SD
- Power: 12V DC [Barrel Connector]
- Temp: -30°C to 50°C [-22°F to 122°F]
- Certification: CE, FCC
- Mounting Options: DIN Mount, VESA Mount, Wall Mount
- AI Performance: 0.5 TOPS
- SOM: NVIDIA Jetson Nano 4GB
- OS: Linux
- Display Outputs: 1x HDMI
- Ethernet: 1x GbE LAN [RJ45]
- USB: 2x USB 3.1 Gen 1 [Type A]
- Serial: 1x RS232/422/485 [Terminal Block]
- M.2: 1x M.2 B-Key [USB/SIM] [3042], 1x M.2 E-Key [PCIe x1/USB 2.0] [2230], 1x M.2 M-Key [PCIe x4] [2280]
- Power: 9-28V DC [Terminal Block]
- Temp: -25°C to 85°C [-13°F to 185°F]
- Certification: CE, FCC
- AI Performance: 0.5 TOPS
- SOM: NVIDIA Jetson Nano 4GB
- Storage: 16GB eMMC, 1x M.2 SSD, 1x Micro SD
-
FLD-BB02
FLOYD with 1x GbE, 1x HDMI, PCIe x4 M.2, RS-232 and RS-232/485, no module -
FLD-BB01
FLOYD with 2x PoE+ GbE, 2x HDMI, Mini PCIe, 2x RS-232/422/485, no module -
FLD-NAO-FS-01
FLOYD with Jetson Nano module and fan sink, 2x PoE+ GbE, 2x HDMI, Mini PCIe -
FLD-NAO-FS-02
FLOYD with Jetson Nano module and fan sink, 1x GbE, 1x HDMI, PCIe x4 M.2 -
FLD-XNX-FS-01
FLOYD with Jetson Xavier NX module and fan sink, 2x PoE+ GbE, 2x HDMI, CAN -
FLD-XNX-FS-02
FLOYD with Jetson Xavier NX and fan sink, 1x GbE, 1x HDMI, PCIe x4 M.2
- OS: Linux Ubuntu 18.04
- USB: 1x USB 3.0 [Type A], 2x USB 2.0 [Type A]
- Storage: 16GB eMMC, 1x M.2 SSD, 1x Micro SD
- Power: 12-24V DC [Barrel Connector]
- Temp: -25°C to 80°C [-13°F to 176°F]
- Certification: CE, FCC
- Mounting Options: Desktop, DIN Mount
- AI Performance: 0.5–21 TOPS
- SOM: NVIDIA Jetson Nano 4GB, NVIDIA Jetson TX2 NX 4GB, NVIDIA Jetson Xavier NX 16GB, NVIDIA Jetson Xavier NX 8GB
- Display Outputs: 1x HDMI
- Ethernet: 1x GbE LAN [RJ45]
- Serial: 1x RS232 [Board], 1x RS232/485 [Board]
- M.2: 1x M.2 M-Key [PCIe x4] [2280]
-

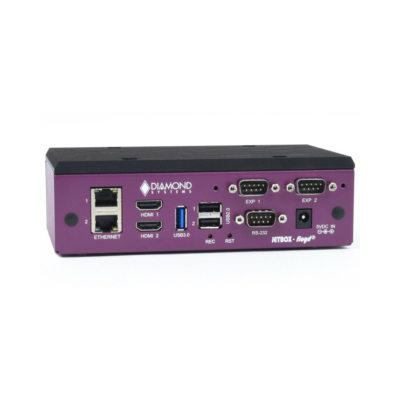

JB-FLOYD-NAO-02
JETBOX-FLOYD with Jetson Nano, 1x GbE, 1x HDMI and PCIe x4 M.2 -
JB-FLOYD-NAO-01
JETBOX-FLOYD with Jetson Nano, 2x PoE+ GbE, 2x HDMI and Mini PCIe -
JB-FLOYD-XNX-01
JETBOX-FLOYD with Jetson Xavier NX, 2x PoE+ GbE, 2x HDMI, CAN and Mini PCIe -
JB-FLOYD-XNX-02
JETBOX-FLOYD with Jetson Xavier NX, 1x GbE, 1x HDMI, CAN and PCIe x4 M.2
- OS: Linux Ubuntu 18.04
- USB: 1x USB 3.0 [Type A], 2x USB 2.0 [Type A]
- Storage: 16GB eMMC, 1x M.2 SSD, 1x Micro SD
- Power: 7-28V DC [Barrel Connector], AC Power Supply Included
- Temp: -25°C to 80°C [-13°F to 176°F]
- Certification: CE, FCC
- Mounting Options: Desktop, DIN Mount
- AI Performance: 0.5 TOPS
- SOM: NVIDIA Jetson Nano 4GB
- Display Outputs: 1x HDMI
- Ethernet: 1x GbE LAN [RJ45]
- Serial: 1x RS232 [DB9], 1x RS232/485 [DB9]
- M.2: 1x M.2 M-Key [PCIe x4] [2280]
- AI Performance: 0.5 TOPS
- SOM: NVIDIA Jetson Nano 4GB
- OS: Linux Ubuntu 18.04
- Display Outputs: 1x HDMI
- Ethernet: 1x GbE LAN [RJ45]
- USB: 2x USB 3.1 Gen 1 [Type A]
- Serial: 1x RS232/422/485 [Terminal Block]
- M.2: 1x M.2 B-Key [PCIe x2/USB 3.0/SATA] [2280/3042/3052], 1x M.2 E-Key [PCIe x1/USB 2.0] [2230], 1x M.2 M-Key [PCIe x4/SATA] [2280]
- Storage: 16GB eMMC, 1x M.2 SSD, 1x Micro SD
- Power: 9-28V DC [Terminal Block]
- Temp: -25°C to 65°C [-13°F to 149°F]
- Certification: CE, FCC
- Mounting Options: Desktop, DIN Mount
-
JB-FLDSC-BASE-02
JETBOX FLOYD-SC kit with FLDSC-BB02 carrier, no Jetson module -
JB-FLDSC-BASE-01
JETBOX FLOYD-SC kit with FLDSC-BB01 carrier, no Jetson module -
JB-FLDSC-NAO-02
JETBOX FLOYD-SC with Jetson Nano 4GB module and FLDSC-BB02 carrier -
JB-FLDSC-TNX-02
JETBOX FLOYD-SC with Jetson TX2 NX module and FLDSC-BB02 carrier -
JB-FLDSC-XNX-02
JETBOX FLOYD-SC with Jetson Xavier NX module, dual GbE and FLDSC-BB02 carrier
- OS: Linux
- USB: 1x USB 3.0 [Type A], 2x USB 2.0 [Type A]
- Serial: 1x RS232 [DB9], 1x RS232/485 [DB9]
- CANbus: 1x CANbus [Board]
- M.2: 1x M.2 M-Key [PCIe x4/SATA] [2242/2280]
- Power: 7-24V DC [Barrel Connector]
- Temp: -25°C to 80°C [-13°F to 176°F]
- Certification: CE, FCC
- Mounting Options: DIN Mount
- AI Performance: 0.5–21 TOPS
- SOM: NVIDIA Jetson Nano 4GB, NVIDIA Jetson TX2 NX 4GB, NVIDIA Jetson Xavier NX 16GB, NVIDIA Jetson Xavier NX 8GB
- Display Outputs: 1x Display Port, 1x HDMI
- Ethernet: 2x GbE LAN [RJ45]
Move to Jetson Orin Nano
Planning the replacement? The Orin family is the current generation, with modules that cover every Xavier, TX2 and Nano workload.
Jetson Nano Ranges Still Supplied
These are the Jetson Nano families we still list for systems in service. Availability depends on remaining stock, so ask a specialist before you order, and plan the move to Jetson Orin in parallel.
NVIDIA Jetson Carrier Boards and Development Kits
Carrier boards and development kits for NVIDIA Jetson: the Jackson and rugged Jackson-ER for Orin NX and Orin Nano, the Osbourne and rugged Osbourne-ER for AGX Orin, the Stevie and Elton for AGX Xavier, and the Floyd and Ziggy for the Nano, Xavier NX, TX2 NX and TX2 generations. Each pairs with a JetBox of the same name when you want it built into an enclosure.
JetBox Industrial NVIDIA Jetson Computers
Diamond carrier boards built into fanless industrial enclosures: the JetBox Osbourne on AGX Orin, JetBox Jackson on Orin NX and Orin Nano, JetBox Stevie on AGX Xavier, JetBox Floyd and Floyd-SC on Nano and Xavier NX, and ZiggyBox on TX2, for cabinets, machines and vehicles that need an industrial build rather than a sealed military one. For sealed MIL-STD designs, see SabreCom and Geode.
DSBOARD Industrial Jetson Carrier Boards
Bare carrier boards for integrating NVIDIA Jetson into your own enclosure or product, from Orin Nano and Orin NX through AGX Orin to the AGX Thor T4000 and T5000. Wide-temperature industrial designs with the camera, Ethernet and storage interfaces exposed for your build.

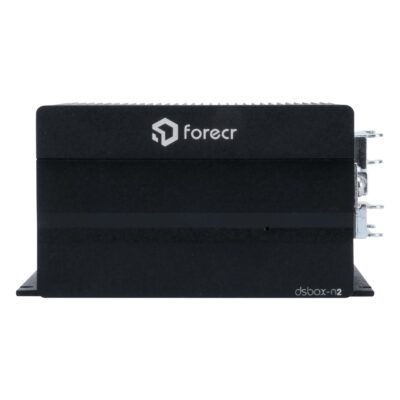

DSBOX Industrial Fanless Edge AI Computers
The DSBOARD carrier boards in a standard fanless enclosure: a ready-to-mount Jetson computer for machine vision, robotics and video analytics where the environment is industrial rather than military.
AIE NVIDIA Jetson Edge AI Computers and Developer Kits
Compact fanless Jetson computers on Orin Nano and Orin NX for vision and inference at the edge, with the AIE110 developer kits sharing the same modules so a prototype moves straight to the AIE100 or AIE810 deployment box.
Not sure which range fits? Tell us the application and we will recommend the right model.
Jetson Nano Lifecycle & Migration Insights
Speak to a Jetson Nano Specialist.
Tell us the part numbers you run today, the quantities you still need and where the system is installed. We will check remaining Jetson Nano stock and plan the move to Jetson Orin, then configure, image and test the new system before it ships.
