UK Rugged Monitors
Rugged Displays for Vehicles, Heavy Plant and Outdoor Sites
Rugged monitors are built for shock, vibration, wide temperatures and water, so the screen keeps working on vehicles, heavy plant, rolling stock and outdoor sites. Available from 7 to 55 inches with PCAP or resistive touch, in chassis, panel and rack mount builds sealed from a front IP65 bezel to IP69K.
Options include rugged military displays, vehicle-mount displays with ignition control, railway monitors, M12 connectors and stainless steel waterproof enclosures, suited to defence, transport, construction and washdown areas.
Speak to a display specialist to match the ruggedness, sealing and mounting to your application.
Browse Our Rugged Touch Screen Monitors
- Display: 7"[16:9, 1280 x 720, HD]
- Touch: Multi Touch PCAP
- Brightness: 560
- Viewing Angle: Wide Viewing Angle
- Format: Widescreen
- Display Inputs: 1x DVI Input, 1x HDMI Input
- Power: 9-48V DC Input
- Temp: -20°C to 60°C [-4°F to 140°F]
- IP Rating: Front IP65
- Certification: CE, E-Mark, FCC
- Mounting Options: VESA Mount
- Display: 7"[17:10, 1024 x 600, WSVGA]
- Touch: Multi Touch PCAP
- Brightness: 1000
- Viewing Angle: Wide Viewing Angle
- Format: Widescreen
- Display Inputs: 1x VGA Input
- Power: 12V DC [M12]
- Temp: -15°C to 55°C [5°F to 131°F]
- IP Rating: IP65
- Certification: CE, FCC
- Display: 8.4"[4:3, 800 x 600, SVGA]
- Touch: Optional Resistive Touch
- Brightness: 1000
- Viewing Angle: Wide Viewing Angle
- Format: Standard
- Display Inputs: 1x Optional HDMI Input, 1x VGA Input
- Power: 9-36V DC Input [Terminal Block]
- Ignition Sensing: Supports Ignition Control
- Temp: -10°C to 60°C [14°F to 140°F]
- IP Rating: Front IP65
- Certification: CE, FCC, MIL-STD-3009
- Mounting Options: VESA Mount
- Display: 8.4"[4:3, 800 x 600, SVGA]
- Touch: Optional 5-Wire Resistive Touch
- Brightness: 600
- Format: Standard
- Display Inputs: 1x Optional HDMI Input, 1x VGA Input
- Power: 12V DC Input [MIL-STD], 9-36V DC Input [MIL-STD]
- Temp: -20°C to 60°C [-4°F to 140°F]
- Certification: CE, FCC
- Display: 8.4"[4:3, 800 x 600, SVGA]
- Touch: Resistive Touch
- Brightness: 600
- Format: Standard
- Display Inputs: 1x Optional HDMI Input, 1x VGA Input
- Power: 10-60V DC Input [Terminal Block]
- Ignition Sensing: Supports Ignition Control
- Temp: -10°C to 55°C [14°F to 131°F]
- IP Rating: Front IP65
- Certification: CE, FCC
- Display: 10.1"[5:3, 1280 x 800, WXGA]
- Touch: Multi Touch PCAP
- Brightness: 1000
- Viewing Angle: Wide Viewing Angle
- Format: Widescreen
- Display Inputs: 1x DVI Input, 1x HDMI Input
- Power: 9-48V DC Input [Terminal Block]
- Temp: -20°C to 60°C [-4°F to 140°F]
- IP Rating: Front IP66
- Certification: CE, E-Mark, FCC
- Mounting Options: VESA Mount
- Display: 10.1"[5:3, 1280 x 800, WXGA]
- Touch: Multi Touch PCAP
- Brightness: 350
- Viewing Angle: Wide Viewing Angle
- Format: Widescreen
- Display Inputs: 1x VGA Input
- Power: 9-36V DC Input [M12]
- Temp: -15°C to 55°C [5°F to 131°F]
- IP Rating: IP65
- Certification: CE, FCC
- Display: 10.1"[5:3, 1280 x 800, WXGA]
- Touch: Projective Capacitive Touch
- Brightness: 500
- Viewing Angle: Wide Viewing Angle
- Format: Widescreen
- Display Inputs: 1x HDMI Input, 1x VGA Input
- Power: 12-24V DC [M12]
- Temp: -20°C to 60°C [-4°F to 140°F]
- IP Rating: IP66, IP69K
- Certification: CE, FCC
- Display: 10.4"[4:3, 1024 x 768, XGA]
- Touch: Optional Resistive Touch
- Brightness: 1000
- Viewing Angle: Wide Viewing Angle
- Format: Standard
- Display Inputs: 1x Optional HDMI Input, 1x VGA Input
- Power: 9-36V DC Input [Terminal Block]
- Ignition Sensing: Supports Ignition Control
- Temp: -10°C to 60°C [14°F to 140°F]
- IP Rating: Front IP65
- Certification: CE, FCC, MIL-STD-3009
- Mounting Options: VESA Mount
- Brightness: 500
- Viewing Angle: Wide Viewing Angle
- Format: Standard
- Display Inputs: 1x HDMI Input, 1x VGA Input, 1xDVI-D
- Power: 24V-110V DC [M12]
- Ignition Sensing: Supports Ignition Control
- Temp: -25°C to 55°C [-13°F to 131°F]
- IP Rating: Front IP65
- Certification: CE, EN50121-3-2, FCC

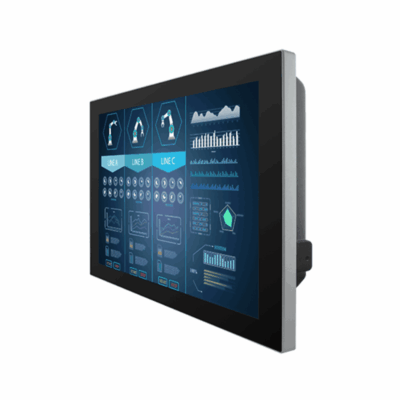

- Display: 10.4"[4:3, 1024 x 768, XGA]
- Touch: Multi Touch PCAP
- Brightness: 350
- Viewing Angle: Wide Viewing Angle
- Format: Standard
- Display Inputs: 1x VGA Input
- Power: 9-36V DC Input [M12]
- Temp: -15°C to 55°C [5°F to 131°F]
- IP Rating: IP65
- Certification: CE, FCC
- Display: 10.4"[4:3, 1024 x 768, XGA]
- Touch: Optional 5-Wire Resistive Touch
- Brightness: 350
- Viewing Angle: Wide Viewing Angle
- Format: Standard
- Display Inputs: 1x Optional HDMI Input, 1x VGA Input
- Power: 12V DC Input [MIL-STD], 9-36V DC Input [MIL-STD]
- Temp: -20°C to 60°C [-4°F to 140°F]
- Certification: CE, FCC

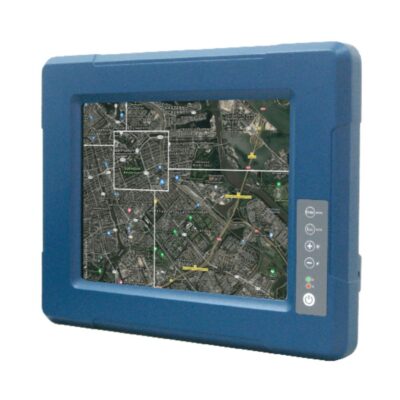

- Display: 10.4"[4:3, 800 x 600, SVGA]
- Touch: Optional 5-Wire Resistive Touch
- Brightness: 600
- Format: Standard
- Display Inputs: 1x Optional HDMI Input, 1x VGA Input
- Power: 12V DC Input [MIL-STD], 9-36V DC Input [MIL-STD]
- Temp: -20°C to 60°C [-4°F to 140°F]
- Certification: CE, FCC

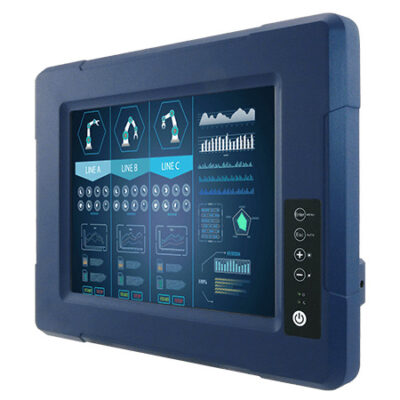

- Display: 10.4"[4:3, 640 x 480, VGA]
- Touch: Resistive Touch
- Brightness: 450
- Viewing Angle: Wide Viewing Angle
- Format: Standard
- Display Inputs: 1x Optional HDMI Input, 1x VGA Input
- Power: 10-60V DC Input [Terminal Block]
- Ignition Sensing: Supports Ignition Control
- Temp: -10°C to 55°C [14°F to 131°F]
- IP Rating: Front IP65
- Certification: CE, FCC
- Display: 10.4"[4:3, 1024 x 768, XGA]
- Touch: Resistive Touch
- Brightness: 1000, 350
- Viewing Angle: Wide Viewing Angle
- Format: Standard
- Display Inputs: 1x Optional HDMI Input, 1x VGA Input
- Power: 10-60V DC Input [Terminal Block]
- Ignition Sensing: Supports Ignition Control
- Temp: -10°C to 55°C [14°F to 131°F]
- IP Rating: Front IP65
- Certification: CE, FCC
Beyond Rugged: Displays
Rugged Monitor Ranges Configured by Things Embedded
We work with the leading manufacturers of rugged displays, so the ranges below are the ones we specify for vehicles, defence, rail and heavy plant. Compare them by ruggedness, sealing and mounting, then browse the models above or ask a display specialist which range suits your application.
Winmate Military Rack and Console Displays
Defence screens from 8.4 to 55 inches for rack, console and vehicle mounting, with PCAP or resistive touch and 4K options.
Winmate Rugged Waterproof Monitors
Fully sealed screens from 7 to 19 inches, IP65 with M12 connectors or IP67, with optical bonding and stainless options on selected models.
Winmate Vehicle Mount Displays
In-cab touch screens from 8.4 to 15 inches with a front IP65 face, high-bright options and ignition control on selected models, for forklifts, cabs and mobile machinery.
Winmate Rack Mount Monitors
19 inch rack screens from 15 to 32 inches with resistive or SAW touch, for control consoles and equipment cabinets.
Winmate IP65 Stainless and ATEX Displays
15 inch IP65 stainless steel touch screens, including an ATEX-rated model for classified areas.
TPM-36 Arestech IP66/IP69K Stainless Steel Displays
Washdown screens from 10.1 to 23.8 inches in stainless steel, sealed to IP66 and IP69K, with PCAP or resistive touch and wireless options for hygienic lines.
P Series Axiomtek Railway Monitors
Driver desk touch screens and open frame passenger information panels from 10.4 to 18.5 inches for rolling stock.
VDM Sintrones In-Vehicle Touch Monitors
7 and 10.1 inch PCAP monitors for vehicle cabs with front IP65 or IP66 sealing, 9-48V DC input or E-Mark, built to pair with Sintrones vehicle computers.
Not sure which range fits? Tell us the application and we will recommend the right model.
What to Specify in a Rugged Industrial Display
A rugged industrial display has to stay readable and connected through shock, temperature swings and water. Mounting, sealing, power input and the standards behind them decide whether it suits a vehicle, machine or shipboard console.
Shock and Vibration
Enclosures and mountings built for vehicles, machinery and rail, with shock and vibration testing on selected models.
Wide Temperature
Wide-temperature panels for cold stores, outdoor positions and hot vehicle cabs, where standard screens can fade or fail.
Front or Full Sealing
Front IP65 to fully sealed IP67 and IP69K, with M12 connectors on the sealed models to keep water out of the cable entries.
Vehicle Power
Wide-range DC input and ignition control on vehicle-mount models, for cabs, mobile machinery and battery supplies.
Military Builds
Rugged military displays designed to MIL-STD requirements for vehicle, shipboard and rack consoles.
Sunlight Readable Options
High-brightness panels and optical bonding options keep the image readable in open cabs, yards and on deck.
Rugged Monitor Innovation & Harsh Environment Insights
Speak to a Display Specialist.
Tell us where the display will be installed, the approvals it must meet and the video inputs you need to connect. We will recommend the right size, brightness and mounting, then configure and test it before it ships.
