Winmate R08T200-VMU1 8.4″ Rugged Front IP65 Resistive Touch Monitor with 10 to 60 V DC Input
Resistive
Ignition Control
Fanless
Front IP65
CE
FCCR08T200-VMU1 Overview
Vehicle cabs, quaysides and washdown areas are hard on screens: vibration, spray and unstable DC supplies all take their toll. The R08T200-VMU1 is Winmate’s 8.4 inch G-WIN rugged monitor for those sites, with a resistive touch screen, an anti-corrosion aluminium housing, a front IP65 rating and an isolated 10 to 60 V DC input.

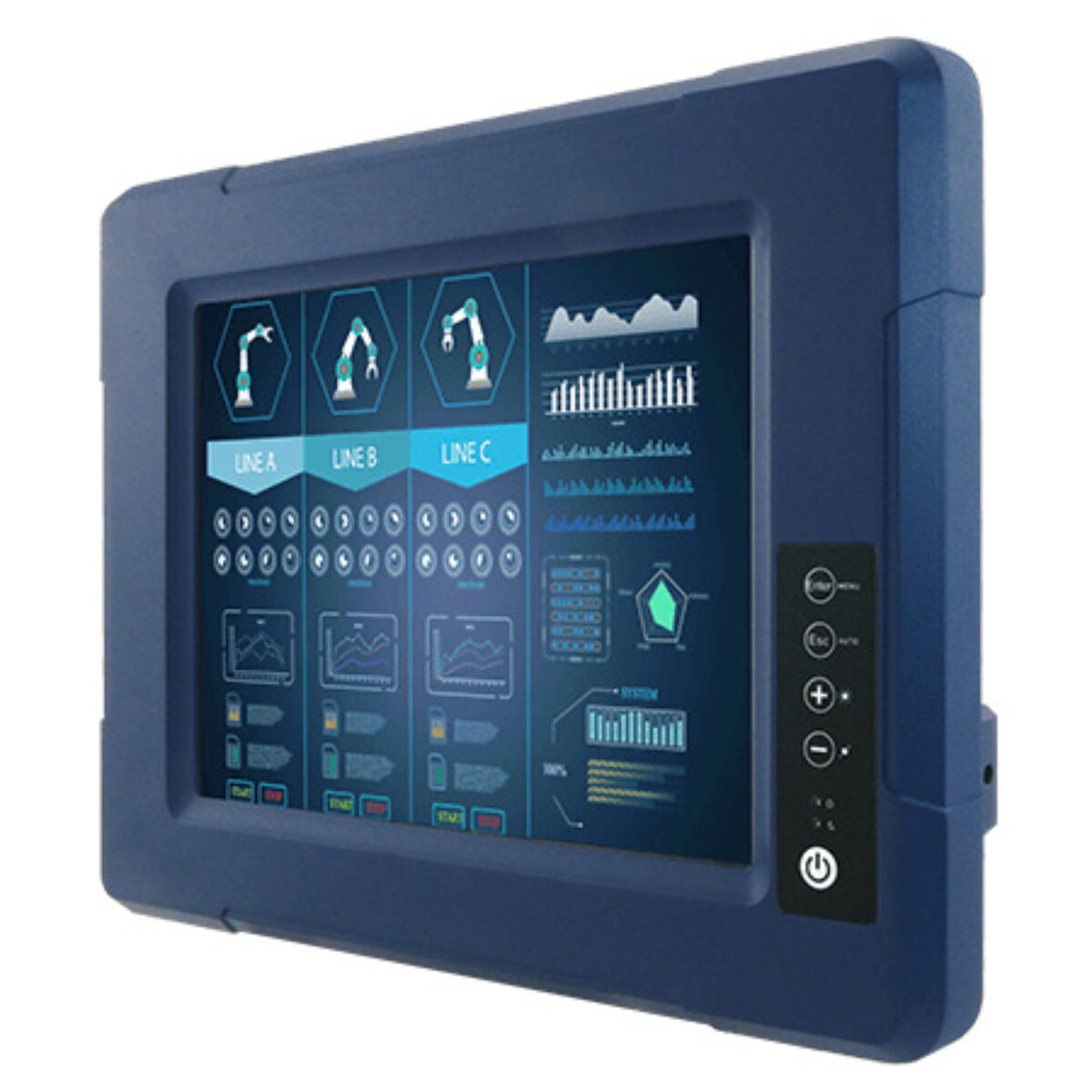

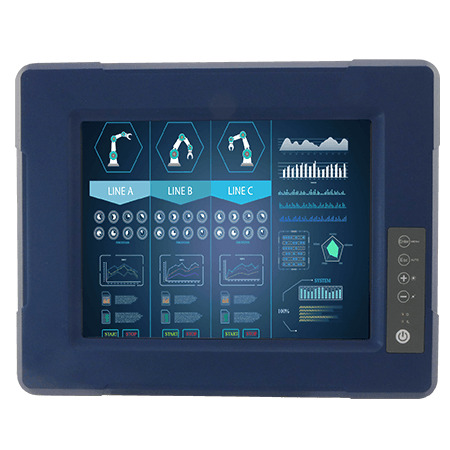

The panel is 800 x 600 SVGA at 600 nits with a 600:1 contrast ratio and viewing angles of 150° horizontally and 130° vertically. Resistive touch responds to gloved fingers and a stylus, and it connects to the host over an optional USB type-A port or an optional RS-232 D-sub port. Front buttons handle power, brightness and menu, with LED indicators for power and status.
Video comes in over one VGA input, with an optional HDMI input. The front IP65 rating covers the panel face but not the I/O ports, so plan cable entry on the protected side of the install. For a larger screen in the same G-WIN line the R10L600-VMP1 offers 10.4 inches, and the R12L100-VMM2 is a 12.1 inch vehicle mount option.

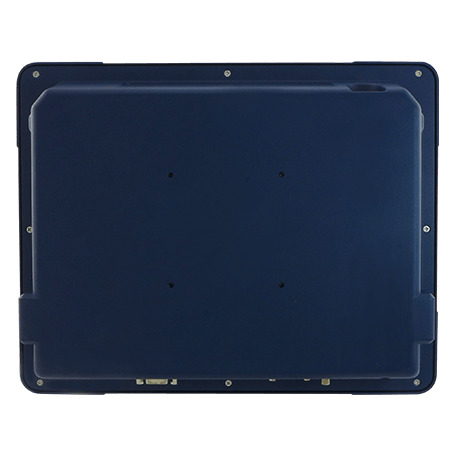

Power is isolated 10 to 60 V DC on a three-pin terminal block, with ignition on/off control as an option. The R08T200-VMU1 is fanless, operates from -10 to 55 °C, stores from -30 to 70 °C and is vibration-tested to MIL-STD-810G Method 514.6. It measures 277 x 219.5 x 59.6 mm, weighs 2.2 kg and takes 75 x 75 mm VESA or an optional yoke stand. Winmate names in-vehicle fleet terminals, port operations, HMI panels and wet food processing lines.
R08T200-VMU1 Specifications
| Overview | |
|---|---|
| Brand & Model | Winmate R08T200-VMU1 |
| Features | Fanless Industrial Rugged |
| Display | |
| Display | 8.4"[4:3, 800 x 600, SVGA] |
| Display Treatment | Optical Bonding Protective Glass |
| Touch Interface | Serial USB |
| Touch Controller | Resistive Touch |
| Brightness | 600 Nits |
| 150° Horizontal, 130° Vertical | |
| Aspect Ratio | 4:3 |
| Format | Standard |
| Contrast | 600:1 |
| Number of Display Inputs | 2x Display Ports |
| Video Inputs | 1x Optional HDMI Input 1x VGA Input |
| Power | |
| Power Input | 10-60V DC Input [Terminal Block] |
| Ignition Sensing | Supports Ignition Control |
| Environmental Conditions | |
| Thermal Dissipation | Fanless Passively Cooled Chassis |
| Operating Temperature | -10°C to 55°C [14°F to 131°F] |
| Storage Temperature | -30°C to 70°C [-22°F to 158°F] |
| Humidity | 10-90% (Non-condensing) |
| Ingress Protection | Front IP65 Front IP65 [Dustproof, Protection against low pressure water jets spraying from the front side] |
| Shock | MIL-STD-810G, Method 514.6 |
| Vibration | MIL-STD-810G, Method 514.6 |
| Certification | CE FCC |
| Mechanical Properties | |
| Dimensions | 277mm x 220mm x 60mm (10.91" x 8.66" x 2.36") |
- R08T200-VMU1 Datasheet Download
Official Winmate UK Distributor
Things Embedded is an official Winmate UK distributor, supplying the R08T200-VMU1 configured for UK fleet, port and processing projects. Within the Winmate range the R10L600-VMP1 is the 10.4 inch model in the same G-WIN line, and the R12L100-VMM2 offers a 12.1 inch screen for larger vehicle consoles.
With front IP65 sealing the R08T200-VMU1 sits among our front IP65 displays, our rugged monitors and our resistive touch screen monitors. Where a cab or wet line needs gloved touch on a wide DC supply, this is the model to specify.
