Rugged and Military Power Supplies for Embedded Systems
An industrial power supply turns a raw vehicle, aircraft or cabinet supply into the clean, regulated rails an embedded computer needs, and keeps them steady through engine cranking, load dumps and brownouts. Our range covers DC-DC power supplies that mount in a PC/104 stack, isolated DC-DC converters for vehicle and airborne systems, voltage regulators for GPU computers and industrial UPS modules that hold a PC up through a power cut.
Options include wide 7 to 60 V DC inputs, 5, 12 and 15 V outputs, input-to-output isolation, supercapacitor backup and builds designed to MIL-STD-461, MIL-STD-704 and MIL-STD-1275 requirements, suited to military vehicles, aircraft, rolling stock and machines where the supply is noisy, the temperature range is wide and a reset is not acceptable. For stack-mounted boards, see our PC/104 power supplies and the PC/104 boards they power.
Speak to a power supply specialist to match the input range, output rails and backup time to your system.
Browse Our DC-DC Power Supplies and Converters
- Serial: 1x Isolated RS232 [DB9]
- Power: 43-160V DC [Terminal Block]
- Temp: -40°C to 70°C [-40°F to 158°F]
- Certification: CE, EN45545-2, EN50155, FCC
- Mounting Options: DIN Mount, Wall Mount
- Serial: 1x RS232 [DB9]
- Power: 12-35V DC [Terminal Block]
- Ignition Sensing: Supports Ignition Control
- Temp: -25°C to 65°C [-13°F to 149°F]
- Certification: CE, FCC
- Mounting Options: DIN Mount, Wall Mount
- Serial: 1x RS232 [DB9]
- Power: 12-35V DC [Terminal Block]
- Ignition Sensing: Supports Ignition Control
- Temp: -25°C to 65°C [-13°F to 149°F]
- Certification: CE, EN50155, FCC
- Mounting Options: DIN Mount, Wall Mount
- Serial: 1x RS232 [DB9]
- Power: 12-35V DC [Terminal Block]
- Ignition Sensing: Supports Ignition Control
- Temp: -25°C to 65°C [-13°F to 149°F]
- Certification: CE, EN50155, FCC
- Mounting Options: DIN Mount, Wall Mount
- Power: 9-32V DC [Terminal Block]
- Temp: -25°C to 70°C [-13°F to 158°F]
- Certification: CE, FCC
- Mounting Options: DIN Mount, Wall Mount
- Power: 7-34V DC [Terminal Block]
- Temp: -40°C to 85°C [-40°F to 185°F]
- Certification: RoHS
- Power: 7-30V DC [Terminal Block]
- Temp: -40°C to 85°C [-40°F to 185°F]
- Power: 7-34V DC [Terminal Block]
- Temp: -40°C to 85°C [-40°F to 185°F]
-
JMM-7005-UPS
JUPITER-MM-7000 with 25 W 5 V output and UPS for industrial systems -
JMM-7012-UPS
JUPITER-MM-7000 with 40 W 12 V output and UPS for industrial systems -
JMM-7305-ISO-UPS
JUPITER-MM-7000 with 40 W isolated 5 V output, UPS and MIL-STD filtering -
JMM-7305-UPS
JUPITER-MM-7000 with 25 W 5 V output, UPS and MIL-STD filtering -
JMM-7312-ISO-UPS
JUPITER-MM-7000 with 40 W isolated 12 V output, UPS and MIL-STD filtering -
JMM-7312-UPS
JUPITER-MM-7000 with 40 W 12 V output, UPS and MIL-STD filtering
- Temp: -40°C to 85°C [-40°F to 185°F]
- Power: 9-36V DC Input
- Temp: -40°C to 85°C [-40°F to 185°F]
- Certification: DO-160G, MIL-STD-1275, MIL-STD-704, MIL-STD-461
Power Supply Ranges Configured by Things Embedded
We work with the leading manufacturers of rugged power electronics, so the ranges below are the ones we specify for embedded stacks, vehicle computers and military systems. Compare them by input range, output power and standards, then browse the models above or ask a power supply specialist which range suits your system.

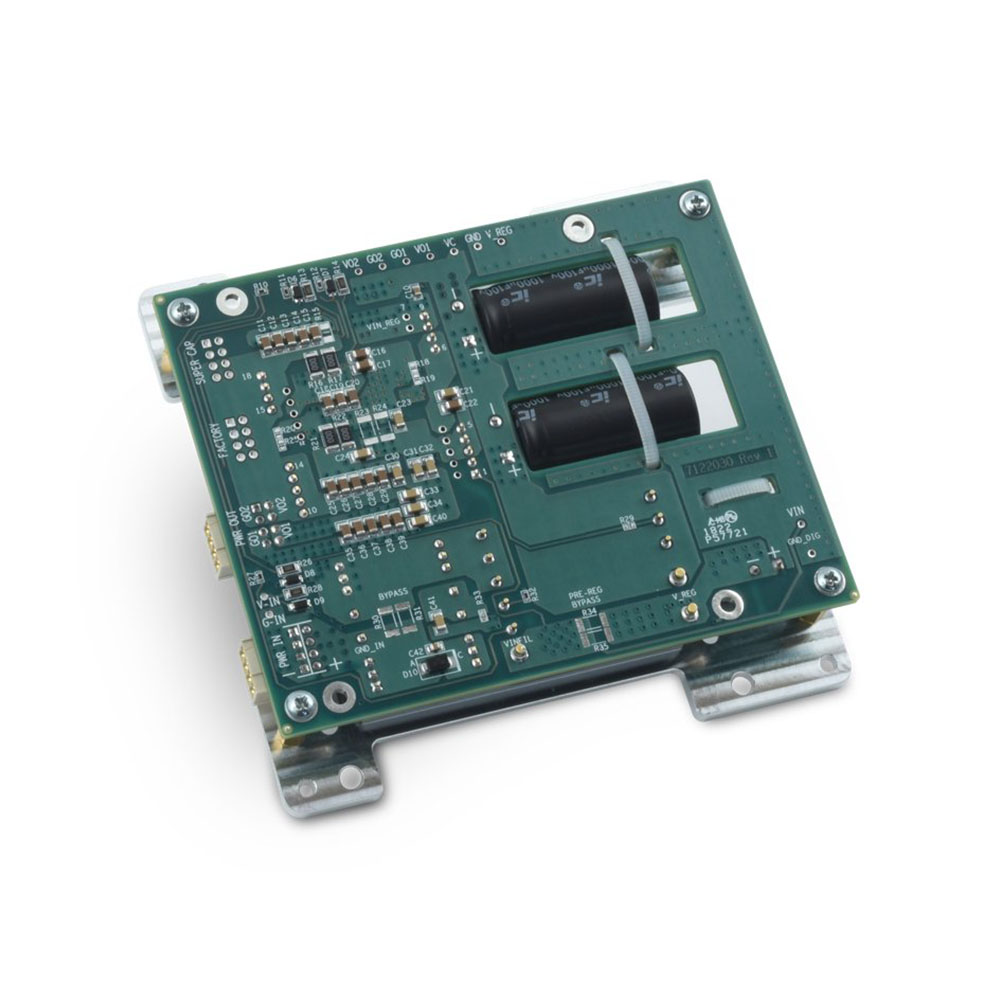

JUPITER-MM-7500 Diamond Systems 80 W Isolated DC-DC Converters
Isolated converters with a 9 to 60 V DC input and 12 or 15 V output, conduction cooled and designed to MIL-STD-461, 704 and 1275.
JUPITER-MM-7000 Diamond Systems PC/104 Supplies with UPS
PC/104 boards delivering 25 or 40 W at 5 or 12 V, with optional 500 V isolation and supercapacitor backup.

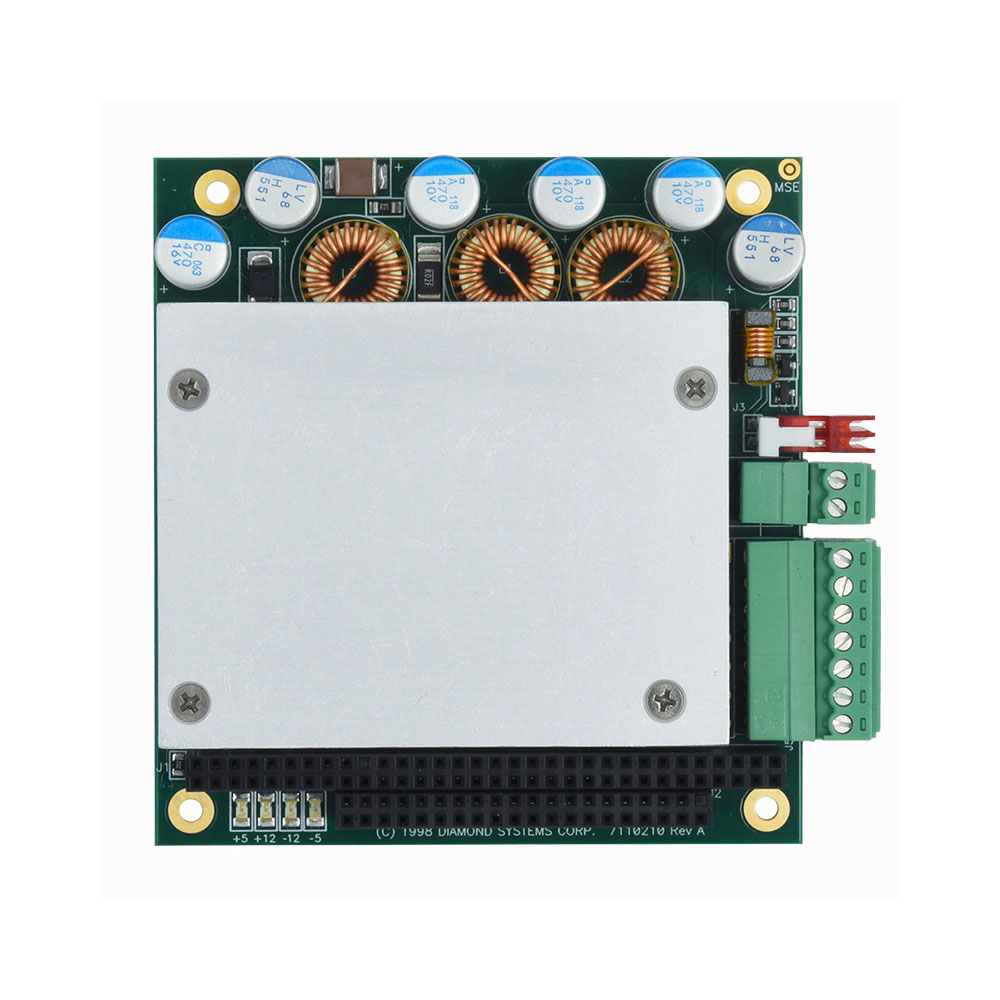

JUPITER-MM Diamond Systems PC/104 Vehicle Power Supplies
Stack modules with a 7 to 34 V DC input for 12 V and 24 V vehicles, giving 50 W across +5 and +12 V rails from -40 to 85 °C.

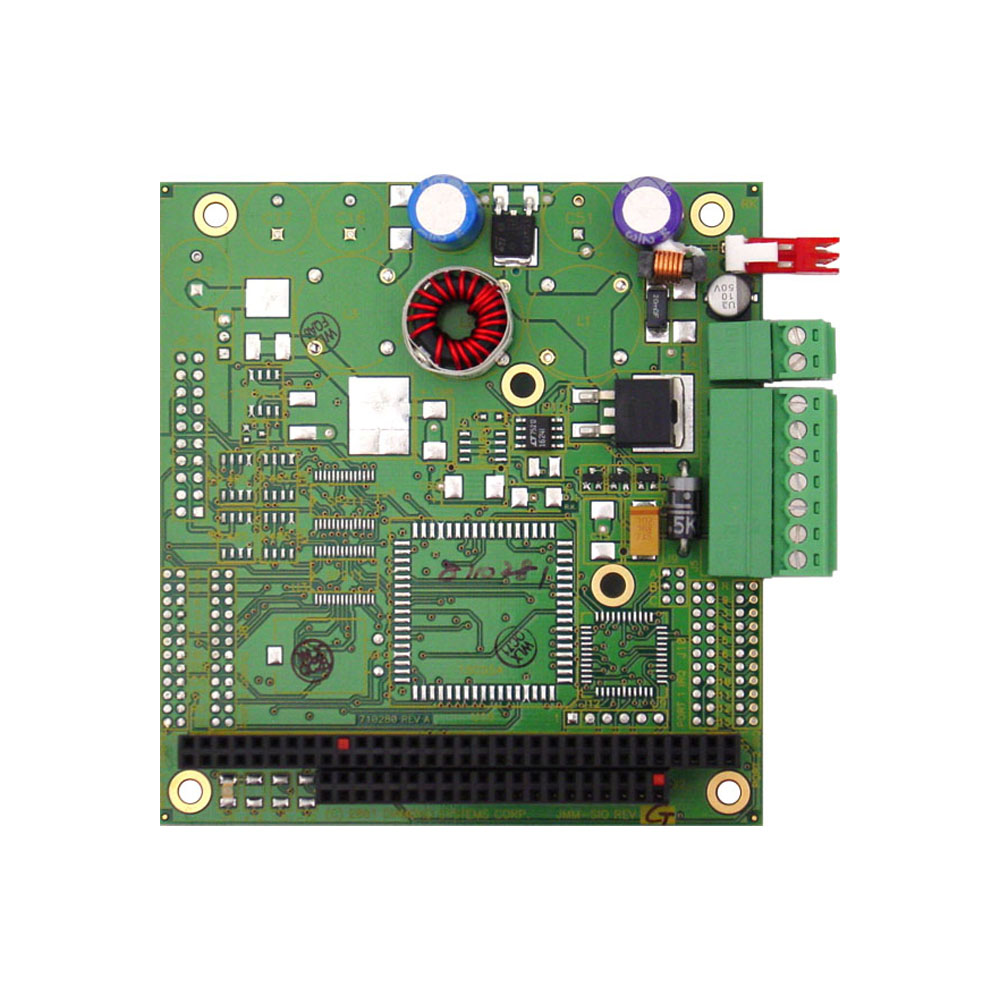

JMM-LP-XT and Jupiter-MM-5000 Diamond Systems PC/104 DC-DC Supplies
A heatsink-free 25 W unit for light loads and a 218 W PC/104-Plus supply with 3.3, 5 and 12 V rails and on-board monitoring.

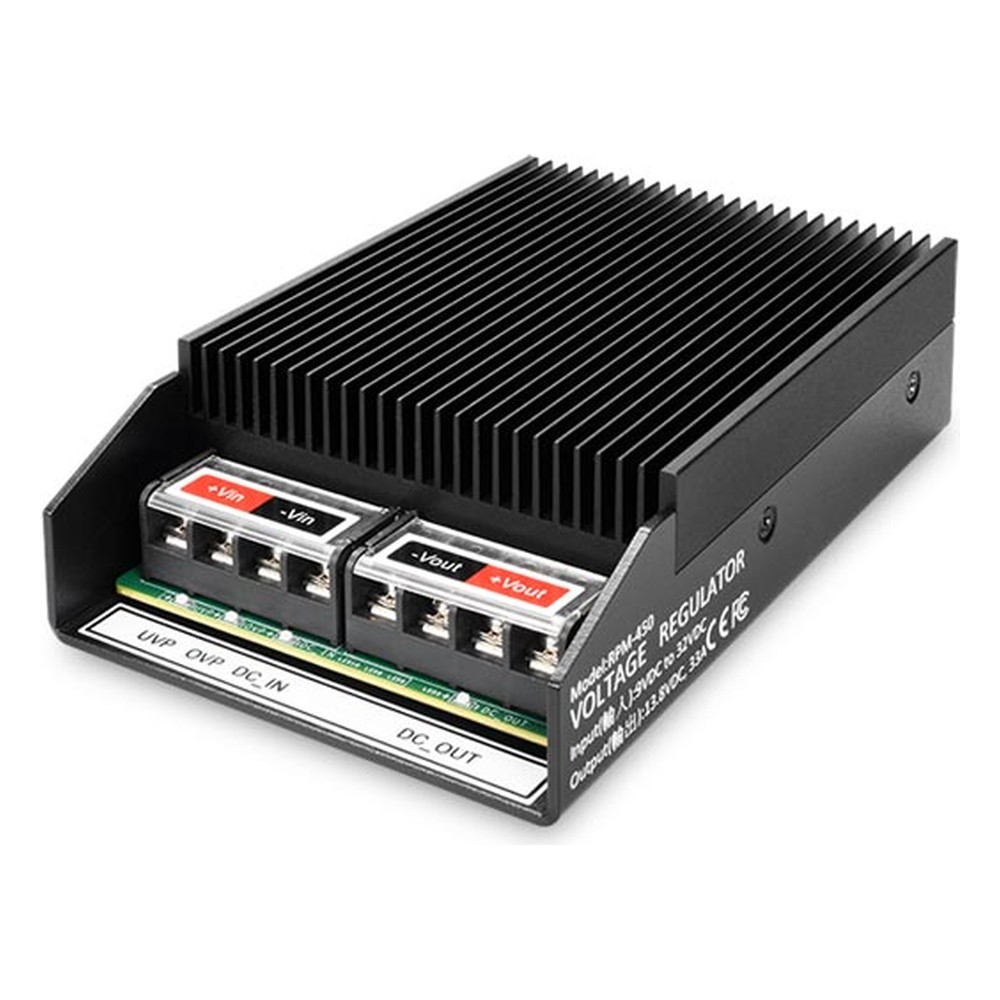

RPM-450 Neousys DC-DC Voltage Regulator
A 450 W buck-boost regulator that takes 9 to 32 V and holds 13.8 V at up to 33 A for GPU computers in vehicles.
PB Series Neousys SuperCAP UPS Modules
DIN rail backup units storing 2580 to 9250 W·s in supercapacitors, for box PCs up to 180 W and 110 V railway supplies.
Not sure which range fits? Tell us the application and we will recommend the right model.
What to Specify in a Rugged Power Supply
Our power supply specialists size every unit against the supply it sees, the rails the electronics need and the standards the system has to meet. These are the choices we work through with you before recommending a range.
Input Range
12 V and 24 V vehicles dip during cranking and spike on load dumps, so pick an input range with margin either side.
Output Rails and Power
List every rail the stack needs, 3.3, 5, 12 or 15 V, and add headroom over the peak draw at the hottest temperature.
Isolation
An isolated DC-DC converter breaks ground loops between a noisy vehicle supply and sensitive electronics.
Military Standards
MIL-STD-1275 covers vehicle transients, MIL-STD-704 aircraft power and MIL-STD-461 conducted and radiated emissions.
Temperature and Cooling
Check the rated range at full load; conduction-cooled and heatsink-free designs suit sealed, fanless enclosures.
Industrial Power Supply Innovation & Vehicle Power Insights
Speak to a Power Supply Specialist.
Tell us where the system will be installed, the supply it runs from and the rails your electronics need. We will recommend the converter, regulator or UPS, then configure and test it with your system before it ships.
