UK In-Vehicle Computers
Our range of rugged in-vehicle computers provide the latest edge functionality and environmental safeguards for both on-road and off-road applications. Integrated with optional GPUs, multiple PoE or GMSL, built-in CAN BUS interface, wake-on ignition functionality, and GPS dead reckoning support, our industrial vehicle PCs provide the intense computing performance necessary to help launch a new generation of intelligent and autonomous vehicle applications. Designed to withstand continuous shock and vibrations, extreme temperatures, and power fluctuations, our in-vehicle embedded systems meet industry standards such as MIL-STD-810 and UNECE Reg.10 E-mark to guarantee uninterrupted operation.
// LOADING...
Browse Our Range Of Rugged Vehicle Computers
- CPU: Intel Pentium G Series Alder Lake, Intel Core 12th Gen Alder Lake, Intel Core 13th Gen Raptor Lake, Intel Celeron G Series Alder Lake
- Memory: 2x DDR5 4800MHz SO-DIMM Slot, 128GB
- OS: Linux, Windows 10, Windows 11
- Display Outputs: 1x Display Port, 1x DVI, 1x VGA
- USB: 1x USB 3.2 Gen 2x2 [Type C], 2x USB 2.0 [Type A], 2x USB 3.2 Gen 1 [Type A], 4x USB 3.2 Gen 2 [Type A]
- Serial: 2x RS232 [DB9], 2x RS232/422/485 [DB9]
- CANbus: 1x Isolated CANbus, DB9
- M.2: 1x M.2 B-Key [PCIe x1/USB/SIM] [2242/3052], 1x M.2 M-Key [PCIe x4 Gen4] [2280]
- mPCIe: 1x PCIe [x16 Slot] [x16 Signal] [Gen3], 1x mPCIe [PCIe/USB], 1x mPCIe [USB/SIM]
- PCIe: 1x PCIe [x16 Slot] [x16 Signal] [Gen3]
- Storage: 1x M.2 SSD [M-Key 2280, PCIe Gen 4 x4], 2x 2.5" HDD/SSD [SATA]
- Front Accessible Storage: Front Accessible Storage
- Hot Swappable Storage: Hot Swappable SSD Support
- RAID: RAID 0, RAID 1
- Power: 8-48V DC [Terminal Block]
- Ignition Sensing: Supports Ignition Control
- Temp: -40°C to 70°C [-40°F to 158°F]
- Certification: CE, E-Mark, EN45545-2, EN50155, FCC
- Mounting Options: Wall Mount
- Ethernet: 1x 2.5 GbE LAN [RJ45], 1x GbE LAN [RJ45], 4x 2.5 GbE LAN [RJ45] [PoE], 4x GbE LAN [RJ45] [PoE]
-
ACS-1300-OOB
ACS-1300-OOB with IQ-9075, 4 TVI and 8 GMSL cameras and Allxon OOB -
ACS-1100
ACS-1100 with IQ-9075, 8 TVI M12 camera inputs, 4x PoE+ and isolated CAN FD -
ACS-1100-OOB
ACS-1100-OOB with IQ-9075, 8 TVI M12 camera inputs and Allxon OOB module -
ACS-1200
ACS-1200 with IQ-9075, 16 GMSL camera inputs, 4x PoE+ and 3x DisplayPort -
ACS-1200-OOB
ACS-1200-OOB with IQ-9075, 16 GMSL camera inputs and Allxon OOB module -
ACS-1300
ACS-1300 with IQ-9075, 4 TVI and 8 GMSL camera inputs and 4x PoE+
- CPU: IQ-9075
- AI Performance: 100 TOPS
- Memory: 36GB Soldered On-board
- OS: Linux, Qualcomm Linux
- Display Outputs: 3x Display Ports
- Ethernet: 2x 2.5 GbE LAN [RJ45], 4x GbE LAN [RJ45] [PoE]
- USB: 2x USB 3.1 [Type A]
- Serial: 2x RS232/422/485 [DB9]
- CANbus: 2x Isolated CAN FD [DB9]
- M.2: 1x M.2 E-Key [PCIe x1/USB 2.0] [2230/3042], 1x M.2 M-Key [PCIe x4] [2280], 2x M.2 B-Key [USB/SIM] [3042/3052]
- Storage: 128GB UFS, 1x M.2 SSD, 1x Micro SD, 2x 2.5" HDD/SSD
- Front Accessible Storage: Front Accessible Storage
- Power: 9-50V DC Input [Terminal Block]
- Ignition Sensing: Supports Ignition Control
- Temp: -40°C to 70°C [-40°F to 158°F]
- Certification: CE, EN50121-3-2, EN50155, FCC, MIL-STD-810, RoHS
- Mounting Options: Wall Mount
- CPU: Intel Pentium G Series Alder Lake, Intel Core 12th Gen Alder Lake, Intel Core 13th Gen Raptor Lake, Intel Celeron G Series Alder Lake
- Memory: 2x DDR5 4800MHz SO-DIMM Slot, 128GB
- OS: Linux, Windows 10, Windows 11
- Display Outputs: 1x Display Port, 1x DVI, 1x VGA
- USB: 1x USB 3.2 Gen 2x2 [Type C], 2x USB 2.0 [Type A], 2x USB 3.2 Gen 1 [Type A], 4x USB 3.2 Gen 2 [Type A]
- Serial: 2x RS232 [DB9], 2x RS232/422/485 [DB9]
- CANbus: 1x Isolated CANbus, DB9
- M.2: 1x M.2 B-Key [PCIe x1/USB/SIM] [2242/3052], 1x M.2 M-Key [PCIe x4 Gen4] [2280]
- mPCIe: 1x mPCIe [PCIe/USB], 1x mPCIe [USB/SIM]
- Storage: 1x M.2 SSD [M-Key 2280, PCIe Gen 4 x4], 2x 2.5" HDD/SSD [SATA]
- Front Accessible Storage: Front Accessible Storage
- Hot Swappable Storage: Hot Swappable SSD Support
- RAID: RAID 0, RAID 1
- Power: 8-48V DC [Terminal Block]
- Ignition Sensing: Supports Ignition Control
- Temp: -40°C to 70°C [-40°F to 158°F]
- Certification: CE, E-Mark, EN45545-2, EN50155, FCC
- Mounting Options: Wall Mount
- Ethernet: 1x 2.5 GbE LAN [RJ45], 1x GbE LAN [RJ45], 4x 2.5 GbE LAN [RJ45] [PoE], 4x GbE LAN [RJ45] [PoE]
- AI Performance: 100 TOPS
- SOM: NVIDIA Jetson Orin NX 16GB
- Memory: 16GB Soldered On-board
- OS: Linux, Linux Ubuntu 20.04, Linux Ubuntu 22.04
- Display Outputs: 1x HDMI
- Ethernet: 2x GbE LAN [M12], 4x GbE LAN [M12] [PoE]
- USB: 2x USB 3.0 [Type A]
- CANbus: 2x CANbus [M12]
- M.2: 1x M.2 B-Key [PCIe/USB] [3052], 1x M.2 M-Key [PCIe x1] [2280]
- mPCIe: 2x mPCIe [PCIe/USB]
- Storage: 1x M.2 SSD
- Power: 12-24V DC [M16]
- Ignition Sensing: Supports Ignition Control
- Temp: -20°C to 60°C [-4°F to 140°F]
- IP Rating: IP67
- Certification: CB, CCC, CE, E-Mark, FCC, UL
- Mounting Options: Desktop
-
VC700-ASL-x7835RE-8G-SSD
VC700-ASL-x7835RE-8G-SSD with 8-core Atom x7835RE, 8GB and two swappable 2.5" SSD bays -
VC700-ASL-x7211RE
VC700-ASL-x7211RE with dual-core Atom x7211RE, DFI OOB, M12 GbE, CAN and GNSS -
VC700-ASL-x7433RE
VC700-ASL-x7433RE with quad-core Atom x7433RE, 4GB, ITxPT, M12 GbE and -40 to 70 °C -
VC700-ASL-x7835RE-4G
VC700-ASL-x7835RE-4G with 8-core Atom x7835RE, 4GB LPDDR5, M12 GbE, CAN and GNSS -
VC700-ASL-x7835RE-8G
VC700-ASL-x7835RE-8G with 8-core Atom x7835RE, 8GB LPDDR5, GNSS, M12 GbE and CAN
- CPU: Intel Atom X Series Amston Lake
- OS: Linux, Linux Ubuntu 22.04, Windows 11
- Display Outputs: 1x Display Port, 1x HDMI
- Ethernet: 2x GbE LAN [M12]
- USB: 4x USB 3.2 [Type A]
- Serial: 2x RS232/422/485 [DB9]
- CANbus: 2x CANbus, DB9
- M.2: 1x M.2 B-Key [PCIe/USB 3.0/SIM] [3042/3052], 1x M.2 E-Key [USB/PCIe] [2230], 1x M.2 M-Key [PCIe/SATA] [2242/2280]
- mPCIe: 1x Half-Size mPCIe [USB], 1x mPCIe [USB]
- Power: 9-36V DC Input [Terminal Block]
- Ignition Sensing: Supports Ignition Control
- Temp: -40°C to 70°C [-40°F to 158°F]
- Certification: ITxPT, CE, E-Mark, FCC, RoHS, UKCA
- Mounting Options: Wall Mount
- Memory: 8GB Soldered On-board
- Storage: 128GB eMMC, 1x M.2 SSD [PCIe & SATA], 2x 2.5" HDD/SSD [SATA], 64GB eMMC
- AI Performance: 200–275 TOPS
- SOM: NVIDIA Jetson AGX Orin 32GB, NVIDIA Jetson AGX Orin 64GB, NVIDIA Jetson AGX Orin Industrial 64GB
- Memory: 32GB Soldered On-board, 64GB Soldered On-board
- OS: Linux
- Display Outputs: 1x Display Port
- USB: 1x USB 3.0 [Type C], 1x USB 3.2 Gen 2 [Type A], 2x USB 2.0 [Type A]
- Serial: 1x RS232 [DB9], 1x RS485 [DB9]
- CANbus: 2x CANbus, DB9
- M.2: 1x M.2 B-Key [PCIe x1/USB/SIM] [3042/3052], 1x M.2 M-Key [PCIe x4] [2280]
- mPCIe: 2x mPCIe [PCIe/USB]
- Storage: 1x M.2 SSD, 2x 2.5" HDD/SSD [SATA], 64GB eMMC
- Front Accessible Storage: Front Accessible Storage
- Ignition Sensing: Supports Ignition Control
- Temp: -40°C to 75°C [-40°F to 167°F]
- Certification: CE, FCC
- Mounting Options: Wall Mount
- Ethernet: 4x GbE LAN [M12] [PoE], 4x GbE LAN [RJ45] [PoE]
- Power: 8-48V DC [M12]
- CPU: AMD Ryzen R2000
- Memory: 1x DDR4 2400MHz SO-DIMM Slot, 32GB
- OS: Linux, Linux Ubuntu 20.04, Windows 11
- Display Outputs: 1x DVI, 2x HDMI
- Ethernet: 2x GbE LAN [RJ45]
- USB: 2x USB 2.0 [Type A], 2x USB 3.2 Gen 2 [Type A]
- Serial: 4x RS232/422/485 [DB9]
- M.2: 1x M.2 M-Key [PCIe/SATA] [2280], 1x M.2 B-Key [USB/SIM] [3042/3052], 1x M.2 E-Key [USB/PCIe] [2230]
- mPCIe: 2x mPCIe [USB]
- Storage: 1x 2.5" HDD/SSD [SATA], 1x M.2 SSD [PCIe & SATA]
- Power: 9-60V DC Input [Terminal Block]
- Ignition Sensing: Supports Ignition Control
- Temp: -40°C to 60°C [-40°F to 140°F]
- Certification: CE, E-Mark, FCC, UKCA
- Mounting Options: Wall Mount
- CPU: Intel Core Ultra Series 1 Meteor Lake
- GPU / AI Accelerator: Intel NPU
- AI Performance: 11 TOPS
- Memory: 32GB Soldered On-board
- OS: Linux, Windows 11
- Display Outputs: 1x Display Port, 1x HDMI, 1x USB Type C
- Ethernet: 1x GbE LAN [RJ45], 2x 2.5 GbE LAN [RJ45]
- USB: 1x USB 3.2 [Type C], 2x USB 2.0 [Type A], 5x USB 3.2 [Type A]
- Serial: 1x RS232 [DB9], 2x RS232/422/485 [DB9]
- CANbus: 2x CAN FD [DB9]
- M.2: 1x M.2 B-Key [PCIe x1/USB 3.0/SATA/SIM] [3052], 1x M.2 E-Key [PCIe x1/USB 2.0] [2230], 1x M.2 M-Key [PCIe x4 Gen4] [2280]
- Storage: 1x M.2 SSD [M-Key 2280, PCIe Gen 4 x4]
- Power: 9-36V DC Input [Terminal Block]
- Ignition Sensing: Supports Ignition Control
- Temp: -20°C to 70°C [-4°F to 158°F]
- Certification: CE, E-Mark, FCC, RoHS, UKCA
- Mounting Options: Wall Mount
-
IBOX-601-G2-ON4
IBOX-601-G2 with Jetson Orin Nano 4GB module and 4x GMSL-2 camera inputs -
IBOX-601-G2-ON8
IBOX-601-G2 with Jetson Orin Nano 8GB module and 4x GMSL-2 camera inputs -
IBOX-601-G2-ONX16
IBOX-601-G2 with Jetson Orin NX 16GB module, 4x GMSL-2 camera inputs, CAN FD -
IBOX-601-G2-ONX8
IBOX-601-G2 with Jetson Orin NX 8GB module, 4x GMSL-2 camera inputs, CAN FD
- Display Outputs: 1x HDMI
- Ethernet: 1x 2.5 GbE LAN [M12], 1x GbE LAN [M12]
- USB: 2x USB 3.2 Gen 1 [Type A]
- Serial: 1x RS232/422/485 [DB9]
- CANbus: 1x CANbus, DB9
- M.2: 1x M.2 B-Key [USB] [3042/3052], 1x M.2 E-Key [USB] [2230]
- mPCIe: 1x mPCIe [USB]
- Storage: 1x M.2 SSD
- Power: 9-60V DC Input [M12]
- Ignition Sensing: Supports Ignition Control
- Temp: -25°C to 70°C [-13°F to 158°F]
- Certification: CE, E-Mark, EN50155, FCC
- AI Performance: 20 TOPS
- SOM: NVIDIA Jetson Orin Nano 4GB
- CPU: Intel Core 14th Gen Raptor Lake Refresh, Intel Core Series 2 Bartlett Lake, Intel Core 12th Gen Alder Lake, Intel Core 13th Gen Raptor Lake
- Memory: 2x DDR5 5200MHz SO-DIMM Slot, 96GB
- OS: Linux
- Display Outputs: 1x DVI, 1x HDMI, 2x Display Port
- USB: 1x USB 3.2 Gen 2x2 [Type C], 6x USB 3.2 Gen 2 [Type A]
- Serial: 4x RS232/422/485 [DB9]
- M.2: 1x M.2 B-Key [PCIe/USB 3.0/USB] [2280/3042], 1x M.2 B-Key [PCIe/USB 3.0/USB] [2280/3052], 1x M.2 E-Key [USB/PCIe] [2230], 1x M.2 M-Key [PCIe x4] [2280]
- mPCIe: 1x mPCIe [PCIe/USB/SIM]
- Storage: 1x M.2 SSD, 2x 2.5" HDD/SSD [SATA]
- Front Accessible Storage: Front Accessible Storage
- RAID: RAID 0, RAID 1
- Power: 9-50V DC Input [Terminal Block]
- Ignition Sensing: Supports Ignition Control
- Temp: -40°C to 50°C [-40°F to 122°F], -40°C to 60°C [-40°F to 140°F]
- Certification: CE, EN50121-3-2, EN50155, FCC
- Mounting Options: DIN Mount, Rack Mount, VESA Mount, Wall Mount
- Ethernet: 2x GbE LAN [RJ45]
- CPU: Intel Core 14th Gen Raptor Lake Refresh, Intel Core Series 2 Bartlett Lake, Intel Core 12th Gen Alder Lake, Intel Core 13th Gen Raptor Lake
- Memory: 2x DDR5 5600MHz SO-DIMM Slot, 96GB
- OS: Linux, Windows 11
- Display Outputs: 1x DVI, 2x Display Port
- Ethernet: 2x 2.5 GbE LAN [RJ45]
- USB: 1x USB 3.2 Gen 1 [Board], 2x USB 2.0 [Board], 8x USB 3.2 Gen 2 [Type A]
- Serial: 2x RS232/422/485 [DB9], 4x RS232/422/485 [Board]
- CANbus: 2x CANbus [Board]
- M.2: 1x M.2 B-Key [PCIe x2/USB] [2242/3042/3052], 1x M.2 E-Key [PCIe x1/USB 2.0] [2230]
- mPCIe: 2x mPCIe [SATA/USB/PCIe]
- Storage: 1x M.2 SSD, 1x mSATA, 3x 2.5" HDD/SSD
- Front Accessible Storage: Front Accessible Storage
- Hot Swappable Storage: Hot Swappable SSD Support
- RAID: RAID 0, RAID 1
- Power: 12-48V DC, Terminal Block
- Ignition Sensing: Supports Ignition Control
- Temp: -25°C to 70°C [-13°F to 158°F]
- Certification: IEC 62368-1, CB, CE, EN50121-3-2, FCC, IC (ICES-003), UKCA, UL 62368-1
- Mounting Options: Wall Mount
- CPU: Intel Processor N Series Alder Lake
- Memory: 1x DDR5 4800MHz SO-DIMM, 16GB
- OS: Linux, Windows 11
- Display Outputs: 1x Display Port, 1x USB Type C
- Ethernet: 2x 2.5 GbE LAN [RJ45]
- USB: 1x USB 2.0 [Type A], 1x USB 3.2 Gen 2 [Type C], 3x USB 3.2 Gen 2 [Type A]
- Serial: 2x RS232/422/485 [DB9]
- M.2: 1x M.2 B-Key [PCIe/USB 3.0/SATA/SIM] [2230/2242/2280]
- mPCIe: 1x mPCIe [PCIe/USB/SIM]
- Storage: 1x 2.5" HDD/SSD, 1x M.2 SSD [SATA]
- Front Accessible Storage: Front Accessible Storage
- Power: 9-48V DC Input [Terminal Block]
- Ignition Sensing: Supports Ignition Control
- Temp: -40°C to 70°C [-40°F to 158°F]
- Certification: CE, FCC
- Mounting Options: Wall Mount
- AI Performance: 275 TOPS
- SOM: NVIDIA Jetson AGX Orin 64GB
- Memory: 64GB Soldered On-board
- OS: Linux
- Display Outputs: 1x HDMI
- Ethernet: 1x 10 GbE LAN [M12], 1x GbE BASE-T1 [IEC 63171-5], 2x 2.5 GbE LAN [M12] [PoE]
- USB: 2x USB 3.2 Gen 2 [Type A]
- Serial: 1x RS232/422/485 [M12]
- CANbus: 2x CAN FD [M8]
- M.2: 1x M.2 B-Key [USB] [3042/3052], 1x M.2 E-Key [USB] [2230], 1x M.2 M-Key [PCIe] [2280]
- mPCIe: 1x mPCIe [USB]
- Storage: 1x M.2 SSD, 64GB eMMC
- Power: 9-60V DC Input [M12]
- Ignition Sensing: Supports Ignition Control
- Temp: -25°C to 70°C [-13°F to 158°F]
- IP Rating: IP66
- Certification: CE, E-Mark, EN45545-2, EN50155, FCC, UKCA
- Mounting Options: Wall Mount
- CPU: Intel Atom X Series Alder Lake
- Memory: 1x DDR5 4800MHz SO-DIMM, 16GB
- OS: Linux, Windows 11
- Display Outputs: 1x HDMI
- USB: 2x USB 3.2 Gen 2 [Type A]
- Serial: 1x RS232/422/485 [DB9]
- CANbus: 2x Isolated CANbus, DB9
- M.2: 1x M.2 B-Key [USB] [3042/3052], 1x M.2 M-Key [PCIe] [2280]
- mPCIe: 2x mPCIe [PCIe/SIM/USB]
- Storage: 1x M.2 SSD [M-Key 2280, PCIe Gen 3 x2], 1x 2.5" HDD/SSD
- Power: 8-35V DC [Terminal Block]
- Ignition Sensing: Supports Ignition Control
- Temp: -40°C to 70°C [-40°F to 158°F]
- Certification: CE, E-Mark, EN50155, EN55032, FCC
- Mounting Options: Wall Mount
- Ethernet: 4x GbE LAN [M12]
-
IBOX-650P-T1-JAO32-LE
IBOX-650P-T1 with Jetson AGX Orin 32GB, 1000BASE-T1, 10GbE and 2x PoE+, no GMSL -
IBOX-650P-T1-01-JAO32
IBOX-650P-T1 with Jetson AGX Orin 32GB, 4x GMSL-2 and 1000BASE-T1 -
IBOX-650P-T1-01-JAO64
IBOX-650P-T1 with Jetson AGX Orin 64GB, 4x GMSL-2 and 1000BASE-T1 -
IBOX-650P-T1-JAO64-LE
IBOX-650P-T1 with Jetson AGX Orin 64GB, 1000BASE-T1, 10GbE and 2x PoE+, no GMSL
- Display Outputs: 1x HDMI
- Ethernet: 1x 10 GbE LAN [M12], 1x GbE BASE-T1 [H-CMTD], 2x 2.5 GbE LAN [M12] [PoE]
- USB: 2x USB 3.2 Gen 2 [Type A]
- Serial: 1x RS232/422/485 [M12]
- CANbus: 2x CANbus, M8
- M.2: 1x M.2 B-Key [USB] [3042/3052], 1x M.2 E-Key [USB] [2230]
- mPCIe: 1x mPCIe [USB]
- Storage: 1x M.2 SSD
- Power: 9-60V DC Input [M12]
- Ignition Sensing: Supports Ignition Control
- Temp: -25°C to 70°C [-13°F to 158°F]
- Certification: CE, E-Mark, EN50155, FCC
- AI Performance: 200 TOPS
- SOM: NVIDIA Jetson AGX Orin 32GB

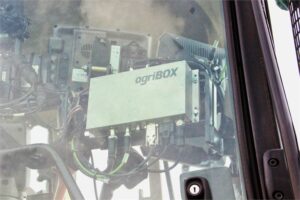

Installing Computers In Vehicles
The specifications needed for an in-vehicle PC differ significantly depending on the application. At Things Embedded, our priority is to help you find the perfect rugged vehicle computer for your project. See how we’ve helped our customers overcome challenges when installing computers in vehicles.
Fleet Management Systems Utilise GPS Tracking For Route Optimisation
Fleet management systems give you complete control of all your vans and corporate vehicles providing features such as GPS tracking for route optimisation and accurate tracking.
// Next Step
Tell us what you're building.
Send us the application, the deployment environment, and the lifecycle expectation. We'll come back with a platform recommendation, a BOM, and a service stack matched to it.
Phone · UK
+44(0)1785 558 300
