UK Ethernet Switches
Ethernet Switches for Embedded, Rugged and Industrial Networks
Choose the network switch that fits your system: board-level switch boards and modules built into vehicles and OEM equipment, DIN-rail and rackmount switches for control cabinets and network racks, sealed M12 switches, or rugged switches for military and vehicle networks, with gigabit ports, PoE, 10G uplinks and managed or unmanaged operation.
Browse Our Network Switches
- Switch Type: Managed
- Ethernet: 2x 10/100/1000 BASE-TX [RJ45], 8x 10/100 BASE-TX [PoE+] [RJ45]
- Ethernet Connectors: RJ45
- PoE Standard: PoE+ 30W [802.3at]
- Fiber: 2x 100/1000 [SFP]
- Fiber Connectors: SFP
- Temp: -15°C to 55°C [5°F to 131°F]
- IP Rating: IP30
- Certification: CE, FCC
- Mounting Options: DIN Mount, Wall Mount
- Switch Type: Unmanaged
- Ethernet: 8x 10/100 BASE-TX [RJ45]
- Ethernet Connectors: RJ45
- Temp: -15°C to 55°C [5°F to 131°F]
- IP Rating: IP30
- Certification: CE, FCC
- Mounting Options: DIN Mount, Wall Mount
- Switch Type: Managed
- Ethernet: 8x 10/100/1000 BASE-TX [PoE++] [RJ45]
- Ethernet Connectors: RJ45
- PoE Standard: PoE++ 90W [802.3bt]
- Fiber: 2x 100/1000 [SFP], 2x 100/1000/2.5G [SFP]
- Fiber Connectors: SFP
- Power: 20-60V DC [Terminal Block]
- Temp: -40°C to 85°C [-40°F to 185°F]
- IP Rating: IP30
- Certification: EN62368-1, CE, EMC, FCC, IEC 61850-3, LVD
- Mounting Options: DIN Mount
- Switch Type: Managed
- Ethernet: 4x 10/100/1000 BASE-TX [PoE++] [RJ45]
- Ethernet Connectors: RJ45
- PoE Standard: PoE++ 90W [802.3bt]
- Fiber: 2x 100/1000 [SFP], 2x 100/1000/2.5G [SFP]
- Fiber Connectors: SFP
- Power: 20-60V DC [Terminal Block]
- Temp: -40°C to 85°C [-40°F to 185°F]
- IP Rating: IP40
- Certification: EN62368-1, CE, EMC, FCC, LVD
- Mounting Options: DIN Mount
- Switch Type: Managed
- Ethernet: 8x 10/100/1000 BASE-TX [PoE++] [RJ45]
- Ethernet Connectors: RJ45
- PoE Standard: PoE++ 90W [802.3bt]
- Fiber: 16x 100/1000 [SFP], 4x 1G/2.5G/10G [SFP+]
- Fiber Connectors: SFP
- Power: 36-60V DC [Terminal Block]
- Temp: -40°C to 85°C [-40°F to 185°F]
- IP Rating: IP30
- Certification: EN62368-1, CE, EMC, FCC, LVD
- Mounting Options: 19" Rack Mount
- Switch Type: Managed
- Ethernet: 4x 10/100/1000 BASE-TX [PoE++] [RJ45]
- Ethernet Connectors: RJ45
- PoE Standard: PoE++ 90W [802.3bt]
- Fiber: 2x 100/1000 [SFP]
- Fiber Connectors: SFP
- Power: 48-55V DC, Terminal Block
- IP Rating: IP40
- Certification: CE, FCC, RoHS
- Mounting Options: DIN Mount, Wall Mount
- Temp: -40°C to 75°C [-40°F to 167°F]
- Switch Type: Managed
- Ethernet: 4x 10/100/1000 BASE-TX [PoE++] [RJ45]
- Ethernet Connectors: RJ45
- PoE Standard: PoE++ 90W [802.3bt]
- Fiber: 24x 1G [SFP], 4x 1G/2.5G/10G [SFP+]
- Fiber Connectors: SFP
- Power: 48-55V DC, Terminal Block
- IP Rating: IP30
- Certification: CE, FCC, NDAA, RoHS, TAA
- Mounting Options: 19" Rack Mount
- Temp: -40°C to 75°C [-40°F to 167°F]
- Switch Type: Managed
- Ethernet: 16x 10/100/1000 BASE-TX [PoE+] [RJ45]
- Ethernet Connectors: RJ45
- PoE Standard: PoE+ 30W [802.3at]
- Fiber: 4x 1G/2.5G/10G [SFP+], 8x 1G [SFP]
- Fiber Connectors: SFP
- Power: 12-55V DC [Terminal Block]
- IP Rating: IP30
- Certification: CE, FCC, NDAA, RoHS, TAA, UL 61010-1, UL Class 1 Division 2
- Mounting Options: 19" Rack Mount
- Temp: -40°C to 75°C [-40°F to 167°F]
- Switch Type: Managed
- Ethernet: 16x 10/100/1000 BASE-TX [PoE+] [RJ45]
- Ethernet Connectors: RJ45
- PoE Standard: PoE+ 30W [802.3at]
- Fiber: 4x 1G/2.5G/10G [SFP+], 8x 1G [SFP]
- Fiber Connectors: SFP
- Power: 48-55V DC, Terminal Block
- IP Rating: IP30
- Certification: CE, FCC, NDAA, RoHS, TAA, UL 61010-1, UL Class 1 Division 2
- Mounting Options: 19" Rack Mount
- Temp: -10°C to 65°C [14°F to 149°F]
- Switch Type: Managed
- Ethernet: 24x 10/100/1000 BASE-TX [PoE+] [RJ45]
- Ethernet Connectors: RJ45
- PoE Standard: PoE+ 30W [802.3at]
- Fiber: 4x 1G/2.5G/10G [SFP+]
- Fiber Connectors: SFP
- Power: 12-55V DC [Terminal Block]
- IP Rating: IP30
- Certification: CE, FCC, NDAA, RoHS, TAA, UL 61010-1, UL Class 1 Division 2
- Mounting Options: 19" Rack Mount
- Temp: -40°C to 75°C [-40°F to 167°F]
- Switch Type: Managed
- Ethernet: 24x 10/100/1000 BASE-TX [PoE+] [RJ45]
- Ethernet Connectors: RJ45
- PoE Standard: PoE+ 30W [802.3at]
- Fiber: 4x 1G/2.5G/10G [SFP+]
- Fiber Connectors: SFP
- Power: 48-55V DC, Terminal Block
- IP Rating: IP30
- Certification: CE, FCC, NDAA, RoHS, TAA, UL 61010-1, UL Class 1 Division 2
- Mounting Options: 19" Rack Mount
- Temp: -10°C to 65°C [14°F to 149°F]
- Switch Type: Managed
- Ethernet: 24x 10/100/1000 BASE-TX [PoE+] [RJ45], 2x 10/100/1000 BASE-TX [RJ45]
- Ethernet Connectors: RJ45
- PoE Standard: PoE+ 30W [802.3at]
- Fiber: 2x 100/1000 [SFP]
- Fiber Connectors: SFP
- Power: 48-55V DC, Terminal Block
- IP Rating: IP40
- Certification: CE, FCC, UL 61010-1
- Mounting Options: 19" Rack Mount
- Temp: -40°C to 75°C [-40°F to 167°F]
- Switch Type: Managed
- Ethernet: 8x 10/100/1000 BASE-TX [PoE+] [RJ45]
- Ethernet Connectors: RJ45
- PoE Standard: PoE+ 30W [802.3at]
- Fiber: 12x 100/1000 [SFP]
- Fiber Connectors: SFP
- Power: 48-55V DC, Terminal Block
- IP Rating: IP30
- Certification: CE, FCC, NEMA TS2, RoHS, UL 61010-1
- Mounting Options: DIN Mount, Wall Mount
- Temp: -40°C to 75°C [-40°F to 167°F]
- Switch Type: Managed
- Ethernet: 16x 10/100/1000 BASE-TX [PoE+] [RJ45]
- Ethernet Connectors: RJ45
- PoE Standard: PoE+ 30W [802.3at]
- Fiber: 4x 100/1000 [SFP]
- Fiber Connectors: SFP
- Power: 48-55V DC, Terminal Block
- IP Rating: IP30
- Certification: CE, FCC, IEC 61850-3, NEMA TS2, RoHS, UL 61010-1
- Mounting Options: DIN Mount, Wall Mount
- Temp: -40°C to 75°C [-40°F to 167°F]
- Switch Type: Managed
- Ethernet: 16x 10/100/1000 BASE-TX [PoE+] [RJ45]
- Ethernet Connectors: RJ45
- PoE Standard: PoE+ 30W [802.3at]
- Fiber: 2x 100/1000 [SFP]
- Fiber Connectors: SFP
- Power: 48-55V DC, Terminal Block
- IP Rating: IP30
- Certification: CE, FCC, IEC 61850-3, NEMA TS2, RoHS, UL 61010-1
- Mounting Options: DIN Mount, Wall Mount
- Temp: -10°C to 70°C [14°F to 158°F]
Ethernet Switch Ranges Supplied by Things Embedded
We work with leading manufacturers of embedded, rugged and industrial Ethernet switches, so the ranges below are the ones we specify for vehicle, defence and industrial networks. Compare them by ports, management and environment, then browse the models above or ask a networking specialist which range suits your system.
LNX and GNX Antaira Unmanaged Switches
Unmanaged DIN-rail switches from five to 20 ports, Fast Ethernet or gigabit, with SFP, 10G SFP+ or fixed fibre uplinks and -40 °C builds.
LNP, GNP and FNP Antaira Unmanaged PoE Switches
Unmanaged PoE+ and PoE++ switches for cameras and access points, with low-voltage DC builds and SFP or 10G SFP+ uplinks.
LMX and QMX Antaira Managed Switches
Managed switches with VLANs, QoS and ERPS ring redundancy, Layer 2+ or Layer 3 routing and SFP or 10G SFP+ uplinks.
LMP and QMP Antaira Managed PoE Switches
Managed PoE+ and PoE++ switches with budgets up to 720 W, ERPS ring redundancy and SFP or 10G SFP+ uplinks.
EPSM-10GX Diamond Systems Ethernet Switch Modules
26-port 55 x 84 mm modules with 24 gigabit ports and two 10G SFI ports, in Layer 2+ and Layer 3 builds.
EPSM-10GX4 Diamond Systems 10G Switch Modules
28-port modules with four 10G SFI ports, in Layer 2+, Layer 3 and IEEE-1588 builds, for carriers that need several 10G uplinks.
EPSM-12G2F Diamond Systems Miniature Switch Module
26-port 55 x 84 mm module with 24 gigabit ports and two 1G/2.5G SFP links for lower-cost carrier designs.
EPS-12000-CM Diamond Systems Compact Switch Boards
84 x 55 mm two-board switches with 12 gigabit ports on latching connectors, Layer 2 or Layer 3, heat sink or heat spreader.
EPS-12002L Diamond Systems 10G Switch Boards
Compact switch boards with 12 gigabit ports and two SFP+ sockets from 1G to 10G, in Layer 2+ and Layer 3 builds with heat sink or spreader.
EPS-12G2 Diamond Systems Managed Switch Boards
95 x 125 mm Layer 2+ boards with 12 gigabit ports and up to two SFP sockets, running standalone from a wide DC input.
EPS-24G4X Diamond Systems 28-Port Switch Boards
24 gigabit ports and four 10G SFP+ sockets, in Layer 2+, Layer 3 and IEEE-1588 builds for larger vehicle networks.
EPS-8130 Diamond Systems PC/104 Switches
Eight-port gigabit Layer 2+ switches in the PC/104 form factor, with heat sink or full heat spreader.
Epsilon-24000 Diamond Systems PC/104 Switches
16-port and 26-port PC/104 switches, the larger with two SFP sockets, for stacked systems with many devices.
EPS-9600 Diamond Systems Layer 3 and TSN Switch Boards
Eight gigabit ports and two 10G SFP+ sockets on a 102 x 102 mm board, with Layer 3 routing and TSN builds with IEEE-1588 PTP.
SabreNet-12000 Diamond Systems Rugged Switches
Sealed 12-port gigabit Layer 3 switches on two MIL-DTL-38999 connectors, with a MIL-STD-461 filter or MIL-grade power supply and IEEE-1588 builds.

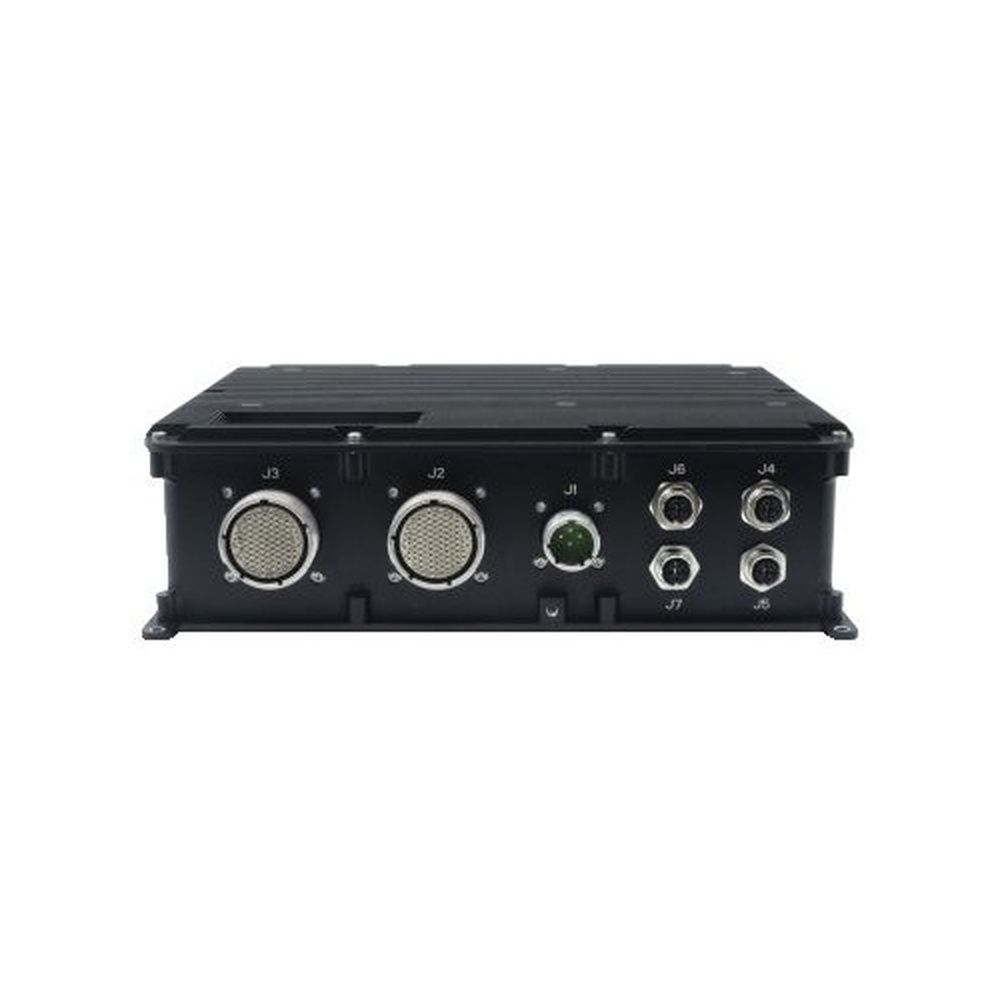

SabreNet-24000 Diamond Systems Rugged 10G Switch
Sealed 24-port gigabit switch with up to four 10G ports, Layer 3 software with IEEE-1588 and MIL-STD power filtering, built to order.
Raptor-Epsilon Diamond Systems Rugged Switch
Sealed eight-port gigabit Layer 2+ switch in an aluminium enclosure with MIL-DTL-38999 connectors and wide 5 to 32 V DC input.
Not sure which range fits? Tell us the application and we will recommend the right model.
What to Specify in an Ethernet Switch
Our networking specialists work through these choices with you before recommending a switch, so it fits the devices, the space and the environment.
Ports and Uplinks
Count copper ports, SFP fibre and 10G uplinks for today's devices and the ones you will add.
Managed or Unmanaged
Unmanaged switches just work; managed switches add VLANs, QoS, redundancy and Layer 3 routing.
Board, Module or DIN Rail
Modules go on your own carrier, boards mount inside an enclosure, DIN-rail switches clip into a cabinet.
Temperature and Power
Match the operating range and DC input to the vehicle, cabinet or site the switch goes into.
Timing and Speed
IEEE-1588 PTP and TSN keep devices on one clock; 10G links carry sensor-heavy traffic.
Explore Our Network Switches by Type
Compare every networking category, from board-level switch modules to sealed rugged switches and DIN-rail PoE switches, and go straight to the switches that fit your system.
Ethernet Switch Innovation & Networking Insights
Speak to an Ethernet Switch Specialist.
Tell us the devices the switch must connect, the vehicle, enclosure or cabinet it goes into and the power and temperature it has to handle. We will recommend the right switch, supply it with the manufacturer's documentation and support you as you bring it into your system.
