Antaira LMP-C602G-SFP-bt-V2 6-Port Compact Gigabit Managed PoE++ Switches with 4x PoE++ (240W), 2x SFP and Extended Temperature Options

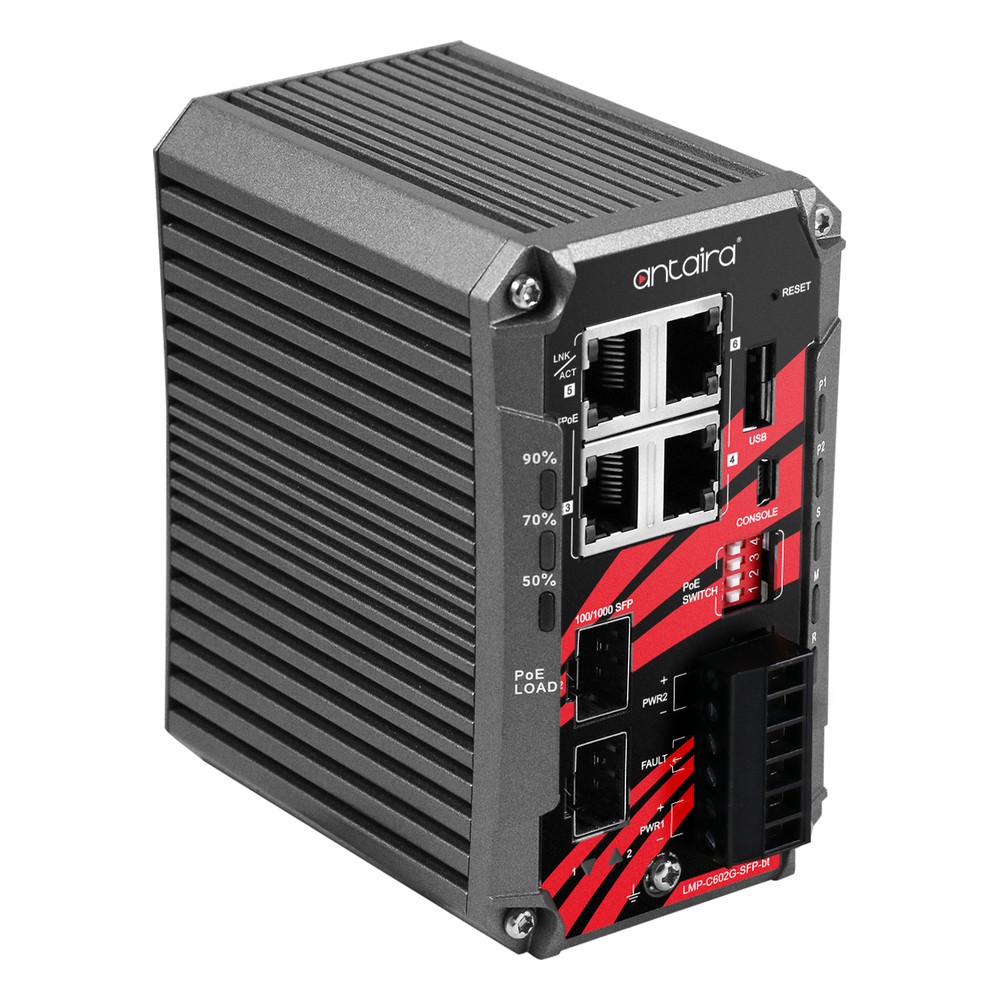

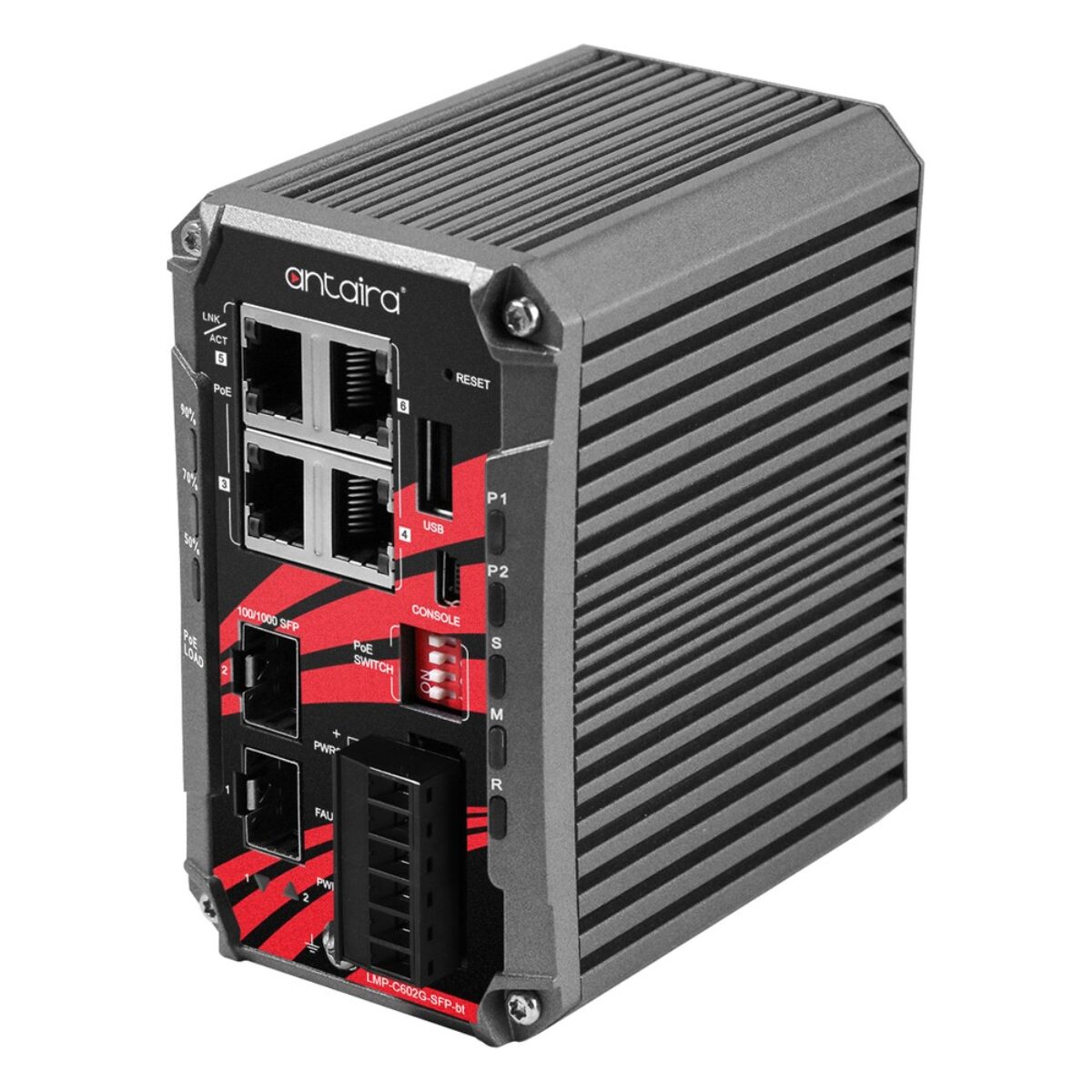

High-power surveillance cameras, access points and other powered devices can each draw more than 802.3at’s 30 W, so a cabinet powering several of them needs PoE++ on every port and a budget to match. The Antaira LMP-C602G-SFP-bt-V2 series gives four 802.3bt PoE++ ports at up to 90 W each, a 240 W budget and two SFP slots for fibre, in a small IP40 metal case with every connection on the front.

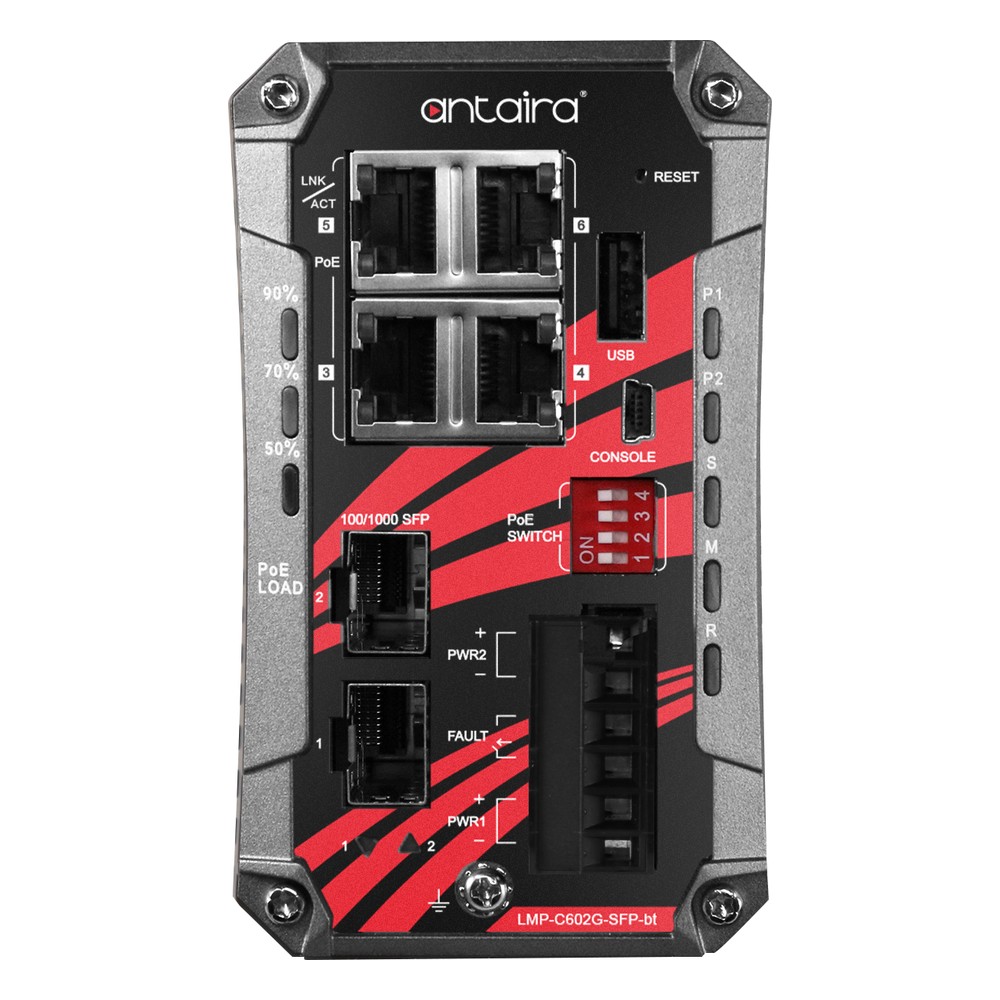

Both models share one design. The four 10/100/1000Base-TX RJ45 ports deliver PoE in Mode A, Mode B or 4-pair, and LEDs show PoE load at 50%, 70% and 90% of the budget. Two 100/1000 dual-rate SFP slots carry the fibre uplink or ring, and switching is store-and-forward on a 12 Gbps fabric with an 8K MAC table and 9.6 KB jumbo frames. The Layer 2+ firmware covers IEEE 802.1Q VLANs, QoS, IGMP snooping, LACP, LLDP, RMON, Modbus TCP and 802.1X, and adds static routes with DHCP Option 82. ITU-T G.8032 ERPS recovers a ring in under 50 ms, with STP, RSTP and MSTP available.

Choose by temperature. The LMP-C602G-SFP-bt-V2 is the standard build, rated -10 °C to 65 °C for heated or indoor cabinets. The LMP-C602G-SFP-bt-T-V2 is the extended temperature build, rated -40 °C to 75 °C for unheated surveillance and ITS cabinets. Where the devices are powered locally, the Antaira LMX-C602G-SFP-V2 series is the non-PoE equivalent.

Antaira names power and utility, water and wastewater, oil, gas and mining, factory automation, security surveillance and ITS as typical applications for the LMP-C602G-SFP-bt-V2 series. Each case is tested for shock to IEC 60068-2-27, vibration to IEC 60068-2-6 and free fall to IEC 60068-2-32, with storage from -40 °C to 85 °C and 5% to 95% non-condensing humidity. Power arrives on 48 to 55 V DC redundant inputs on a 6-contact terminal block, with at least 53 V recommended for 802.3bt loads, a power lost relay alarm, overload and reverse polarity protection and a 10.8 W system draw. The series carries FCC and CE marks and comes with Antaira’s 5-year warranty, and we can pre-configure VLANs, PoE and ring settings before it ships.
