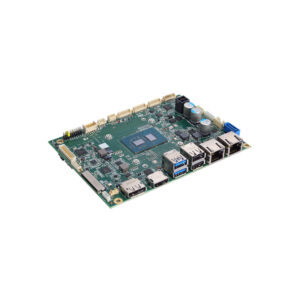

3.5" Single Board Computers

3.5″ single board computers offer several advantages due to their compact size and integrated features. A 3.5 inch SBC is ideal for space-constrained environments and applications with limited space requiring a small form factor embedded board. Available with powerful processors such as Intel Core or AMD Ryzen, they still consume low power, come with a wide range of integrated features, and are cost-effective. To add to the versatility of a 3.5 inch single board computer, they are compatible with different operating systems such as Windows 10 or Linux Ubuntu, and offer expansion options to increase I/O, connectivity, or storage. They are often designed for industrial use, providing rugged durability and reliability.

Loading...

Performance

Graphics

I/O

Expansion

Storage

Power

Environmental Conditions

Displaying of 28 items
View All
  • CPU: Atom X Series Elkhart Lake
  • Memory: 1x DDR4 3200MHz SO-DIMM Slot, 32GB
  • OS: Linux
  • Display Outputs: 1x HDMI, 1x LVDS, 1x VGA
  • Ethernet: 2 x GbE LAN [RJ45]
  • USB: 2 x USB 2.0 [Board], 2 x USB 2.0 [Type A], 2 x USB 3.2 Gen 1 [Type A]
  • Serial: 1 x RS232 [Board], 2 x RS232/422/485 [Board]
  • M.2: 1x M.2 B-Key [PCIe/SATA/USB/SIM] [3042]
  • mPCIe: 1x mPCIe [PCIe/USB/SIM]
  • Storage: 1x M.2 SSD, 1x SATA Port
  • Power: 12-24V DC Input [4-Pin]
  • Temp: -40°C to 80°C [-40°F to 176°F]
  • Certification: CE, FCC, UKCA
  • CPU: Atom X Series Elkhart Lake
  • Memory: 1x DDR4 3200MHz SO-DIMM Slot, 32GB
  • OS: Linux
  • Display Outputs: 1x HDMI, 1x LVDS, 1x VGA
  • Ethernet: 2 x GbE LAN [RJ45]
  • USB: 2 x USB 2.0 [Board], 2 x USB 2.0 [Type A], 2 x USB 3.2 Gen 1 [Type A]
  • Serial: 1 x RS232/422/485 [Board], 3 x RS232 [Board]
  • M.2: 1x M.2 B-Key [PCIe/SATA/USB/SIM] [3042]
  • mPCIe: 1x mPCIe [PCIe/USB/SIM]
  • Storage: 1x M.2 SSD, 1x SATA Port
  • Power: 12-24V DC Input [4-Pin]
  • Temp: 0°C to 60°C [32°F to 147°F]
  • Certification: CE, FCC, UKCA
  • CPU: Atom X Series Apollo Lake
  • Memory: 1x DDR3L 1600MHz SO-DIMM Slot, 8GB
  • OS: Linux
  • Display Outputs: 1x HDMI, 1x LVDS, 1x VGA
  • Ethernet: 2 x GbE LAN [RJ45]
  • USB: 2 x USB 2.0 [Board], 2 x USB 2.0 [Type A], 2 x USB 3.0 [Type A]
  • Serial: 1 x RS232/422/485 [Board], 3 x RS232 [Board]
  • M.2: 1x M.2 B-Key [PCIe/USB/SATA] [2242]
  • Storage: 1x M.2 SSD, 1x SATA Port
  • Power: 12V DC [4-Pin]
  • Temp: -40°C to 85°C [-40°F to 185°F]
  • Certification: CE, FCC, UKCA
  • CPU: Atom X Series Apollo Lake, Celeron J Series Apollo Lake
  • Memory: 1x DDR3L 1600MHz SO-DIMM Slot, 8GB
  • OS: Linux
  • Display Outputs: 1x eDP, 1x HDMI, 1x VGA
  • Ethernet: 2 x GbE LAN [RJ45]
  • USB: 2 x USB 2.0 [Type A], 2 x USB 3.0 [Type A]
  • Serial: 1 x RS232/422/485 [Board], 3 x RS232 [Board]
  • M.2: 1x M.2 B-Key [PCIe/SATA/USB/SIM] [2242], 1x M.2 Slot
  • Storage: 1x M.2 SSD, 1x SATA Port
  • Power: 12V DC [4-Pin]
  • Temp: 0°C to 60°C [32°F to 147°F]
  • Certification: CE, FCC, UKCA

Nexcom

X314

3.5″ Intel Core i3/i5/i7 Skylake 12V Single Board Computer

X314

3.5" Intel Core i3/i5/i7 Skylake 12V Single Board Computer

  • CPU: 6th Gen Skylake
  • Memory: 1x DDR4 2133MHz SO-DIMM Slot, 16GB
  • OS: Linux
  • Display Outputs: 1x HDMI, 1x LVDS
  • Ethernet: 1 x GbE LAN [RJ45]
  • USB: 2 x USB 2.0 [Board], 3 x USB 2.0 [Type A]
  • M.2: 1x M.2 B-Key [PCIe/USB/SATA] [2242]
  • mPCIe: 1x mPCIe [PCIe/USB/SATA]
  • Storage: 1x M.2 SSD, 1x SATA Port
  • Power: 12V DC [Terminal Block]
  • Temp: 0°C to 60°C [32°F to 147°F]
  • Certification: CE, FCC, UKCA
  • CPU: Processor N Series Alder Lake
  • Memory: 1x DDR4 3200MHz SO-DIMM Slot, 16GB
  • OS: Linux
  • Display Outputs: 1x eDP, 2x HDMI
  • Ethernet: 2 x 2.5 GbE LAN [RJ45]
  • USB: 3 x USB 2.0 [Board], 4 x USB 3.2 Gen 2 [Type A]
  • Serial: 1 x RS232 [Board], 1 x RS232/422/485 [Board]
  • M.2: 1x M.2 M-Key [PCIe/SATA] [2242]
  • mPCIe: 1x mPCIe [PCIe/USB/SIM]
  • Storage: 1x M.2 SSD, 1x SATA Port
  • Power: 12V DC [Barrel Connector]
  • Temp: 0°C to 60°C [32°F to 147°F]
  • Certification: CE, FCC, UKCA
  • CPU: Intel Core 7th Generation Kaby Lake Processors, Celeron 3000 Series Kaby Lake
  • Memory: 1x DDR4 2133MHz SO-DIMM Slot, 16GB
  • OS: Linux
  • Display Outputs: 1x Display Port, 1x eDP, 1x LVDS, 1x VGA
  • Ethernet: 2 x GbE LAN [RJ45]
  • USB: 2 x USB 2.0 [Board], 4 x USB 3.0 [Type A]
  • Serial: 2 x RS232/422/485 [Board]
  • M.2: 1x M.2 B-Key [PCIe/USB/SATA] [2242]
  • mPCIe: 1 x mPCIe [PCIe/USB]
  • Storage: 1x M.2 SSD, 1x SATA Port
  • Power: 12V DC [4-Pin]
  • Temp: 0°C to 60°C [32°F to 147°F]
  • Certification: CE, FCC, RoHS, UKCA
  • CPU: Atom X Series Elkhart Lake
  • Memory: 1x DDR4 3200MHz SO-DIMM Slot, 32GB
  • OS: Linux, Windows 10
  • Display Outputs: 1x LVDS, 2x Display Port
  • Ethernet: 1 x 2.5 GbE LAN [RJ45], 2 x GbE LAN [RJ45]
  • USB: 2 x USB 2.0 [Type A], 2 x USB 3.1 Gen 1 [Type A], 4 x USB 2.0 [Board]
  • Serial: 2 x RS232/422/485 [Board], 4 x RS232 [Board]
  • M.2: 1x M.2 B-Key [PCIe/USB/SATA] [2242/3042], 1x M.2 E-Key [PCIe x1/USB 2.0] [2230], 1x M.2 M-Key [PCIe] [2242/2260]
  • Storage: 1x SATA Port, 2x M.2 SSD
  • Power: 9-36V DC Input [Terminal Block]
  • Temp: 0°C to 60°C [32°F to 147°F]
  • Certification: CE, FCC
  • CPU: 13th Gen Raptor Lake
  • Memory: 2x DDR4 3200MHz SO-DIMM Slots, 64GB
  • OS: Linux, Windows 10
  • Display Outputs: 1x Display Port, 1x eDP, 1x HDMI, 1x LVDS, 2x USB Type C
  • Ethernet: 2 x 2.5 GbE LAN [RJ45]
  • USB: 1 x USB 3.2 Gen 2 [Board], 2 x USB 2.0 [Board], 2 x USB 3.2 Gen 2 [Type A], 2 x USB 3.2 Gen 2 [Type C]
  • Serial: 3 x RS232/422/485 [Board]
  • M.2: 1x M.2 B-Key [PCIe x2/USB 3.0/SATA] [3042/3052], 1x M.2 E-Key [PCIe x1/USB 2.0] [2230], 1x M.2 M-Key [PCIe x4] [2242/2260/2280]
  • Storage: 1x M.2 SSD, 1x SATA Port
  • RAID: RAID 0, RAID 1
  • Power: 12-36V DC Input [Terminal Block]
  • Temp: -20°C to 70°C [-4°F to 158°F]
  • Certification: CE, FCC
  • CPU: R-Series
  • Memory: 1x DDR4 3200MHz SO-DIMM Slot, 16GB
  • OS: Linux, Windows 10
  • Display Outputs: 1x LVDS, 2x Display Port
  • Ethernet: 3 x GbE LAN [RJ45]
  • USB: 1 x USB 2.0 [Board], 1 x USB 2.0 [Type A], 2 x USB 3.1 Gen 1 [Type A]
  • Serial: 1 x RS232/422/485 [Board]
  • M.2: 1x M.2 M-Key [PCIe x4] [2242/2280]
  • mPCIe: 1 x mPCIe [PCIe/USB]
  • Storage: 1x M.2 SSD, 1x SATA Port
  • Power: 12V DC [4-Pin]
  • Temp: -5°C to 65°C [23°F to 149°F]
  • Certification: CE, FCC, RoHS
  • CPU: R-Series
  • Memory: 2x DDR4 2400MHz SO-DIMM Slots, 32GB
  • OS: Linux, Windows 10
  • Display Outputs: 1x Display Port, 1x HDMI, 1x LVDS
  • Ethernet: 2 x GbE LAN [RJ45]
  • USB: 2 x USB 2.0 [Type A], 2 x USB 3.2 Gen 2 [Type A]
  • Serial: 2 x RS232/422/485 [Board]
  • M.2: 1x M.2 B-Key [SATA] [3042]
  • mPCIe: 1 x mPCIe [PCIe/USB]
  • Storage: 1x M.2 SSD, 1x SATA Port
  • Power: 12V DC [4-Pin]
  • Temp: -40°C to 75°C [-40°F to 167°F]
  • Certification: CE, FCC
  • CPU: 8th Gen Whiskey Lake
  • Memory: 1x DDR4 2400MHz SO-DIMM Slot, 32GB
  • OS: Linux, Windows 10
  • Display Outputs: 1x Display Port, 1x eDP, 1x HDMI, 1x LVDS
  • Ethernet: 2 x GbE LAN [RJ45]
  • USB: 2 x USB 2.0 [Board], 4 x USB 3.2 Gen 2 [Type A]
  • Serial: 4 x RS232/422/485 [Board]
  • mPCIe: 1 x mPCIe [PCIe/USB], 1x mPCIe [PCIe/USB/SATA]
  • Storage: 1x mSATA, 2x SATA Ports
  • Power: 12V DC [4-Pin]
  • Temp: -40°C to 70°C [-40°F to 158°F]
  • Certification: CE, FCC

CT-DBT02

3.5 Inch SBC with Dual LAN and mSATA

  • CPU: Celeron J Series Bay Trail
  • Memory: 1x DDR3L 1600MHz SO-DIMM Slot, 4GB
  • OS: Linux, Windows 10
  • Display Outputs: 1x HDMI, 1x VGA
  • Ethernet: 2 x GbE LAN [RJ45]
  • USB: 1 x USB 2.0 [Type A], 1 x USB 3.0 [Type A], 4 x USB 2.0 [Board]
  • Serial: 1 x RS232/422/485 [DB9], 3 x RS232/422/485 [Board]
  • mPCIe: 1 x mPCIe [PCIe/USB], 1 x mPCIe [SATA]
  • Storage: 1x Micro SD, 1x mSATA, 2x SATA Ports
  • Power: 12V DC [4-Pin]
  • Temp: -20°C to 70°C [-4°F to 158°F]
  • Certification: CE, FCC

CT-DBT01

3.5 Inch Single Board Computer with Dual LAN and J1900 CPU

  • CPU: Celeron J Series Bay Trail
  • Memory: 1x DDR3L 1600MHz SO-DIMM Slot, 4GB
  • OS: Linux, Windows 10
  • Display Outputs: 1x HDMI, 1x VGA
  • Ethernet: 2 x GbE LAN [RJ45]
  • USB: 1 x USB 2.0 [Type A], 1 x USB 3.0 [Type A], 4 x USB 2.0 [Board]
  • Serial: 1 x RS232/422/485 [DB9], 3 x RS232/422/485 [Board]
  • mPCIe: 2 x mPCIe [PCIe/USB]
  • Storage: 1x Micro SD, 2x SATA Ports
  • Power: 12V DC [4-Pin]
  • Temp: -20°C to 70°C [-4°F to 158°F]
  • Certification: CE, FCC
Displaying of 28 items
