NEXCOM has designed industrial computers in Taipei since 1992, with more than 300 R&D engineers across six business divisions. The embedded core of the range: NISE fanless industrial computers, NDiS signage and edge players, Neu-X compact gateways, EBC and X-series 3.5-inch, Mini-ITX and EPIC boards, and XPPC and APPD panel PCs and touch monitors, on Intel Atom, Celeron and Core.
01 Product Range
NEXCOM Industrial Computers, Boards and Panel PCs
Six product families on Intel Atom, Celeron and Core. Pick the family that matches the installation, a cabinet computer, a display player, a gateway, a board for your own enclosure or a panel, then the series that matches the processor generation and I/O.
NISE Fanless Industrial Computers
Compact fanless computers for automation cabinets and IoT edge duties: the NISE 70 on 11th Gen Intel Core and Celeron with four 4K HDMI outputs, triple Gigabit Ethernet and 12-24 V DC input; the NISE 53 and NISE 109 on Intel Atom and Celeron Elkhart Lake, the 53 with triple HDMI and dual M.2, the 109 with serial ports and 9-30 V DC; and the NISE 51, 52 and 108 on Celeron J3455 as slim gateways.
- NISE 70: Tiger Lake Core i7, i5 and Celeron, quad 4K HDMI, triple LAN
- NISE 53: Elkhart Lake, triple HDMI, triple LAN, dual M.2
- NISE 109: Elkhart Lake, dual display, serial ports, 9-30 V DC
- NISE 51, 52 and 108: Celeron J3455 gateways and mini PCs
Series and Models in This Family
NDiS Digital Signage Players and Edge Computers
Slim fanless players and visual edge computers: the NDiS B561 and B561S on 12th Gen Intel Core with 8K HDMI output, three 4K displays and optional dual PoE LAN for cameras; the NDiS B360 and V1100 on 11th Gen Tiger Lake, the V1100 driving four 4K HDMI displays; and the NDiS B337 and B338 on Celeron J3455 and J6412 for dual-display signage at -20 to +60 °C.
- NDiS B561 and B561S: Alder Lake Core, 8K HDMI, triple 4K, PoE build
- NDiS V1100: Tiger Lake, four independent 4K HDMI outputs
- NDiS B360: Tiger Lake i3, i5 and i7 low-profile player

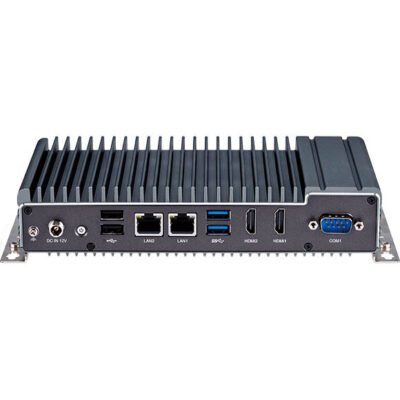

- NDiS B337 and B338: Celeron J3455 and J6412 dual-HDMI players
Series and Models in This Family
Neu-X Compact IoT Gateway PCs
Compact fanless gateways for retail, signage and machine data collection: the Neu-X102 on Intel Processor N50, N97 or Core i3-N305 (Alder Lake-N) with dual 2.5GbE, dual 4K HDMI and LTE or Wi-Fi 6/6E, and the Neu-X1025, the same design with DDR5; the Neu-X100 on Intel Pentium N4200 and Celeron N3350 and J3455 with dual 4K HDMI, dual Gigabit Ethernet and M.2 slots for LTE and Wi-Fi, and the Neu-X101 on Celeron J3455 with dual NICs, in a standard build and a six-serial-port DC build for serial-heavy sites.
- Neu-X102: Intel Processor N50, N97 or Core i3-N305, dual 2.5GbE, dual 4K HDMI, LTE or Wi-Fi 6/6E
- Neu-X1025: the Neu-X102 design with DDR5-4800 memory
- Neu-X100: Pentium N4200, Celeron N3350 and J3455, dual 4K HDMI, LTE and Wi-Fi expansion
- Neu-X101: Celeron J3455, dual Gigabit Ethernet
- Neu-X101-6C-DC: six serial ports and DC input for serial-heavy installations
Series and Models in This Family
EBC and X-Series 3.5-Inch Embedded Boards
3.5-inch boards with triple display and dual Gigabit Ethernet for HMI, kiosks and automation: the EBC 358 on Intel Atom x6000E Elkhart Lake and the EBC 357 on Apollo Lake, each with an X build rated to -40 °C; the X200 on 11th Gen Intel Core with dual M.2; the X102 on Alder Lake-N N97 and N50 with dual 2.5 GbE; and the X100, X101 and X314 on Celeron J3455 and 6th Gen Core.
- EBC 358 and 358X: Atom x6211E, x6413E and x6425E, M.2 and mini-PCIe, -40 to +80 °C on the X
- EBC 357 and 357X: Atom E3930, E3950 and Celeron J3455, eDP or LVDS builds, -40 to +85 °C on the X
- X200: Tiger Lake Core i3 and i5, triple 4K, dual M.2
- X102: Alder Lake-N N97 and N50, dual 4K HDMI, dual 2.5 GbE
Series and Models in This Family
X300 and V-Series Mini-ITX and EPIC Embedded Boards
Larger boards for socketed processors and expansion: the Mini-ITX X304 on 12th and 13th Gen Intel Core with DDR5, triple HDMI 2.0 and 2.5 GbE on H610 or Q670; the X300 and X302 on 8th and 9th Gen Core with Q370 or H310 and PCIe expansion; the EPIC-size V1100 on 11th Gen Core with four 4K HDMI outputs; and the V1000 Mini-ITX on AMD Ryzen Embedded V1605B with quad display.
- X304: Alder Lake-S and Raptor Lake-S Core i3 to i9, DDR5, H610 or Q670W
- X300 and X302: Coffee Lake Core i3, i5 and i7, Q370 or H310, PCIe and M.2
- V1100: EPIC board, Tiger Lake i3, i5 and i7, quad 4K HDMI, 2.5 GbE
- V1000: Mini-ITX on AMD Ryzen Embedded V1605B
Series and Models in This Family
XPPC, APPD and PPC Panel PCs and Touch Monitors
Slim-bezel panel PCs and matching touch monitors: the XPPC 10-200 and 16-200 at 10.1 and 15.6 inches on 11th Gen Intel Core with optically bonded multi-touch, IP65 fronts and panel, VESA or stand mounting; the earlier XPPC 10-100 and 16-101; the 12.1-inch PPC-120T-AL flush-mount quad-core panel PC; and the APPD 1206T to 1901T IP65 flush touch monitors from 12.1 to 19 inches.
- XPPC 10-200 and 16-200: Tiger Lake Core i3 and i5, 10-point multi-touch, IP65 front
- XPPC 10-100 and 16-101: earlier-generation slim-bezel touch computers
- PPC-120T-AL: 12.1-inch WXGA front-IP65 flush-mount quad-core panel PC
- APPD 1206T, 1501T, 1701T and 1901T: IP65 flush touch monitors, 4:3 XGA and SXGA
Series and Models in This Family
// LOADING...
Browse Nexcom's Latest Products
Or choose a product family above.
- CPU: Intel Processor N Series Alder Lake
- Memory: 1x DDR5 4800MHz SO-DIMM, 16GB
- OS: Linux, Linux Ubuntu 22.04, Windows 11
- Display Outputs: 2x HDMI
- Ethernet: 2x 2.5 GbE LAN [RJ45]
- USB: 3x USB 2.0 [Board], 4x USB 3.2 Gen 2 [Type A]
- Serial: 1x RS232 [Board], 1x RS232/422/485 [DB9]
- M.2: 1x M.2 M-Key [PCIe/SATA] [2242]
- mPCIe: 1x mPCIe [PCIe/USB/SIM]
- Storage: 1x M.2 SSD [PCIe & SATA]
- Power: 12V DC [Barrel Connector], AC Power Supply Included
- Temp: -5°C to 50°C [23°F to 122°F]
- Certification: EN62368-1, CE, cUL 62368-1, FCC, LVD, UL 62368-1
- Mounting Options: Desktop, Wall Mount
- CPU: Intel Processor N Series Alder Lake
- Memory: 1x DDR4 3200MHz SO-DIMM Slot, 16GB
- OS: Linux, Linux Ubuntu 22.04, Windows 11
- Display Outputs: 2x HDMI
- Ethernet: 2x 2.5 GbE LAN [RJ45]
- USB: 3x USB 2.0 [Board], 4x USB 3.2 Gen 2 [Type A]
- Serial: 1x RS232 [Board], 1x RS232/422/485 [DB9]
- M.2: 1x M.2 M-Key [PCIe/SATA] [2242]
- mPCIe: 1x mPCIe [PCIe/USB/SIM]
- Storage: 1x M.2 SSD [PCIe & SATA]
- Power: 12V DC [Barrel Connector], AC Power Supply Included
- Temp: -5°C to 50°C [23°F to 122°F]
- Certification: EN62368-1, CE, cUL 62368-1, FCC, LVD, UL 62368-1
- Mounting Options: Desktop, Wall Mount
- CPU: Intel Core 11th Gen Tiger Lake
- Memory: 1x DDR4 3200MHz SO-DIMM Slot, 32GB
- OS: Linux
- Display Outputs: 1x Display Port, 1x eDP, 1x HDMI
- Ethernet: 2x GbE LAN [RJ45]
- USB: 4x USB 2.0 [Board], 4x USB 3.0 [Type A]
- Serial: 1x RS232 [DB9], 1x RS232/422/485 [DB9]
- M.2: 1x M.2 E-Key [PCIe x1/USB 2.0] [2230], 1x M.2 M-Key [PCIe x4] [2280]
- Storage: 1x M.2 SSD
- Power: 12V DC [Barrel Connector], Optional AC Power Supply
- Temp: -20°C to 60°C [-4°F to 140°F]
- Certification: CE, FCC, UKCA
- CPU: Intel Core 12th Gen Alder Lake
- Memory: 2x DDR5 4800MHz SO-DIMM Slot, 64GB
- OS: Linux
- Display Outputs: 2x HDMI
- Ethernet: 1x 2.5 GbE LAN [RJ45], 1x GbE LAN [RJ45]
- USB: 2x USB 3.2 Gen 1 [Type A], 4x USB 2.0 [Type A]
- Serial: 1x RS232/422/485 [DB9], 3x RS232 [DB9]
- M.2: 1x M.2 B-Key [PCIe/USB] [3042/3052], 1x M.2 E-Key [PCIe x2/USB] [2230], 1x M.2 M-Key [PCIe x4/SATA] [2280], 1x M.2 M-Key [SATA] [2280]
- Storage: 2x M.2 SSD
- Power: 12V DC [Barrel Connector], Optional AC Power Supply
- Temp: 0°C to 50°C [32°F to 122°F]
- Certification: CE, FCC, UKCA
- Mounting Options: Desktop, Wall Mount
- CPU: Intel Atom X Series Elkhart Lake
- Memory: 1x DDR4 3200MHz SO-DIMM Slot, 32GB
- OS: Linux
- Display Outputs: 1x HDMI, 1x LVDS, 1x VGA
- Ethernet: 2x GbE LAN [RJ45]
- USB: 2x USB 2.0 [Board], 2x USB 2.0 [Type A], 2x USB 3.2 Gen 1 [Type A]
- Serial: 1x RS232 [Board], 2x RS232/422/485 [Board]
- M.2: 1x M.2 B-Key [PCIe/SATA/USB/SIM] [3042]
- mPCIe: 1x mPCIe [PCIe/USB/SIM]
- Storage: 1x M.2 SSD, 1x SATA Port
- Power: 12-24V DC Input [4-Pin]
- Temp: -40°C to 80°C [-40°F to 176°F]
- Certification: CE, FCC, UKCA
- CPU: Intel Atom X Series Elkhart Lake
- Memory: 1x DDR4 3200MHz SO-DIMM Slot, 32GB
- OS: Linux
- Display Outputs: 1x HDMI, 1x LVDS, 1x VGA
- Ethernet: 2x GbE LAN [RJ45]
- USB: 2x USB 2.0 [Board], 2x USB 2.0 [Type A], 2x USB 3.2 Gen 1 [Type A]
- Serial: 1x RS232/422/485 [Board], 3x RS232 [Board]
- M.2: 1x M.2 B-Key [PCIe/SATA/USB/SIM] [3042]
- mPCIe: 1x mPCIe [PCIe/USB/SIM]
- Storage: 1x M.2 SSD, 1x SATA Port
- Power: 12-24V DC Input [4-Pin]
- Temp: 0°C to 60°C [32°F to 140°F]
- Certification: CE, FCC, UKCA
- CPU: Intel Atom X Series Apollo Lake
- Memory: 1x DDR3L 1600MHz SO-DIMM Slot, 8GB
- OS: Linux
- Display Outputs: 1x HDMI, 1x LVDS, 1x VGA
- Ethernet: 2x GbE LAN [RJ45]
- USB: 2x USB 2.0 [Board], 2x USB 2.0 [Type A], 2x USB 3.0 [Type A]
- Serial: 1x RS232/422/485 [Board], 3x RS232 [Board]
- M.2: 1x M.2 B-Key [PCIe/USB/SATA] [2242]
- Storage: 1x M.2 SSD, 1x SATA Port
- Power: 12V DC [4-Pin]
- Temp: -40°C to 85°C [-40°F to 185°F]
- Certification: CE, FCC, UKCA
-
EBC 357-J3455E
EBC 357 with J3455E and eDP panel output -
EBC 357-E3930E
EBC 357 with Atom E3930 and eDP panel output -
EBC 357-E3930L
EBC 357 with Atom E3930 and LVDS panel output -
EBC 357-E3950E
EBC 357 with Atom E3950 and eDP panel output -
EBC 357-E3950L
EBC 357 with Atom E3950 and LVDS panel output -
EBC 357-J3455L
EBC 357 with J3455E and LVDS panel output
- CPU: Intel Atom X Series Apollo Lake, Intel Celeron J Series Apollo Lake
- Memory: 1x DDR3L 1600MHz SO-DIMM Slot, 8GB
- OS: Linux
- Ethernet: 2x GbE LAN [RJ45]
- USB: 2x USB 2.0 [Type A], 2x USB 3.0 [Type A]
- Serial: 1x RS232/422/485 [Board], 3x RS232 [Board]
- M.2: 1x M.2 B-Key [PCIe/SATA/USB/SIM] [2242], 1x M.2 Slot
- Storage: 1x M.2 SSD, 1x SATA Port
- Power: 12V DC [4-Pin]
- Certification: CE, FCC, UKCA
- Display Outputs: 1x eDP, 1x HDMI, 1x VGA
- Temp: 0°C to 60°C [32°F to 140°F]
- CPU: Intel Core 6th Gen Skylake
- Memory: 1x DDR4 2133MHz SO-DIMM Slot, 16GB
- OS: Linux
- Display Outputs: 1x HDMI, 1x LVDS
- Ethernet: 1x GbE LAN [RJ45]
- USB: 2x USB 2.0 [Board], 3x USB 2.0 [Type A]
- M.2: 1x M.2 B-Key [PCIe/USB/SATA] [2242]
- mPCIe: 1x mPCIe [PCIe/USB/SATA]
- Storage: 1x M.2 SSD, 1x SATA Port
- Power: 12V DC [Terminal Block]
- Temp: 0°C to 60°C [32°F to 140°F]
- Certification: CE, FCC, UKCA
- CPU: Intel Processor N Series Alder Lake
- Memory: 1x DDR4 3200MHz SO-DIMM Slot, 16GB
- OS: Linux
- Display Outputs: 1x eDP, 2x HDMI
- Ethernet: 2x 2.5 GbE LAN [RJ45]
- USB: 3x USB 2.0 [Board], 4x USB 3.2 Gen 2 [Type A]
- Serial: 1x RS232 [Board], 1x RS232/422/485 [Board]
- M.2: 1x M.2 M-Key [PCIe/SATA] [2242]
- mPCIe: 1x mPCIe [PCIe/USB/SIM]
- Storage: 1x M.2 SSD, 1x SATA Port
- Power: 12V DC [Barrel Connector]
- Temp: 0°C to 60°C [32°F to 140°F]
- Certification: CE, FCC, UKCA
- CPU: Intel Core 8th Gen Coffee Lake, Intel Core 9th Gen Coffee Lake
- Memory: 2x DDR4 2666MHz SO-DIMM Slots, 32GB
- OS: Linux
- Display Outputs: 1x HDMI, 1x LVDS, 1x VGA
- Ethernet: 2x GbE LAN [RJ45]
- Serial: 3x RS232 [Board], 3x RS232/422/485 [DB9]
- M.2: 1x M.2 B-Key [PCIe x1/SATA/SIM] [2242/3042], 1x M.2 E-Key [USB/PCIe] [2230]
- PCIe: 1x PCIe [x16 Slot]
- Storage: 1x M.2 SSD, 1x SATA Port
- Power: 12V DC, ATX 4-Pin Connector
- Temp: -5°C to 60°C [23°F to 140°F]
- Certification: CE, FCC, UKCA
- USB: 3x USB 2.0 [Board], 4x USB 3.0 [Type A]
- CPU: Intel Core 12th Gen Alder Lake, Intel Core 13th Gen Raptor Lake
- Memory: 2x DDR5 4800MHz SO-DIMM Slot, 32GB
- OS: Linux
- Display Outputs: 1x LVDS, 3x HDMI
- Ethernet: 1x 2.5 GbE LAN [RJ45], 1x GbE LAN [RJ45]
- Serial: 1x RS232 [Board], 1x RS232/422/485 [Board]
- M.2: 1x M.2 B-Key [PCIe x1/USB/SIM] [3052], 1x M.2 E-Key [USB/PCIe] [2230], 1x M.2 M-Key [PCIe x4/SATA] [2280]
- Storage: 1x M.2 SSD, 1x SATA Port
- Temp: 0°C to 60°C [32°F to 140°F]
- Certification: CE, FCC, UKCA
- USB: 1x USB 2.0 [Type A], 3x USB 3.2 Gen 2 [Type A], 4x USB 2.0 [Board]
- Power: 12V DC [Barrel Connector], ATX 4-Pin Connector
- CPU: AMD Ryzen V-Series
- Memory: 2x DDR4 2400MHz SO-DIMM Slots, 32GB
- OS: Linux
- Display Outputs: 4x HDMI
- Ethernet: 2x GbE LAN [RJ45]
- USB: 2x USB 2.0 [Board], 4x USB 3.1 Gen 1 [Type A]
- Serial: 1x RS232/422/485 [Board], 3x RS232 [Board]
- M.2: 1x M.2 E-Key [USB/PCIe] [2230], 1x M.2 M-Key [PCIe x1/SATA] [2242/2280]
- PCIe: 1x PCIe [x8 Slot][Gen3]
- Storage: 1x M.2 SSD, 1x SATA Port
- Power: 12V DC [4-Pin]
- Temp: -5°C to 60°C [23°F to 140°F]
- Certification: CE, FCC, UKCA
- CPU: Intel Core 11th Gen Tiger Lake
- Memory: 2x DDR4 2400MHz SO-DIMM Slots, 32GB
- OS: Linux
- Display Outputs: 4x HDMI
- Ethernet: 1x 2.5 GbE LAN [RJ45], 1x GbE LAN [RJ45]
- USB: 1x USB 2.0 [Type A], 3x USB 3.2 Gen 1 [Type A], 4x USB 2.0 [Board]
- Serial: 1x RS232 [Board], 1x RS232/422/485 [Board]
- M.2: 1x M.2 B-Key [PCIe x1/USB/SIM] [3052], 1x M.2 M-Key [PCIe x4/SATA] [2280]
- mPCIe: 1x mPCIe [PCIe/USB]
- Storage: 1x M.2 SSD, 1x SATA Port
- Power: 12V DC [4-Pin]
- Temp: 0°C to 60°C [32°F to 140°F]
- Certification: CE, FCC, UKCA
- CPU: Intel Core 8th Gen Coffee Lake, Intel Core 9th Gen Coffee Lake
- Memory: 2x DDR4 2400MHz SO-DIMM Slots, 32GB
- OS: Linux
- Ethernet: 2x GbE LAN [RJ45]
- Serial: 1x RS232 [Board], 1x RS232/422/485 [Board]
- Power: 12V DC [4-Pin]
- Temp: 0°C to 60°C [32°F to 140°F]
- Certification: CE, FCC, UKCA
- Display Outputs: 1x LVDS, 2x HDMI
- USB: 4x USB 2.0 [Board], 4x USB 3.0 [Type A]
- M.2: 1x M.2 E-Key [USB/PCIe] [2230], 1x M.2 M-Key [SATA] [2280]
- Storage: 1x M.2 SSD
Why Choose NEXCOM
NEXCOM has designed industrial computers in Taipei since 1992 and now runs six business divisions, with an R&D team of more than 300 engineers. Its industrial IoT and automation division builds the fanless computers, signage players, gateways, embedded boards and panel PCs carried here, backed by ISO 9001 quality and ODM support, and as an official NEXCOM distributor we bring that range to UK projects.
Fanless Engineering
Fanless technology for industrial computers is a core NEXCOM design capability, built up over 20 years of industrial projects and applied across its box computers, gateways and signage players.
Isolated Power and I/O
NEXCOM designs isolated and non-isolated power and I/O systems, the groundwork behind the wide DC input and serial connections on its fanless computers and gateways.
Software-Led R&D
Over 300 engineers work at roughly one software engineer per hardware engineer, and NEXCOM's embedded software service covers Windows, QNX and IntervalZero RTX real-time builds.
Signage Player Specialists
NDiS players drive several independent 4K displays, selected models add Intel vPro for remote troubleshooting, and NEXCOM's own PowerDigiS software builds and updates content over the network.
Extended Temperature Boards
X-suffix EBC boards are extended temperature builds of the same embedded boards, so one design covers both climate-controlled cabinets and harsh outdoor installations.
ISO 9001 and TQA
ISO 9001 certification at the Taiwan headquarters and the China and US subsidiaries, with Total Quality Assurance applied to every NEXCOM product in a closed-loop quality system.
ODM and Project Support
Key accounts get product ODM and project support, drawing on NEXCOM's computer-on-module design experience and its COM Express competence centre services.
24-Hour Technical Feedback
NEXCOM's technical support team aims to give feedback within 24 hours, backed by subsidiaries in Taiwan, China, Japan, Italy, the US and the UK.
Local Support
Your NEXCOM Partner in the UK
Our NEXCOM news, case studies and white papers cover the latest hardware and projects we have delivered with them. As the official NEXCOM distributor in the UK, we help you choose the right NEXCOM computer, board or panel PC, configure and test it in the UK as standard, and support it locally for the life of your project. When NEXCOM launches, updates or retires a product, we will update you directly, with time to plan the change or a last-time buy.
Edge AI Gateways Boost Sales In Retail Stores
How an edge AI gateway in the store turns cameras, scanners and displays into retail analytics, with NEXCOM's Neu-X102 signage player doing the processing on site.
Embedded Systems with PoE Enable Smart Parking Efficiency
A smart parking operator runs its cameras, occupancy sensors and guidance signs from an embedded PC with PoE: NEXCOM's NDiS B561-PoE, with three 4K outputs and two PoE ports.
Industrial Compact PC Streamlines Data Collection and Provides Remote Monitoring For Farming Industry
A fanless mini industrial PC configured as an IIoT gateway collects farm sensor data, processes it at the edge and sends it on, so smart farming decisions are made on real data.
10 Inch HMI Touch Screen Gateway Powers IIoT In Supermarkets
National supermarkets monitor and control their fridges and freezers from a 10 inch HMI touch screen that doubles as an IIoT gateway, keeping food safe while cutting energy use.
// Official NEXCOM Distributor
Speak to a NEXCOM Specialist.
Things Embedded is an official NEXCOM distributor and integration partner in the UK. Tell us the installation, the displays and the interfaces you have to connect, and we will point you to the right family, then configure, image and test the board or system before it ships.
Phone · UK
+44(0)1785 558 300
