Diamond Systems designs and manufactures rugged, I/O-rich embedded computers in Sunnyvale, California: single-board computers with data acquisition on board, PC/104 and PCIe MiniCard I/O modules, DC/DC power supplies, managed Ethernet switch boards and modules, NVIDIA Jetson carrier boards and JetBox systems, and sealed mission computers. Products are qualified across their full temperature range during design, built under ISO 9001, and Diamond commits to seven-year-plus lifecycles on standard products.
01 Product Range
Diamond Systems Rugged Boards and Systems
Seven product families, from board-level parts to complete systems. Start with an SBC or Jetson carrier board and add I/O modules, a DC/DC power supply and a switch module on the same bus, or choose a JetBox or SabreCom with those parts already built in.
Rugged Single-Board Computers with Data Acquisition On Board
Single-board computers built for the shock, vibration and temperature of vehicles and field equipment, with analog and digital I/O on the board itself. From the 3.5-inch Jasper on 11th Gen Core i7 and the COM Express Zeta and Gemini, through the PCIe/104 Saturn and the PC/104 Aries and Athena IV on Intel Atom, to the Vortex86 Helios and Helix for long-running designs.
- Data acquisition on board: analog inputs and outputs, digital I/O and counters, with Diamond autocalibration
- Wide-temperature operation qualified during design, soldered-down memory, fanless
- PC/104, PC/104-Plus, PCIe/104, PCI/104-Express, COM Express and 3.5-inch form factors
- Seven-year-plus lifecycles on standard products
Series and Models in This Family
NVIDIA Jetson Carrier Boards and Development Kits

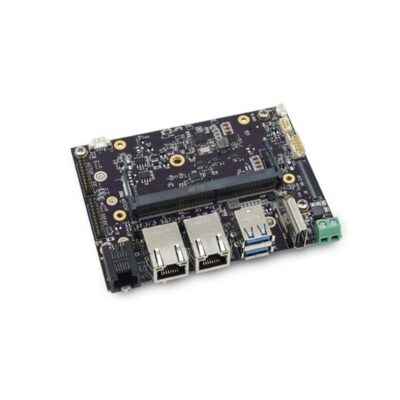

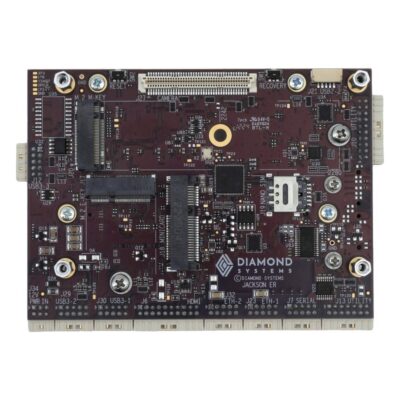

Carrier boards and development kits for NVIDIA Jetson: the Jackson and rugged Jackson-ER for Orin NX and Orin Nano, the Osbourne and rugged Osbourne-ER for AGX Orin, the Stevie and Elton for AGX Xavier, and the Floyd and Ziggy for the Nano, Xavier NX, TX2 NX and TX2 generations. Each pairs with a JetBox of the same name when you want it built into an enclosure.
- Jetson Orin NX and Orin Nano (Jackson, Jackson-ER), AGX Orin (Osbourne, Osbourne-ER)

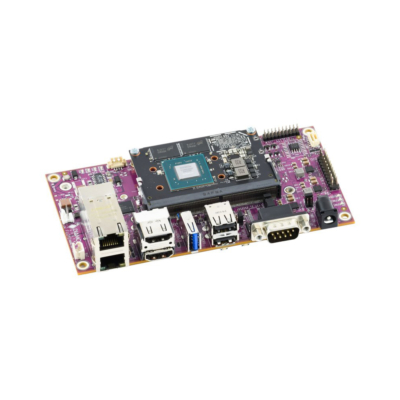

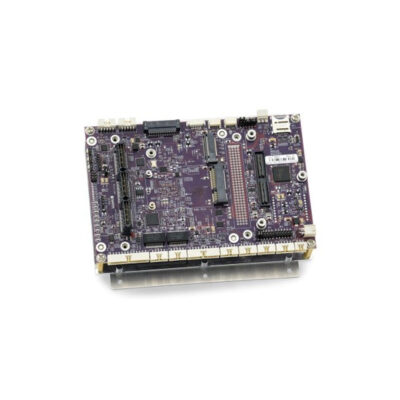

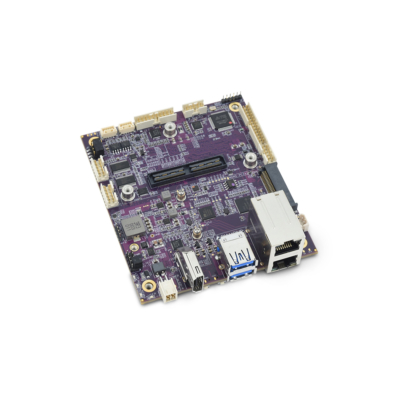

- AGX Xavier (Stevie, Elton); Nano, Xavier NX and TX2 (Floyd, Ziggy) for existing designs
- Wide-temperature carriers with CAN, Gigabit Ethernet, USB, serial and M.2 on board
- Supplied with the Jetson module, storage and JetPack image fitted
Series and Models in This Family
JetBox Industrial NVIDIA Jetson Computers

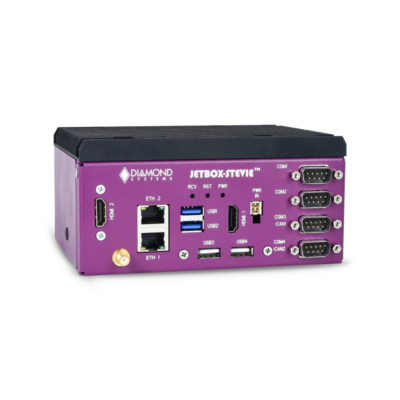

Diamond carrier boards built into fanless industrial enclosures: the JetBox Osbourne on AGX Orin, JetBox Jackson on Orin NX and Orin Nano, JetBox Stevie on AGX Xavier, JetBox Floyd and Floyd-SC on Nano and Xavier NX, and ZiggyBox on TX2, for cabinets, machines and vehicles that need an industrial build rather than a sealed military one. For sealed MIL-STD designs, see SabreCom and Geode.

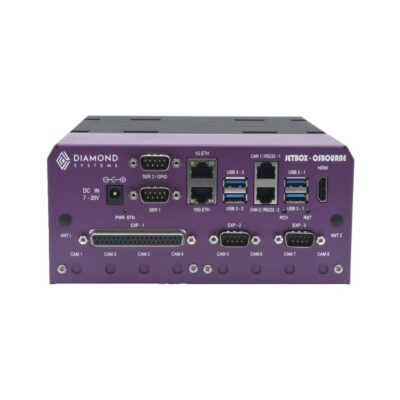

- AGX Orin (JetBox Osbourne), Orin NX and Orin Nano (JetBox Jackson), AGX Xavier (JetBox Stevie), Nano, Xavier NX and TX2 (Floyd, Floyd-SC, ZiggyBox)
- Wide-temperature, fanless, DIN-rail or wall mounting
- Same carrier boards as the Jetson Carriers family, so software carries across
- Configured, imaged and tested by us before dispatch
Series in This Family
SabreCom and Geode Rugged Mission Computers

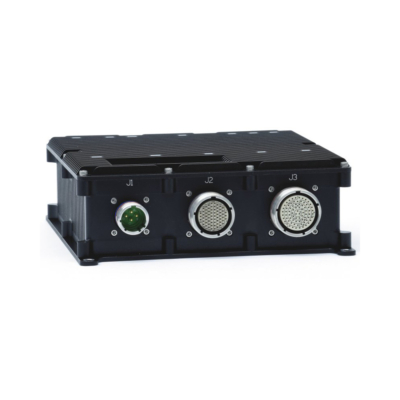

Sealed rugged computers for vehicle, defence and outdoor duty: the SabreCom-VNS around the Venus SBC, the SabreCom-JSP, the more compact SabreCom-JRS and the SabreCom-CE1 with its built-in managed Ethernet switch around the Jasper carrier with COM Express Intel Core i7 or Xeon W and I/O expansion, the Geode-OSB around NVIDIA Jetson AGX Orin, and the modular GEODE, all designed to MIL-STD-461, 704 and 1275 power requirements.
- IP67 sealed enclosures with MIL-style connectors

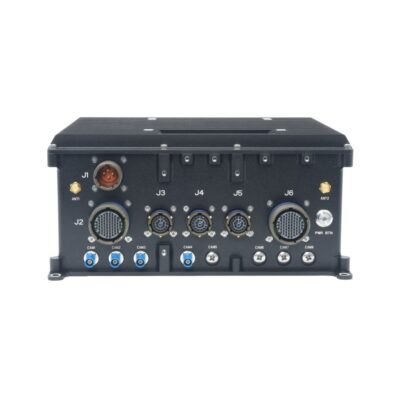

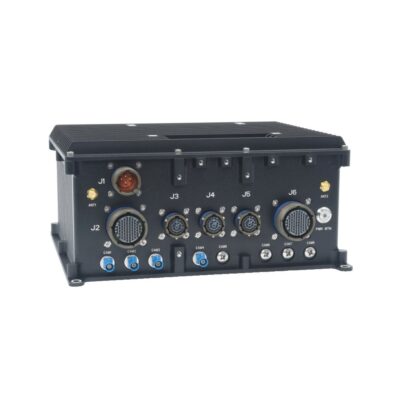

- x86 (Jasper, Venus) or NVIDIA Jetson AGX Orin (Geode-OSB) compute
- PC/104 and MiniCard I/O expansion inside the enclosure
- Designed to MIL-STD-810, 461, 704 and 1275 requirements
Series and Models in This Family

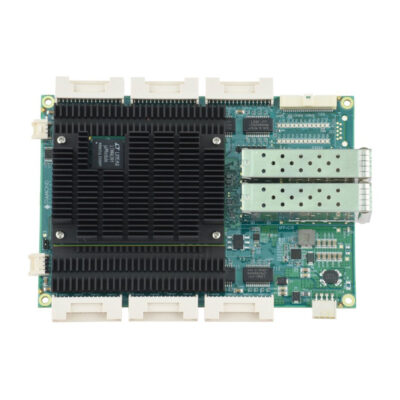

EPS and EPSM Managed Ethernet Switch Boards and Modules
Board-level managed Ethernet switches built by Diamond for integration onto your own carrier or into a rugged enclosure: PC/104 boards from the 8-port EPS-8130 to the EPS-9600 with Layer 3, 1G and 10G ports and TSN and IEEE 1588 timing, plus switch modules from the 8+2 port EPSM-8G2F with Layer 3 software up to 28 ports and 4x 10G. Things Embedded supplies and specifies the range; Diamond builds it.
- Layer 2 and Layer 3 managed, 1G and 10G, with TSN and IEEE 1588 PTP on the EPS-9600
- PC/104 boards, compact board-level modules and miniature boxed builds
- Rated for -40 to +85 °C with latching connectors and thicker PCBs
- Pairs with Diamond DC/DC supplies for MIL-STD-461, 704 and 1275 power input
Series and Models in This Family

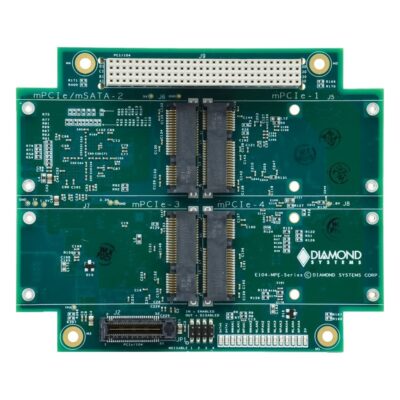

PC/104 and PCIe MiniCard I/O Modules
Expansion modules that give a Diamond SBC, or any PC/104 or MiniCard host, the I/O the application needs: 16-bit analog input and output with autocalibration, digital I/O and counters, opto-isolated and relay I/O, RS-232/422/485 serial, CAN and Gigabit Ethernet, all rated for wide temperature.

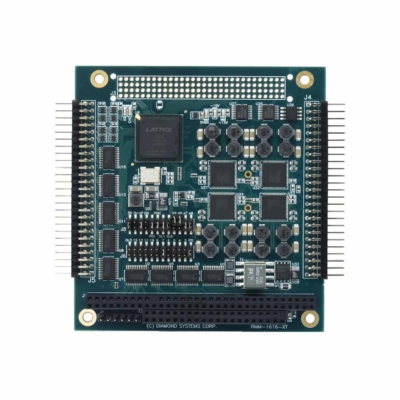

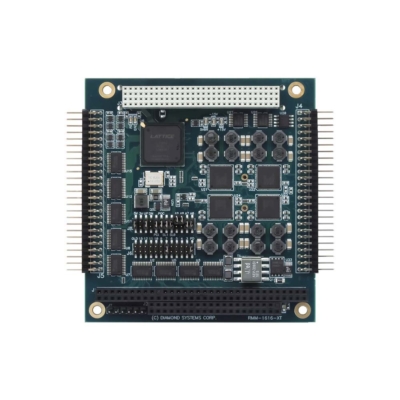

- Analog: Ruby-MM and Diamond-MM 16-bit A/D and D/A, DS-MPE-DAQ0804 MiniCard
- Digital: GPIO-MM, Onyx, Opal, IR104 and PMM relay and opto-isolated modules

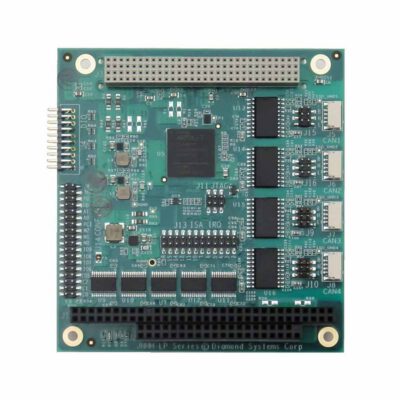

- Serial, CAN and Ethernet: Emerald-MM, Janus-MM, Mercator and the DS-MPE MiniCards
- Pick by bus: PC/104, PC/104-Plus, PCI/104-Express or PCIe MiniCard
Series and Models in This Family
Jupiter-MM Rugged DC/DC Power Supplies
PC/104 and PC/104-Plus DC/DC power supplies that turn a vehicle or field battery bus into clean board power: the 50 W Jupiter-MM, the Jupiter-MM-7000 with UPS and isolated options, the 80 W Jupiter-MM-7500 designed to MIL-STD requirements, the 218 W Jupiter-MM-5000 and the low-cost 25 W JMM-LP-XT.
- Wide DC input for vehicle and field power
- UPS and isolated variants on the Jupiter-MM-7000
- Jupiter-MM-7500 designed to MIL-STD-461, 704 and 1275 requirements
- Sized to power a full PC/104 stack: SBC, I/O modules and switch
Series and Models in This Family
// LOADING...
Browse Diamond Systems Latest Products
Or choose a product family above.
- Switch Type: Managed
- Ethernet: 8x 10/100/1000 BASE-TX [Board]
- Ethernet Connectors: Board Connectors
- Fiber: 2x 1G/2.5G [Board]
- Fiber Connectors: Board Connectors
- Power: 5V DC [Board]
- Temp: -40°C to 85°C [-40°F to 185°F]
- OS: Linux
- Display Outputs: 1x HDMI
- USB: 2x USB 3.2 [Type A]
- Serial: 1x RS232 [DB9], 1x RS232/485 [RJ11]
- M.2: 1x M.2 E-Key [PCIe x1/USB 2.0] [2230], 1x M.2 M-Key [PCIe x4] [2242/2280]
- mPCIe: 1x mPCIe [PCIe/USB/SIM]
- Storage: 1x M.2 SSD [PCIe]
- Power: 8-20V DC [Terminal Block]
- Temp: -25°C to 80°C [-13°F to 176°F]
- Certification: RoHS
- Mounting Options: Desktop, DIN Mount
- AI Performance: 40 TOPS
- SOM: NVIDIA Jetson Orin Nano 8GB
- Memory: 8GB Soldered On-board
- Ethernet: 1x GbE LAN [RJ45]
- OS: Linux
- Display Outputs: 1x HDMI
- Ethernet: 2x GbE LAN [Board]
- USB: 3x USB 3.2 [Board], 1x USB 2.0 [Board]
- Serial: 1x RS232 [Board], 1x RS232/422/485 [Board]
- CANbus: 1x CANbus [Board]
- M.2: 1x M.2 E-Key [PCIe x1/USB 2.0] [2230], 1x M.2 M-Key [PCIe x4] [2242/2280]
- mPCIe: 1x mPCIe [PCIe/USB/SIM]
- Storage: 1x M.2 SSD [M-Key 2242/2280, PCIe Gen 3 x4]
- Power: 7-20V DC [Latching]
- Temp: -25°C to 80°C [-13°F to 176°F]
- Certification: RoHS
- AI Performance: 40 TOPS
- SOM: NVIDIA Jetson Orin Nano 8GB
- Memory: 8GB Soldered On-board
- OS: Linux
- Display Outputs: 1x HDMI
- Ethernet: 1x 10 GbE LAN [Board], 1x GbE LAN [Board]
- USB: 3x USB 3.2 [Board], 1x USB 2.0 [Board]
- Serial: 2x RS232 [Board], 2x RS232/422/485 [Board]
- CANbus: 2x CANbus [Board]
- Analog In: 6x 12-bit A/D
- Analog Out: 2x 12-bit D/A
- M.2: 1x M.2 E-Key [PCIe x1/USB 2.0] [2230], 1x M.2 M-Key [PCIe x4] [2242/2280]
- mPCIe: 1x mPCIe [PCIe/USB]
- Storage: 1x M.2 SSD [M-Key 2242/2280, PCIe Gen 3 x4]
- Power: 7-20V DC [Latching]
- AI Performance: 248 TOPS
- SOM: NVIDIA Jetson AGX Orin Industrial 64GB
- Memory: 64GB Soldered On-board
- Temp: -40°C to 85°C [-40°F to 185°F]
- Storage: 1x mSATA
- Power: 5V DC [Bus]
- Temp: -40°C to 85°C [-40°F to 185°F]
- Certification: RoHS
- mPCIe: 1x mPCIe [PCIe/USB/SATA], 1x Full/Half-Size mPCIe [PCIe/USB/SIM]
- CPU: Core Series 1 Raptor Lake, Intel Xeon W Series Tiger Lake, Intel Core 11th Gen Tiger Lake, Intel Core 13th Gen Raptor Lake
- OS: Linux, Windows 11
- Display Outputs: 1x HDMI
- Ethernet: 11x GbE LAN [MIL-STD], 1x GbE LAN [MIL-STD]
- USB: 1x USB 3.0 [Type A], 2x USB 2.0 [MIL-STD]
- Serial: 2x RS232/422/485 [MIL-STD]
- M.2: 1x M.2 M-Key [PCIe/SATA] [2280]
- mPCIe: 2x mPCIe [PCIe/USB]
- Storage: 1x Removable M.2 SSD [PCIe & SATA]
- Power: 10-60V DC Input [MIL-STD]
- Temp: -40°C to 75°C [-40°F to 167°F]
- IP Rating: IP67
- Certification: MIL-STD-1275, MIL-STD-704, MIL-STD-461
- Mounting Options: Wall Mount
- CPU: Core Series 1 Raptor Lake, Intel Xeon W Series Tiger Lake, Intel Core 11th Gen Tiger Lake, Intel Core 13th Gen Raptor Lake
- OS: Linux, Windows 11
- Display Outputs: 1x HDMI
- Ethernet: 2x GbE LAN [MIL-STD]
- USB: 2x USB 2.0 [MIL-STD]
- Serial: 4x RS232/422/485 [MIL-STD]
- M.2: 1x M.2 M-Key [PCIe x1/SATA] [2242/2280]
- mPCIe: 2x mPCIe [PCIe/USB]
- Storage: 1x M.2 SSD
- Power: 10-60V DC Input [MIL-STD]
- Temp: -40°C to 80°C [-40°F to 176°F]
- IP Rating: IP67
- Certification: MIL-STD-1275, MIL-STD-704, MIL-STD-461
- Mounting Options: Wall Mount
-
EPS-12002L-HSK-L3
EPS-12002L with Layer 3 routing software and an integrated heat sink -
EPS-12002L-HSK
EPS-12002L with Layer 2+ software and an integrated heat sink -
EPS-12002L-HSP
EPS-12002L with Layer 2+ software and a heat spreader plate -
EPS-12002L-HSP-L3
EPS-12002L with Layer 3 routing software and a heat spreader plate
- Serial: 1x RS232 [Board]
- Switch Type: Managed
- Ethernet: 12x 10/100/1000 BASE-TX [Latching]
- Ethernet Connectors: Latching
- Fiber: 2x 1G/10G [SFP+]
- Fiber Connectors: SFP
- Power: 5-36V DC [Latching]
- Temp: -40°C to 85°C [-40°F to 185°F]
- Serial: 1x RS232 [MIL-STD]
- Switch Type: Managed
- Ethernet: 24x 10/100/1000 BASE-TX [MIL-STD], 4x 1/2.5/5/10GbE Copper or Fibre [MIL-STD]
- Ethernet Connectors: MIL-STD
- Power: 7-40V DC [MIL-STD]
- Temp: -40°C to 85°C [-40°F to 185°F]
- IP Rating: IP67
- Certification: MIL-STD-1275, MIL-STD-704, MIL-STD-461
-
SabreNet-12000-200
SabreNet-12000 with isolated MIL-grade power supply and high-profile case -
SabreNet-12000-100
SabreNet-12000 with MIL-STD-461 filter, 7 to 34 V DC input and low-profile case -
SabreNet-12000-120
SabreNet-12000 with IEEE-1588 PTP, MIL-STD-461 filter and low-profile case -
SabreNet-12000-220
SabreNet-12000 with isolated MIL-grade power supply, IEEE-1588 PTP and high-profile case
- Serial: 1x RS232 [MIL-STD]
- Switch Type: Managed
- Ethernet: 12x 10/100/1000 BASE-TX [MIL-STD]
- Ethernet Connectors: MIL-STD
- Temp: -40°C to 85°C [-40°F to 185°F]
- IP Rating: IP67
- Power: 9-60V DC Input [MIL-STD]
- Certification: MIL-STD-1275, MIL-STD-704, MIL-STD-461
- Serial: 1x RS232 [MIL-STD]
- Switch Type: Managed
- Ethernet: 8x 10/100/1000 BASE-TX [MIL-STD]
- Ethernet Connectors: MIL-STD
- Power: 5-32V DC [MIL-STD]
- Temp: -40°C to 85°C [-40°F to 185°F]
- IP Rating: IP65
- Certification: MIL-STD-461, RoHS
- AI Performance: 200–275 TOPS
- SOM: NVIDIA Jetson AGX Orin 32GB, NVIDIA Jetson AGX Orin 64GB, NVIDIA Jetson AGX Orin Industrial 64GB
- OS: Linux
- Display Outputs: 1x HDMI
- Ethernet: 1x 10 GbE LAN [MIL-STD], 1x GbE LAN [MIL-STD]
- USB: 2x USB 3.2 Gen 2 [MIL-STD], 2x USB 2.0 [MIL-STD]
- Serial: 2x RS232 [MIL-STD], 2x RS232/422/485 [MIL-STD]
- CANbus: 2x CANbus [MIL-STD]
- M.2: 1x M.2 E-Key [PCIe] [2230], 1x M.2 M-Key [PCIe x4] [2242/2280]
- mPCIe: 2x mPCIe [PCIe/USB]
- Storage: 1x M.2 SSD
- Power: 9-36V DC Input [MIL-STD]
- Temp: -40°C to 80°C [-40°F to 176°F]
- IP Rating: IP67
- Certification: MIL-STD-1275, MIL-STD-704, MIL-STD-461
- CPU: Core Series 1 Raptor Lake, Intel Xeon W Series Tiger Lake, Intel Core 11th Gen Tiger Lake, Intel Core 13th Gen Raptor Lake
- Memory: 2x DDR4 3200MHz SO-DIMM Slots, 64GB
- OS: Linux, Windows 11
- Display Outputs: 1x HDMI
- Ethernet: 2x GbE LAN [MIL-STD]
- USB: 2x USB 2.0 [MIL-STD]
- Serial: 4x RS232/422/485 [MIL-STD]
- M.2: 1x M.2 E-Key [PCIe x1/USB 2.0] [2230], 1x M.2 M-Key [PCIe x1/SATA] [2242/2280]
- mPCIe: 2x mPCIe [PCIe/USB]
- Storage: 1x M.2 SSD
- Power: 10-60V DC Input [MIL-STD]
- Temp: -40°C to 75°C [-40°F to 167°F]
- IP Rating: IP67
- Certification: MIL-STD-461
- Mounting Options: Wall Mount
- Switch Type: Managed
- Ethernet: 8x 10/100/1000 BASE-TX [Latching]
- Ethernet Connectors: Latching
- Fiber: 2x 1G/10G [SFP+]
- Fiber Connectors: SFP
- Power: 5-36V DC [Latching]
- Temp: -40°C to 85°C [-40°F to 185°F]
- Certification: CE, FCC, RoHS
- OS: Linux
- Display Outputs: 1x HDMI
- Ethernet: 1x 10 GbE LAN [RJ45], 1x GbE LAN [RJ45]
- USB: 1x USB 2.0 [Type A], 3x USB 3.2 Gen 2 [Type A]
- Serial: 2x RS232/422/485 [DB9]
- CANbus: 2x CANbus [RJ-12]
- M.2: 1x M.2 E-Key [USB/PCIe] [2230], 1x M.2 M-Key [PCIe x4 Gen4] [2280]
- mPCIe: 1x mPCIe [PCIe/USB]
- Storage: 1x M.2 SSD
- Power: 7-20V DC [Barrel Connector]
- Mounting Options: Desktop, DIN Mount
- AI Performance: 248 TOPS
- SOM: NVIDIA Jetson AGX Orin Industrial 64GB
- Temp: -40°C to 70°C [-40°F to 158°F]
Why Choose Diamond Systems
Diamond Systems has designed and built rugged, I/O-rich embedded computers in Sunnyvale, California, since 1989. Beyond the standard range, its engineers modify, customise and support boards for the life of a programme, and as an official Diamond Systems distributor we bring those services to UK projects.
Rugged by Design
Soldered-on memory, fanless operation, extended temperature ranges and high shock and vibration tolerance, qualified during design rather than screened in afterwards.
Open Standards
Boards built on PC/104, PCIe/104, COM Express and Qseven, so SBCs, I/O modules, power supplies and Ethernet switches stack together and work with other vendors' hardware.
COM-Based SBCs
A replaceable computer-on-module on a permanent I/O baseboard, so the processor can be upgraded, or replaced when it goes obsolete, with no mechanical changes, and new CPUs arrive sooner.
2-in-1 SBCs
The computer and a full data acquisition system on one board: thinner and lighter than two boards, with fewer connectors for better reliability and shock resistance, and one product to buy and support.
Standard Product Variants
A standard board changed to suit: jumper and BIOS settings, connector changes, parts removed, custom FPGA logic or flat panel support, with low minimum order quantities.
Full Custom Designs
Single-board computers, I/O boards, Ethernet switches, NVIDIA Jetson carrier boards and rugged systems, designed from proven Diamond circuits for one project or ongoing production.
Ruggedisation and Screening
Conformal coating against moisture and fungus, extended temperature screening and burn-in screening, applied to standard or custom boards.
Long Lifecycles
Standard products are built for seven years or more, and many I/O boards have been in production for over 20 years, with six months' notice and a last-time buy before any end of life.
Backward-Compatible Upgrades
When a key component goes obsolete, Diamond redesigns the board with identical functionality and connector pinout, so it stays a drop-in replacement in your system.
ISO 9001:2015 Quality
Every design goes through extensive verification testing, and every production unit gets a full-function test with the results archived.
Local Support
Your Diamond Systems Partner in the UK
Our Diamond Systems news, case studies and white papers cover the latest hardware and projects we have delivered with them. As the official Diamond Systems distributor in the UK, we help you choose the right Diamond Systems board or system and support it locally for the life of your project. We configure SBCs, Jetson carriers and mission computers in the UK as standard, and supply Ethernet switch boards and I/O modules as Diamond Systems builds them. When Diamond Systems launches, updates or retires a product, we will update you directly, with time to plan the change or a last-time buy.
What Is a System-on-Module (SoM)?
A system-on-module packs the processor, memory and storage onto one small board that plugs into a carrier. Here is what a SoM is, how it differs from a single board computer, which module standards matter, and when a module-based design is the right call.
PC/104 Bus Variants Explained: PC/104, PC/104-Plus, PCI-104, PCIe/104 and PCI/104-Express
Five PC/104 variants share one footprint and differ in the expansion connector. This guide explains what each bus carries, the two PCIe/104 connector types, how to mix generations in one stack and how to choose.
What Is PC/104? The Stackable Embedded Computer Standard Explained
PC/104 is a 90 × 96 mm stackable board standard for rugged embedded computers. This guide covers how a stack is built, the bus generations, where it is used and how it compares with COM Express and 3.5-inch boards.
How a Military Ethernet Switch Is Built
A military Ethernet switch is rarely an off-the-shelf box. They are built by integrating proven board-level switching into a rugged, MIL-rated system, sized, powered and connected for the platform.
Embedded Ethernet Switch Modules: Board-Level Switching for Integration
A board-level switch puts managed switching on a module you integrate into your system, instead of a separate box. This guide covers what they are, why you would integrate at board level, what to look for, and where a boxed switch is the better call.
Time-Sensitive Networking (TSN): A Guide to Deterministic Ethernet
TSN is a set of IEEE 802.1 standards that give standard Ethernet bounded, guaranteed latency. This guide covers the problem it solves, the core standards, how it delivers determinism, and where it is used.
// Official Diamond Systems Distributor
Speak to a Diamond Systems Specialist.
Things Embedded is an official Diamond Systems distributor and integration partner in the UK. Tell us the bus, the environment and the I/O you have to connect, and we will point you to the right board, modules and supply, then configure, image and test the system before it ships.
Phone · UK
+44(0)1785 558 300
