Diamond Systems JETBOX-FLOYD NVIDIA Jetson Xavier NX and Nano AI Edge Computers with PoE+ and DIN Mount

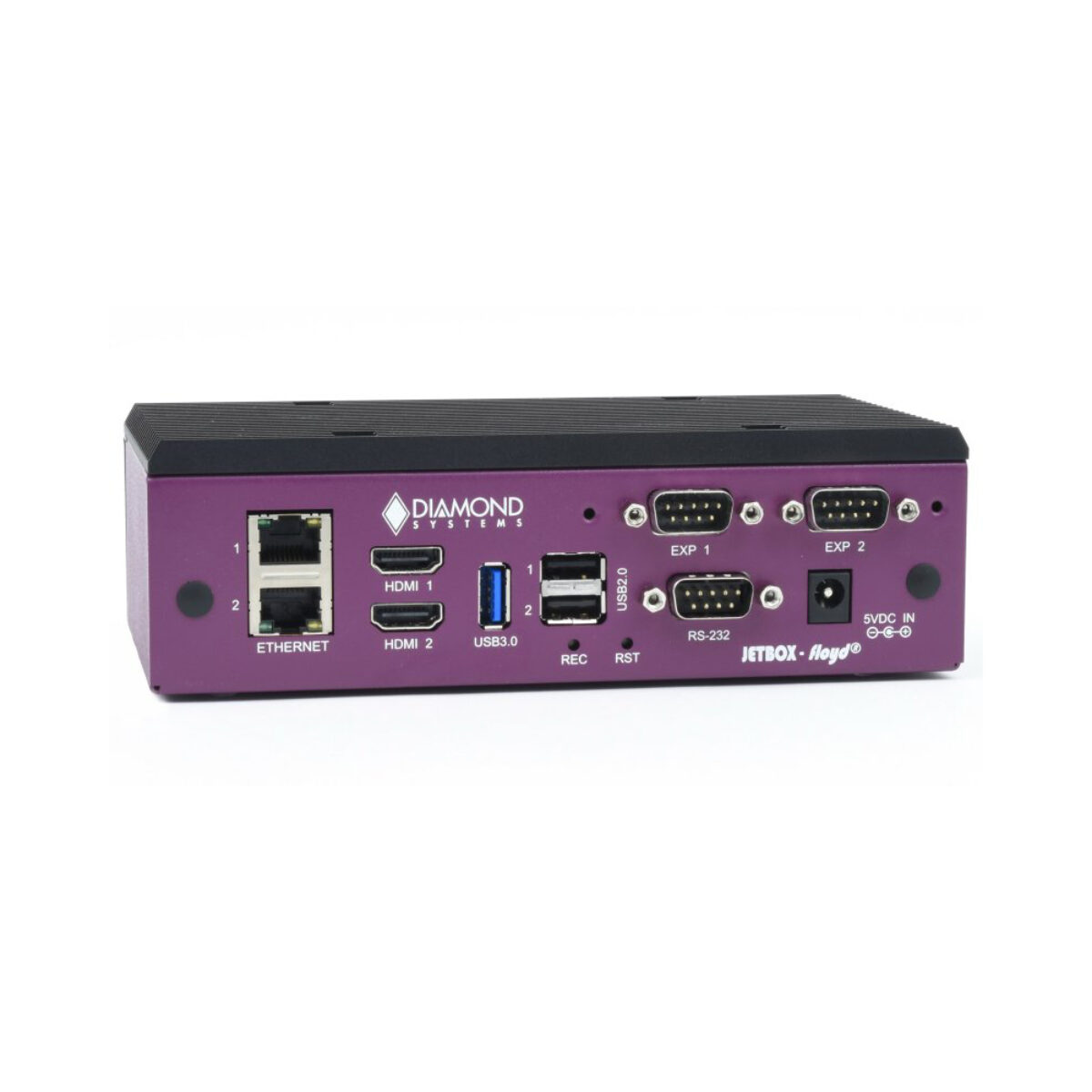

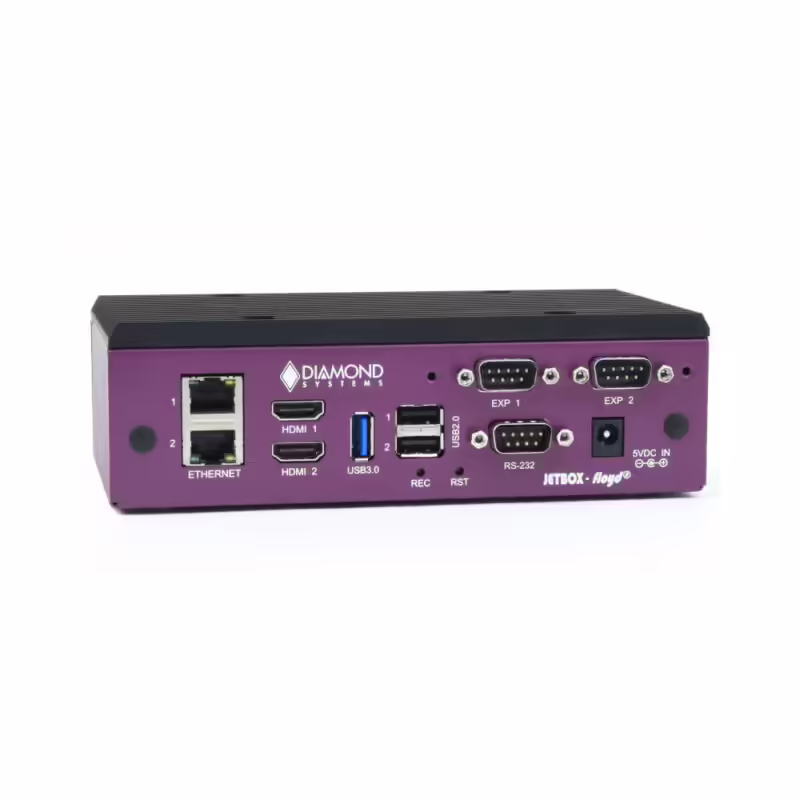

Edge AI projects rarely need the largest Jetson module, but they do need the right ports in a small box that is ready to deploy. Diamond Systems built the JETBOX-FLOYD series of AI edge computers for that brief. Each JETBOX-FLOYD installs an NVIDIA Jetson Nano or Xavier NX module on Diamond’s Floyd carrier board, loads a Linux OS preconfigured for all of the Floyd I/O, and closes it in an enclosure that mounts on a DIN rail or sits on a table top. The Linux image is based on NVIDIA JetPack and sits in the module’s built-in flash, so each system boots without extra storage fitted.

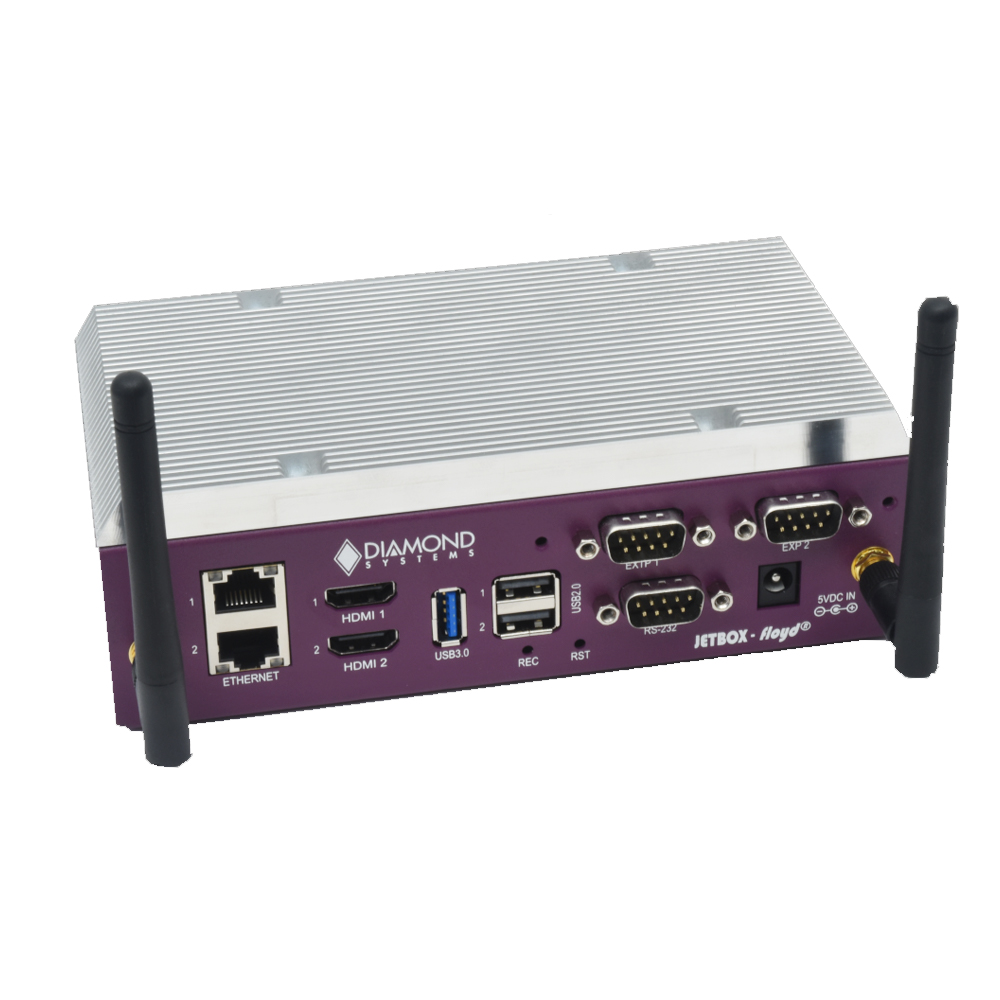

Two carrier builds set the I/O. The full-feature 01 models carry two Gigabit Ethernet ports with PoE+ on both ports when fed from an external power source, two HDMI 2.0 ports, two RS-232/422/485 ports and a full-size PCIe/USB minicard socket, with an M.2 2280 socket on a PCIe x1 link. The lower-cost 02 models keep one Gigabit Ethernet port, one HDMI port and two serial ports, and move the M.2 2280 socket to a faster PCIe x4 link for NVMe storage. Every model has three 4-lane MIPI CSI camera ports, one USB 3.0 port, two USB 2.0 ports, eight GPIO, a micro SD socket and dual SMA cutouts for Wi-Fi or cellular modules.

Four models cover the range. The JB-FLOYD-NAO-01 pairs Jetson Nano with dual PoE+ and dual HDMI, and the JB-FLOYD-NAO-02 is the lower-cost Nano build with a single port. The JB-FLOYD-XNX-01 brings Jetson Xavier NX, rated by NVIDIA at 21 TOPS, to the full-feature carrier with one CAN 2.0B port, and the JB-FLOYD-XNX-02 pairs Xavier NX with the PCIe x4 M.2 socket. System kits without a module, built on the same BB01 and BB02 carriers, are also available for teams that program their own Jetson modules.

All JETBOX-FLOYD models accept 7-28 V DC, run from -25 to +80 °C and ship with a 12 V universal AC adapter. Typical installs include PoE camera analytics, smart retail and kiosks, robotics controllers and IoT gateways in control cabinets. Diamond Systems can also tailor the enclosure, connector set, conformal coating and Linux image for volume programmes.
