Diamond Systems JAXER-ASY-ONX16 NVIDIA Jetson Orin NX 16GB Rugged Mini Carrier Board with Dual GbE, CAN and Heat Spreader or Fan Sink
Linux
USB3
2x M.2
1x mPCIe
1x SIM
Wi-Fi
NVMe SSD
Fanless
Extended TempJAXER-ASY-ONX16 Overview

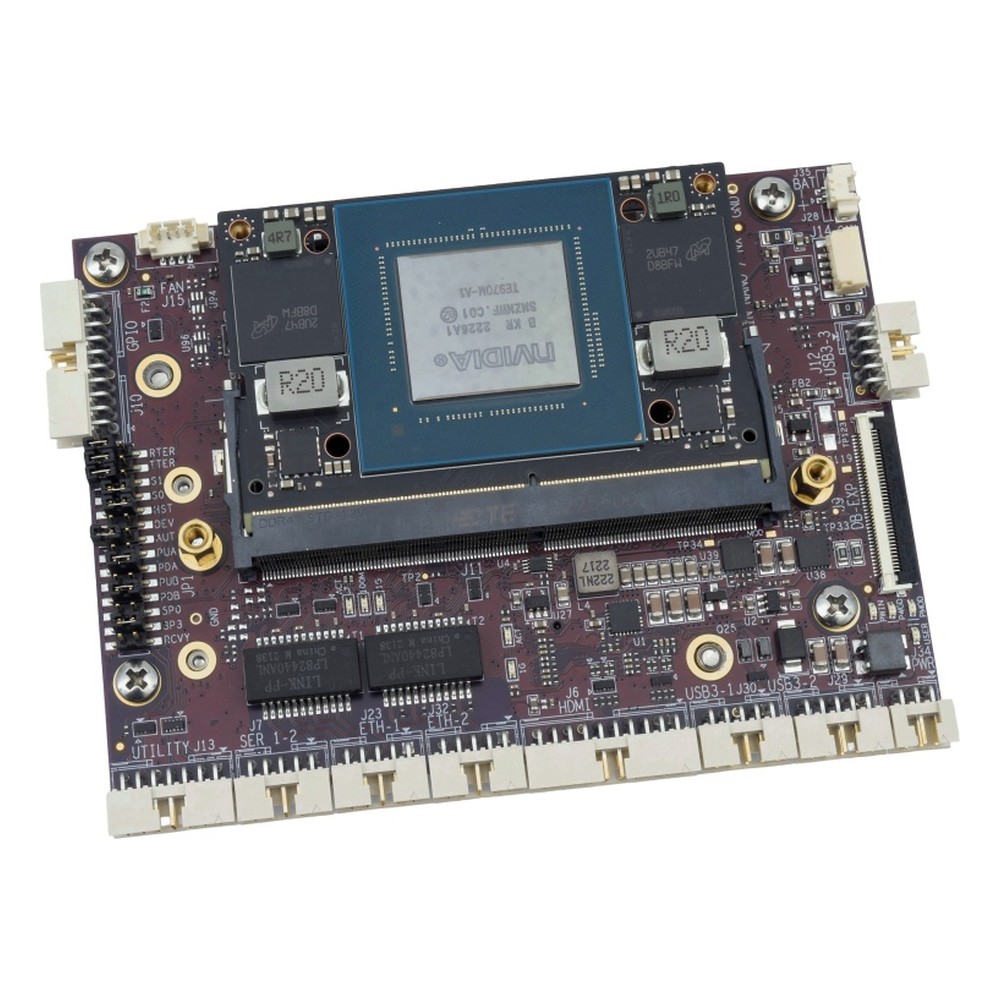

Mobile robots and vehicle systems often need the most Orin NX performance available on a board that tolerates shock and vibration. The JAXER-ASY-ONX16 is the Orin NX 16GB assembly in the Diamond Systems JACKSON-ER series, a rugged mini carrier board with latching I/O, supplied with the module installed and programmed.

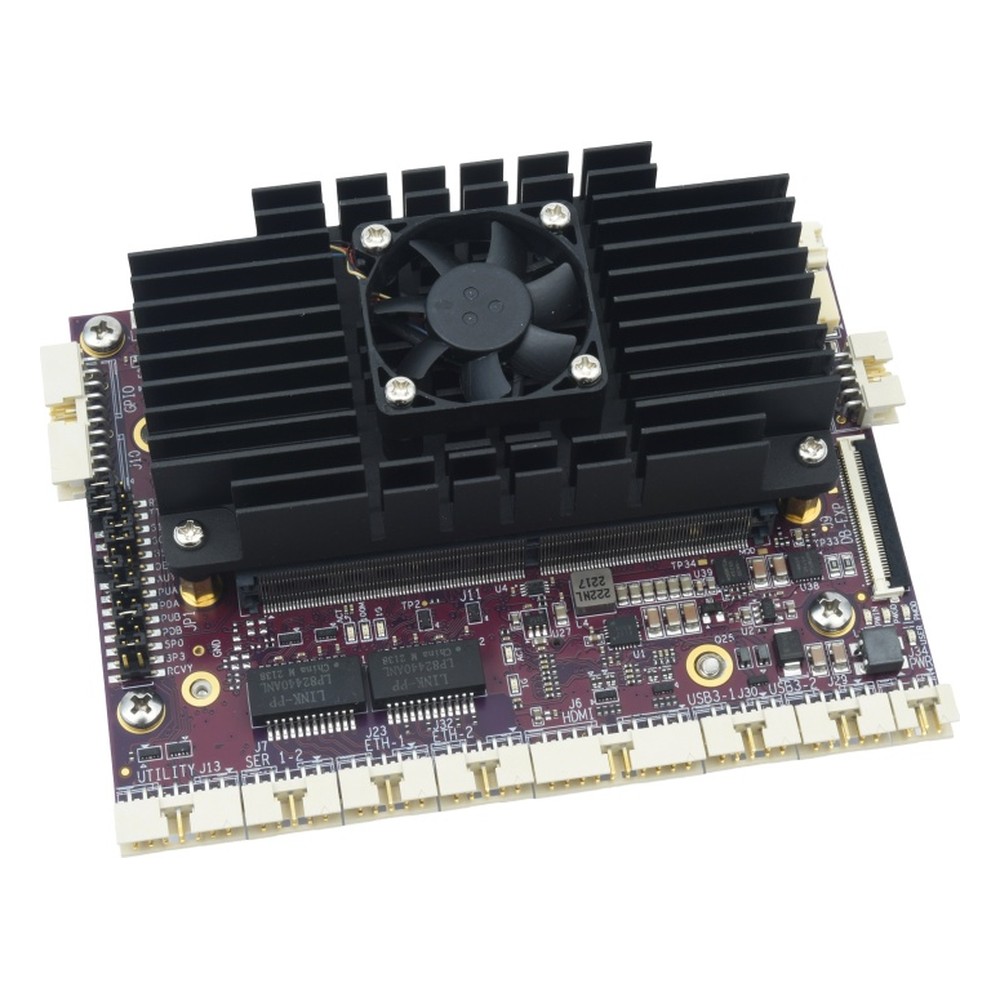

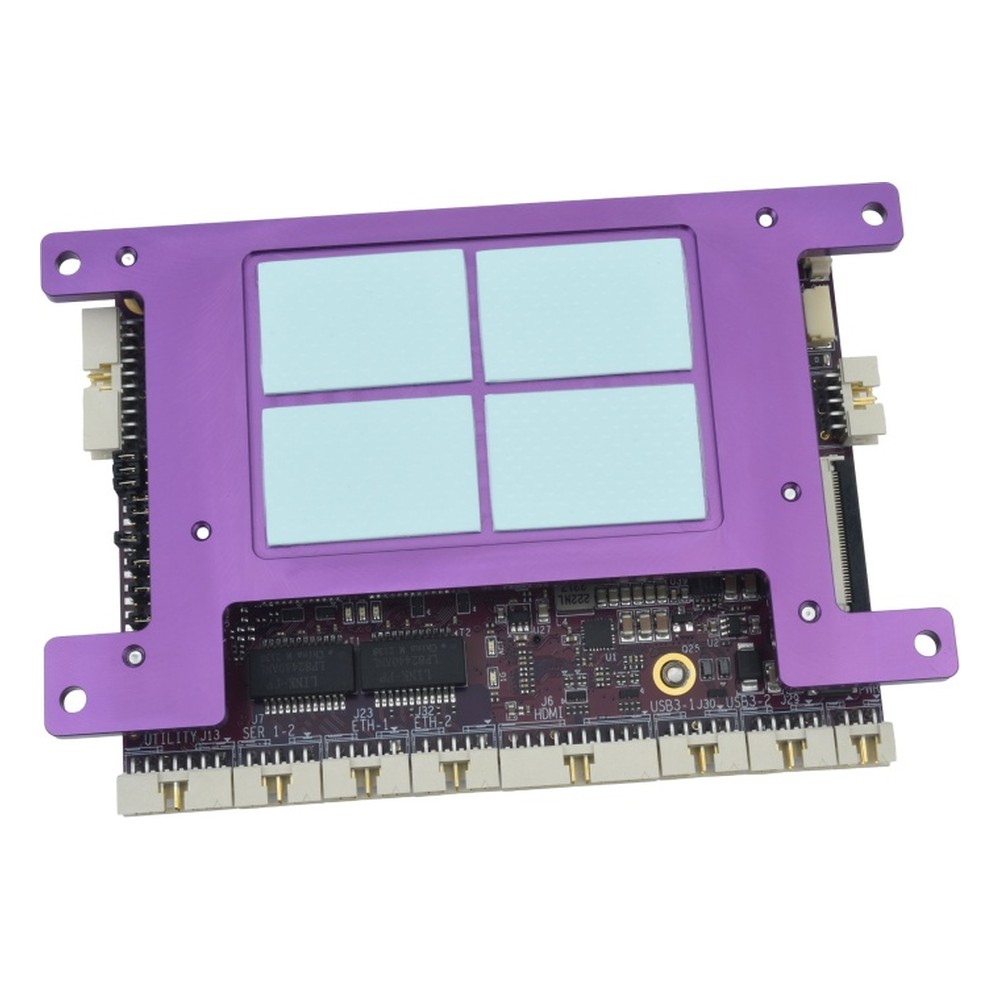

NVIDIA rates the Jetson Orin NX 16GB module at up to 100 TOPS, enough for multi-camera detection, tracking and segmentation at the edge. Diamond’s components list for the assembly includes a 128GB NVMe SSD and a Linux image for Orin NX, based on JetPack 6.2. Cooling is a build option, as JAXER-ASY-ONX16-HSP with a heat spreader that mounts the assembly upside down to an enclosure wall and avoids a fan, or JAXER-ASY-ONX16-HSK with a heat sink and 5 V fan. Two quad-lane CSI-2 streams feed cameras through e-con Systems and Allied Vision adapter boards.

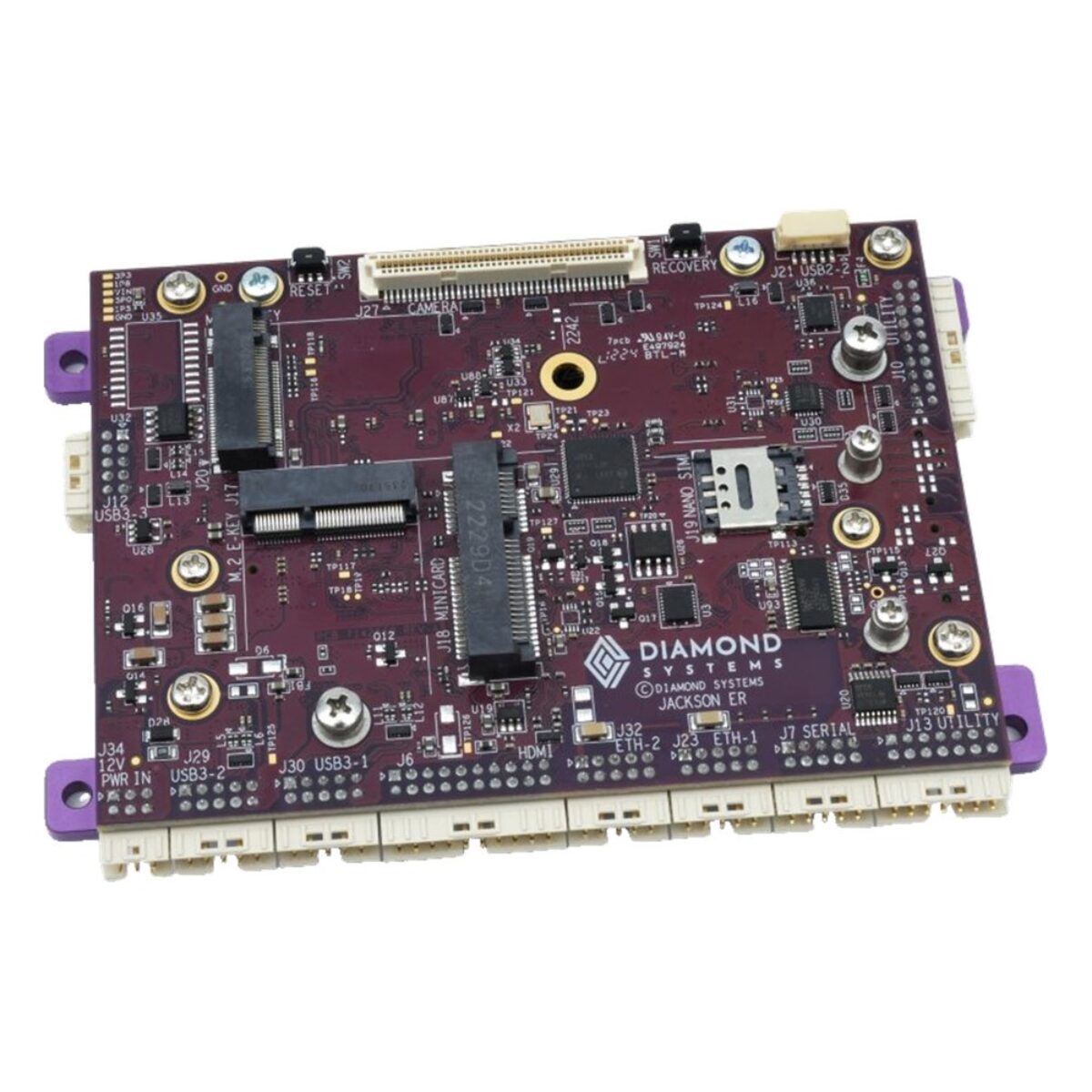

The board has two Gigabit Ethernet ports, one from the module and one from an Intel I210, three USB 3.2 ports with USB 2.0 fallback and one USB 2.0 port, and HDMI 2.0a/b with audio. Serial covers one jumper-configurable RS-232/422/485 port and one RS-232 or logic-level UART port, with one CAN 2.0 port and 16 GPIO configurable for 3.3 or 5 V and pull-up or pull-down, all on latching connectors. Storage and expansion run to an M.2 M-key 2280 or 2242 NVMe socket on four PCIe Gen 3 lanes, an M.2 E-key 2230 socket, a full-size minicard socket with a nano SIM socket, and a daughterboard expansion connector with PCIe and USB 3 links, which shares a lane with the second Ethernet port.
Power is 7-20 V DC on a latching connector, and the JAXER-ASY-ONX16 is rated from -25 to +80 °C. The JAXER-ASY-ONA8 is the Orin Nano 8GB assembly with the same I/O, and the JAXER-BB01 is the board without a module. We supply the JAXER-ASY-ONX16 configured, with the cooling option fitted, the JetPack image loaded and the assembly tested before it ships.
JAXER-ASY-ONX16 Specifications
| Overview | |
|---|---|
| Brand & Model | Diamond Systems JAXER-ASY-ONX16 |
| Features | Compact Embedded GPU Industrial Rugged |
| Performance | |
| AI Performance | 100 TOPS |
| Memory | 16GB Soldered On-board |
| System-on-Module | NVIDIA Jetson Orin NX 16GB: 100 TOPS, 1024-core Ampere GPU with 32 Tensor Cores, 8-core Arm Cortex-A78AE 2.0GHz, 16GB 128-bit LPDDR5, 10-25W |
| PCIe Gen Support | PCIe 3.0 |
| Operating System | Linux |
| Jetpack Version | JetPack 6.2 |
| Graphics | |
| Display Standards | HDMI 2.0 |
| Multi Display Support | Single Display Support |
| Display Outputs | 1x HDMI |
| I/O | |
| Ethernet | 2x Ethernet Ports |
| 2x GbE LAN [Board] | |
| LAN Controllers | Intel I210IT |
| USB | 4x USB Ports |
| 3x USB 3.2 [Board] 1x USB 2.0 [Board] | |
| Serial | 2x Serial Ports |
| 1x RS232 [Board] 1x RS232/422/485 [Board] | |
| CANbus | 1x CANbus Ports |
| 1x CANbus [Board] | |
| GPIO | GPIO [16-lines] |
| MIPI Interface | 2x 4 Lane MIPI CSI-2 |
| Expansion | |
| M.2 | 2x M.2 Expansion Slots |
| 1x M.2 E-Key [PCIe x1/USB 2.0] [2230] 1x M.2 M-Key [PCIe x4] [2242/2280] | |
| mPCIe | 1x mPCIe Slots |
| 1x mPCIe [PCIe/USB/SIM] | |
| SIM Slots | 1x SIM Slots |
| Wireless Connectivity | Optional WiFi/Bluetooth |
| Storage | |
| Storage | 1x M.2 SSD [M-Key 2242/2280, PCIe Gen 3 x4] |
| NVMe | NVMe SSD Support |
| Power | |
| Power Input | 7-20V DC [Latching] |
| Power Support Modes | AT: PWR on Input |
| Environmental Conditions | |
| Thermal Dissipation | Onboard Fan |
| Operating Temperature | -25°C to 80°C [-13°F to 176°F] |
| Certification | RoHS |
| Mechanical Properties | |
| Dimensions | 110mm x 80mm (4.33" x 3.15") |
Official Diamond Systems UK Distributor
Things Embedded is an official Diamond Systems UK distributor, supplying the JAXER-ASY-ONX16 configured and tested for UK robotics and vehicle projects. The JETBOX-JACKSON puts the Jackson carrier and an Orin NX into a fanless DIN rail enclosure, and the OSBOURNE-ER steps up to the Jetson AGX Orin with latching I/O and 10GbE.
The JAXER-ASY-ONX16 sits with our Orin NX carrier boards, the wider Jetson Orin carrier boards range and our Jetson Orin NX range. Where a rugged design needs 100 TOPS of Orin NX compute with dual GbE, CAN and latching I/O, this is the model to specify.
