UK Jetson Orin NX
NVIDIA Jetson Orin NX Computers for Robotics, Vision and Edge AI
A Jetson Orin NX computer puts the NVIDIA Orin NX module, up to 100 TOPS, in a compact fanless box, a sealed enclosure, a panel PC or a carrier board, so robots, drones, vehicles and production lines can run several AI models at the edge. The range covers rugged and waterproof Orin NX box PCs, panel PCs, Mini-ITX boards and carrier boards for the 8GB and 16GB modules.
Options include GMSL2, PoE and analogue camera inputs, sealing up to IP67, operation from -40 °C to 85 °C on selected models, Wi-Fi, 4G and 5G, and rail, vehicle and drone builds, suited to machine vision, robotics, autonomous drones and video analytics. For the largest models, see our Jetson AGX Orin computers.
Speak to a Jetson Orin NX specialist to match the module, the camera inputs and the enclosure to your application.
Browse Our Rugged Orin NX Computers
-

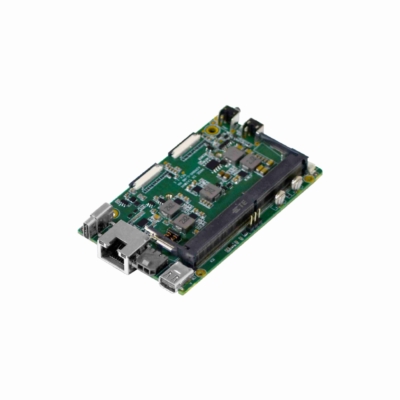

AIR6N0-C-MB NX
AIR6N0-C-MB NX with no expansion board, 8-lane MIPI CSI-2 -
AIR6N0-C-MB NX 12G-SDI
AIR6N0-C-MB NX with 12G-SDI capture board, 4K60 input and loop-out -
AIR6N0-C-MB NX 12G-SDI QL
AIR6N0-C-MB NX with four-input SDI board, 12G-SDI or quad-link 3G-SDI -
AIR6N0-C-MB NX 4xGMSL2
AIR6N0-C-MB NX with 4x GMSL2 camera input board and CAN on DB9 -
AIR6N0-C-MB NX 4xUSB3.2
AIR6N0-C-MB NX with 4x USB 3.2 Gen1 Type-A expansion board -
AIR6N0-C-MB NX HDMI2.0
AIR6N0-C-MB NX with HDMI 2.0 capture board, 4K60 input and loop-out -
AIR6N0-C-MB NX HDMI2.1
AIR6N0-C-MB NX with HDMI 2.1 capture board, 4K60 4:4:4 input and loop-out -
AIR6N0-C-MB NX IO
AIR6N0-C-MB NX with I/O expansion board, RS232, RS485, M.2 2280 and microSD
- AI Performance: 70–100 TOPS
- SOM: NVIDIA Jetson Orin NX 16GB, NVIDIA Jetson Orin NX 8GB
- Ethernet: 1x GbE LAN [RJ45], Optional PoE Modules
- Power: 24V DC
- Temp: 0°C to 60°C [32°F to 140°F]
- Certification: CE, FCC, UKCA
- Display Outputs: 1x Mini Display Port
- USB: 1x USB 2.0 [Board], 1x USB 3.2 Gen 2 [Type A]
- M.2: 1x M.2 E-Key [PCIe] [2230], 1x M.2 M-Key [PCIe x2] [2230]
- OS: Linux
- Display Outputs: 1x HDMI
- Ethernet: 2x GbE LAN [M12]
- USB: 1x USB 3.1 Gen 1 [Type A], 1x USB 3.1 Gen 1 [Type-C]
- Serial: 2x Isolated RS232/422/485 [M12]
- CANbus: 2x Isolated CANbus [M12]
- M.2: 1x M.2 B-Key [USB] [3042/3052], 1x M.2 E-Key [PCIe x1/USB 2.0] [2230], 1x M.2 M-Key [PCIe x4] [2280], 1x M.2 M-Key [PCIe] [2230]
- Storage: 2x M.2 SSD
- Power: 10-75V DC [M12]
- Temp: -25°C to 85°C [-13°F to 185°F]
- IP Rating: IP67
- Certification: CE, EN45545-2, EN50155, FCC, RoHS
- AI Performance: 70 TOPS
- SOM: NVIDIA Jetson Orin NX 8GB
- OS: Linux Ubuntu 20.04
- Display Outputs: 1x HDMI
- Ethernet: 1x GbE LAN [RJ45], 1x GbE LAN [RJ45] [PoE]
- USB: 1x USB 2.0 [Type A], 1x USB 3.2 Gen 2 [Type A]
- M.2: 1x M.2 M-Key [PCIe x4] [2280]
- mPCIe: 1x mPCIe [PCIe/USB]
- Storage: 1x M.2 SSD
- Power: 12V DC [Barrel Connector]
- Temp: -30°C to 50°C [-22°F to 122°F]
- Certification: CE, FCC
- Mounting Options: DIN Mount, Wall Mount
- AI Performance: 70 TOPS
- SOM: NVIDIA Jetson Orin NX 8GB
- Display Outputs: 1x HDMI
- Ethernet: 2x GbE LAN [RJ45]
- USB: 1x USB 2.0 [Type A], 3x USB 3.1 [Type A]
- CANbus: 1x CANbus [Terminal Block]
- M.2: 1x M.2 E-Key [PCIe/USB] [3042/3052], 1x M.2 M-Key [PCIe x4] [2280]
- Storage: 1x M.2 SSD, 1x Micro SD
- Power: 12V DC [Terminal Block]
- Temp: -20°C to 50°C [-4°F to 122°F]
- Certification: CE, FCC
- Mounting Options: DIN Mount, Wall Mount
- AI Performance: 100 TOPS
- SOM: NVIDIA Jetson Orin NX 16GB
- Display Outputs: 1x HDMI
- Ethernet: 2x GbE LAN [RJ45]
- USB: 3x USB 3.1 [Type A]
- Serial: 2x RS232/422/485 [DB9]
- M.2: 1x M.2 E-Key [PCIe x1/USB 2.0] [2230], 1x M.2 M-Key [PCIe x4] [2280], 2x M.2 B-Key [USB] [3042/3052]
- Storage: 1x M.2 SSD, 1x Micro SD
- Power: 9-50V DC Input [Terminal Block]
- Ignition Sensing: Supports Ignition Control
- Temp: -20°C to 70°C [-4°F to 158°F]
- Certification: CE, EN50155, FCC
- Mounting Options: DIN Mount, Wall Mount
- AI Performance: 70 TOPS
- SOM: NVIDIA Jetson Orin NX 8GB
- OS: Linux
- Display Outputs: 1x HDMI
- Ethernet: 2x GbE LAN [RJ45]
- USB: 4x USB 3.1 Gen 1 [Type A]
- Serial: 1x RS485 [Terminal Block]
- CANbus: 1x CANbus [Terminal Block]
- M.2: 1x M.2 B-Key [USB] [3042/3052], 1x M.2 E-Key [PCIe x1/USB 2.0] [2230], 1x M.2 M-Key [PCIe x4] [2280]
- Storage: 1x M.2 SSD, 1x Micro SD
- Power: 9-36V DC Input [Terminal Block]
- Temp: -20°C to 60°C [-4°F to 140°F]
- Certification: CE, FCC
- Mounting Options: DIN Mount, VESA Mount, Wall Mount
- AI Performance: 70 TOPS
- SOM: NVIDIA Jetson Orin NX 8GB
- Display Outputs: 1x HDMI
- Ethernet: 2x GbE LAN [RJ45], 4x GbE LAN [RJ45] [PoE]
- USB: 3x USB 3.1 [Type A]
- Serial: 2x RS232/422/485 [DB9]
- CANbus: 1x CANbus, DB9
- M.2: 1x M.2 E-Key [PCIe x1/USB 2.0] [2230], 1x M.2 M-Key [PCIe x4] [2280], 2x M.2 B-Key [USB] [3042/3052]
- Storage: 1x M.2 SSD, 1x Micro SD
- Power: 9-50V DC Input [Terminal Block]
- Ignition Sensing: Supports Ignition Control
- Temp: -20°C to 70°C [-4°F to 158°F]
- Certification: CE, EN50155, FCC
- Mounting Options: DIN Mount, Wall Mount
- AI Performance: 70 TOPS
- SOM: NVIDIA Jetson Orin NX 8GB
- AI Performance: 100 TOPS
- SOM: NVIDIA Jetson Orin NX 16GB
- Memory: 16GB Soldered On-board
- OS: Linux, Linux Ubuntu 20.04
- Display Outputs: 1x HDMI
- USB: 2x USB 2.0 [Type A], 2x USB 3.2 Gen 2 [Type A]
- Serial: 1x RS232 [DB9], 1x RS232/422/485 [DB9]
- CANbus: 1x CANbus [DB15]
- Storage: 1x Micro SD, 2x M.2 SSD
- Power: 12-36V DC Input [Terminal Block], 20V [USB-C]
- Temp: -25°C to 60°C [-13°F to 140°F]
- Certification: CE, FCC, LVD
- Ethernet: 2x GbE LAN [RJ45]
- M.2: 1x M.2 B-Key [PCIe x1 Gen3/USB 3.2 Gen 2] [2280/3042/3052], 1x M.2 E-Key [PCIe x1/USB 2.0] [2230], 2x M.2 M-Key [PCIe x4/SATA] [2280]
- Mounting Options: DIN Mount, VESA Mount, Wall Mount
- Display Outputs: 1x HDMI
- Ethernet: 2x GbE LAN [RJ45]
- USB: 3x USB 3.1 [Type A]
- Serial: 2x RS232/422/485 [DB9]
- CANbus: 1x CANbus, DB9
- M.2: 1x M.2 E-Key [PCIe x1/USB 2.0] [2230], 1x M.2 M-Key [PCIe x4] [2280], 2x M.2 B-Key [USB] [3042/3052]
- Storage: 1x M.2 SSD, 1x Micro SD
- Power: 9-50V DC Input [Terminal Block]
- Ignition Sensing: Supports Ignition Control
- Temp: -20°C to 70°C [-4°F to 158°F]
- Certification: CE, EN50155, FCC
- Mounting Options: DIN Mount, Wall Mount
- AI Performance: 70 TOPS
- SOM: NVIDIA Jetson Orin NX 8GB
- AI Performance: 70 TOPS
- SOM: NVIDIA Jetson Orin NX 8GB
- Memory: 8GB Soldered On-board
- OS: Linux, Linux Ubuntu 20.04
- Display Outputs: 1x HDMI
- Ethernet: 2x GbE LAN [RJ45]
- USB: 2x USB 2.0 [Type A], 2x USB 3.2 Gen 2 [Type A]
- Serial: 1x RS232 [DB9], 1x RS232/422/485 [DB9]
- CANbus: 1x CANbus [DB15]
- M.2: 1x M.2 B-Key [PCIe x1 Gen3/USB 3.2 Gen 2] [2280/3042/3052], 1x M.2 E-Key [PCIe x1/USB 2.0] [2230], 2x M.2 M-Key [PCIe x4/SATA] [2280]
- Storage: 1x Micro SD, 2x M.2 SSD
- Power: 12-36V DC Input [Terminal Block], 20V [USB-C]
- Temp: -25°C to 60°C [-13°F to 140°F]
- Certification: CE, FCC, LVD
- Mounting Options: DIN Mount, VESA Mount, Wall Mount
-
JAX-ASY-ONX8
JACKSON with Jetson Orin NX 8GB module, 70 TOPS, 128GB NVMe -
JAX-ASY-ONA8
JACKSON with Jetson Orin Nano 8GB module, 40 TOPS, 128GB NVMe -
JAX-ASY-ONX16
JACKSON with Jetson Orin NX 16GB module, 100 TOPS, 128GB NVMe -
JAX-BB01
JACKSON for Orin NX and Orin Nano, 2x GbE, 2x 4-lane CSI, without module
- OS: Linux
- Display Outputs: 1x HDMI
- Ethernet: 2x GbE LAN [RJ45]
- USB: 1x USB 2.0 [Type A], 1x USB 3.2 Gen 2 [Type A], 2x USB 3.2 Gen 2 [Board]
- Serial: 1x RS232 [Board], 1x RS232/485 [RJ11]
- CANbus: 1x CANbus [Board]
- M.2: 1x M.2 E-Key [PCIe x1/USB 2.0] [2230], 1x M.2 M-Key [PCIe x4] [2242/2280]
- mPCIe: 1x mPCIe [PCIe/USB/SIM]
- Storage: 1x M.2 SSD
- Power: 7-20V DC [Barrel Connector]
- Temp: -25°C to 80°C [-13°F to 176°F]
- Certification: CE, FCC
- AI Performance: 70–100 TOPS
- SOM: NVIDIA Jetson Orin NX 16GB, NVIDIA Jetson Orin NX 8GB
-
DSBOX-ORNX-AB16
DSBOX-ORNX with NVIDIA Jetson Orin NX 16GB, 100 TOPS, 16 GB LPDDR5, CAN bus -
DSBOX-ORNX-AA
DSBOX-ORNX with a choice of Jetson Orin Nano 4GB/8GB or Orin NX 8GB/16GB -
DSBOX-ORNX-AB8
DSBOX-ORNX with NVIDIA Jetson Orin NX 8GB, 8 GB LPDDR5, GbE, CAN bus, 9-28 VDC -
DSBOX-ORNX-AC4
DSBOX-ORNX with NVIDIA Jetson Orin Nano 4GB, 4 GB LPDDR5, GbE, CAN bus, 9-28 VDC -
DSBOX-ORNX-AC8
DSBOX-ORNX with NVIDIA Jetson Orin Nano 8GB, 8 GB LPDDR5, GbE, CAN bus, 9-28 VDC
- OS: Linux
- Display Outputs: 1x HDMI
- Ethernet: 1x GbE LAN [RJ45]
- USB: 2x USB 3.1 Gen 1 [Type A]
- Serial: 1x RS232 [Terminal Block], 1x RS422 [Terminal Block]
- CANbus: 1x CANbus [Terminal Block]
- M.2: 1x M.2 B-Key [USB] [3042/3052], 1x M.2 E-Key [PCIe x1/USB 2.0] [2230], 1x M.2 M-Key [PCIe x4] [2280], 1x M.2 M-Key [PCIe] [2230]
- Storage: 2x M.2 SSD
- Power: 9-28V DC [Terminal Block]
- Temp: -25°C to 85°C [-13°F to 185°F]
- Certification: CE, FCC, RoHS
- Mounting Options: DIN Mount, Wall Mount
- AI Performance: 100 TOPS
- SOM: NVIDIA Jetson Orin NX 16GB
-
DSBOARD-ORNX-AB16
DSBOARD-ORNX with Jetson Orin NX 16GB module, 100 TOPS -
DSBOARD-ORNX-AA
DSBOARD-ORNX with no module fitted, for Orin NX or Orin Nano -
DSBOARD-ORNX-AB8
DSBOARD-ORNX with Jetson Orin NX 8GB module, 70 TOPS -
DSBOARD-ORNX-AC4
DSBOARD-ORNX with Jetson Orin Nano 4GB module, 20 TOPS -
DSBOARD-ORNX-AC8
DSBOARD-ORNX with Jetson Orin Nano 8GB module, 40 TOPS
- OS: Linux
- Display Outputs: 1x HDMI
- Ethernet: 1x GbE LAN [RJ45]
- USB: 2x USB 3.1 Gen 1 [Type A]
- Serial: 1x RS232 [Terminal Block], 1x RS422 [Terminal Block]
- CANbus: 1x CANbus [Terminal Block]
- M.2: 1x M.2 B-Key [USB/SIM] [3042], 1x M.2 E-Key [PCIe x1/USB 2.0] [2230], 1x M.2 M-Key [PCIe x4] [2280], 1x M.2 M-Key [PCIe] [2230]
- Storage: 2x M.2 SSD
- Power: 9-28V DC [Terminal Block]
- Temp: -25°C to 85°C [-13°F to 185°F]
- Certification: CE, FCC, RoHS
- AI Performance: 100 TOPS
- SOM: NVIDIA Jetson Orin NX 16GB
- AI Performance: 20–100 TOPS
- SOM: NVIDIA Jetson Orin Nano 4GB, NVIDIA Jetson Orin Nano 8GB, NVIDIA Jetson Orin NX 16GB, NVIDIA Jetson Orin NX 8GB
- Memory: 16GB Soldered On-board, 4GB Soldered On-board, 8GB Soldered On-board
- OS: Linux, Linux Ubuntu 22.04
- Display Outputs: 1x HDMI
- Ethernet: 3x 2.5 GbE LAN [M12], 1x GbE LAN [M12]
- USB: 1x USB 2.0 [Type A], 1x USB 3.2 Gen 2 [Type A]
- Serial: 2x RS232/422/485 [M12]
- CANbus: 1x CANbus [M12]
- M.2: 1x M.2 B-Key [PCIe x1/USB 2.0] [2242/2280], 1x M.2 B-Key [USB 3.2 Gen 1/USB 2.0/SIM] [2242/3042/3052], 1x M.2 E-Key [PCIe x1/USB 2.0] [2230], 1x M.2 M-Key [PCIe x4] [2242/2280]
- Storage: 1x M.2 SSD, 1x Micro SD
- Power: 9-48V DC Input [M12]
- Ignition Sensing: Supports Ignition Control
- Temp: -20°C to 65°C [-4°F to 149°F]
- IP Rating: IP66
- Certification: IEC 62368-1, CB, CE, E-Mark, EN50121-3-2, FCC, IC (ICES-003), UKCA, UL, UL 62368-1
- Mounting Options: Wall Mount
- AI Performance: 20–100 TOPS
- SOM: NVIDIA Jetson Orin Nano 4GB, NVIDIA Jetson Orin Nano 8GB, NVIDIA Jetson Orin NX 16GB, NVIDIA Jetson Orin NX 8GB
- Memory: 16GB Soldered On-board, 4GB Soldered On-board, 8GB Soldered On-board
- OS: Linux Ubuntu 24.04, Linux, Linux Ubuntu 22.04
- Display Outputs: 1x HDMI
- CANbus: 1x CANbus, DB9
- M.2: 1x M.2 B-Key [PCIe x1/USB 3.2 Gen 2/USB 2.0/SIM] [2242/3042/3052], 1x M.2 E-Key [PCIe x1/USB 2.0] [2230], 1x M.2 M-Key [PCIe x4] [2242/2280]
- Storage: 1x M.2 SSD, 1x Micro SD
- Power: 9-36V DC Input [Terminal Block]
- Ignition Sensing: Supports Ignition Control
- Temp: -20°C to 55°C [-4°F to 131°F]
- Mounting Options: DIN Mount, Wall Mount
- Ethernet: 1x 2.5 GbE LAN [M12], 1x GbE LAN [M12]
- USB: 1x USB 2.0 [Type A], 1x USB 3.2 Gen 2 [Type A]
- Serial: 1x RS232/422/485 [Board], 1x RS232/422/485 [DB9]
- Certification: IEC 62368-1, CB, CE, E-Mark, EN50121-3-2, FCC, IC (ICES-003), REACH, RoHS, UKCA, UL, UL 62368-1
Compare the Orin NX With Orin Nano, AGX Orin and Rugged Builds
Need a lower-power module, more AI performance or a fully sealed build? Compare the Orin NX with the rest of the Jetson Orin family and our rugged Jetson computers.
What to Specify in an Orin NX Computer
Jetson Orin NX delivers up to 100 TOPS on a compact SO-DIMM module, enough to run several AI pipelines at once in a small fanless enclosure. These are the points to check before you choose a system.
Fanless Cooling
Passive cooling handles heat in sealed, dusty enclosures. Match the module power mode to the temperature the system will see.
Camera Inputs
MIPI CSI for short camera runs, GMSL for long cables on vehicles and robots, and PoE for IP cameras.
Industrial I/O
USB, Gigabit Ethernet, HDMI or DisplayPort, GPIO, serial and CAN bus connect sensors, controllers and vehicle networks.
Wireless and GNSS
Wi-Fi, 4G LTE, 5G and GPS or RTK modules on many systems connect mobile machines and remote sites.
Module Upgrade Path
Orin NX shares its connector with Orin Nano and Xavier NX, so many carriers can move between modules as needs change.
Custom Carrier Design
Where no standard system fits, a modified or custom carrier can match the I/O, connectors and enclosure you need.
Jetson Orin NX Ranges Configured by Things Embedded
We work with the leading manufacturers of Jetson Orin NX systems, so the ranges below are every family we carry for the 8GB and 16GB modules. Compare them by camera inputs, sealing and temperature range, then browse the systems above or ask a specialist which range suits your application.
VPC Panel PCs and VDM In-Vehicle Displays
10.1 inch panel PCs and in-vehicle displays for cabs, kiosks and outdoor stations. The VPC-101RB2S puts an NVIDIA Jetson Orin module behind an IP66, 1,000-nit optically bonded touchscreen, the VPC-101RA1S runs on an NXP i.MX 8QuadXPlus, and the VDM monitors connect to Sintrones vehicle computers.
IBOX NVIDIA Jetson Edge AI Computers
The core Sintrones line: fanless Jetson computers from Orin Nano and Orin NX in the 600-series to AGX Orin in the 650P-series, built for vehicles and transport with ignition sensing, wide DC input and GMSL or PoE camera inputs. Most models come in three build levels: standard connectors, M12 rugged connectors and IP66 sealed.
IMB Jetson Mini-ITX Developer Kits
Mini-ITX developer boards on Jetson Orin NX for prototyping before you deploy into an IBOX: the same SOM, so software carries straight across to the rugged or sealed production box.
NRU NVIDIA Jetson Edge AI Computers
Rugged fanless computers built around NVIDIA Jetson Orin NX, Orin Nano and AGX Orin, with the camera interface chosen for the job: PoE+ on the NRU-150-FT, GMSL2 on the NRU-160-FT, and an AGX Orin AI NVR in the NRU-220S. The NRU-160-AWP adds IP66 sealing, the NRU-51V is a four-camera GMSL2 hub with 10GbE and the NRU-52S powers four 90 W PoE++ cameras.
Neousys Frame Grabber Cards
PCIe cards that bring cameras into a Neousys system: PoE+ frame grabbers from Gigabit to 10GbE, USB 3 and GMSL2 camera inputs, automotive BASE-T1 Ethernet, and Jetson-powered cards that run AI inference beside the host CPU. We fit and test the card inside the computer before it ships, so cameras, drivers and the power budget are proven as one system.
FLYC Companion Computers for Drones and UAVs
A low-SWaP Jetson Orin NX computer sized for airframe payload bays, with the camera, sensor and flight-controller interfaces a UAV needs for inspection, mapping and onboard inference.
NVIDIA Jetson and IGX Edge AI Boards and Computers
Edge AI hardware built around video input: Jetson Thor and AGX Orin carrier boards and computers, an AI NVR with eight PoE ports, the NEAR T7X on NVIDIA IGX Thor, the AIR6N0-C-MB NX carrier for Orin NX and Orin Nano, compact Pandora systems including Pandora Health builds with HDMI and SDI capture, VPP6N0 computers, and Holoscan sensor bridges that feed live video into NVIDIA Holoscan.
AV over IP Encoders, Decoders and SDVoE
Video over IP for live production, control rooms and pro AV: NDI and Dante AV encoders and decoders, H.26X streaming encoders with RTSP, RTMP, SRT and HLS, four-channel encoders with on-device AI, and SDVoE transmitters and receivers that carry 4K video over 10G copper or fibre with very low latency.
RAIBOARD Railway Jetson Carrier Boards
The railway carrier boards from inside the RAIBOX computers, for integrators building their own rolling-stock or trackside enclosure around NVIDIA Jetson AGX Orin, Orin NX or Orin Nano. Field I/O sits on locking Molex Dura-Clik connectors at the board edge, with sealed HDMI and USB ports, and RAIBOARD-ORNX adds isolated serial, CAN and digital I/O.
MILBOX Sealed MIL-STD Mission Computers
Fully militarised, IP67-sealed Jetson computers with circular MIL connectors, for airborne, vehicle and maritime systems that need edge AI in a sealed, MIL-STD-designed enclosure.
DSBOARD Industrial Jetson Carrier Boards
Bare carrier boards for integrating NVIDIA Jetson into your own enclosure or product, from Orin Nano and Orin NX through AGX Orin to the AGX Thor T4000 and T5000. Wide-temperature industrial designs with the camera, Ethernet and storage interfaces exposed for your build.
RAIBOX EN 50155 Railway Edge AI Computers
Boxed Jetson systems designed to EN 50155 for rolling stock and trackside deployment: onboard analytics, passenger information and condition monitoring on AGX Orin or Orin NX. The RAIBOARD carrier boards inside them are also available for your own enclosure.
DSBOX Industrial Fanless Edge AI Computers
The DSBOARD carrier boards in a standard fanless enclosure: a ready-to-mount Jetson computer for machine vision, robotics and video analytics where the environment is industrial rather than military.
iEP-6000 NVIDIA Jetson Orin Edge Controllers
Fanless Jetson Orin edge controllers for inference at the machine: the iEP-6020E (Orin NX 16 GB), iEP-6021E (Orin NX 8 GB), iEP-6022E (Orin Nano 8 GB) and iEP-6023E (Orin Nano 4 GB) on JetPack 6.2 with Super Mode, up to 157 TOPS, in basic, PoE, 4PoE and 5G builds; and the earlier iEP-6010E to 6013E, launched on JetPack 5. All take 12-36 V DC and mount on a DIN rail or wall.
EAC NVIDIA Jetson Edge AI Computers
Jetson computers from AGX Xavier through AGX Orin, Orin NX and Orin Nano to the AGX Thor T4000 and T5000 in the EAC-7000, with PoE+, GMSL camera and out-of-band management variants for robotics, vision and autonomous machines. The NAC-1000 and RAC-1000 put AGX Orin in IP66 and IP67 sealed enclosures with M12 I/O for outdoor and vehicle sites.
MIC NVIDIA Jetson Edge AI Systems
Advantech MIC systems put NVIDIA Jetson modules into finished industrial computers, from the 130 mm MIC-711-OX on Orin NX to the MIC-742-AT on Jetson Thor with 25GbE over QSFP28. Most are fanless, with GMSL camera options, 5G and Wi-Fi expansion and Allxon remote management, and an IP67 in-vehicle model for fleets.
JetBox Industrial NVIDIA Jetson Computers
Diamond carrier boards built into fanless industrial enclosures: the JetBox Osbourne on AGX Orin, JetBox Jackson on Orin NX and Orin Nano, JetBox Stevie on AGX Xavier, JetBox Floyd and Floyd-SC on Nano and Xavier NX, and ZiggyBox on TX2, for cabinets, machines and vehicles that need an industrial build rather than a sealed military one. For sealed MIL-STD designs, see SabreCom and Geode.
NVIDIA Jetson Carrier Boards and Development Kits
Carrier boards and development kits for NVIDIA Jetson: the Jackson and rugged Jackson-ER for Orin NX and Orin Nano, the Osbourne and rugged Osbourne-ER for AGX Orin, the Stevie and Elton for AGX Xavier, and the Floyd and Ziggy for the Nano, Xavier NX, TX2 NX and TX2 generations. Each pairs with a JetBox of the same name when you want it built into an enclosure.
X6 NVIDIA Jetson Orin Edge AI Systems
Compact fanless edge AI computers on NVIDIA Jetson Orin: the X6-ORN and X6-ORN-GMSL on Orin Nano and Orin NX with four Gigabit ports, optional PoE and, on the GMSL build, two GMSL2 camera inputs; the X6X-ORN, the same system in an IP67 sealed housing with M12 and M20 connectors; and the X6a-AGX on AGX Orin with 10 GbE, CAN and up to eight GMSL2 cameras.
JCO and WCO Jetson and Waterproof Computers
JCO computers run NVIDIA Jetson Orin NX, Orin Nano or AGX Orin modules in a fanless chassis with GbE, 2.5GbE, 10GbE or PoE+ camera ports. WCO computers seal the electronics for washdown and outdoor sites, from the WCO-6000-THR with NVIDIA Jetson AGX Thor to the IP66 WCO-3000-ORN with M12 connectors and the IP68 and IP69K WCO-3000-EHL.
ZED Box Mini Embedded Computers on NVIDIA Jetson Orin
Fanless embedded computers on Jetson Orin Nano or Orin NX with two GMSL2 camera inputs, built to run ZED cameras and AI models on the machine. Optional Wi-Fi 6 and a fan kit for MAXN SUPER mode.
AIE NVIDIA Jetson Edge AI Computers and Developer Kits
Compact fanless Jetson computers on Orin Nano and Orin NX for vision and inference at the edge, with the AIE110 developer kits sharing the same modules so a prototype moves straight to the AIE100 or AIE810 deployment box.
Not sure which range fits? Tell us the application and we will recommend the right model.
Orin NX Innovation & Robotics Insights
Speak to a Jetson Orin NX Specialist.
Tell us where the system will be installed, the approvals it must meet and the cameras and interfaces you need to connect. We will recommend the right Orin NX module and system, then configure, image and test it before it ships.
