Winmate R08L100-MLU1 8.4″ Rugged Defence Monitor with 600 Nit SVGA Display and MIL-STD-810G Compliance
Resistive
Extended Temp
CE
FCCR08L100-MLU1 Overview

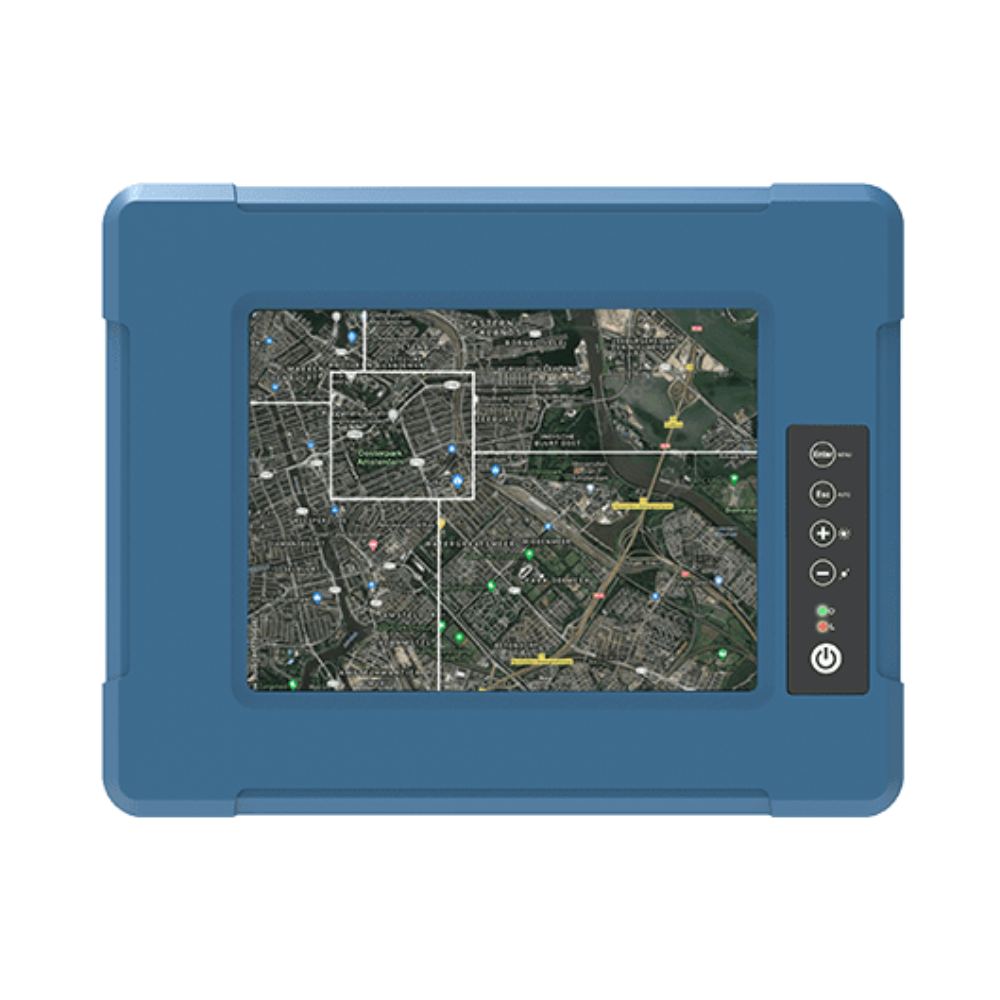

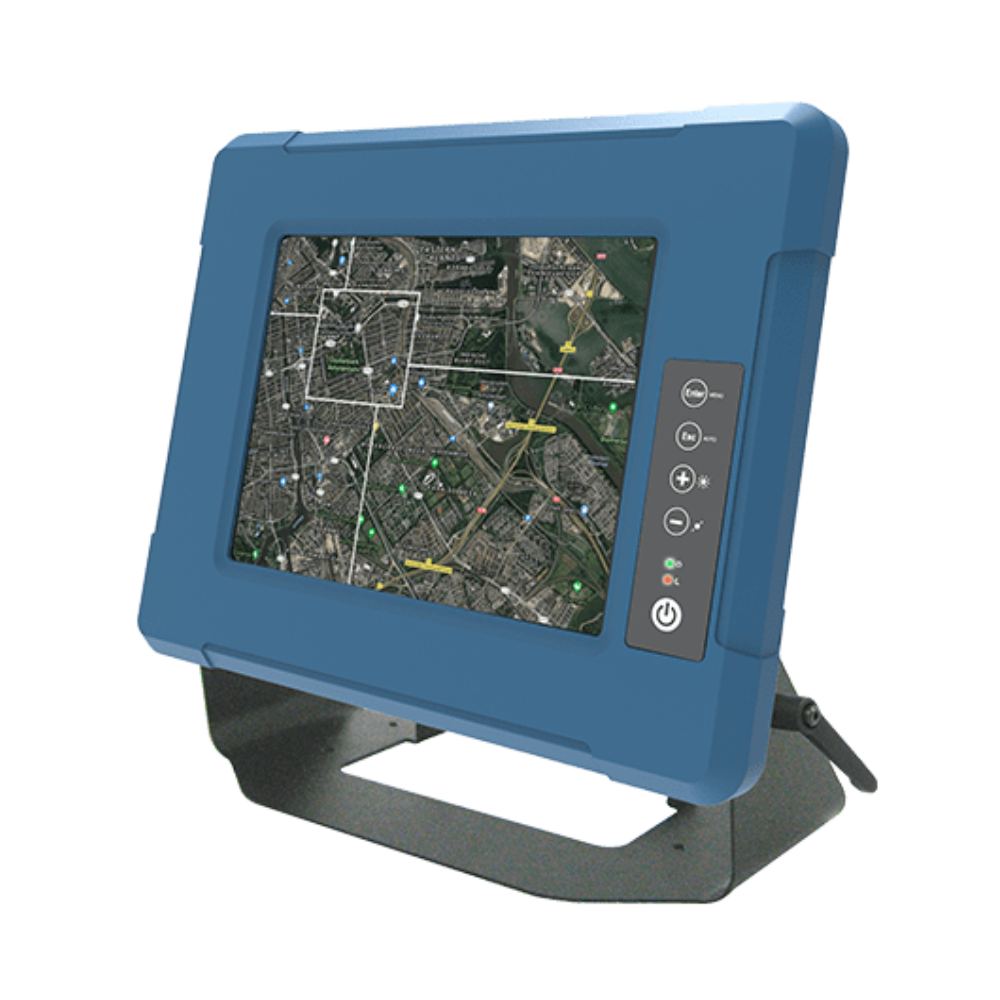

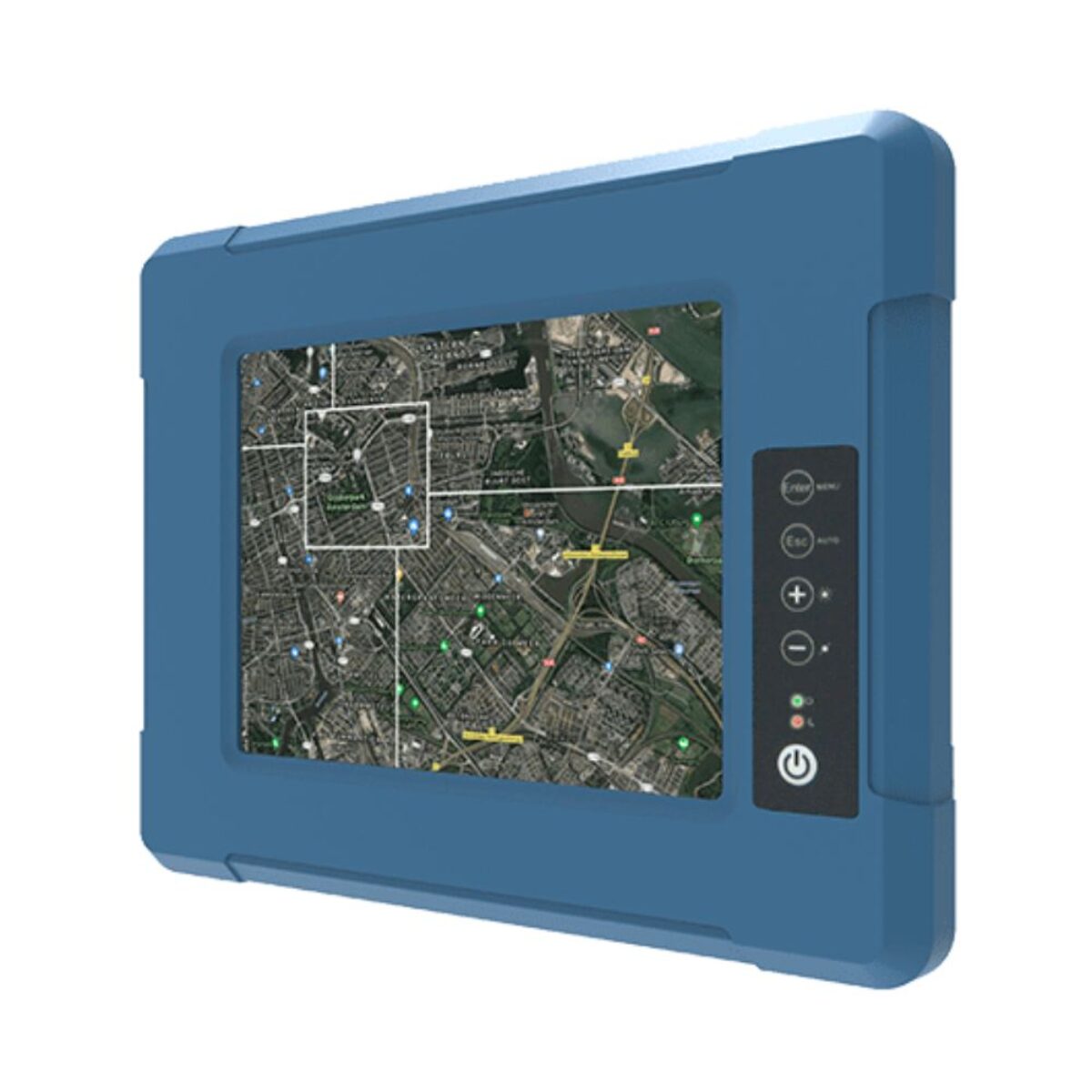

Vehicle crews and command posts need a display that survives shock and vibration, keeps dust and water out and does not upset the radios around it. The R08L100-MLU1 is Winmate’s 8.4 inch G-WIN defence display, built around an 800 x 600 panel in a fanless, IP65 sealed housing with a MIL-DTL-38999/1 power connector.
The 8.4 inch SVGA LCD delivers 600 nits with a 600:1 contrast ratio and 262K colours, behind AR protection glass that cuts reflections from cabin lighting. Viewing angles are 150° horizontally and 130° vertically. Touch is optional: Winmate offers 5-wire resistive touch, a resistive touch screen with an EMI mesh filter, or EMI glass for installations with strict emissions limits. Five front keys run the on-screen display menu.
Video comes in over VGA, with HDMI available as an option, and an optional RS-232 port carries touch data to the host. Winmate states compliance with MIL-STD-810G methods 514.6 (vibration), 507.4 (humidity) and 516.5 (transit drop), and with MIL-STD-461E/F/G tests including RE102, CE102 and CS118. For a larger screen at the same resolution, the R10L100-MLP1 moves to 10.4 inches, and the R10L100-MLT2 adds a 1024 x 768 panel.
Power is 12 V DC as standard, with a 9 to 36 V DC wide-range input as an option. The display operates from -20 °C to 60 °C and 10 to 95% RH, withstands 30 g operating shock for 18 ms, and is IP65 dust and water protected except at the I/O. It measures 277 x 219.5 x 59.7 mm, mounts on VESA holes and carries CE and FCC marks. Winmate names defence operations, field command and armoured vehicles as target applications.
R08L100-MLU1 Specifications
| Overview | |
|---|---|
| Brand & Model | Winmate R08L100-MLU1 |
| Features | Fanless Industrial Rugged |
| Display | |
| Display | 8.4"[4:3, 800 x 600, SVGA] |
| Display Treatment | Anti-reflective glass EMI Mesh Filter |
| Touch Controller | Optional 5-Wire Resistive Touch |
| Brightness | 600 Nits |
| 150° Horizontal, 130° Vertical | |
| Aspect Ratio | 4:3 |
| Format | Standard |
| Contrast | 600:1 |
| Number of Display Inputs | 2x Display Ports |
| Video Inputs | 1x Optional HDMI Input 1x VGA Input |
| Power | |
| Power Input | 12V DC Input [MIL-STD] 9-36V DC Input [MIL-STD] |
| Environmental Conditions | |
| Operating Temperature | -20°C to 60°C [-4°F to 140°F] |
| Storage Temperature | -30°C to 70°C [-22°F to 158°F] |
| Humidity | 10% - 95% (Non-condensing) |
| Certification | CE FCC |
| Mechanical Properties | |
| Dimensions | 277mm x 220mm x 60mm (10.91" x 8.66" x 2.36") |
- R08L100-MLU1 Datasheet Download
Official Winmate UK Distributor
Things Embedded is an official Winmate UK distributor, supplying the R08L100-MLU1 configured for UK defence and vehicle programmes. Within the Winmate range the R10L100-MLP1 keeps the same SVGA resolution on a 10.4 inch screen, and the R15L100-MLA3HB steps up to a 15 inch 1000 nit panel.
As a compact G-WIN display the R08L100-MLU1 sits among our military displays, our rugged monitors and our 4:3 industrial monitors. Where a cab or console has room only for a small MIL-STD screen, this is the model to specify.
