Winmate R10L100-GST2 10.4″ IP65 PCAP Touch Monitor with Edge-to-Edge Front, XGA Display and M12 Connectors
PCAP
CE
FCCR10L100-GST2 Overview

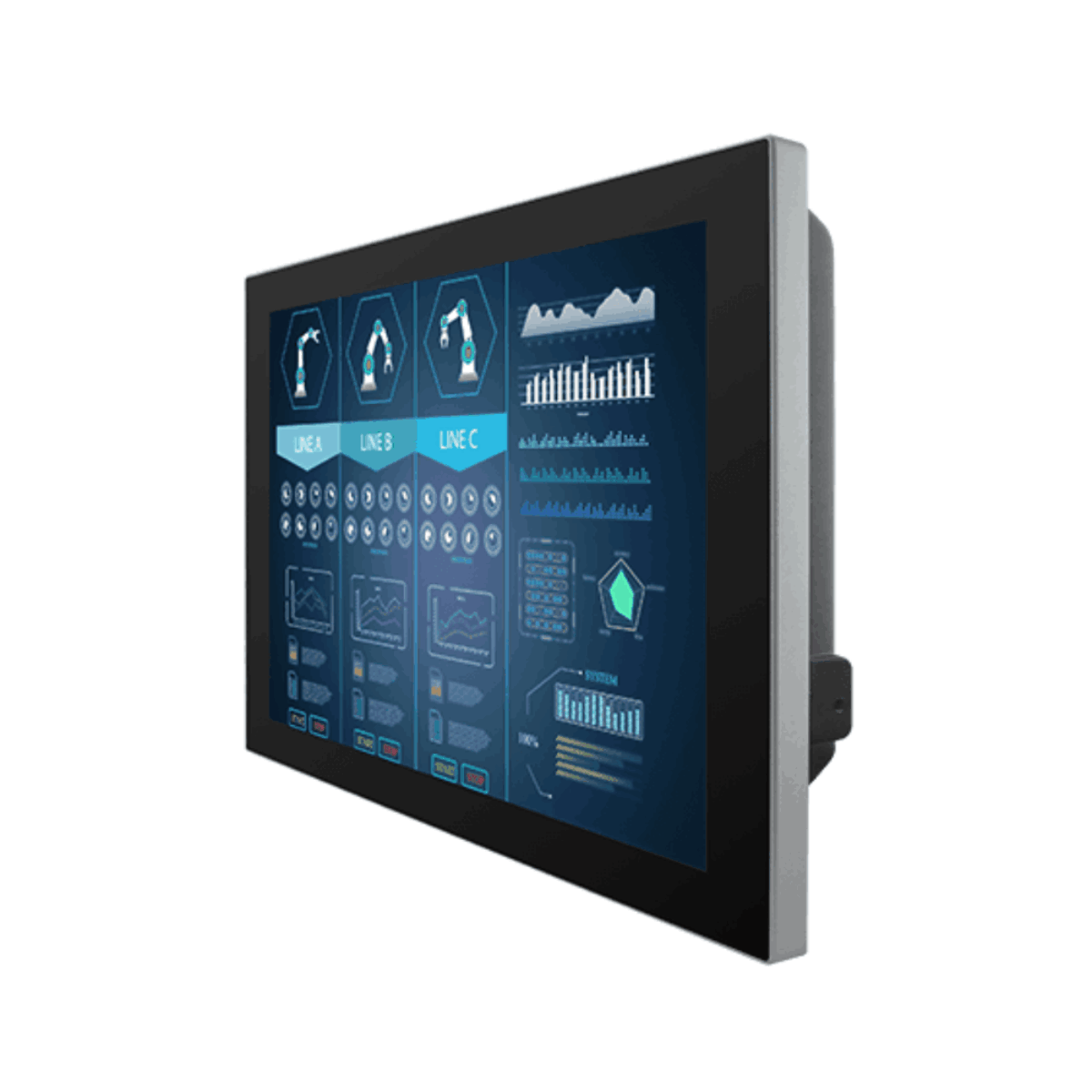

A touch screen on a machine or vehicle has to shrug off water, dust and vibration without losing the light tap operators expect from a phone. The R10L100-GST2 is Winmate’s 10.4 inch G-WIN GS display, combining projected capacitive multi-touch with an edge-to-edge front, full IP65 sealing and M12 waterproof connectors.

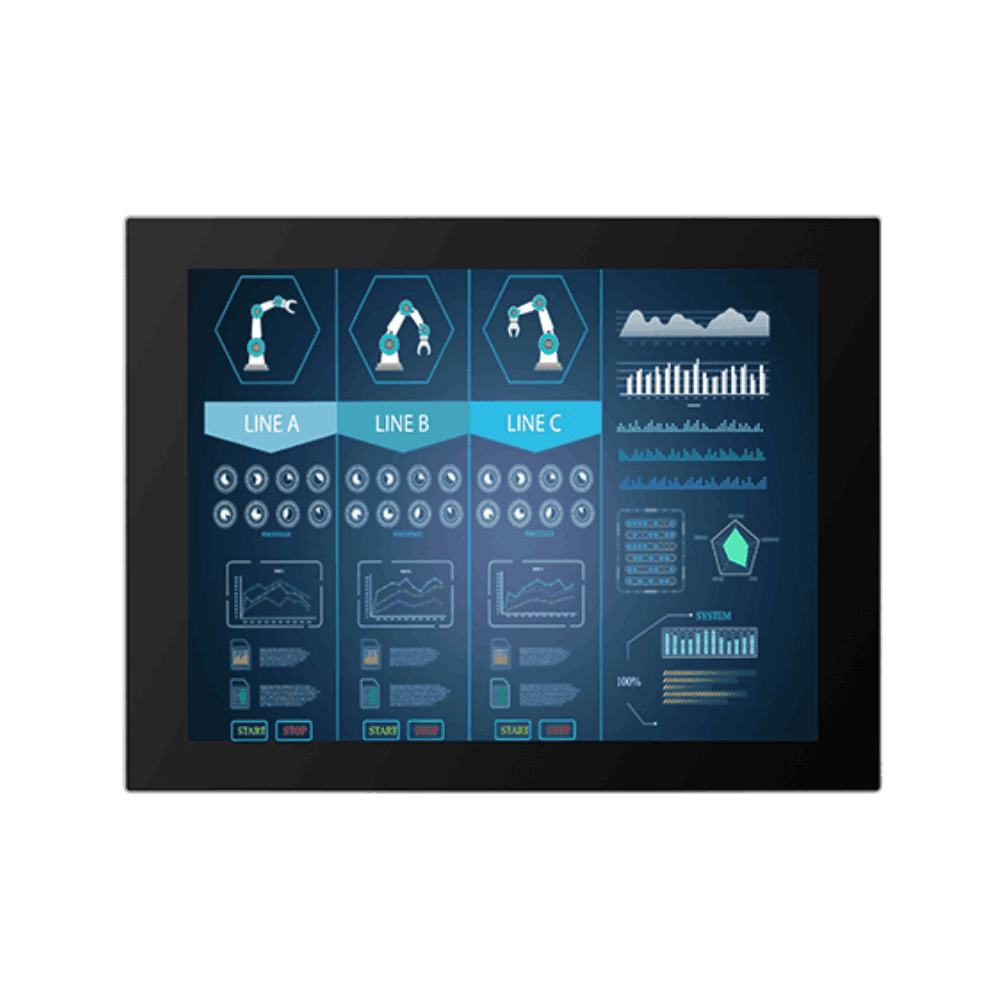

The 10.4 inch LCD runs at 1024 x 768 with 350 nits, a 1000:1 contrast ratio, 16.2M colours and 176° viewing angles. The PCAP touch screen sits flush with the edge-to-edge front, so there is no bezel step for dirt or water to collect in, and connects to the host over USB. Five keys on the rear control the on-screen display.
Power, VGA and USB touch connect through M12 waterproof connectors, and three I/O protective caps are supplied for unused ports. Winmate states compliance with MIL-STD-810F/G for vibration and shock. The R12L100-GSM2(HB) is the 12.1 inch GS model with a 500 nit panel and a 1000 nit option, and the W10L100-GSH2 offers the same GS design with a 10.1 inch 1280 x 800 widescreen panel.
Power is 9 to 36 V DC on an M12 connector, which covers 12 V and 24 V supplies. The monitor operates from -15 °C to 55 °C at 10 to 95% RH, withstands 40 g shock for 11 ms and vibration of up to 2.24 g rms from 5 to 500 Hz, and cools without a fan. It measures 252.41 x 197.8 x 43 mm and mounts on VESA holes or in a panel. It carries CE and FCC marks, and Winmate names industrial visualisation, control rooms and equipment monitoring as applications.
R10L100-GST2 Specifications
| Overview | |
|---|---|
| Brand & Model | Winmate R10L100-GST2 |
| Features | Fanless Industrial M12 Connectors Rugged Waterproof |
| Display | |
| Display | 10.4"[4:3, 1024 x 768, XGA] |
| Touch Interface | USB |
| Touch Controller | Multi Touch PCAP |
| Brightness | 350 Nits |
| Viewing Angle | Wide Viewing Angle |
| 176° Horizontal, 176° Vertical | |
| Aspect Ratio | 4:3 |
| Format | Standard |
| Contrast | 1000:1 |
| Number of Display Inputs | 1x Display Ports |
| Video Inputs | 1x VGA Input |
| Power | |
| Power Input | 9-36V DC Input [M12] |
| Environmental Conditions | |
| Operating Temperature | -15°C to 55°C [5°F to 131°F] |
| Storage Temperature | -30°C to 60°C [-22°F to 140°F] |
| Humidity | 10% - 95% (Non-condensing) |
| Ingress Protection | IP65 IP65 [Dustproof, Protection against low pressure water jets spraying from any direction] |
| Certification | CE FCC |
| Mechanical Properties | |
| Dimensions | 252mm x 198mm x 43mm (9.92" x 7.8" x 1.69") |
- R10L100-GST2 Datasheet Download
Official Winmate UK Distributor
Things Embedded is an official Winmate UK distributor, supplying the R10L100-GST2 configured for UK machine and vehicle projects. Within the Winmate range the R12L100-GSM2(HB) offers the GS design at 12.1 inches with a brighter panel, and the R10L100-SPT2 puts PCAP touch in an IP65 stainless housing.
With PCAP touch the R10L100-GST2 sits among our PCAP touch screen monitors, our IP65 monitors and our rugged displays. Where a machine or vehicle needs light finger touch behind a fully sealed, flush front with M12 cabling, this is the model to specify.
