Displaying of 62 items

View All

R10L600-VMP1 10.4″ Rugged Front IP65 Resistive Touch Monitor with 10 to 60 V DC Input

Display: 10.4"[4:3, 800 x 600, SVGA]
Touch: Resistive Touch
Brightness: 600
Format: Standard
Display Inputs: 1x Optional HDMI Input, 1x VGA Input
Power: 10-60V DC Input [Terminal Block]
Ignition Sensing: Supports Ignition Control
Temp: -10°C to 55°C [14°F to 131°F]
IP Rating: Front IP66
Certification: CE, FCC

Winmate

R10L600-VMP110.4″ Rugged Front IP65 Resistive Touch Monitor with 10 to 60 V DC Input

Datasheet

P712 12.1″ Resistive Touch Railway Monitor with 600 Nit XGA LCD and M12 Power

Brightness: 600
Viewing Angle: Wide Viewing Angle
Format: Standard
Display Inputs: 1x HDMI Input, 1x VGA Input, 1xDVI-D
Power: 24V-110V DC [M12]
Ignition Sensing: Supports Ignition Control
Temp: -25°C to 55°C [-13°F to 131°F]
IP Rating: Front IP65
Certification: CE, EN50121-3-2, FCC

Axiomtek

P71212.1″ Resistive Touch Railway Monitor with 600 Nit XGA LCD and M12 Power

Datasheet

R12L100-GSM2(HB) 12.1″ IP65 PCAP Touch Monitor with Edge-to-Edge Front, XGA Display and M12 Connectors

Display: 12.1"[4:3, 1024 x 768, XGA]
Touch: Multi Touch PCAP
Brightness: 1000, 500
Viewing Angle: Wide Viewing Angle
Format: Standard
Display Inputs: 1x VGA Input
Power: 9-36V DC Input [M12]
Temp: -15°C to 55°C [5°F to 131°F]
IP Rating: IP65
Certification: CE, FCC

Winmate

R12L100-GSM2(HB)12.1″ IP65 PCAP Touch Monitor with Edge-to-Edge Front, XGA Display and M12 Connectors

Datasheet

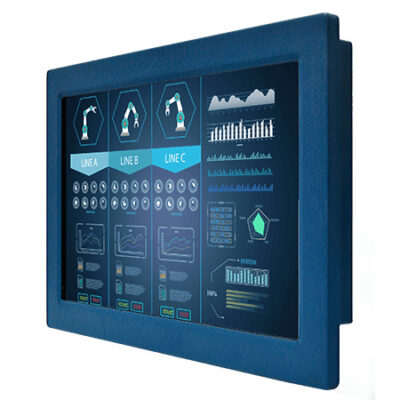

R12L100-VMM2 12.1″ Rugged Resistive Touch Monitor with 500 Nit XGA Display and Isolated DC Input

Display: 12.1"[4:3, 1024 x 768, XGA]
Touch: Resistive Touch
Brightness: 500
Viewing Angle: Wide Viewing Angle
Format: Standard
Display Inputs: 1x Optional DVI Input, 1x VGA Input
Power: 9-36V DC Input [Terminal Block]
Temp: -10°C to 55°C [14°F to 131°F]
IP Rating: Front IP65
Certification: CE, FCC

Winmate

R12L100-VMM212.1″ Rugged Resistive Touch Monitor with 500 Nit XGA Display and Isolated DC Input

Datasheet

W12L100-GSB1 12.3″ Full IP65 PCAP Touch Monitor with MIL-STD-810G and 1000 Nit 1920 x 720 Display

Display: 12.3"[, 1920 x 720, FHD]
Touch: Multi Touch PCAP
Brightness: 1000
Viewing Angle: Wide Viewing Angle
Format: Stretched
Display Inputs: 1x VGA Input
Power: 9-36V DC Input [M12]
Temp: -15°C to 55°C [5°F to 131°F]
IP Rating: IP65
Certification: CE, FCC, MIL-STD-810

Winmate

W12L100-GSB112.3″ Full IP65 PCAP Touch Monitor with MIL-STD-810G and 1000 Nit 1920 x 720 Display

Datasheet

R15L100-67C3POD 15″ Full IP67 Rugged Monitor with MIL-STD-810G and M12 Connectors

Display: 15"[4:3, 1024 x 768, XGA]
Touch: Multi Touch PCAP
Brightness: 1000
Viewing Angle: Wide Viewing Angle
Format: Standard
Display Inputs: 1x HDMI Input, 1x VGA Input
Power: 9-36V DC Input [M12]
Temp: -10°C to 55°C [14°F to 131°F], -25°C to 60°C [-13°F to 140°F]
IP Rating: IP67
Certification: CE, FCC

Winmate

R15L100-67C3POD15″ Full IP67 Rugged Monitor with MIL-STD-810G and M12 Connectors

Datasheet

R15L100-67C3-P(HB) 15″ Full IP67 Rugged Monitor with MIL-STD-810G and 1000 Nit XGA Display

Display: 15"[4:3, 1024 x 768, XGA]
Touch: Multi Touch PCAP
Brightness: 1000
Viewing Angle: Wide Viewing Angle
Format: Standard
Display Inputs: 1x HDMI Input, 1x VGA Input
Power: 9-36V DC Input [M12], AC Power Supply Included
Temp: -10°C to 55°C [14°F to 131°F], -40°C to 70°C [-40°F to 158°F]
IP Rating: IP67
Certification: CE, FCC

Winmate

R15L100-67C3-P(HB)15″ Full IP67 Rugged Monitor with MIL-STD-810G and 1000 Nit XGA Display

Datasheet

R15L100-67N1-NI 15″ NVIS Defence Monitor with NVIS Mode and MIL-STD-810G

Display: 15"[4:3, 1024 x 768, XGA]
Touch: Multi Touch PCAP, Optional Resistive Touch
Brightness: 1000
Viewing Angle: Wide Viewing Angle
Format: Standard
Display Inputs: 1x HDMI Input, 1x VGA Input
Power: 9-36V DC Input [M12]
Temp: -20°C to 60°C [-4°F to 140°F]
IP Rating: IP67
Certification: CE, FCC, MIL-STD-3009
Mounting Options: VESA Mount

Winmate

R15L100-67N1-NI15″ NVIS Defence Monitor with NVIS Mode and MIL-STD-810G

Datasheet

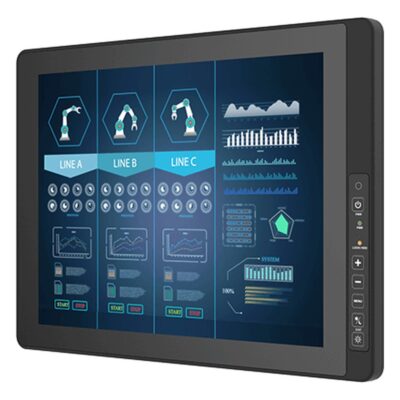

R15L100-VMC3-P(HB) 15″ Rugged Vehicle Mount PCAP Monitor with XGA Display and Optional 1000 Nit Panel

Display: 15"[4:3, 1024 x 768, XGA]
Touch: Multi Touch PCAP
Brightness: 1000, 300
Viewing Angle: Wide Viewing Angle
Format: Standard
Display Inputs: 1x Optional HDMI Input, 1x VGA Input
Power: 9-36V DC Input [Terminal Block], AC Power Supply Included
Temp: -10°C to 55°C [14°F to 131°F]
IP Rating: Front IP65
Certification: CE, FCC

Winmate

R15L100-VMC3-P(HB)15″ Rugged Vehicle Mount PCAP Monitor with XGA Display and Optional 1000 Nit Panel

Datasheet

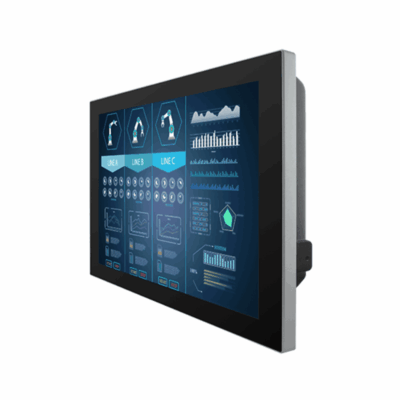

R15L600-GSC3(HB) 15″ Full IP65 PCAP Touch Monitor with M12 Connectors and 9 to 36 V DC

Display: 15"[4:3, 1024 x 768, XGA]
Touch: Multi Touch PCAP
Brightness: 300
Viewing Angle: Wide Viewing Angle
Format: Standard
Display Inputs: 1x VGA Input
Power: 9-36V DC Input [M12]
Temp: -15°C to 55°C [5°F to 131°F]
IP Rating: IP65
Certification: CE, FCC

Winmate

R15L600-GSC3(HB)15″ Full IP65 PCAP Touch Monitor with M12 Connectors and 9 to 36 V DC

Datasheet

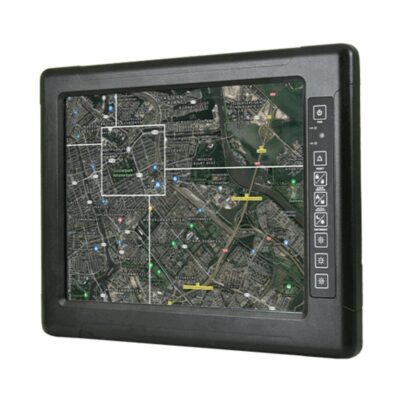

R15L100-MLA3HB 15″ Rugged Defence Monitor with 1000 Nit XGA Display and Defence-Grade Connectors

Display: 15"[4:3, 1024 x 768, XGA]
Touch: Optional 5-Wire Resistive Touch
Brightness: 1000
Viewing Angle: Wide Viewing Angle
Format: Standard
Display Inputs: 1x VGA Input
Power: 12V DC Input [MIL-STD], 9-36V DC Input [MIL-STD]
Temp: -20°C to 60°C [-4°F to 140°F]
Certification: CE, FCC

Winmate

R15L100-MLA3HB15″ Rugged Defence Monitor with 1000 Nit XGA Display and Defence-Grade Connectors

Datasheet

R15L600-MLA3FP 15″ Rack Mount PCAP Touch Defence Monitor with MIL-STD-810G and MIL-STD-461

Display: 15"[4:3, 1024 x 768, XGA]
Touch: Multi Touch PCAP
Brightness: 500
Viewing Angle: Wide Viewing Angle
Format: Standard
Display Inputs: 1x VGA Input, 1xDVI-D, 5 x BNC
Power: 9-36V DC Input [MIL-STD], Optional AC Power Supply
Temp: 0°C to 50°C [32°F to 122°F]
Certification: CE, FCC

Winmate

R15L600-MLA3FP15″ Rack Mount PCAP Touch Defence Monitor with MIL-STD-810G and MIL-STD-461

Datasheet

R15L100-67C3(HB) 15″ IP67 Waterproof Monitor with Bonded 5-Wire Resistive Touch and M12 Connectors

Display: 15"[4:3, 1024 x 768, XGA]
Touch: 5-Wire Resistive Touch
Brightness: 1000, 300
Viewing Angle: Wide Viewing Angle
Format: Standard
Display Inputs: 1x Optional HDMI Input, 1x VGA Input
Power: 9-36V DC Input [M12]
Temp: -10°C to 55°C [14°F to 131°F], -40°C to 70°C [-40°F to 158°F]
IP Rating: IP67
Certification: CE, FCC

Winmate

R15L100-67C3(HB)15″ IP67 Waterproof Monitor with Bonded 5-Wire Resistive Touch and M12 Connectors

Datasheet

R15L600-65EX 15″ Stainless Steel ATEX Zone 2 Touch Monitor with Class I Div 2 and IP65

Display: 15"[4:3, 1024 x 768, XGA]
Touch: Resistive Touch
Brightness: 1000, 550
Viewing Angle: Wide Viewing Angle
Format: Standard
Display Inputs: 1x VGA Input
Power: 9-36V DC Input [M12]
Temp: -20°C to 50°C [-4°F to 122°F]
IP Rating: IP65
Certification: ATEX Zone 2, CAN/CSA C22.2, CE, FCC, UL Class 1 Division 2

Winmate

R15L600-65EX15″ Stainless Steel ATEX Zone 2 Touch Monitor with Class I Div 2 and IP65

Datasheet

TPM-3615 15″ 5-Wire Resistive Stainless Steel Touch Monitor with IP66/IP69K Sealing and M12 Connectors

TPM-3615R-B6A115″ 5-Wire Resistive Stainless Steel Touch Monitor with IP66/IP69K Sealing and M12 Connectors

Display: 15"[4:3, 1024 x 768, XGA]
Brightness: 300
Viewing Angle: Wide Viewing Angle
Format: Standard
Display Inputs: 1x HDMI Input, 1x VGA Input
Power: 12-24V DC [M12]
Temp: -20°C to 60°C [-4°F to 140°F]
IP Rating: IP66, IP69K
Certification: CE, FCC

Touch: 5-Wire Resistive Touch

Arestech

TPM-361515" IP66/IP69K 316 Stainless Steel Touch Monitors with M12 Connectors

Available in 2 variations

Datasheet

Select TPM-3615 Variant
