Browse Our Rugged Touch Screen Monitors

Display

Expansion

Power

Environmental Conditions

Mechanical Properties

Displaying of 62 items

View All

W15L100-MLB3FP 15.6″ Military Rack Mount PCAP Touch Monitor with 3840 x 2160 UHD LCD

Display: 15.6"[16:9, 3840 x 2160, UHD]
Touch: Multi Touch PCAP
Brightness: 500
Viewing Angle: Wide Viewing Angle
Format: Widescreen
Display Inputs: 1x Display Port Input, 1x DVI Input, 1x VGA Input, 2 x Optional HDMI
Power: 9-36V DC Input [MIL-STD], Optional AC Power Supply
Temp: 0°C to 50°C [32°F to 122°F]
Certification: CE, FCC

Winmate

W15L100-MLB3FP15.6″ Military Rack Mount PCAP Touch Monitor with 3840 x 2160 UHD LCD

Datasheet

R17L100-MLA1FP 17″ Rack Mount PCAP Touch Defence Monitor with MIL-STD-810G and 461E Compliance

Display: 17"[5:4, 1280 x 1024, SXGA]
Touch: Multi Touch PCAP
Brightness: 350
Viewing Angle: Wide Viewing Angle
Format: Standard
Display Inputs: 1x VGA Input, 1xDVI-D, 5 x BNC
Power: 9-36V DC Input [MIL-STD], Optional AC Power Supply
Temp: 0°C to 50°C [32°F to 122°F]
Certification: CE, FCC

Winmate

R17L100-MLA1FP17″ Rack Mount PCAP Touch Defence Monitor with MIL-STD-810G and 461E Compliance

Datasheet

R17L100-RKA1ML 17″ Rack Mount Defence Monitor with AR Protection Glass and MIL-STD-810G Compliance

Display: 17"[5:4, 1280 x 1024, SXGA]
Touch: Optional 5-Wire Resistive Touch
Brightness: 350
Viewing Angle: Wide Viewing Angle
Format: Standard
Display Inputs: 1x VGA Input, 1xDVI-D, 5 x BNC
Power: 9-36V DC Input [MIL-STD], Optional AC Power Supply
Temp: -20°C to 60°C [-4°F to 140°F]
Certification: CE, FCC

Winmate

R17L100-RKA1ML17″ Rack Mount Defence Monitor with AR Protection Glass and MIL-STD-810G Compliance

Datasheet

TPM-3617 17″ 5-Wire Resistive Stainless Steel Touch Monitor with IP66 Sealing and M12 Connectors

TPM-3617R-B6A117″ 5-Wire Resistive Stainless Steel Touch Monitor with IP66 Sealing and M12 Connectors

Display: 17"[5:4, 1280 x 1024, SXGA]
Brightness: 350
Viewing Angle: Wide Viewing Angle
Format: Standard
Display Inputs: 1x HDMI Input, 1x VGA Input
Power: 12-24V DC [M12]
Temp: -20°C to 60°C [-4°F to 140°F]
IP Rating: IP66, IP69K
Certification: CE, FCC

Touch: 5-Wire Resistive Touch

Arestech

TPM-361717" IP66 316 Stainless Steel Touch Monitors with M12 Connectors and IP69K Option

Available in 2 variations

Datasheet

Select TPM-3617 Variant

P7180 18.5″ Open Frame Railway Monitor with 500 Nit Full HD LCD for Passenger Information

Brightness: 500
Viewing Angle: Wide Viewing Angle
Format: Widescreen
Display Inputs: 1x HDMI Input, 1x VGA Input, 1xDVI-D
Power: 24V-110V DC [M12]
Ignition Sensing: Supports Ignition Control
Temp: -25°C to 55°C [-13°F to 131°F]
Certification: CE, EN50155, FCC

Axiomtek

P718018.5″ Open Frame Railway Monitor with 500 Nit Full HD LCD for Passenger Information

Datasheet

R19L100-67N1-NI 19″ NVIS Defence Monitor with NVIS Mode and MIL-STD-810G

Display: 19"[5:4, 1280 x 1024, SXGA]
Touch: Multi Touch PCAP
Brightness: 1000
Viewing Angle: Wide Viewing Angle
Format: Standard
Display Inputs: 1x Optional HDMI Input, 1x VGA Input
Power: 9-36V DC Input [M12]
Temp: -20°C to 60°C [-4°F to 140°F]
IP Rating: IP67
Certification: CE, FCC, MIL-STD-3009

Winmate

R19L100-67N1-NI19″ NVIS Defence Monitor with NVIS Mode and MIL-STD-810G

Datasheet

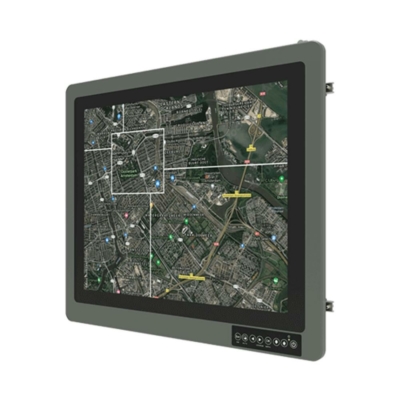

R19L100-MLA3 19″ G-WIN Rugged Defence Monitor with -40 to 70 °C Operation and Heater

Display: 19"[5:4, 1280 x 1024, SXGA]
Touch: Optional 5-Wire Resistive Touch
Brightness: 350
Viewing Angle: Wide Viewing Angle
Format: Standard
Display Inputs: 1x DVI Input, 1x VGA Input
Power: 9-36V DC Input [MIL-STD]
Temp: -40°C to 70°C [-40°F to 158°F]
Certification: CE, FCC

Winmate

R19L100-MLA319″ G-WIN Rugged Defence Monitor with -40 to 70 °C Operation and Heater

Datasheet

R19L100-MLA3FP 19″ Rack Mount PCAP Touch Defence Monitor with Front IP65 and MIL-STD-810G

Display: 19"[5:4, 1280 x 1024, SXGA]
Touch: Multi Touch PCAP
Brightness: 350
Viewing Angle: Wide Viewing Angle
Format: Standard
Display Inputs: 1x VGA Input, 1xDVI-D, 5 x BNC
Power: 9-36V DC Input [MIL-STD], Optional AC Power Supply
Temp: 0°C to 50°C [32°F to 122°F]
Certification: CE, FCC

Winmate

R19L100-MLA3FP19″ Rack Mount PCAP Touch Defence Monitor with Front IP65 and MIL-STD-810G

Datasheet

R19L100-RKA3ML 19″ Rack Mount Defence Monitor with AR Protection Glass and MIL-STD-810G Compliance

Display: 19"[5:4, 1280 x 1024, SXGA]
Touch: Optional 5-Wire Resistive Touch
Brightness: 350
Viewing Angle: Wide Viewing Angle
Format: Standard
Display Inputs: 1x VGA Input, 1xDVI-D, 5 x BNC
Power: 9-36V DC Input [MIL-STD], Optional AC Power Supply
Temp: -20°C to 60°C [-4°F to 140°F]
Certification: CE, FCC

Winmate

R19L100-RKA3ML19″ Rack Mount Defence Monitor with AR Protection Glass and MIL-STD-810G Compliance

Datasheet

R19L100-67FTP(HB) 19″ IP67 Waterproof PCAP Touch Monitor with 1280 x 1024 and Panel Mount

Display: 19"[5:4, 1280 x 1024, SXGA]
Touch: Projective Capacitive Touch
Brightness: 1000, 400
Viewing Angle: Wide Viewing Angle
Format: Standard
Display Inputs: 1x Optional HDMI Input, 1x VGA Input
Power: 9-36V DC Input [M12]
Temp: -10°C to 55°C [14°F to 131°F], -40°C to 70°C [-40°F to 158°F]
IP Rating: IP67
Certification: CE, FCC

Winmate

R19L100-67FTP(HB)19″ IP67 Waterproof PCAP Touch Monitor with 1280 x 1024 and Panel Mount

Datasheet

TPM-3619 19″ 5-Wire Resistive Stainless Steel Touch Monitor with IP66/IP69K Sealing and M12 Connectors

TPM-3619R-B6A119″ 5-Wire Resistive Stainless Steel Touch Monitor with IP66/IP69K Sealing and M12 Connectors

Display: 19"[5:4, 1280 x 1024, SXGA]
Brightness: 350
Viewing Angle: Wide Viewing Angle
Format: Standard
Display Inputs: 1x HDMI Input, 1x VGA Input
Power: 12-24V DC [M12]
Temp: -20°C to 60°C [-4°F to 140°F]
IP Rating: IP66, IP69K
Certification: CE, FCC

Touch: 5-Wire Resistive Touch

Arestech

TPM-361919" IP66/IP69K 316 Stainless Steel Touch Monitors with M12 Connectors

Available in 2 variations

Datasheet

Select TPM-3619 Variant

TPM-3619PH 19″ Wireless HDMI Stainless Steel Touch Monitor with PCAP and IP66 Sealing

Display: 19"[5:4, 1280 x 1024, SXGA]
Touch: Projective Capacitive Touch
Brightness: 350
Viewing Angle: Wide Viewing Angle
Format: Standard
Display Inputs: 1x VGA Input, 1x Wireless
Power: 12V DC [M12]
Ignition Sensing: Supports Ignition Control
Temp: -10°C to 50°C [14°F to 122°F]
Certification: CE, FCC

Arestech

TPM-3619PH19″ Wireless HDMI Stainless Steel Touch Monitor with PCAP and IP66 Sealing

Datasheet

R21L100-MLM1FP 21.3″ Rack Mount PCAP Touch Defence Monitor with 1000 Nit UXGA Panel

Display: 21.3"[4:3, 1600 x 1200, UXGA]
Touch: Multi Touch PCAP
Brightness: 1000
Viewing Angle: Wide Viewing Angle
Format: Standard
Display Inputs: 1x VGA Input, 1xDVI-D, 5 x BNC
Power: 9-36V DC Input [MIL-STD], Optional AC Power Supply
Temp: 0°C to 50°C [32°F to 122°F]
Certification: CE, FCC

Winmate

R21L100-MLM1FP21.3″ Rack Mount PCAP Touch Defence Monitor with 1000 Nit UXGA Panel

Datasheet

W22L100-67A3POD 21.5″ Full IP67 Rugged Monitor with MIL-STD-810G and 1500 Nit FHD Display

Display: 21.5"[16:9, 1920 x 1080, FHD]
Touch: Multi Touch PCAP
Brightness: 1500
Viewing Angle: Wide Viewing Angle
Format: Widescreen
Display Inputs: 1x HDMI Input, 1x VGA Input
Power: 9-36V DC Input [M12]
Temp: -10°C to 55°C [14°F to 131°F], -25°C to 60°C [-13°F to 140°F]
IP Rating: IP67
Certification: CE, FCC

Winmate

W22L100-67A3POD21.5″ Full IP67 Rugged Monitor with MIL-STD-810G and 1500 Nit FHD Display

Datasheet

W22L100-67B2-P(HB) 21.5″ Full IP67 Rugged Monitor with MIL-STD-810G and 1000 Nit FHD Display

Display: 21.5"[16:9, 1920 x 1080, FHD]
Touch: Multi Touch PCAP
Brightness: 1000
Viewing Angle: Wide Viewing Angle
Format: Widescreen
Display Inputs: 1x HDMI Input, 1x VGA Input
Power: 9-36V DC Input [M12], AC Power Supply Included
Temp: -10°C to 55°C [14°F to 131°F], -40°C to 55°C [-40°F to 131°F]
IP Rating: IP67
Certification: CE, FCC

Winmate

W22L100-67B2-P(HB)21.5″ Full IP67 Rugged Monitor with MIL-STD-810G and 1000 Nit FHD Display

Datasheet

Displaying of 62 items

View All

Beyond Rugged: Displays

All DisplaysEvery industrial display we supply, from touchscreen and waterproof monitors to marine, military and sunlight readable screens.

Intrinsically Safe DisplaysDisplays for hazardous areas where flammable gas or vapour may be present, built to ATEX and IECEx requirements.

// Display Specialists

Speak to a Display Specialist.

Tell us where the display will be installed, the approvals it must meet and the video inputs you need to connect. We will recommend the right size, brightness and mounting, then configure and test it before it ships.
