Winmate R15L600-GSC3(HB) 15″ Full IP65 PCAP Touch Monitor with M12 Connectors and 9 to 36 V DC
PCAP
CE
FCCR15L600-GSC3(HB) Overview

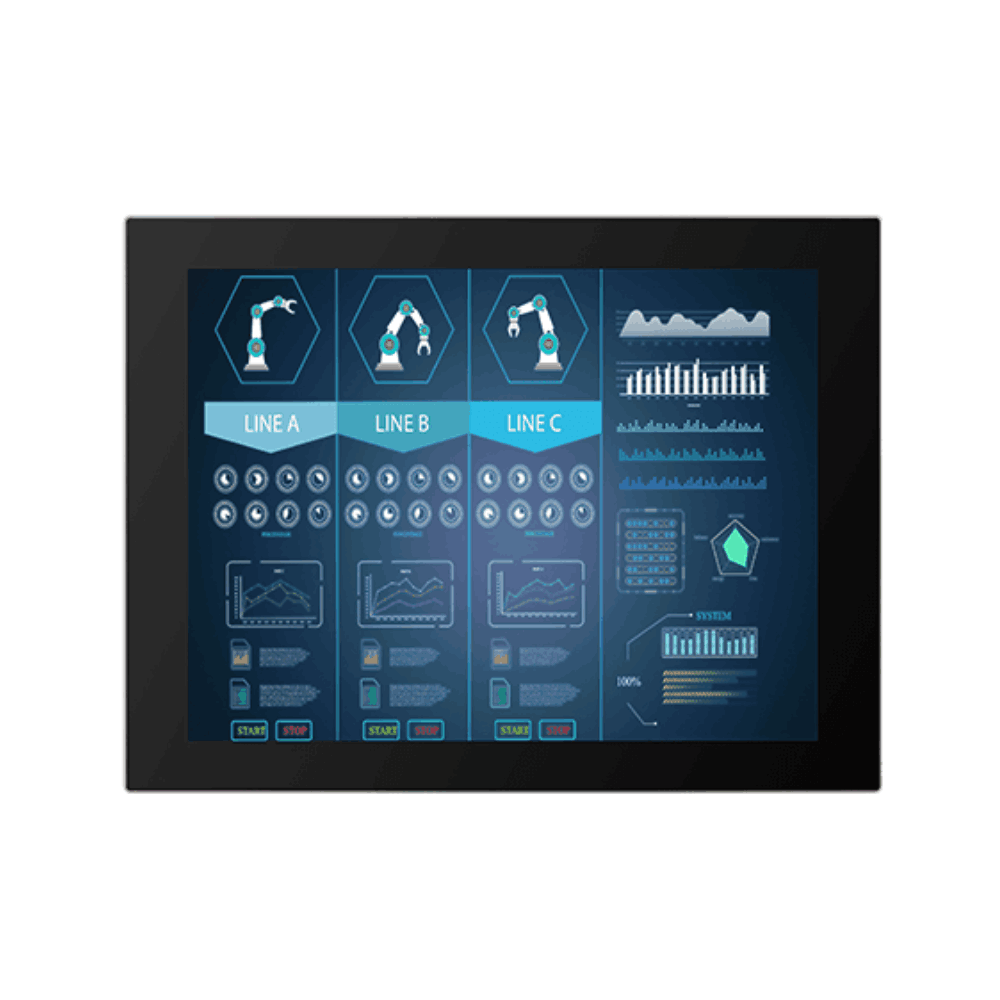

Screens in wet or dusty plant areas take spray from every angle, and a sealed front alone is not enough when the rear is exposed too. The R15L600-GSC3(HB) is Winmate’s 15 inch G-WIN GS monitor for those areas: a 1024 x 768 PCAP touch display in an aluminium housing with full IP65 dust and water protection and M12 waterproof connectors.

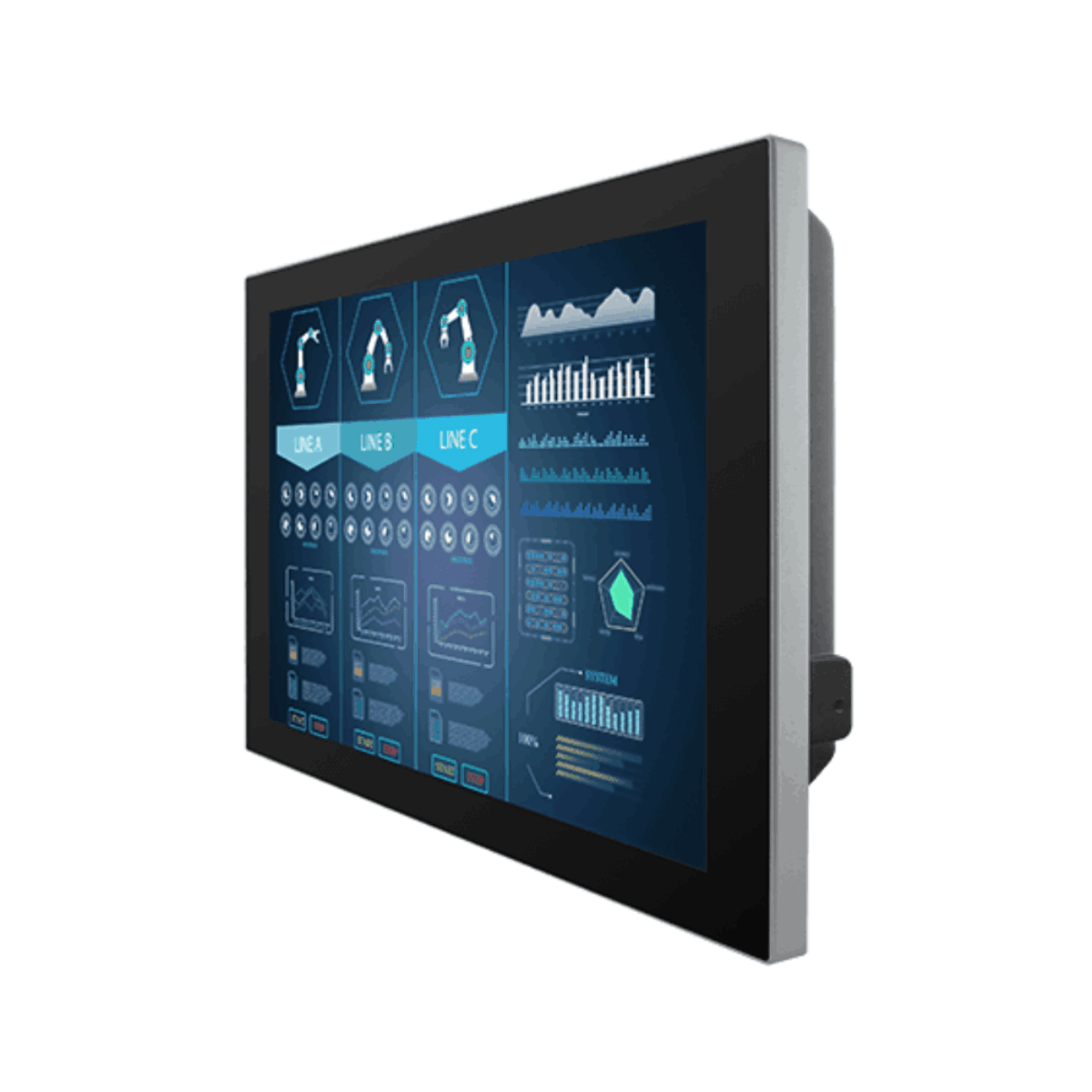

The panel delivers 300 nits as standard, with 1000 nits available as an option, a 2000:1 contrast ratio and 176° viewing angles in both planes on an edge-to-edge front. Projected capacitive multi-touch responds to a light tap and connects over USB, and protection glass and an anti-glare coating can be added as options. A five-key OSD panel on the rear handles settings.
The VGA input, USB touch connection and 9 to 36 V DC supply all run on M12 waterproof connectors, so cables stay sealed at the housing. For hygiene areas the R15L600-65A1FTP offers a 316 stainless steel housing with flat PCAP touch, and the R12L100-GSM2(HB) is a 12.1 inch rugged waterproof monitor in the Winmate range.
Power is 9 to 36 V DC on an M12 connector. The R15L600-GSC3(HB) is fanless, operates from -15 to 55 °C at 10 to 95% humidity and stores from -30 to 60 °C. It is rated for 40 g shock over 11 ms and 5 to 500 Hz vibration, compliant with MIL-STD-810F/G, and carries CE and FCC marks. It measures 363.4 x 277.9 x 45.2 mm and takes 100 x 100 mm VESA or panel mounting. Winmate names industrial visualisation, control rooms and equipment monitoring.
R15L600-GSC3(HB) Specifications
| Overview | |
|---|---|
| Brand & Model | Winmate R15L600-GSC3(HB) |
| Features | Fanless Industrial M12 Connectors Rugged Waterproof |
| Display | |
| Display | 15"[4:3, 1024 x 768, XGA] |
| Display Treatment | Anti-Glare Treatment Protective Glass |
| Touch Interface | USB |
| Touch Controller | Multi Touch PCAP |
| Brightness | 300 Nits |
| Viewing Angle | Wide Viewing Angle |
| 176° Horizontal, 176° Vertical | |
| Aspect Ratio | 4:3 |
| Format | Standard |
| Contrast | 2000:1 |
| Number of Display Inputs | 1x Display Ports |
| Video Inputs | 1x VGA Input |
| Power | |
| Power Input | 9-36V DC Input [M12] |
| Environmental Conditions | |
| Operating Temperature | -15°C to 55°C [5°F to 131°F] |
| Storage Temperature | -30°C to 60°C [-22°F to 140°F] |
| Humidity | 10% - 95% (Non-condensing) |
| Ingress Protection | IP65 IP65 [Dustproof, Protection against low pressure water jets spraying from any direction] |
| Certification | CE FCC |
| Mechanical Properties | |
| Dimensions | 363mm x 278mm x 45mm (14.29" x 10.94" x 1.77") |
- R15L600-GSC3(HB) Datasheet Download
Official Winmate UK Distributor
Things Embedded is an official Winmate UK distributor, supplying the R15L600-GSC3(HB) configured for UK plant and process projects. Within the Winmate range the R15L600-65A1FTP offers a 316 stainless steel housing with flat PCAP touch for hygiene areas, and the R12L100-GSM2(HB) is a 12.1 inch rugged waterproof monitor.
With full IP65 sealing the R15L600-GSC3(HB) sits among our IP65 displays, our rugged monitors and our capacitive touch monitors. Where spray reaches the back as well as the front of a 15 inch screen, this is the model to specify.
