Antaira LMP-0602-M-T-V2 6-Port 10/100 Managed Industrial Network Switch with 4x PoE+, 2x 100FX SC Multi-mode Fibre and Extended Temperature
Fanless
Extended Temp
CE
FCCLMP-0602-M-T-V2 Overview

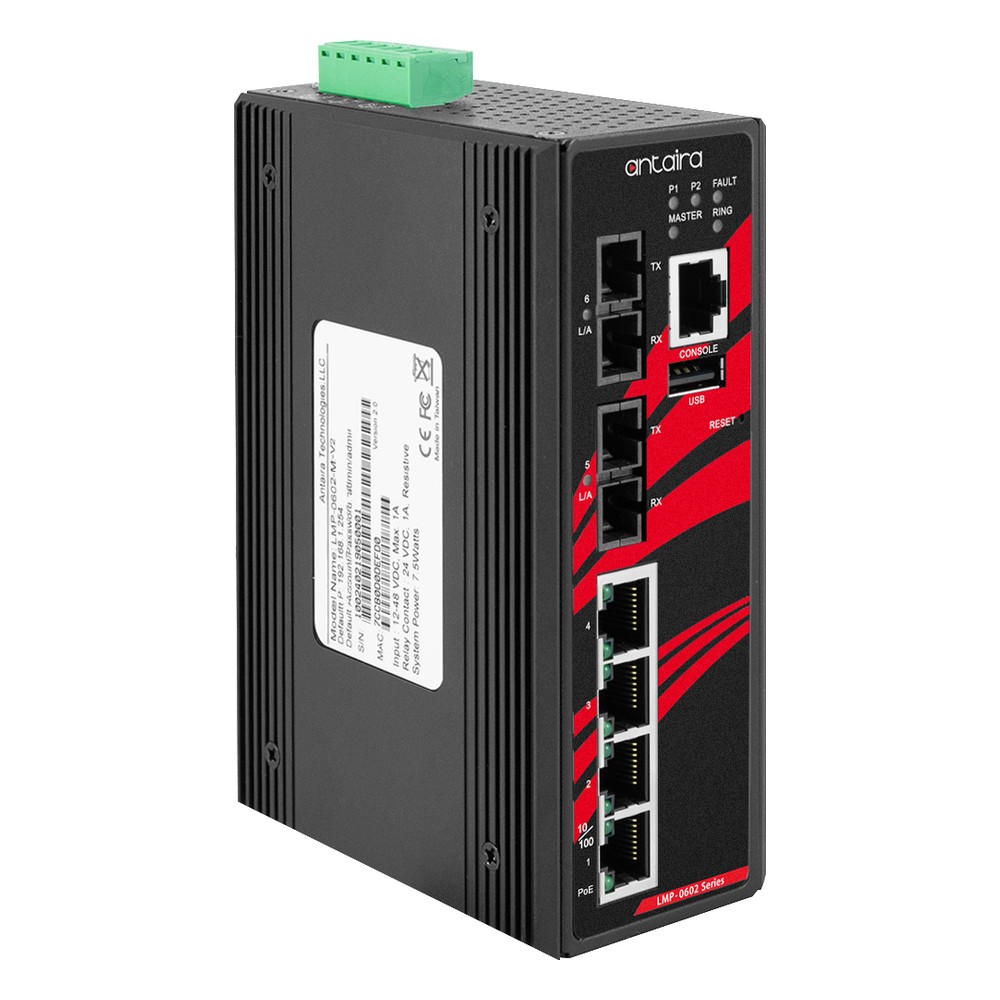

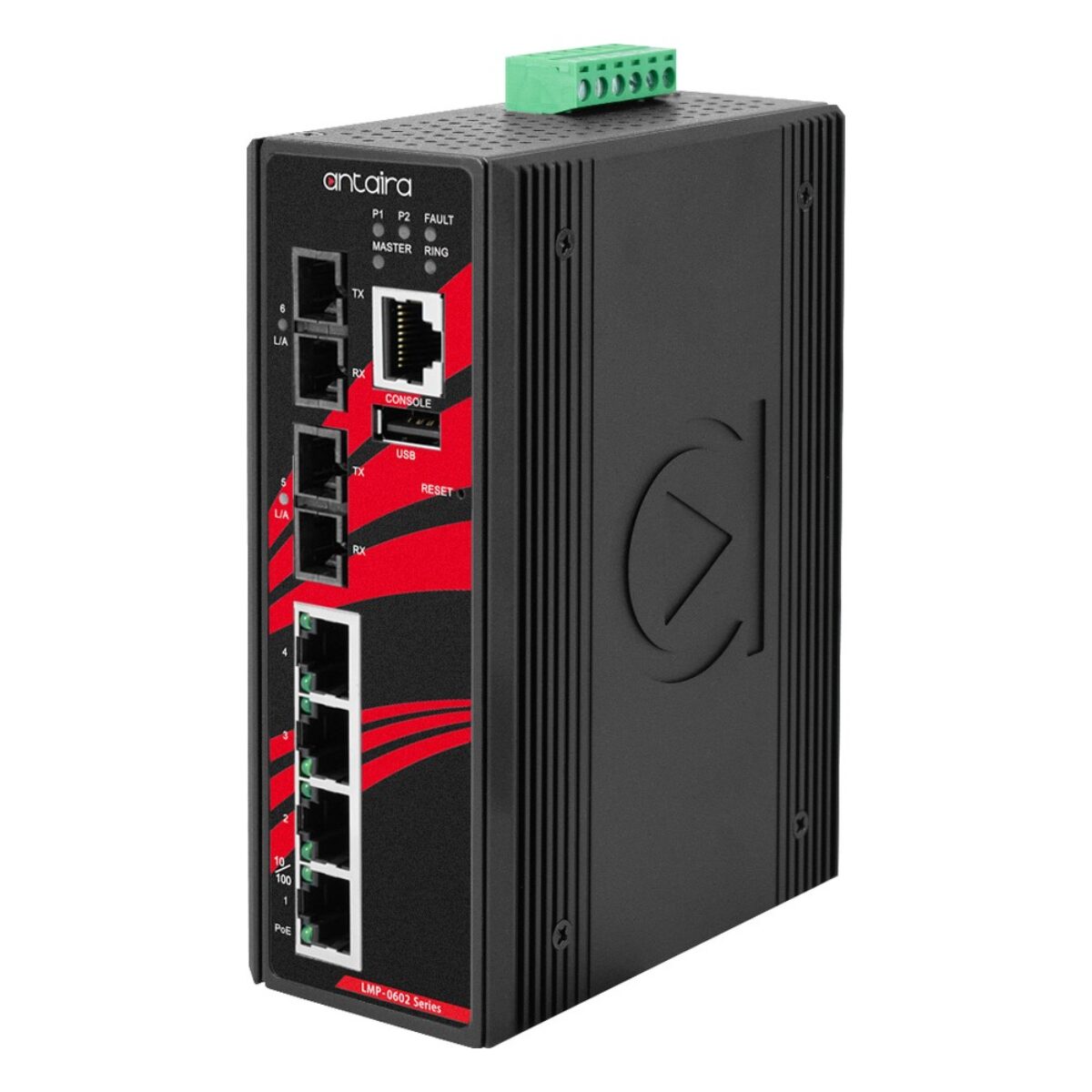

Fibre is often the only practical link between buildings or across a large site, where copper runs out at 100 m and picks up electrical noise. The LMP-0602-M-T-V2 is the SC connector, extended temperature build in the Antaira LMP-0602-V2 series: a Fast Ethernet managed industrial switch with four PoE+ ports and two 100Base-FX multi-mode fibre ports, so each node can sit in a fibre ring and still power local devices.

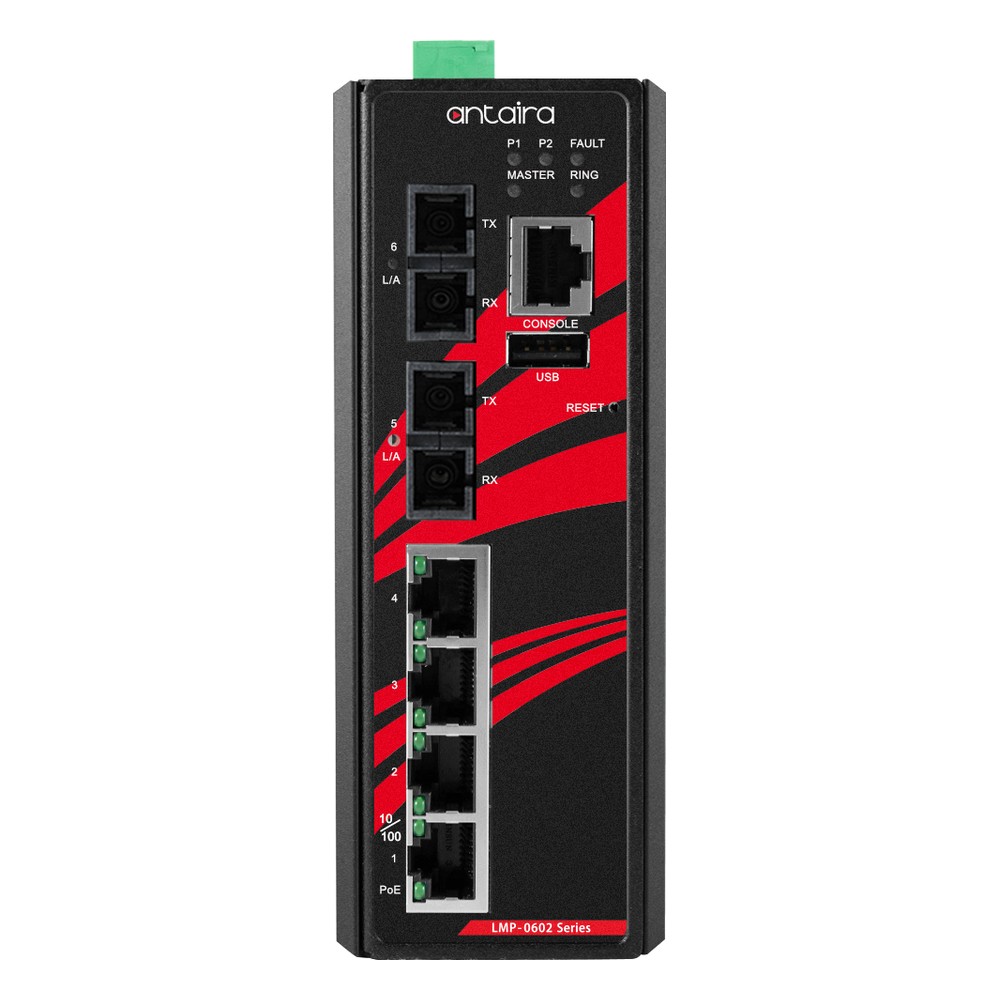

It has four 10/100Base-TX RJ45 ports with IEEE 802.3af/at PoE+ at up to 30 W each from a 120 W budget and two 100Base-FX multi-mode SC fibre ports, up to 2 km, on a 1.2 Gbps store-and-forward fabric with an 8K MAC table. Management is Layer 2+, with IEEE 802.1Q VLANs, QoS, IGMP v1/v2/v3 multicast filtering, LACP and SNMP v1/v2c/v3, plus static routes and DHCP Option 82. ITU-T G.8032 ERPS restores a broken ring in under 50 ms, STP, RSTP and MSTP are supported, and Modbus TCP lets a SCADA system monitor the switch. Set-up is by web console, Telnet or CLI, with HTTPS, SSH and IEEE 802.1X for secure access.
Power comes in on 48 V to 55 V DC redundant inputs through a removable 6-pin terminal block, so a second supply can take over if the first fails. Reverse polarity, overload current, EFT and ESD protection are built in, and a 24 V DC, 1 A relay contact can flag a power loss or fault to a PLC or alarm panel.

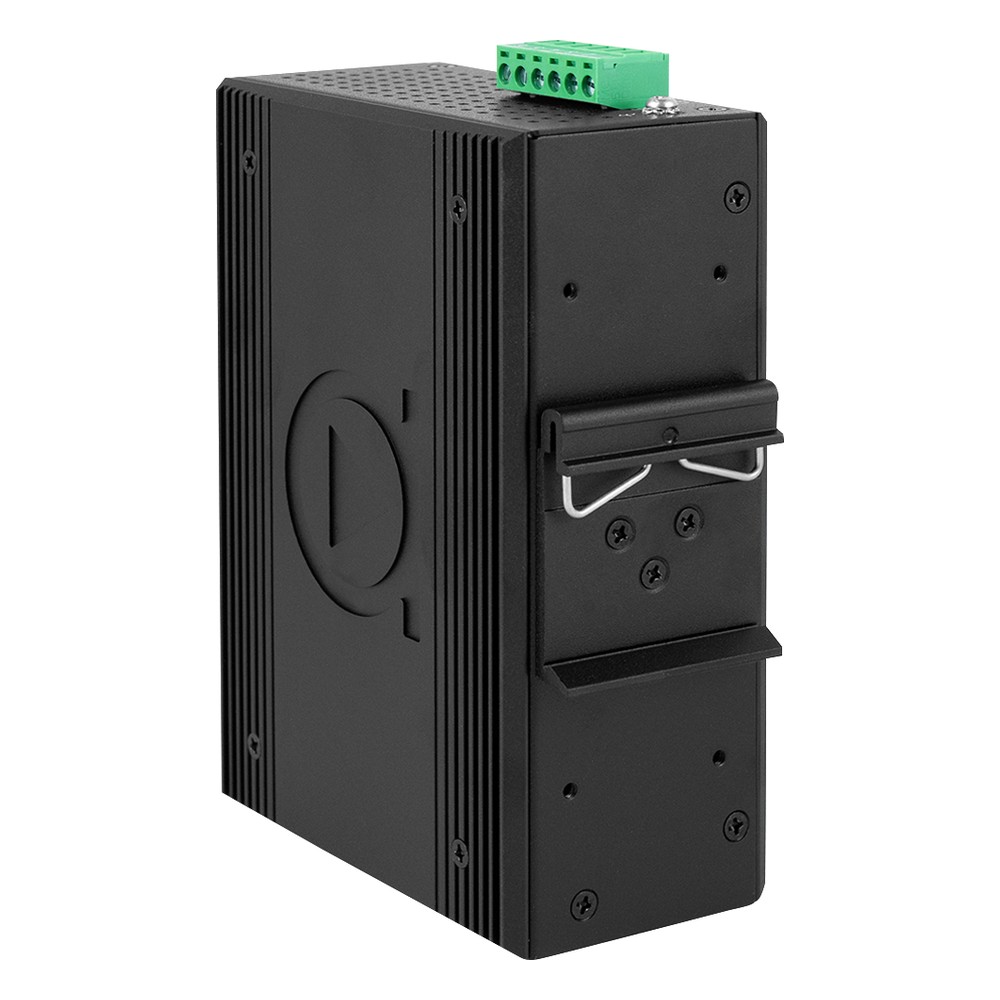

The LMP-0602-M-T-V2 is rated -40 °C to 75 °C, for unheated outdoor enclosures on ITS, utility and surveillance sites. It has an IP30 metal housing for DIN-rail or wall mounting and is designed to IEC 60068-2-27 shock and IEC 60068-2-6 vibration. Antaira lists FCC, CE and UL 61010-1 certifications with RoHS compliance, and the switch carries Antaira’s 5-year warranty. The LMP-0602-M-V2 is the same switch rated -10 °C to 70 °C, the LMP-0602-ST-M-T-V2 uses ST connectors at the same extended range, and the LMP-0602-M-24-T-V2 accepts 12 V to 55 V DC. We supply the LMP-0602-M-T-V2 and can pre-configure IP addressing, VLANs and ring settings.
LMP-0602-M-T-V2 Specifications
| Overview | |
|---|---|
| Brand & Model | Antaira LMP-0602-M-T-V2 |
| Features | Fanless Industrial Managed Ethernet Switch |
| Networking | |
| Switching Layer | Layer 2+ |
| Switch Type | Managed |
| Ethernet Ports | 4x 10/100 BASE-TX [PoE+] [RJ45] |
| Number of Ethernet Ports | 4x Ethernet Ports |
| PoE Standard | PoE+ 30W [802.3at] |
| PoE Power Budget | 120W |
| Number of Fiber Ports | 2x 100FX [SC] [Multi-mode] |
| Networking Standards | IEEE 802.1AB LLDP IEEE 802.1D Spanning Tree Protocol IEEE 802.1p Class of Service IEEE 802.1Q VLAN IEEE 802.1s Multiple Spanning Tree Protocol IEEE 802.1w Rapid Spanning Tree Protocol IEEE 802.1X Port-Based Network Access Control IEEE 802.3 10BaseTx Ethernet IEEE 802.3ad Link Aggregation IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet Plus IEEE 802.3az Energy Efficient Ethernet IEEE 802.3u 100BaseTx Fast Ethernet IEEE 802.3x Back Pressure Flow Control ITU-T G.8032 ERPS |
| Power | |
| Power Input | 48-55V DC, Terminal Block |
| Environmental Conditions | |
| Operating Temperature | -40°C to 75°C [-40°F to 167°F] |
| Storage Temperature | -40°C to 85°C [-40°F to 185°F] |
| Humidity | 5% - 95% (Non-condensing) |
| Ingress Protection | IP30 |
| Shock | IEC 60068-2-27 |
| Vibration | IEC 60068-2-6 |
| Certification | CE FCC RoHS UL 61010-1 |
| Mechanical Properties | |
| Weight | 0.9 Kg (1.9 Lbs) |
| Dimensions | 54mm x 142mm x 99mm (2.13" x 5.59" x 3.9") |
| Mounting Options | DIN Mount Wall Mount |
Official Antaira UK Distributor
Things Embedded is an official Antaira UK distributor, and we supply the LMP-0602-M-T-V2 with a matching DIN-rail power supply, with IP addressing, VLANs and ring settings pre-configured on request. Within the Antaira range, the LMP-0602-M-V2 standard temperature build rated -10 °C to 70 °C.
Across our range, the LMP-0602-M-T-V2 sits with our industrial PoE switches, managed industrial switches and industrial Ethernet switches.
