Antaira LMX-0602-S3-T-V2 6-Port 10/100 Managed Industrial Network Switch with 2x 100FX SC Single-mode Fibre and Extended Temperature
Fanless
Extended Temp
CE
FCCLMX-0602-S3-T-V2 Overview
Long single-mode fibre runs between unheated outstations on pipelines, roads and water networks need a switch that keeps working through frost and summer heat. The LMX-0602-S3-T-V2 is the extended temperature, single-mode build in the Antaira LMX-0602-V2 series: a six-port managed switch with two 100Base-FX fibre ports, rated -40 °C to 75 °C.

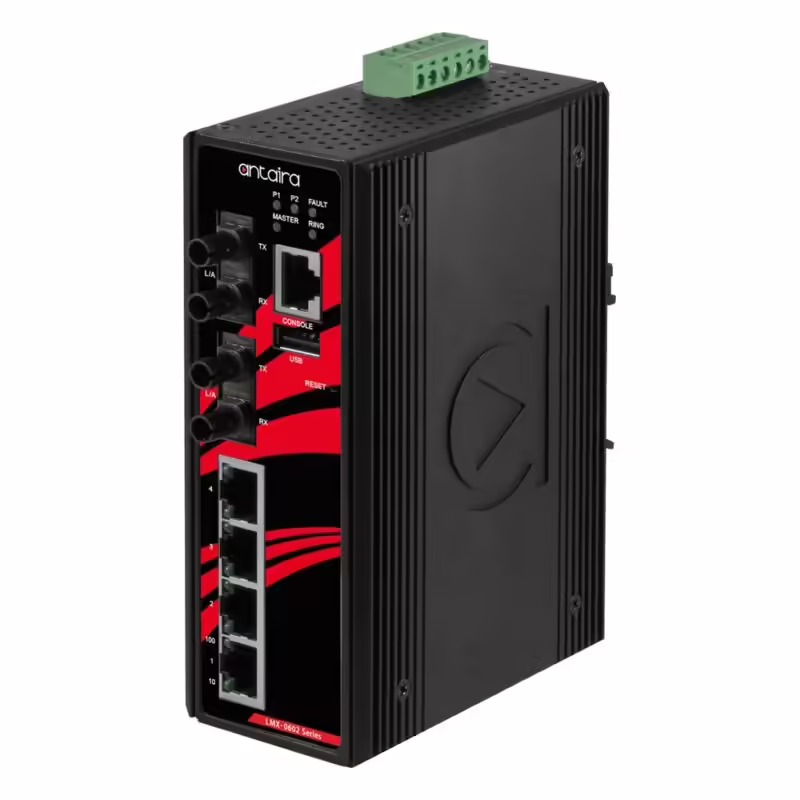

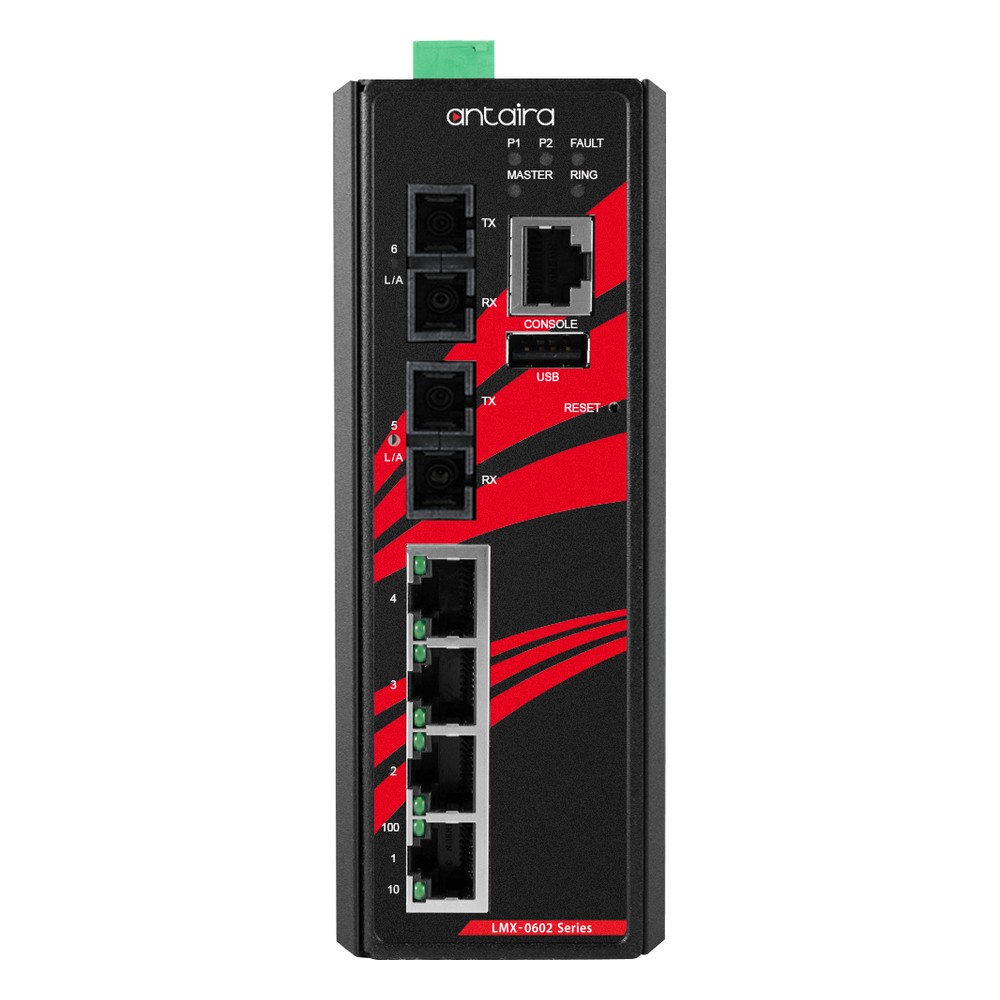

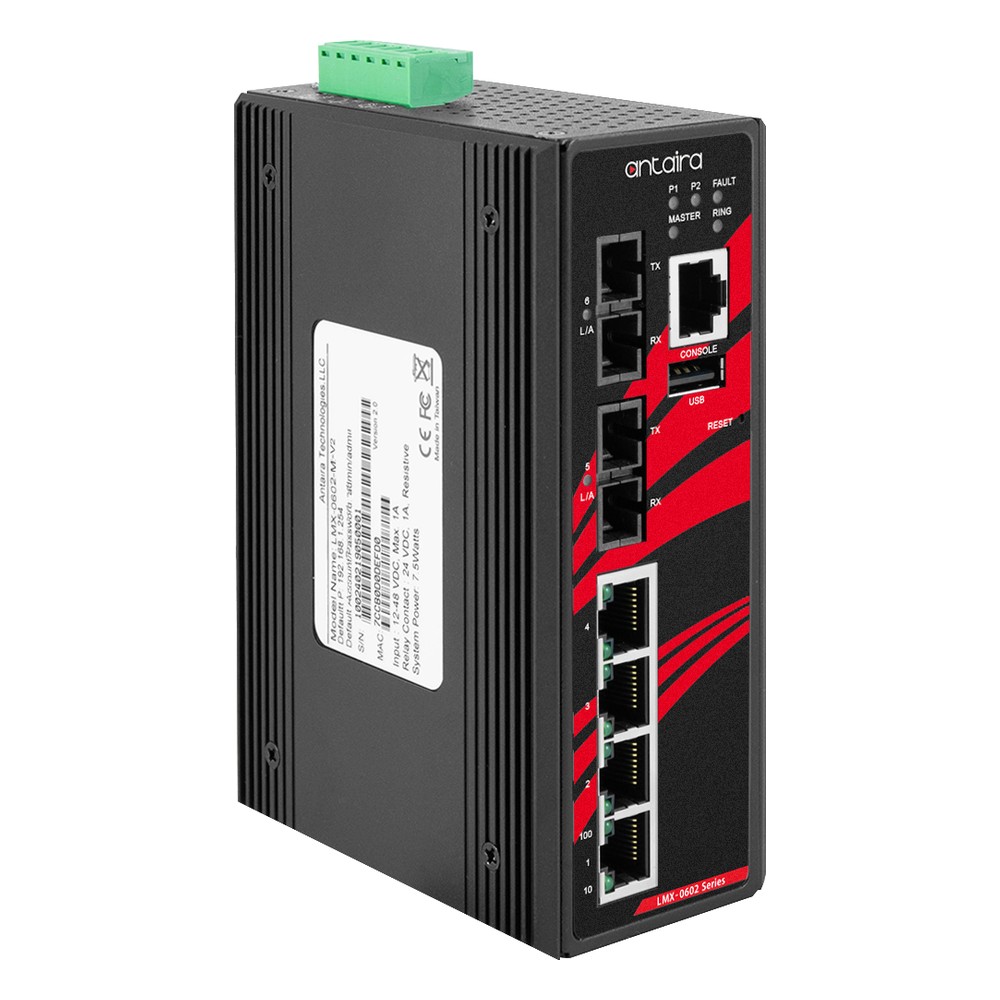

It has four 10/100Base-TX RJ45 ports with auto MDI/MDI-X and two 100Base-FX fibre ports, single-mode SC, up to 30 km, with fixed optics so no transceivers are needed. Switching is store-and-forward on a 1.2 Gbps fabric with an 8K MAC address table and 9.6 KB jumbo frames. The Layer 2+ firmware covers IEEE 802.1Q VLANs, QoS with eight priority queues, IGMP snooping for up to 1024 groups, LACP, IPv4/IPv6, DHCP Option 66/67/82, Modbus TCP and 802.1X with HTTPS and SSH, and adds static routes between VLANs. The two fibre ports suit an ITU-T G.8032 ERPS ring, which recovers in under 50 ms, with STP, RSTP and MSTP also supported.
Power arrives on 12 to 48 V DC redundant inputs on a removable 6-contact terminal block, and the switch draws 7.5 W. A power lost warning drives a relay contact rated 24 V DC, 1 A, overload current and reverse polarity protection are built in, and Antaira gives the switch high EFT and ESD protection with EMS testing to IEC 61000-4-2, 3, 4, 5, 6 and 8. It is managed through the web console, Telnet, SSH or CLI, with an RS232 console port on RJ45.

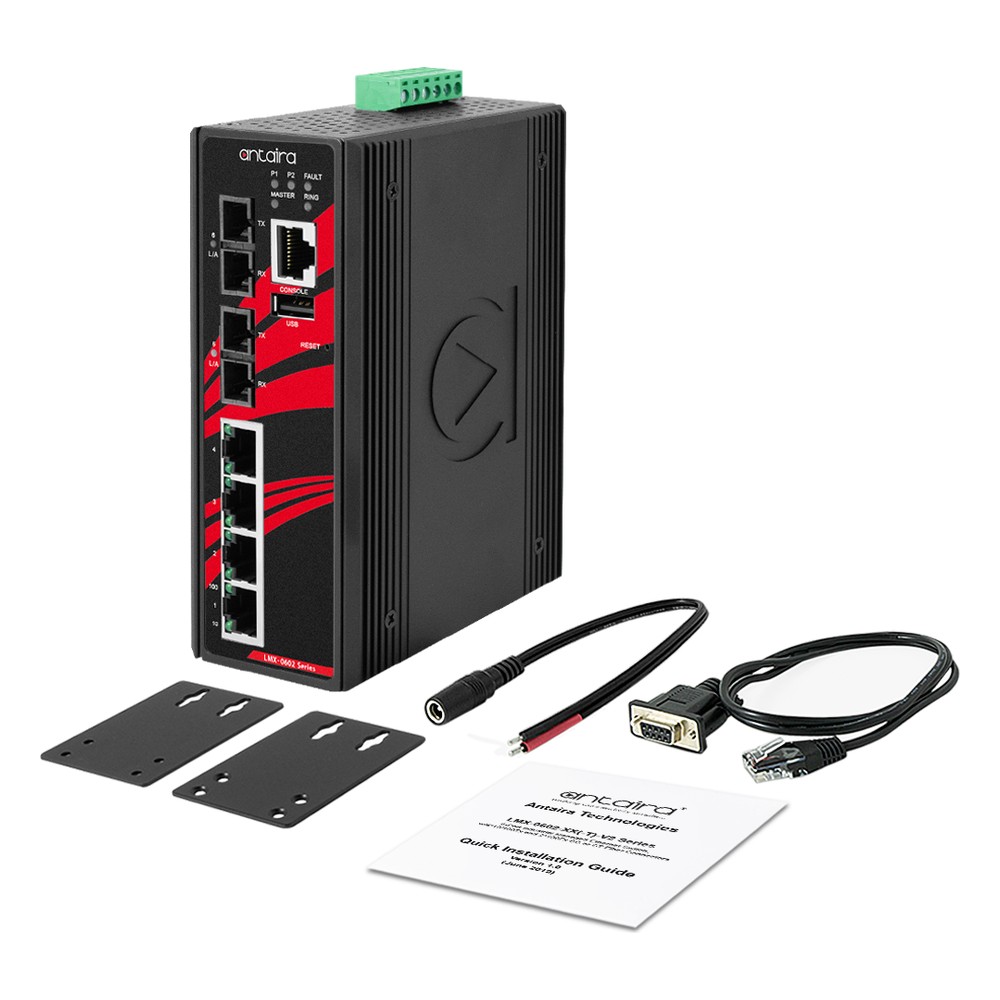

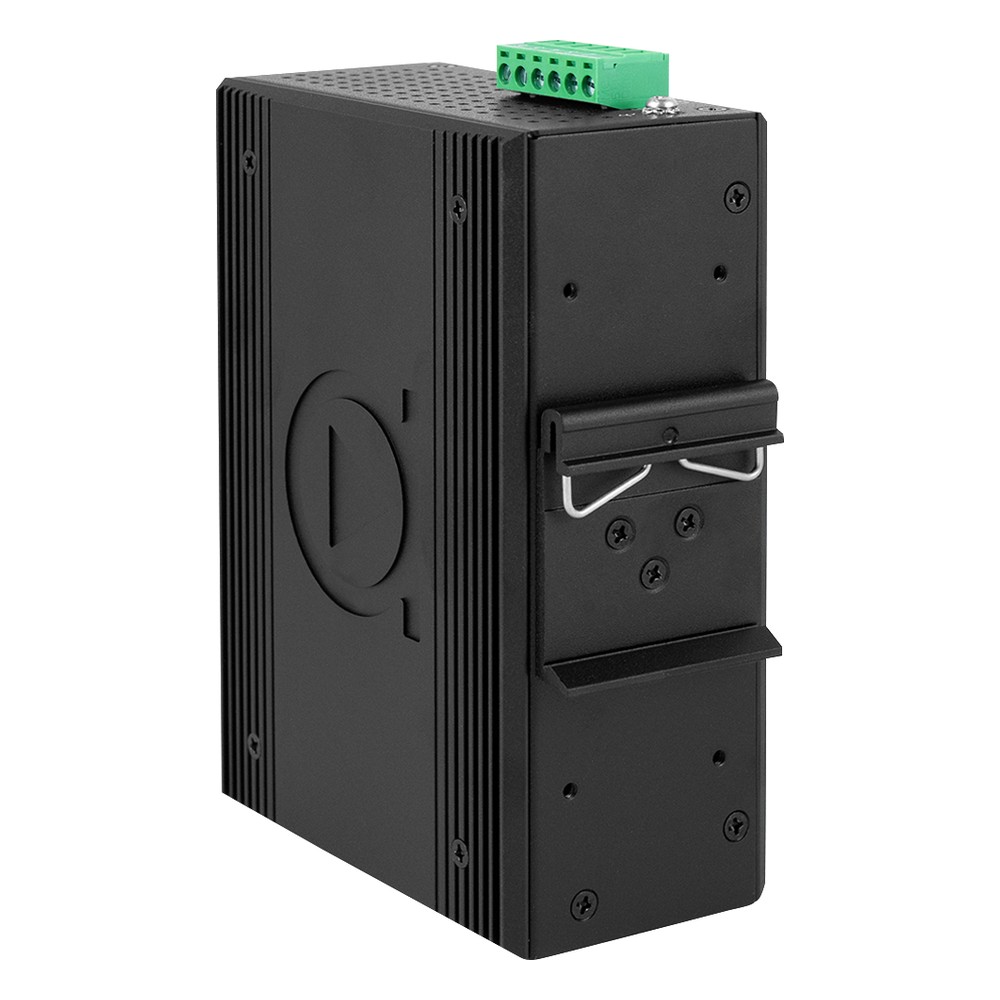

The LMX-0602-S3-T-V2 sits in an IP30 metal case for DIN rail or wall mounting. It is UL 61010-1 certified, carries FCC and CE marks, is RoHS compliant and comes with Antaira’s 5-year warranty. The LMX-0602-S3-V2 is the same switch rated -10 °C to 70 °C, and the LMX-0602-M-T-V2 uses multi-mode fibre for runs up to 2 km. We supply and specify the LMX-0602-V2 range, with IP addressing, VLANs and ring settings pre-configured before it ships if you would like.
LMX-0602-S3-T-V2 Specifications
| Overview | |
|---|---|
| Brand & Model | Antaira LMX-0602-S3-T-V2 |
| Features | Fanless Industrial Managed Ethernet Switch |
| Networking | |
| Switching Layer | Layer 2+ |
| Switch Type | Managed |
| Ethernet Ports | 4x 10/100 BASE-TX [RJ45] |
| Number of Ethernet Ports | 4x Ethernet Ports |
| Number of Fiber Ports | 2x 100FX [SC] [Single-mode] |
| Networking Standards | IEEE 802.1AB LLDP IEEE 802.1D Spanning Tree Protocol IEEE 802.1p Class of Service IEEE 802.1Q VLAN IEEE 802.1s Multiple Spanning Tree Protocol IEEE 802.1w Rapid Spanning Tree Protocol IEEE 802.1X Port-Based Network Access Control IEEE 802.3 10BaseTx Ethernet IEEE 802.3ad Link Aggregation IEEE 802.3az Energy Efficient Ethernet IEEE 802.3u 100BaseTx Fast Ethernet IEEE 802.3x Back Pressure Flow Control ITU-T G.8032 ERPS |
| Power | |
| Power Input | 12-48V DC, Terminal Block |
| Environmental Conditions | |
| Operating Temperature | -40°C to 75°C [-40°F to 167°F] |
| Storage Temperature | -40°C to 85°C [-40°F to 185°F] |
| Humidity | 5% - 95% (Non-condensing) |
| Ingress Protection | IP30 |
| Shock | IEC 60068-2-27 |
| Vibration | IEC 60068-2-6 |
| Certification | CE FCC RoHS UL 61010-1 |
| Mechanical Properties | |
| Weight | 0.9 Kg (1.9 Lbs) |
| Dimensions | 54mm x 142mm x 99mm (2.13" x 5.59" x 3.9") |
| Mounting Options | DIN Mount Wall Mount |
Official Antaira UK Distributor
Things Embedded is an official Antaira UK distributor, and we supply the LMX-0602-S3-T-V2 with a matching DIN-rail power supply, with IP addressing, VLANs and ring settings pre-configured on request. Within the Antaira range, the LMX-0602-M-T-V2 multi-mode SC fibre for runs up to 2 km.
