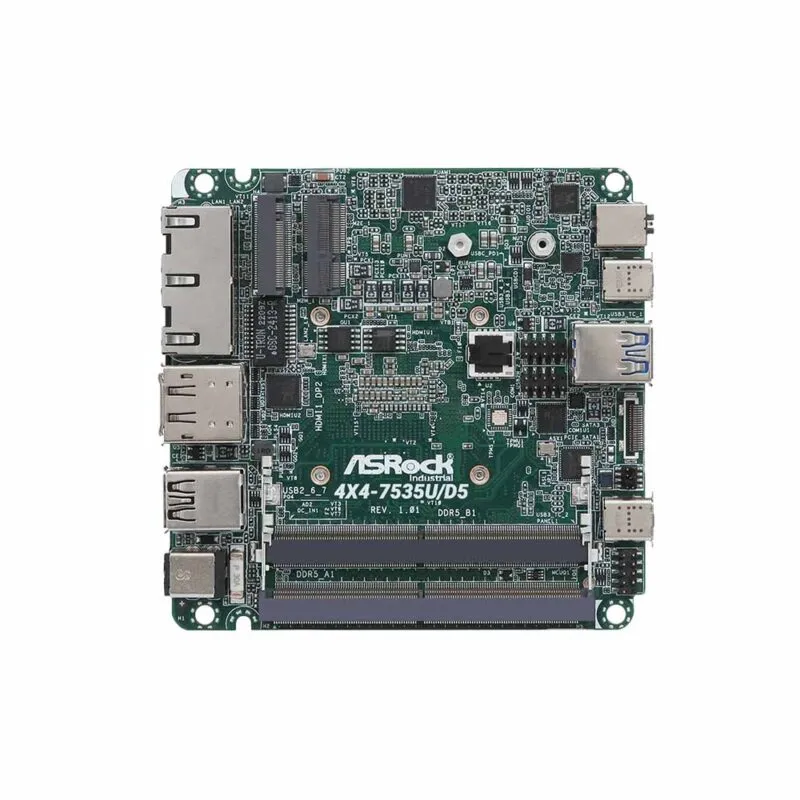

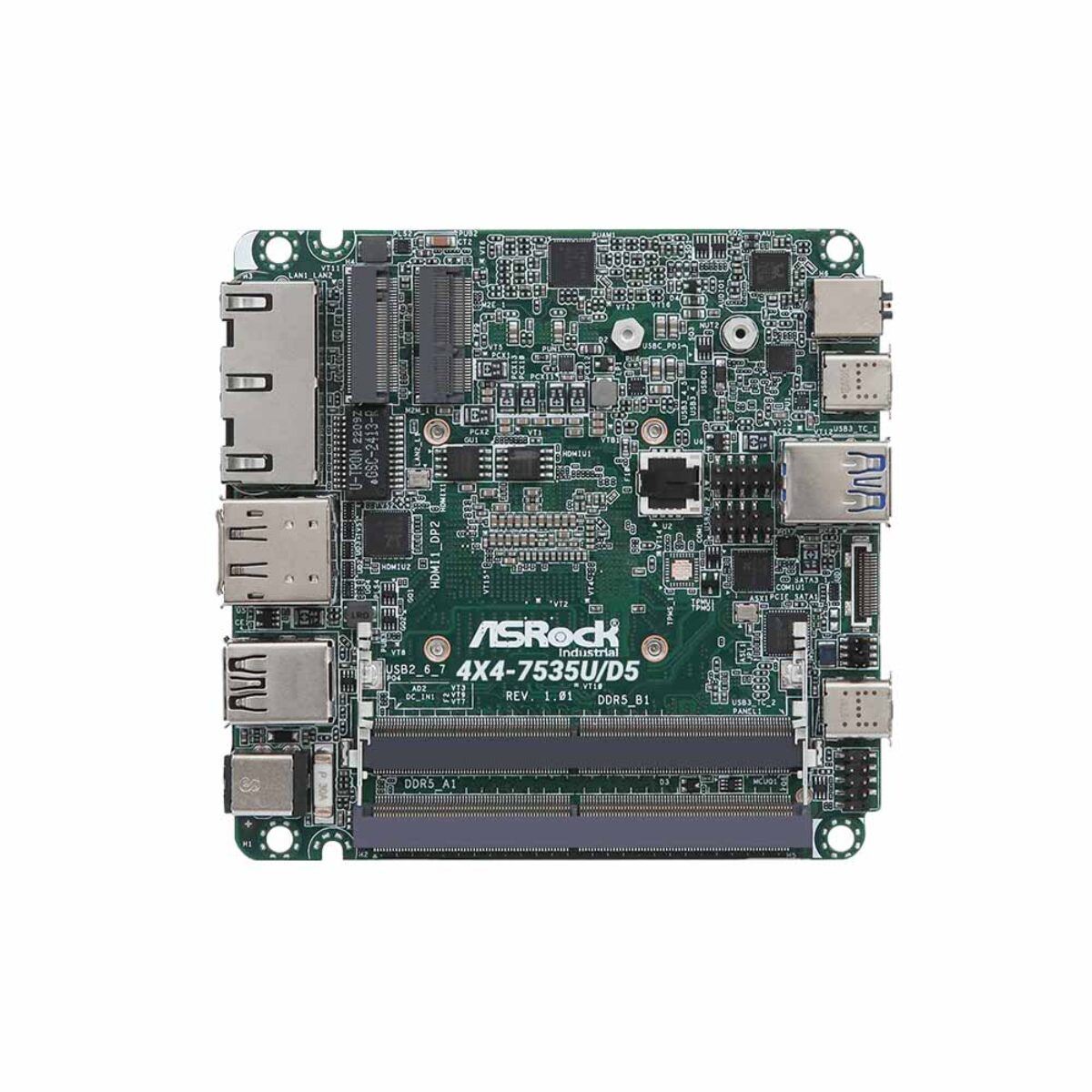

ASRock Industrial 4X4-7535U/D5 AMD 7000U 4×4 Motherboard with 7535U CPU
Linux
Windows
Quad Display Support
2.5GbE
Type C
USB3
USB4
2x M.2
Wi-Fi
NVMe SSD
CE
FCC4X4-7535U/D5 Specifications
| Overview | |
|---|---|
| Brand & Model | ASRock Industrial 4X4-7535U/D5 |
| Features | Compact Embedded Industrial |
| Performance | |
| Processor Series | AMD Ryzen 5 |
| Processor Models | AMD Ryzen 5 7535U: 2.9~4.55GHz, 6 Cores, 12 Threads, 16MB Cache, 15-30W |
| Performance Cores | 6 Cores |
| Memory | 2x DDR5 4800MHz SO-DIMM Slot, 64GB |
| BIOS | AMD SPI |
| Secure Crypto Processor | TPM 2.0 (Trusted Platform Module) |
| Operating System | Linux Windows 11 |
| Graphics | |
| Integrated GPU | AMD Radeon Series |
| Display Standards | Display Port 1.4a DP++ HDMI 2.1 |
| Multi Display Support | Quad Display Support |
| Display Outputs | 1x Display Port 1x HDMI 2x USB Type C |
| Audio | |
| Codec | Realtek ALC233, HD Audio |
| Interface | Line-Out Mic-In |

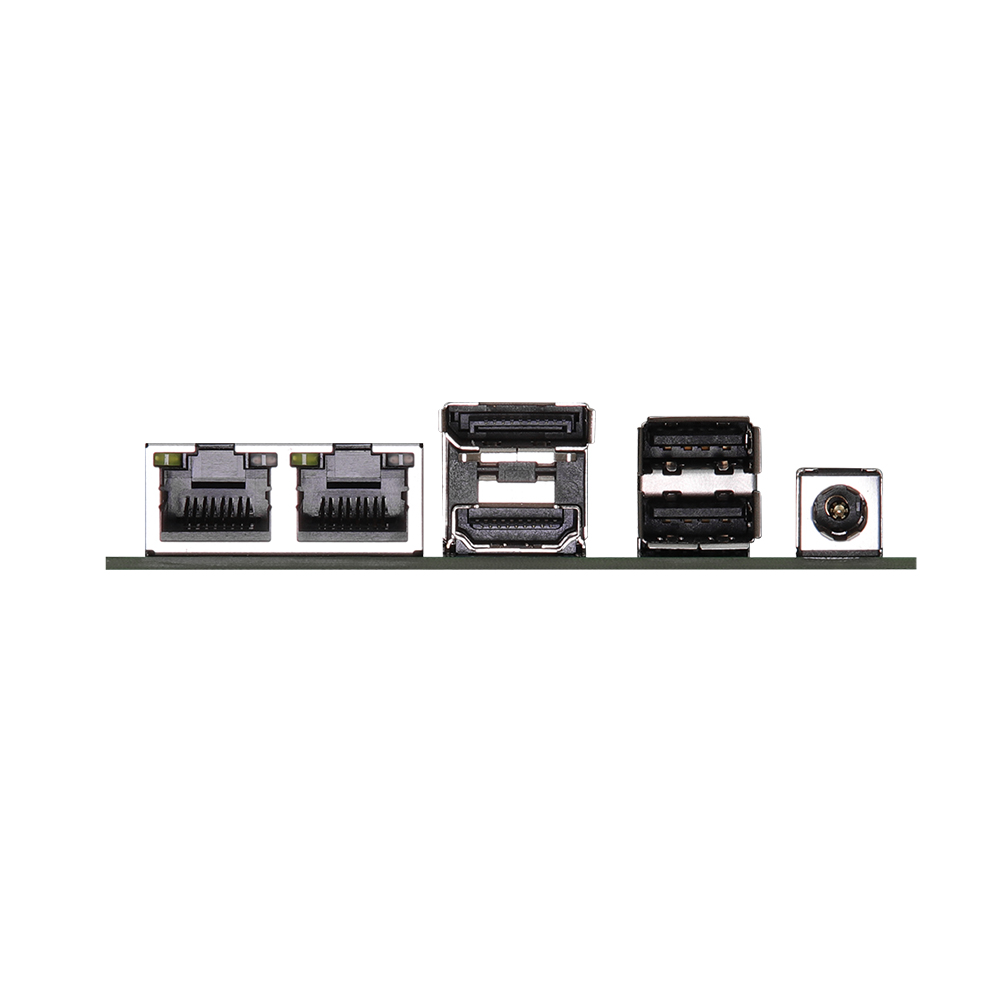

| I/O | |
| Ethernet | 2x Ethernet Ports |
| 1x 2.5 GbE LAN [RJ45] 1x GbE LAN [RJ45] | |
| LAN Controllers | Realtek RTL8111EPV Realtek RTL8125BG |

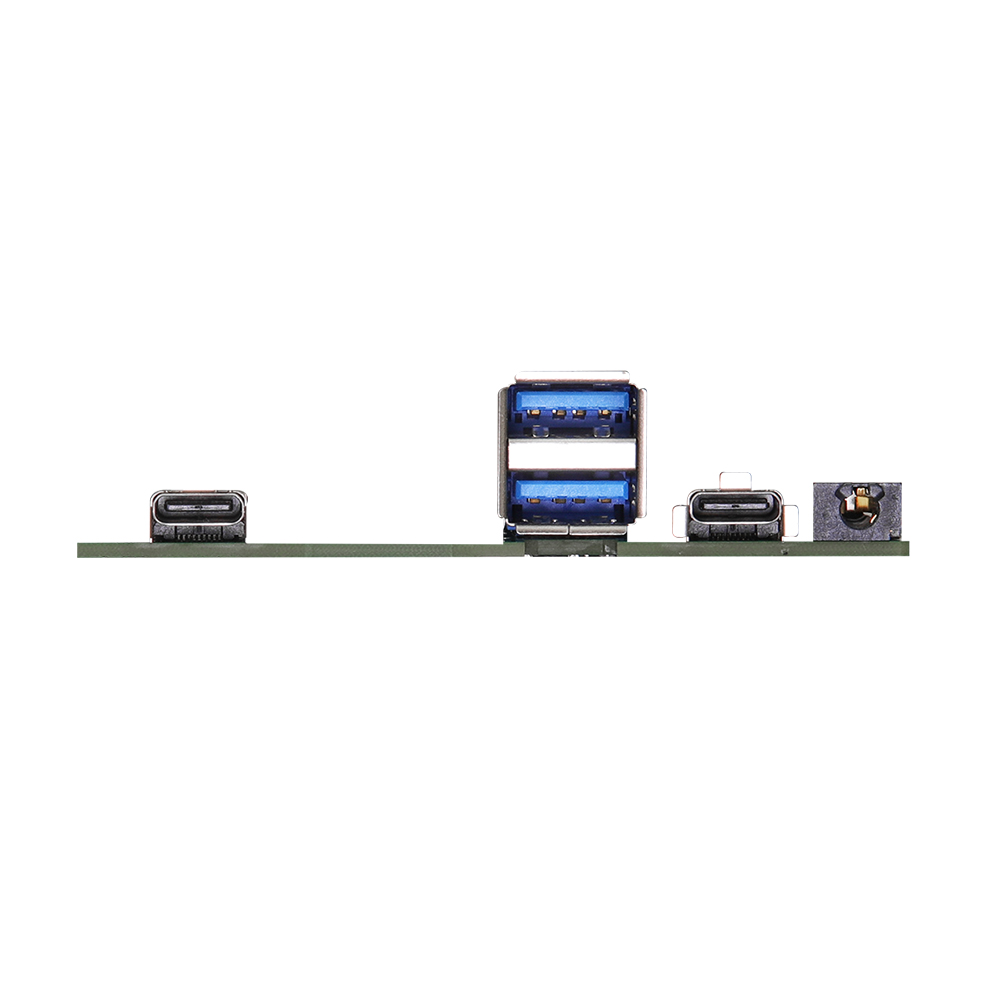

| USB | 5x USB Ports |
| 1x USB 3.2 Gen 2 [Type A] 2x USB 2.0 [Type A] 2x USB 4 [Type C] | |
| Expansion | |
| M.2 | 2x M.2 Expansion Slots |
| 1x M.2 E-Key [PCIe x1/USB 2.0] [2230] 1x M.2 M-Key [PCIe x4] [2242/2260/2280] | |
| Wireless Connectivity | Optional WiFi/Bluetooth |
| Storage | |
| Storage | 1x M.2 SSD 1x SATA Port |
| NVMe | NVMe SSD Support |
| Power | |
| Power Input | 12-19V DC [Barrel Connector] Optional AC Power Supply |
| Power Support Modes | AT: PWR on Input ATX: Press Button to Power |
| Environmental Conditions | |
| Operating Temperature | 0°C to 60°C [32°F to 140°F] |
| Storage Temperature | -40°C to 85°C [-40°F to 185°F] |
| Humidity | 5% - 90% (Non-condensing) |
| Certification | CE FCC |
| Mechanical Properties | |
| Weight | 1 Kg (2.2 Lbs) |
| Dimensions | 104mm x 36mm x 102mm (4.09" x 1.42" x 4.02") |
