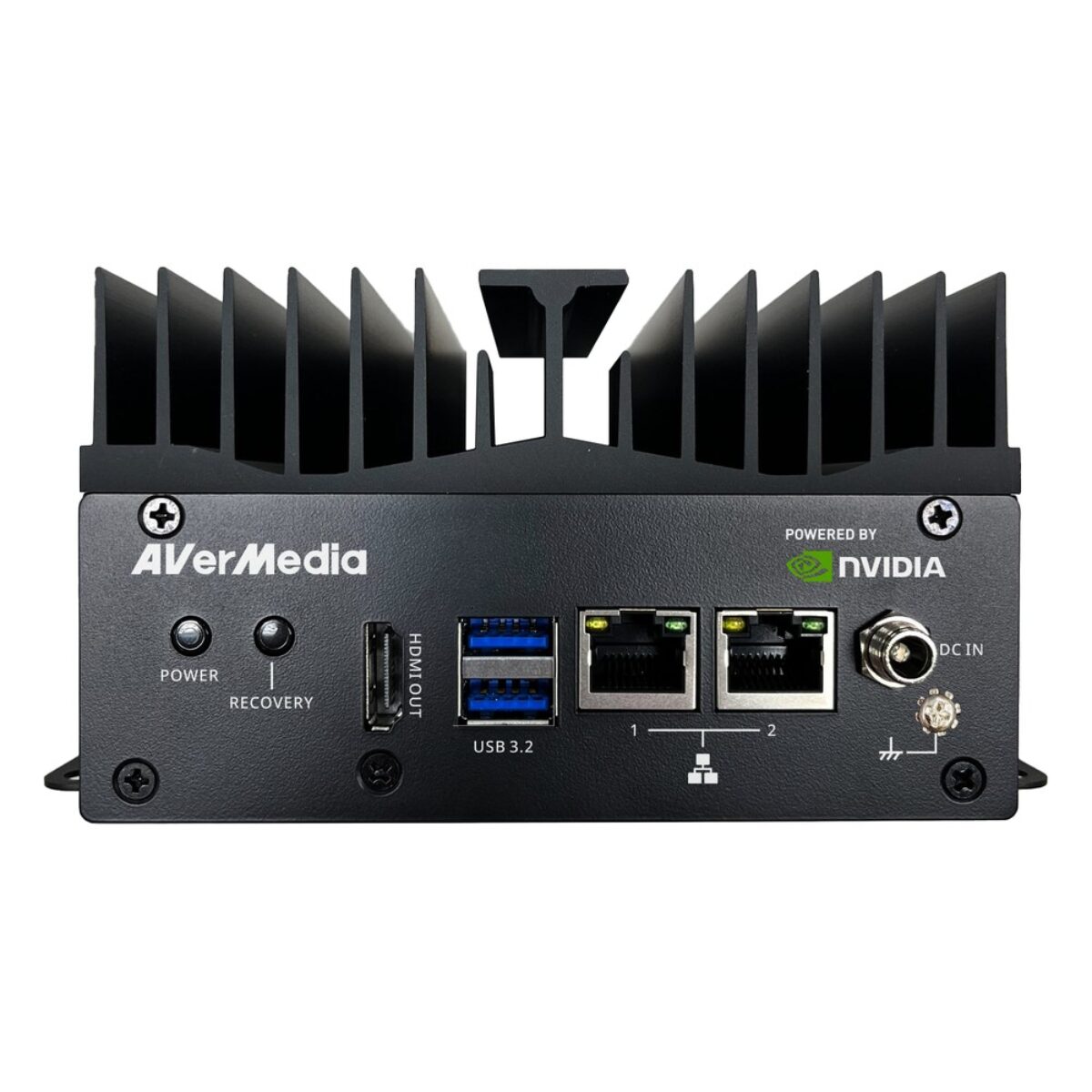

AVerMedia D115SOXP NVIDIA Jetson Orin NX Super Mode Fanless Box PC with Dual GbE and 4G/5G Options

Super Mode runs an Orin NX module at a higher power setting for more AI throughput, provided the carrier and cooling are designed for it. The AVerMedia D115SOXP is a fanless box PC built on that basis, and it is the Orin NX box in the D115S series. It is built on the D115S carrier board, and the D115SONP is the same box with an Orin Nano 8GB.

The D115SOXP is supplied with a Jetson Orin NX 16GB or 8GB module. NVIDIA rates these at up to 157 TOPS and 117 TOPS in Super Mode, against 100 TOPS and 70 TOPS at standard settings, which gives room for larger detection models or more camera streams without changing module. Two internal MIPI CSI-2 connectors with four lanes each, on 22-pin FPCs, take embedded cameras directly. AVerMedia publishes JetPack 6.2 board support packages on Ubuntu 22.04, and an onboard TPM 2.0 holds security keys in hardware.

Two GbE RJ45 ports handle cameras and uplink, with optional PoE on Ethernet 1 and out-of-band management over NC-SI on Ethernet 2. The 15-pin and 10-pin headers take an optional Allxon OOB module for remote power cycling and recovery, and a 40-pin connector takes an optional 4G or 5G daughter board. One HDMI output runs at 4K and 60 Hz, two USB 3.2 Gen 2 Type-A ports run at a native 10 Gbps each, a 256GB NVMe SSD is installed and an M.2 E-key 2230 socket takes optional Wi-Fi. The 20-pin header carries CAN, two UARTs, two I2C buses and four GPIO lines.

The D115SOXP runs fanless from -25 °C to 40 °C in Super Mode and -25 °C to 60 °C in normal mode, so the power mode can follow the site. It takes 12-24 V DC through a DC jack or 4-pin ATX header, and AVerMedia lists CE, FCC and KC marks. We supply it with the Orin NX module fitted, JetPack flashed in the power mode the site suits, and any optional 4G or 5G modem, OOB module, Wi-Fi and antennas fitted and tested before it ships.
