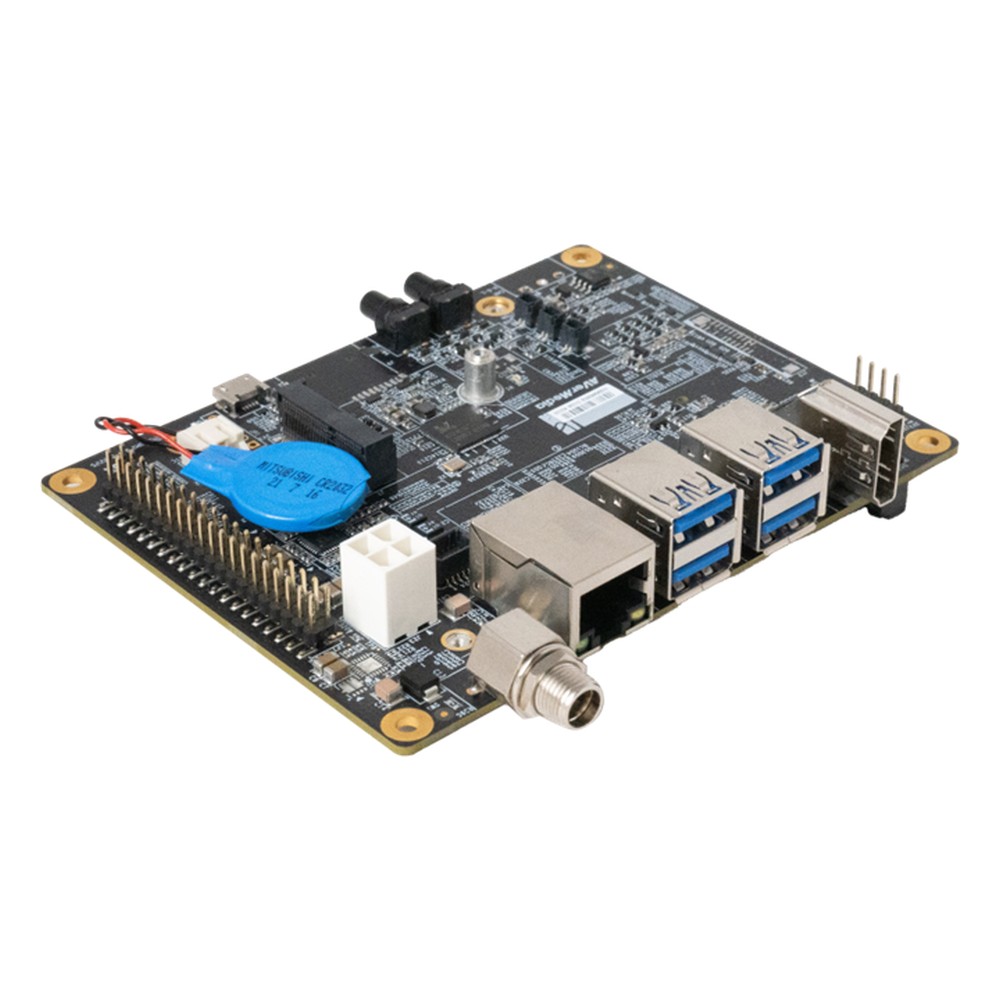

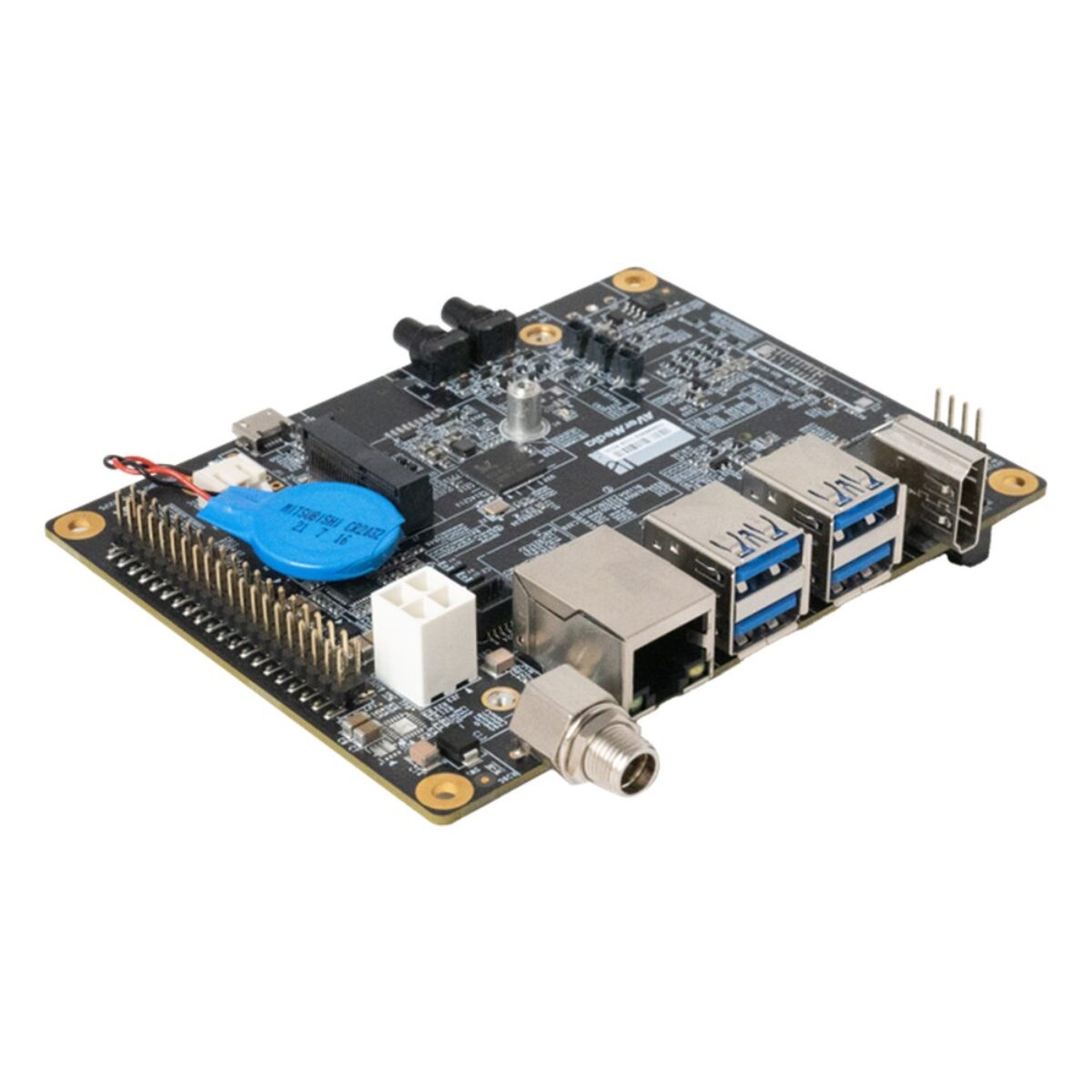

AVerMedia D131L NVIDIA Jetson Orin NX and Orin Nano Embedded Carrier Board with NVMe M.2 and 9-24V DC Input

The D131L is a lighter version of the AVerMedia D131 carrier board that runs NVIDIA's own BSP directly, so it flashes with standard NVIDIA tools. It keeps the D131 networking, HDMI, USB and NVMe layout with one 2-lane MIPI CSI-2 input, suiting development and general-purpose AI builds on Orin NX or Orin Nano.

  • Runs the NVIDIA BSP Directly: Applies NVIDIA’s own BSP without a vendor image, with flashing for JetPack 5.1.1 and JetPack 6 documented in the manual.
  • Orin NX and Orin Nano Modules: Takes Jetson Orin NX 16GB or 8GB and Orin Nano 8GB or 4GB modules, with Super Mode support on Orin Nano.
  • One 2-Lane MIPI CSI-2 Input: A single 2-lane MIPI CSI-2 connector on 15-pin FPC for one directly attached camera on a development or vision build.
  • 4K HDMI, 4x USB 3.2 and GbE: HDMI at 3840 x 2160, at 60 Hz on Orin NX and 30 Hz on Orin Nano, with four USB 3.2 Gen 1 Type-A ports.
  • 9-24 V DC with Allxon OOB: A 9 V to 24 V DC input on barrel jack or ATX 4-pin, Allxon out-of-band management and 0 °C to 70 °C operation.
Operating Software: LinuxLinux
USB Generation: USB3USB3
M.2: 22x M.2
Connectivity: WirelessWi-Fi
NVMe: NVMe SSD SupportNVMe SSD
Certification: CECE
Certification: FCCFCC
UK Support Team: +44 (0)1785 558 300 Call
Select section
  • Overview
  • Specifications
  • Downloads

D131L Overview

Teams that already work with NVIDIA’s own JetPack releases often prefer a carrier that does not depend on a vendor BSP. The AVerMedia D131L is a Jetson Orin NX and Orin Nano embedded carrier board that applies NVIDIA’s BSP directly, and AVerMedia positions it for general-purpose AI development as well as AMRs, smart security and smart inspection.

The D131L accepts Jetson Orin NX 16GB or 8GB and Orin Nano 8GB or 4GB modules, with Super Mode support on Orin Nano. The manual documents flashing JetPack 5.1.1 and JetPack 6 with NVIDIA’s SDK Manager and BSP, on Ubuntu 20.04 or 22.04. Storage goes in an M.2 M-key 2280 slot on PCIe x4 for an NVMe SSD, and one 2-lane MIPI CSI-2 connector on 15-pin FPC takes a camera.

HDMI runs at 3840 x 2160, at 60 Hz with Orin NX and 30 Hz with Orin Nano, and four USB 3.2 Gen 1 Type-A ports share 5 Gbps. A GbE RJ45 has a PoE option, and an M.2 E-key 2230 slot takes an optional Wi-Fi module. The 40-pin header carries UART, two SPI, two I2C, I2S and six GPIO lines, and an OOB connection supported by Allxon allows remote monitoring and OTA updates. If you need three cameras and a CAN port, the D131 adds both.

Power comes in at 9 V to 24 V DC on a barrel jack or ATX 4-pin connector, and the D131L is rated from 0 °C to 70 °C, with an optional fan. AVerMedia lists CE, FCC and KC. For a Super Mode carrier with two 4-lane MIPI inputs and CAN FD, see the D131S-002. We supply the D131L with the Jetson module fitted, NVMe storage installed and JetPack flashed, tested before it ships.

D131L Specifications

Overview
Brand & ModelAVerMedia D131L
FeaturesCompact
Embedded
GPU
Industrial
Performance
AI Performance20–100 TOPS
System-on-ModuleNVIDIA Jetson Orin Nano 4GB: 20 TOPS, 512-core Ampere GPU with 16 Tensor Cores, 6-core Arm Cortex-A78AE 1.5GHz, 4GB 64-bit LPDDR5, 5-10W
NVIDIA Jetson Orin Nano 8GB: 40 TOPS, 1024-core Ampere GPU with 32 Tensor Cores, 6-core Arm Cortex-A78AE 1.5GHz, 8GB 128-bit LPDDR5, 7-15W
NVIDIA Jetson Orin NX 16GB: 100 TOPS, 1024-core Ampere GPU with 32 Tensor Cores, 8-core Arm Cortex-A78AE 2.0GHz, 16GB 128-bit LPDDR5, 10-25W
NVIDIA Jetson Orin NX 8GB: 70 TOPS, 1024-core Ampere GPU with 32 Tensor Cores, 6-core Arm Cortex-A78AE 2.0GHz, 8GB 128-bit LPDDR5, 10-20W
Operating SystemLinux
Linux Ubuntu 20.04
Linux Ubuntu 22.04
Jetpack VersionJetPack 6
JetPack 5
Graphics
Multi Display SupportSingle Display Support
Display Outputs1x HDMI
I/O
Ethernet1x Ethernet Ports
1x GbE LAN [RJ45]
USB4x USB Ports
4x USB 3.2 Gen 1 [Type A]
GPIOGPIO [6-lines]
MIPI Interface1x 2 Lane MIPI CSI-2
Remote ManagementAllxon In-Band
Allxon Out-of-Band
Expansion
M.22x M.2 Expansion Slots
1x M.2 E-Key [PCIe x1/USB 2.0] [2230]
1x M.2 M-Key [PCIe x4] [2280]
Wireless ConnectivityOptional WiFi/Bluetooth
Storage
Storage1x M.2 SSD
NVMeNVMe SSD Support
Power
Power Input9-24V DC [4-Pin]
9-24V DC [Barrel Connector]
Environmental Conditions
Thermal DissipationOptional Fan
Optional Heatsink
Operating Temperature0°C to 70°C [32°F to 158°F]
Storage Temperature-40°C to 85°C [-40°F to 185°F]
CertificationCE
FCC
KC
Mechanical Properties
Weight0.1 Kg (0.2 Lbs)
Dimensions113mm x 105mm x 29mm (4.45" x 4.13" x 1.12")

AVerMedia Edge AI Systems in the UK

Things Embedded supplies the AVerMedia D131L in the UK, and we supply the D131L with the Jetson module fitted, JetPack flashed and the board tested before it ships. Within the AVerMedia range, the D131 adds two more MIPI CSI-2 inputs, a CAN port and AVerMedia's own JetPack builds, and you can compare every model on our AVerMedia Jetson computers and carrier boards page.

For alternatives from our own range, see our NVIDIA Jetson carrier boards and NVIDIA Jetson computers and modules.
