UK 21.5 Inch Panel PCs
21.5 Inch Industrial Touch Panel PCs for Widescreen HMIs and Kiosks
21.5 inch full HD panel PCs give widescreen HMIs, self-service kiosks and line dashboards a touch screen computer that shows the process and the data side by side. Available with PCAP or resistive touch and sealing from a front IP65 bezel to fully sealed IP69K stainless steel, they take a dashboard designed for a monitor without change.
Options include open-frame builds for kiosk and signage enclosures, panel-mount and VESA fixings, and sunlight-readable panels, suited to retail, digital signage and wet lines where the screen faces the public or the hose.
Speak to a panel PC specialist to match the touch technology, build and sealing to your kiosk or dashboard.
Browse Our 21.5 Inch Touch Screen Computers
- Display: 21.5"[16:9, 1920 x 1080, FHD]
- Touch: Multi Touch PCAP
- Brightness: 250
- Viewing Angle: Wide Viewing Angle
- Format: Widescreen
- CPU: Intel Core 11th Gen Tiger Lake
- Memory: 2x DDR4 3200MHz SO-DIMM Slots, 64GB
- OS: Linux Ubuntu 22.04, Windows 10, Windows 11
- Display Outputs: 1x Display Port
- Ethernet: 2x GbE LAN [RJ45]
- USB: 4x USB 3.2 Gen 2 [Type A]
- Serial: 1x RS232 [DB9], 1x RS232/422/485 [DB9]
- M.2: 1x M.2 E-Key [PCIe x1/USB 2.0] [2230], 1x M.2 M-Key [PCIe x4/SATA] [2242/2280]
- Storage: 1x 2.5" HDD/SSD, 1x M.2 SSD
- Power: 12V DC
- Temp: 0°C to 50°C [32°F to 122°F]
- IP Rating: Front IP65
- Certification: CE, FCC
-
DM-121PW/PM-2000
DM-1XXP/PM-2000 with 21.5" 16:9 FHD PCAP display -
DM-110P/PM-2000
DM-1XXP/PM-2000 with 10.4" 4:3 XGA PCAP display -
DM-112P/PM-2000
DM-1XXP/PM-2000 with 12.1" 4:3 XGA PCAP display -
DM-115P/PM-2000
DM-1XXP/PM-2000 with 15" 4:3 XGA PCAP display -
DM-115PW/PM-2000
DM-1XXP/PM-2000 with 15.6" 16:9 FHD PCAP display -
DM-117P/PM-2000
DM-1XXP/PM-2000 with 17" 5:4 SXGA PCAP display -
DM-119P/PM-2000
DM-1XXP/PM-2000 with 19" 5:4 SXGA PCAP display -
DM-124PW/PM-2000
DM-1XXP/PM-2000 with 24" 16:9 FHD PCAP display
- Touch: Projective Capacitive Touch
- Viewing Angle: Wide Viewing Angle
- CPU: Intel Celeron J Series Bay Trail
- Memory: 1x DDR3L 1600MHz SO-DIMM Slot, 8GB
- OS: Linux, Windows 10
- Display Outputs: 1x Display Port, 1x VGA
- Ethernet: 2x GbE LAN [RJ45]
- USB: 1x USB 3.2 Gen 2 [Type A], 4x USB 2.0 [Type A]
- Serial: 2x RS232/422/485 [DB9]
- mPCIe: 1x mPCIe [SATA/USB], 1x mPCIe [USB]
- Storage: 1x 2.5" HDD/SSD, 1x mSATA
- Power: 9-48V DC Input, Terminal Block
- Ignition Sensing: Supports Ignition Control
- Temp: -20°C to 70°C [-4°F to 158°F]
- IP Rating: Front IP65
- Certification: CE, FCC
- Display: 21.5"[16:9, 1920 x 1080, FHD]
- Brightness: 300
- Format: Widescreen
21.5 Inch Panel PC Ranges Configured by Things Embedded
We work with the leading manufacturers of widescreen touch screen computers, so the ranges below are the ones we specify for kiosks, dashboards and hygienic production. Compare them by build, sealing and touch, then browse the models above or ask a panel PC specialist which range suits your kiosk or line.
IT3S Winmate Core-Class Panel Mount PCs
Fanless flush-mount HMIs on Intel Core i5 Tiger Lake from 10.4 to 23.8 inches, in standard and front IP65 builds, for control cabinets and consoles that need Core-class performance behind the screen.
IT7T Winmate Tiger Lake Panel Mount HMIs
Panel-mount touch computers on Intel Core i5 Tiger Lake from 15 to 23.8 inches, with resistive touch or a slim front IP65 PCAP bezel, for machine and console HMIs.
IT7T and IF7T Winmate Chassis-Mount Touch Computers
VESA and wall-mount units from 12.1 to 23.8 inches on Intel Pentium, Core i5 Tiger Lake or Core i3 to i7 Coffee Lake, with resistive touch and wide-temperature options, for arms, desks and walls.

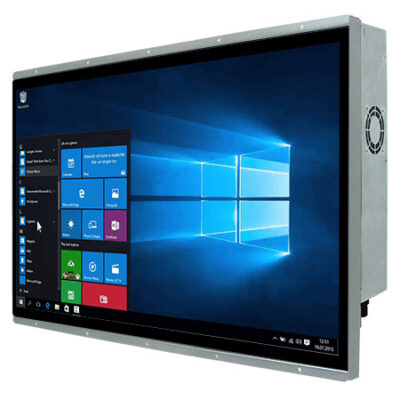

IT7T and IE3S Winmate Open Frame Touch Computers
Housing-free modules from 7 to 23.8 inches with PCAP multi-touch, on Intel Celeron or Core i5 Tiger Lake with vPro, built to drop into kiosk, signage and OEM enclosures.
IE3S Winmate Stainless Steel Washdown PCs
Hygienic touch terminals from 10.1 to 23.8 inches in stainless steel on Intel Celeron N6210, in IP65 and full IP69K builds with M12 connectors, and push-button variants beside the screen.
IE3S Winmate IP65 and IP67 Stainless Chassis Computers
Sealed stainless chassis PCs on Intel Celeron N6210 from 10.4 to 23.8 inches, rated IP65 or IP67 with M12 connectors, for wipe-down and immersion-risk positions.
IT3S Winmate IP69K AISI 316 Stainless Panel PCs
Full IP69K AISI 316 stainless HMIs on Intel Core i5 Tiger Lake from 15 to 23.8 inches, with PCAP rain-mode touch for the wettest positions on the line.
Winmate ATEX and Class I Div 2 Panel PCs
Certified HMIs from 12.1 to 23.8 inches on Intel Atom, Celeron and Core i5, carrying UL Class I Division 2 with ATEX Zone 2 on selected models, for operator stations inside classified areas.
DM Arestech Modular Panel PCs
Two-part systems built from a DM display and a PM-2000 Intel Celeron compute module, with PCAP touch and a front IP65 bezel, for panel or chassis mounting from 10.4 to 24 inches.
PPC-Z Arestech IP66/IP69K Stainless Steel Panel PCs
Fanless stainless steel all-in-one units from 10.1 to 23.8 inches, sealed to IP66 and IP69K with M12 connectors, on Intel Pentium to Core i5, with 316-grade builds and an RFID reader option for operator login at the line.
VIO C&T Solution Modular Touch Computers
Modular HMIs that pair a VIO display with a fanless Intel Celeron compute module behind a front IP65 bezel, with resistive or PCAP touch, so the computer can be upgraded without changing the cabinet cut-out.
GOT800 Axiomtek IP69K Full-Flat Stainless HMIs
Full-flat 304 stainless steel operator panels from 15.6 to 21.5 inches, sealed to IP69K, on Intel Core Tiger Lake with PCAP touch, for line-side screens where a widescreen format suits recipe and batch views.
Not sure which range fits? Tell us the application and we will recommend the right model.
21.5 Inch Panel PC Innovation & Kiosk Insights
Speak to a Panel PC Specialist.
Tell us where the panel PC will be mounted, what it needs to run and connect to and the sealing the area needs, and we will recommend the right size and touch technology, then configure, image and test it before it ships.
