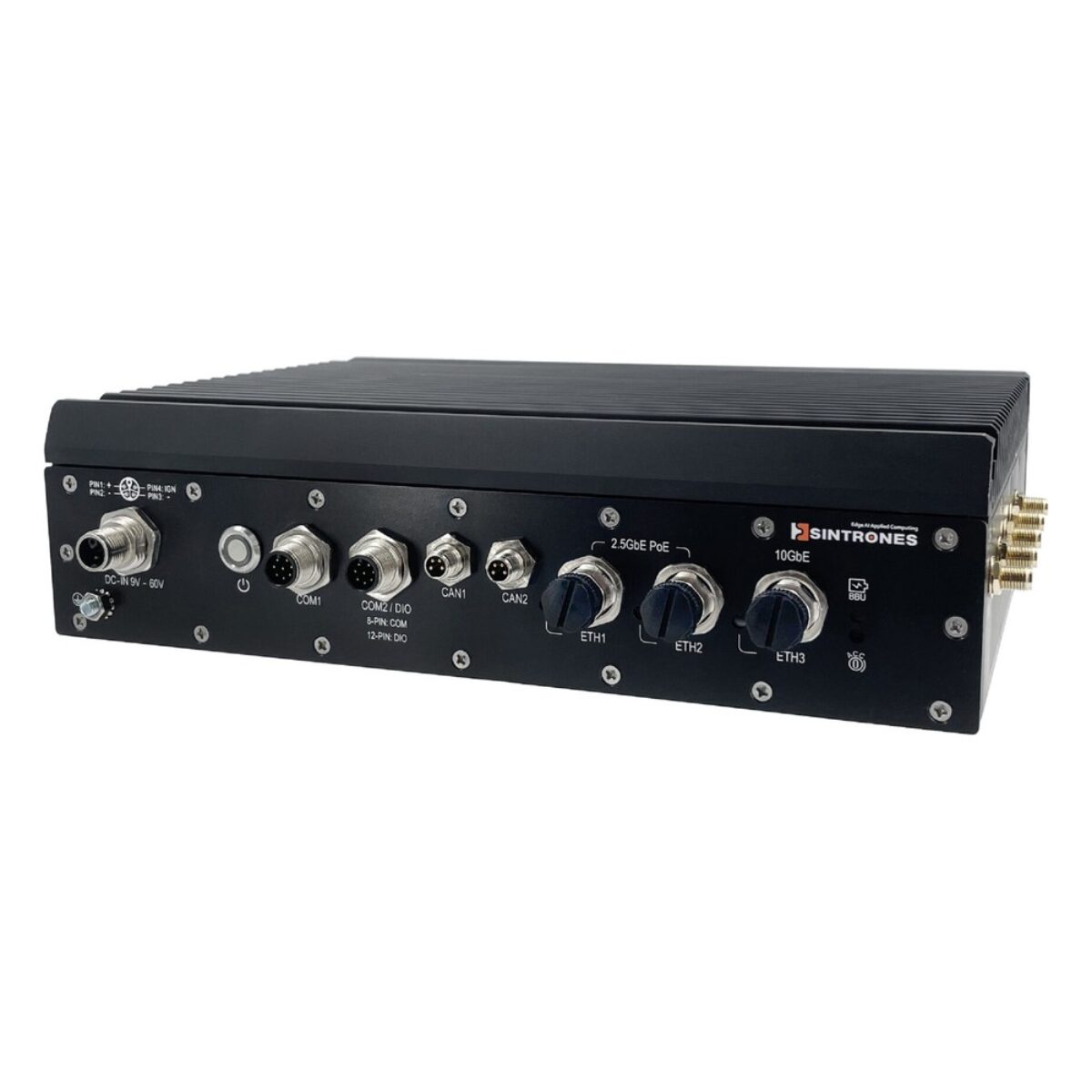

Sintrones IBOX-650P-IP66-2S-DIO NVIDIA Jetson AGX Orin IP66 Rugged Embedded Computers with M12 Serial or Digital I/O

Vehicle and machine projects rarely agree on I/O: one needs two serial lines for a ticket machine and a GNSS receiver, the next needs inputs and outputs for a beacon and a door switch. The Sintrones IBOX-650P-IP66-2S-DIO series is a family of IP66 rugged embedded computers that handles both with one shared port, wired either as a second RS-232/422/485 port or as digital I/O, and offers the four GMSL-2 camera board as a second choice. All four models run on the Jetson AGX Orin 64GB.

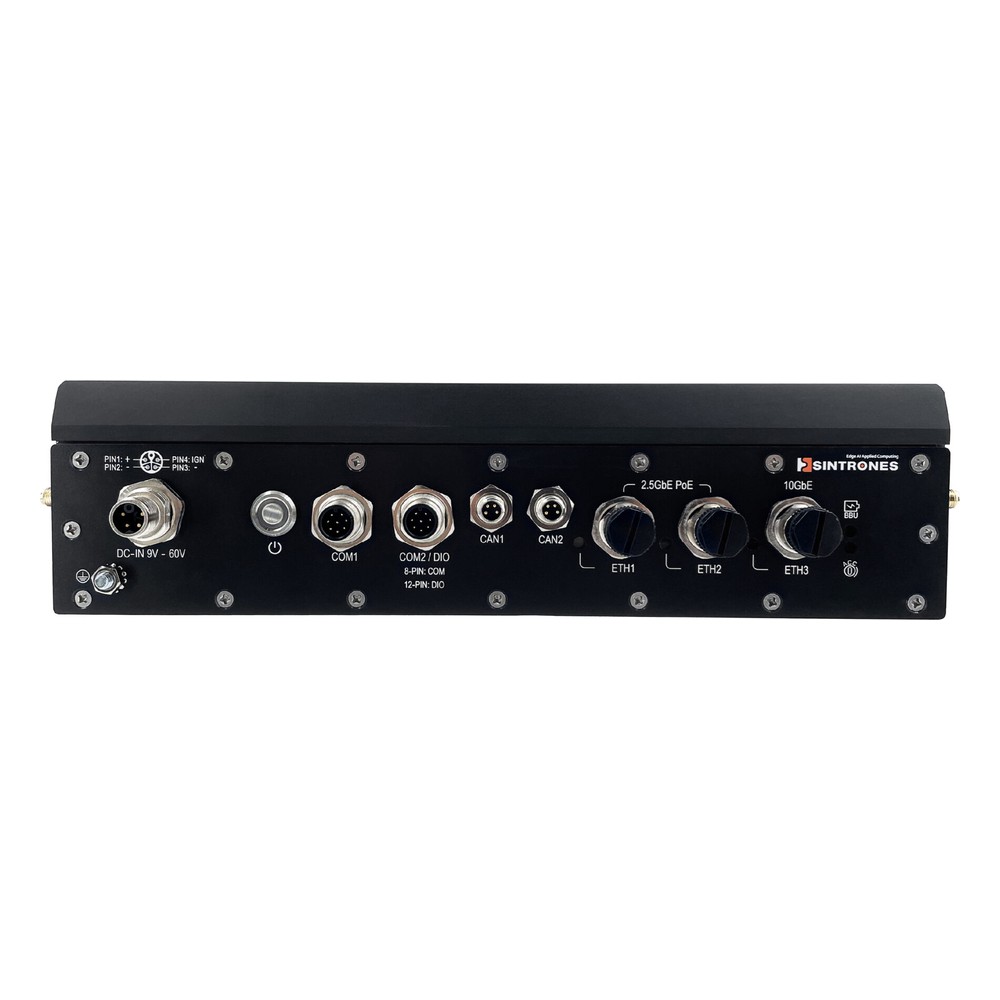

The AGX Orin 64GB brings a 12-core Arm Cortex-A78AE CPU, a 2048-core NVIDIA GPU and 64 GB of LPDDR5, rated at up to 275 TOPS, with the system BSP pre-installed on 64 GB of eMMC and an M.2 2280 M key slot for an NVMe SSD. Every IBOX-650P-IP66-2S-DIO has one Marvell 10GbE port and two Intel 2.5GbE ports with IEEE 802.3at PoE PSE Class 4 at 30 W each on Phoenix Contact M12 X-coded connectors, two CAN FD ports on M8, IP67 HDMI and two IP67 USB 3.2 Gen 2 Type-A ports. An M.2 B key slot with Nano SIM, an M.2 E key slot and a full-size mPCIe slot take optional WWAN, Wi-Fi and GNSS.

The IBOX-650P-IP66-2S-01-JAO64 pairs two RS-232/422/485 ports with the VDB-101 board and four GMSL-2 inputs on FAKRA-Z. The IBOX-650P-IP66-2S-JAO64-LE keeps the two serial ports without the camera board, for IP camera work over PoE+. The IBOX-650P-IP66-DIO-01-JAO64 uses the shared port for four digital inputs, four outputs at 12 V DC/100 mA, a 5 to 60 V analog input and a PWM output, with one serial port and the four GMSL-2 inputs. The IBOX-650P-IP66-DIO-JAO64-LE is the same digital I/O build without GMSL-2.

Typical deployments include buses and coaches, rail vehicles, mining, construction and agricultural machines, and outdoor vision at gates and depots. Each IBOX-650P-IP66-2S-DIO runs on 9 to 60 V DC through a Phoenix Contact M12 K-coded connector, with ignition detection, smart power management and an optional backup battery, and is rated fanless from -25 °C to 70 °C with 0.6 m/s airflow. Sintrones states Jetson Orin module availability through January 2032. The series is tested to MIL-STD-810H, has E-Mark compliance, CE and FCC Class A, lists ECE R118, and is designed to EN 50155 and EN 45545-2 (R25) requirements.
