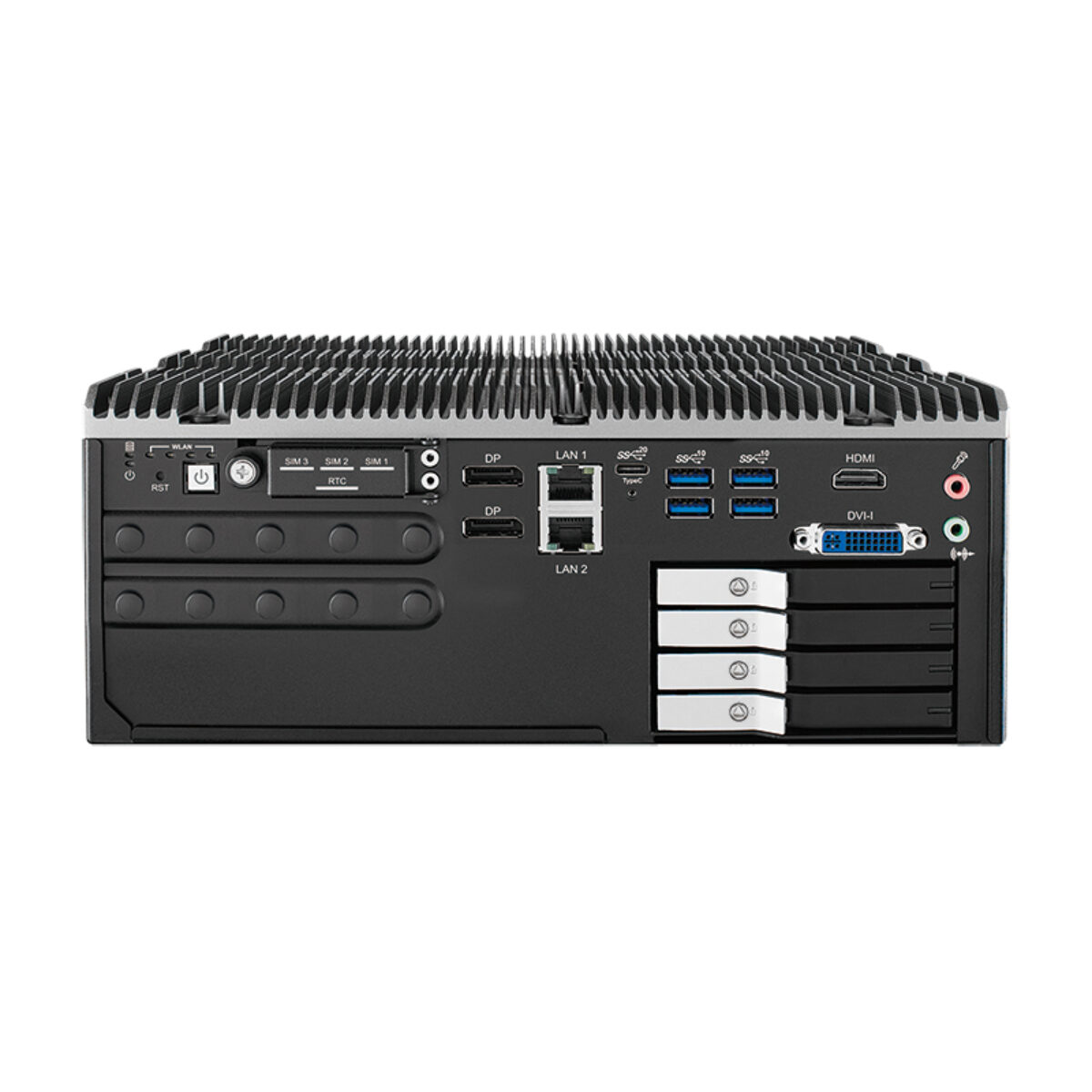

Vecow ECX-3400 PEG Intel 12th/13th Gen Core Industrial PC with GPU Support, Dual PCIe and RAID 5

Recording and analysing video in the same box puts pressure on both the GPU and the storage. The ECX-3400 PEG answers with one PCIe x16 slot for a full graphics card, a PCIe x4 slot and four front-access SSD trays with RAID 5 or 10. It is the dual-slot industrial GPU PC in the Vecow ECX-3000 PEG series.

The ECX-3400 PEG runs on the Intel R680E chipset and takes Intel Core 200S processors (Bartlett Lake-S) or 12th, 13th and 14th Gen Core i9, i7, i5 and i3, up to 24 cores and 65 W TDP; Vecow notes the 14th Gen parts are for PC client use conditions only. Two DDR5 5200 MHz SO-DIMM slots take up to 96 GB. The PCIe expansion is for an NVIDIA or AMD graphics card, with a GPU power budget of up to 200 W, which suits AI inference, 3D vision and visualisation at the edge.

Expansion on the ECX-3400 PEG is one PCIe x16 slot and one PCIe x4 slot, plus a Mini PCIe socket, two M.2 Key B sockets and an M.2 Key E socket with three nano SIM slots for 5G, 4G or Wi-Fi. Networking is two GbE ports plus four 2.5GbE IEEE 802.3at PoE+ ports on RJ45, for IP cameras powered from the computer. Four front-access 2.5″ SSD trays support software RAID 0, 1, 5 or 10, beside an M.2 Key M PCIe x4 slot. Six USB 3.2 Gen 2 ports, a 20 Gbps USB 3.2 Gen 2×2 Type-C port, four COM ports and 32 isolated DIO complete the I/O.

The 104 mm tall, 5.5 kg chassis runs on 12-50 V DC with 16-mode software ignition control, rated -20 °C to 45 °C with its system fan, and carries MIL-STD-810G shock and vibration ratings and EN 50155 EMC listings. Where two x8 slots suit better, see the ECX-3600 PEG.
