Winmate R10L100-PCT2(HB) 10.4″ PCAP Touch Monitor with Optional 1000 Nit Panel and XGA LCD
PCAP
Fanless
Front IP65
CE
FCCR10L100-PCT2(HB) Overview

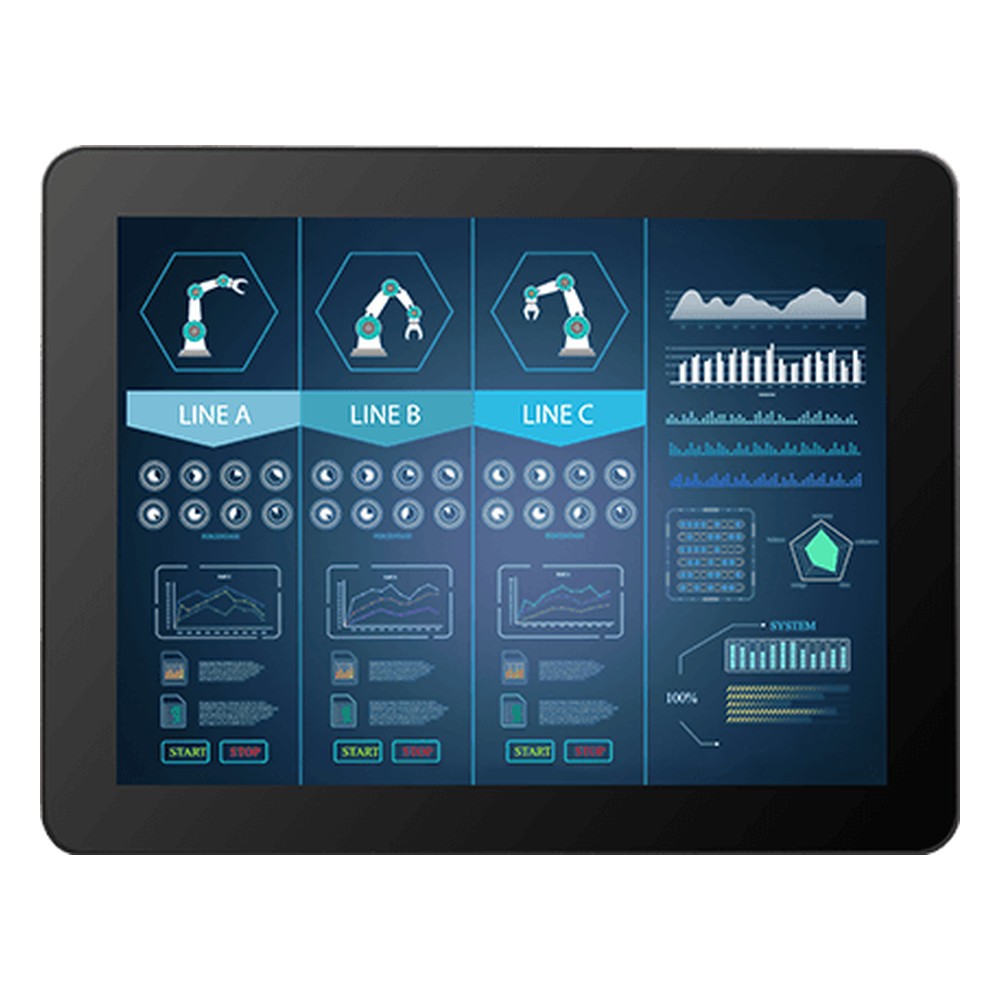

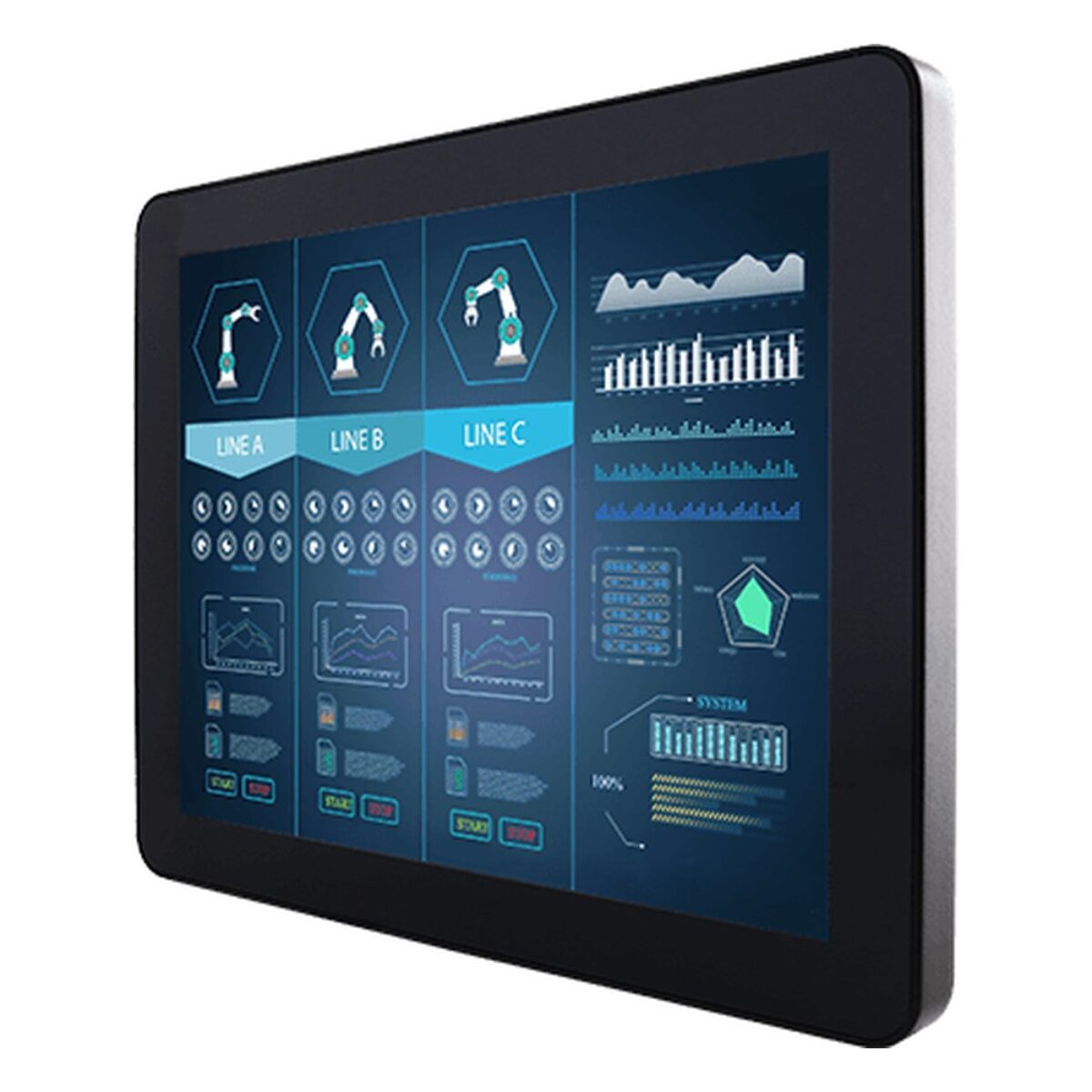

A small touch display on an arm beside a machine, on a kiosk or on a control desk often needs gesture touch rather than resistive, and a front that can be wiped down. The R10L100-PCT2(HB) is Winmate’s 10.4 inch chassis monitor from its Custom Display series: a 4:3 screen with projected capacitive multi-touch and front IP65 sealing in a fanless metal housing. It connects to a separate industrial computer or controller.
The 10.4″ 1024 x 768 panel runs at 350 nits as standard with 1000:1 contrast and 176 degree viewing angles, and a 1000 nit panel is available as an option where the screen faces sunlight or bright halls. Projected capacitive multi-touch supports swipe and pinch gestures and connects over a single USB port. The 4:3 format suits many existing HMI layouts.
Video comes in over VGA as standard, with HDMI or DVI inputs as options, and a five-key OSD handles set-up. A remote controller is optional. VGA and HDMI cables, a power cord and VESA screws come in the box. The R10L100-PPT2(HB) is the panel mount version of this 10.4 inch PCAP monitor with an aluminium bezel, and the R10L100-PCT2OD is the sunlight readable version with a 1000 nit panel.
The 10.4 inch monitor is rated IP65 at the front and mounts on VESA. It runs from 12 V DC, with a 24 V DC input as an option and a 100 to 240 V AC adapter supplied, operates fanless from 0 °C to 50 °C at 10 to 90% humidity, non-condensing, stores from -10 °C to 60 °C and carries CE and FCC marks. We supply the R10L100-PCT2(HB) configured and tested before dispatch, ready to pair with the computer that drives it.
R10L100-PCT2(HB) Specifications
| Overview | |
|---|---|
| Brand & Model | Winmate R10L100-PCT2(HB) |
| Features | Fanless Industrial |
| Display | |
| Display | 10.4"[4:3, 1024 x 768, XGA] |
| Touch Interface | USB |
| Touch Controller | Multi Touch PCAP |
| Brightness | 350 Nits Optional 1,000 Nits |
| Viewing Angle | Wide Viewing Angle |
| 176° Horizontal, 176° Vertical | |
| Aspect Ratio | 4:3 |
| Format | Standard |
| Contrast | 1000:1 |
| Number of Display Inputs | 3x Display Ports |
| Video Inputs | 1x Optional DVI Input 1x Optional HDMI Input 1x VGA Input |
| Power | |
| Power Input | 12V DC AC Power Supply Included |
| Environmental Conditions | |
| Thermal Dissipation | Fanless Passively Cooled Chassis |
| Operating Temperature | 0°C to 50°C [32°F to 122°F] |
| Storage Temperature | -10°C to 60°C [14°F to 140°F] |
| Humidity | 10-90% (Non-condensing) |
| Ingress Protection | Front IP65 Front IP65 [Dustproof, Protection against low pressure water jets spraying from the front side] |
| Certification | CE FCC |
| Mechanical Properties | |
| Weight | 1.4 Kg (3.0 Lbs) |
| Dimensions | 252mm x 198mm x 43mm (9.94" x 7.79" x 1.69") |
- R10L100-PCT2(HB) Datasheet Download
Official Winmate UK Distributor
Things Embedded is an official Winmate UK distributor, supplying the R10L100-PCT2(HB) configured and tested for UK machine, kiosk and control desk projects. Within the Winmate range the R10L100-PPT2(HB) is the panel mount version of this 10.4 inch PCAP monitor.
The R10L100-PCT2(HB) sits among our PCAP touch monitors, our 10 inch industrial monitors and our front IP65 monitors. Where a small VESA-mounted screen needs gesture touch, this is a sensible model to shortlist.
