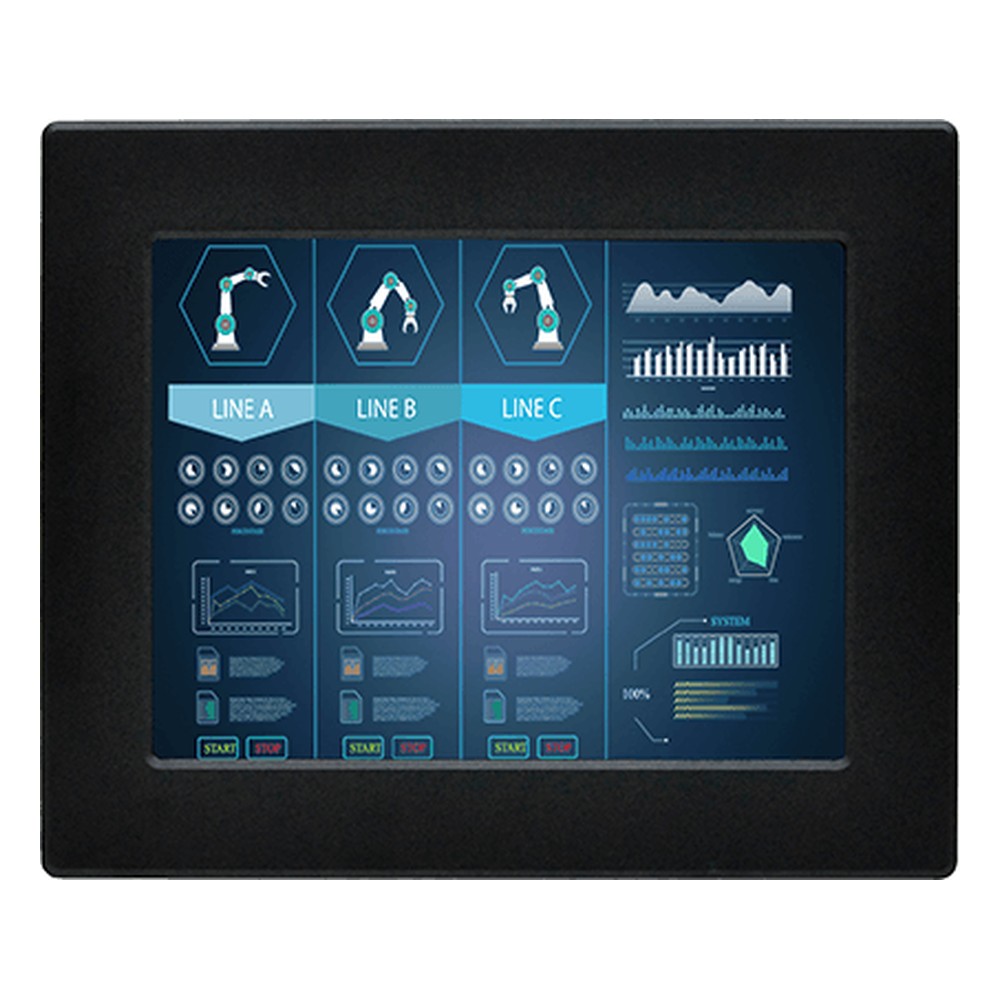

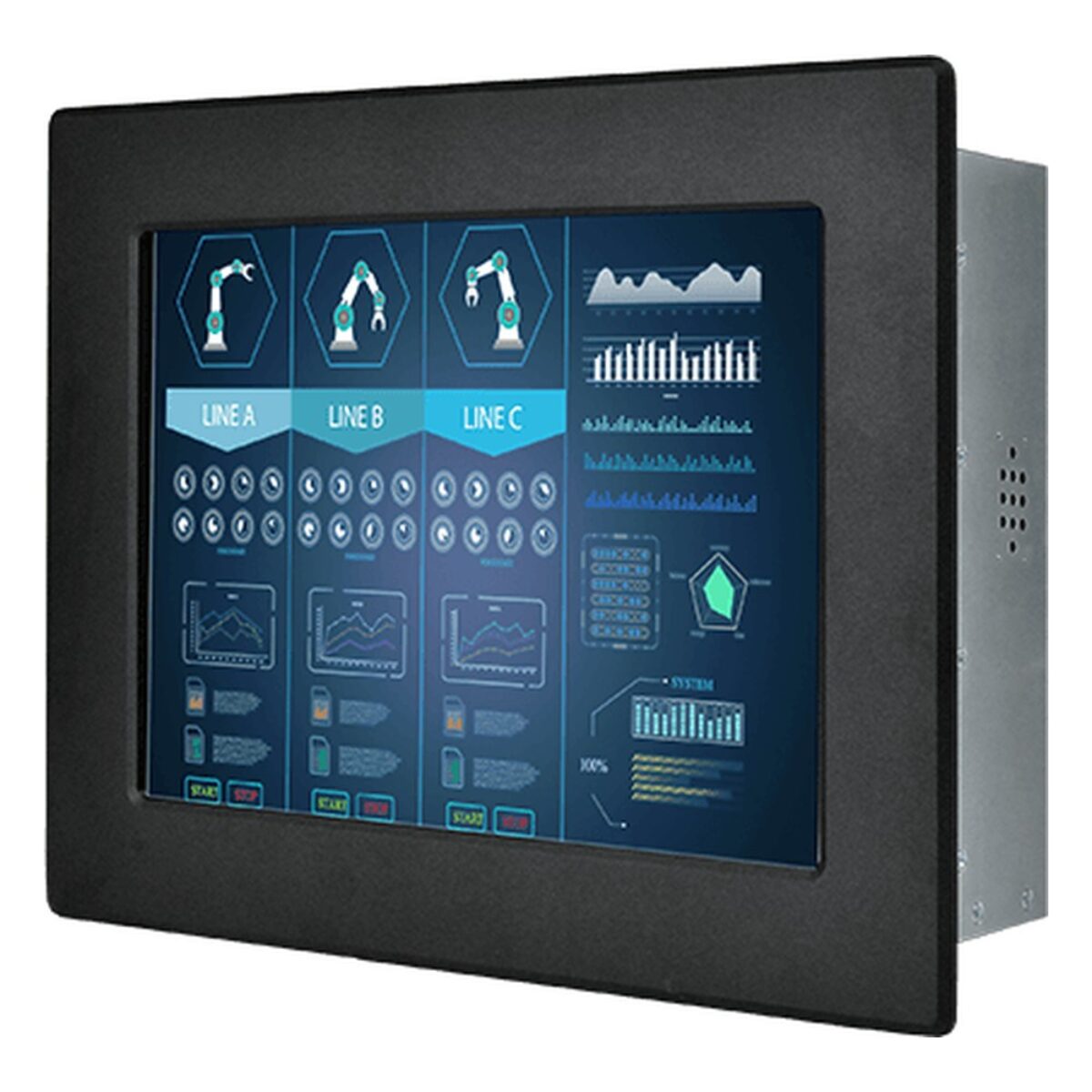

Winmate R10L100-PMP3 10.4″ Panel Mount Monitor with Resistive Touch and VGA LCD

Factory automation panels, kiosks and control rooms often need a display fitted into a cabinet door or console, driven by a computer that sits elsewhere. The R10L100-PMP3 is Winmate’s 10.4 inch panel mount monitor for that kind of install, with a 10.4″ VGA panel at 450 nits and resistive touch with SAW as an option. It connects to the host computer over VGA, with HDMI or DVI as options.

The 10.4″ VGA panel runs at 450 nits with 700:1 contrast, 16.2 million colours and 160 degree horizontal and 140 degree vertical viewing angles, which suits indoor lighting in control rooms and enclosures. Resistive touch is standard over one USB port, with SAW touch or protection glass without touch as options.

Video comes in on VGA as standard, with HDMI and DVI inputs as options, so the R10L100-PMP3 pairs with most industrial PCs and box PCs. An audio line in and two speakers are optional, and five keys (power, plus, minus, Esc and Enter) run the on-screen menu. VGA and HDMI cables and a manual come in the box. Within the Winmate range the R10L100-PMT2 is the 1024 x 768 XGA version of this panel mount display at 350 nits, and the R10L100-CHT2 is the chassis model with a 10.4 inch XGA LCD and resistive touch.

Power is 12 V DC in, with a 24 V DC input as an option, and an AC adapter and power cord are supplied. The fanless metal housing with an aluminium bezel runs from 0 to 50 °C and stores from -10 °C to 60 °C, at 10 to 90% humidity, non-condensing, which suits indoor cabinets and control rooms. VESA mounting is standard and panel mounting is an option, and it carries CE and FCC marks. We supply the R10L100-PMP3 configured and tested before dispatch.
