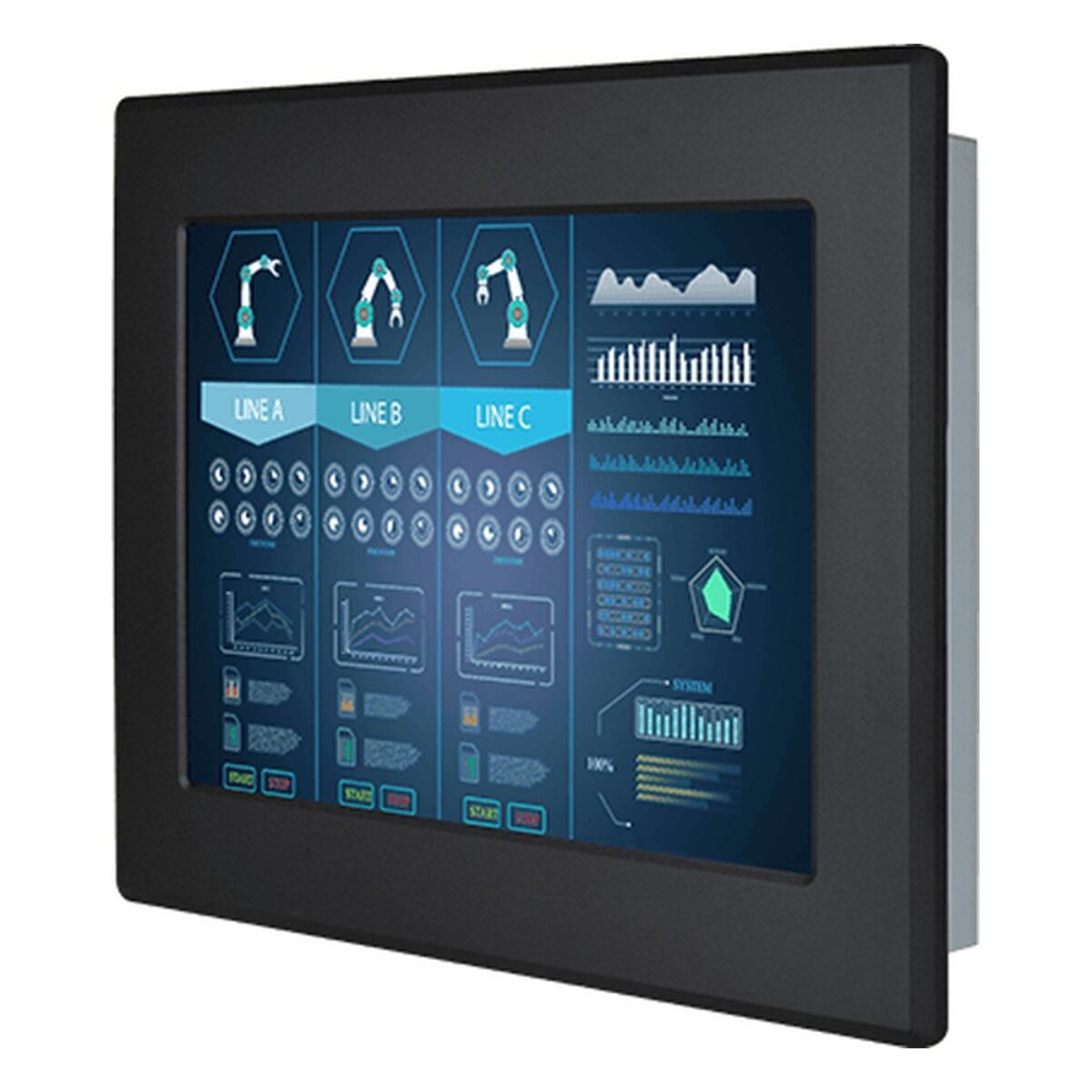

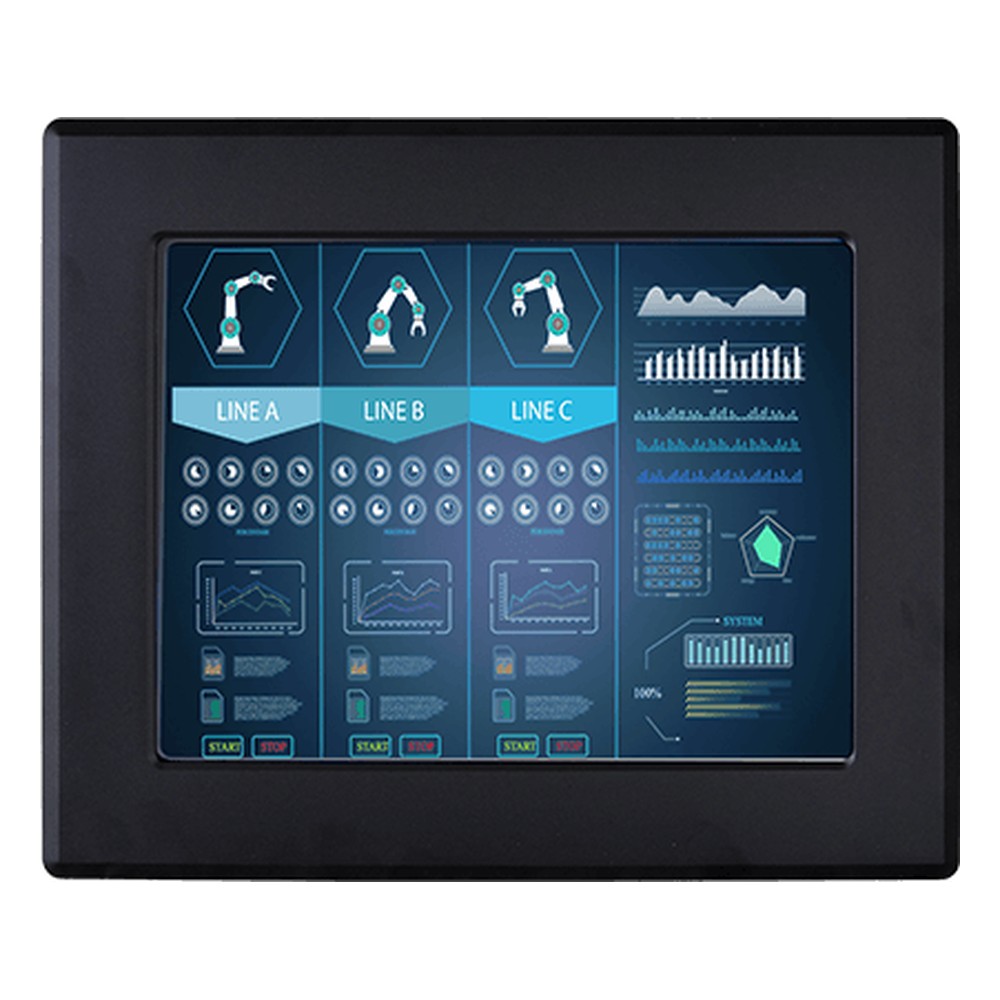

Winmate R10L100-PMT2HB 10.4″ Panel Mount Monitor with 1000 Nit XGA Display and Resistive Touch

An operator screen near windows, skylights or bright overhead lighting can wash out on a standard panel, even indoors. The R10L100-PMT2HB is Winmate’s 10.4 inch high brightness panel mount monitor for those stations, with a 10.4″ XGA panel at 1000 nits, which is sunlight readable, and resistive touch with SAW as an option. It connects to the host computer over VGA, with HDMI or DVI as options.

The 10.4″ XGA panel runs at 1000 nits with 1000:1 contrast, 16.2 million colours and 176 degree viewing angles in both directions, so the picture typically stays readable in direct light. Resistive touch is standard over one USB port, with SAW touch or protection glass without touch as options.

Video comes in on VGA as standard, with HDMI and DVI inputs as options, so the R10L100-PMT2HB pairs with most industrial PCs and box PCs. An audio line in and two speakers are optional, and five keys (power, plus, minus, Esc and Enter) run the on-screen menu. VGA and HDMI cables and a manual come in the box. Within the Winmate range the R10L100-PMT2 is the 350 nit version for indoor lighting, and the R10L100-PMT2OD is the sunlight readable model rated from -10 °C to 60 °C.

Power is 12 V DC in, with a 24 V DC input as an option, and an AC adapter and power cord are supplied. The fanless metal housing with an aluminium bezel runs from 0 to 50 °C and stores from -10 °C to 60 °C, at 10 to 90% humidity, non-condensing, which suits indoor cabinets and control rooms. VESA mounting is standard and panel mounting is an option, and it carries CE and FCC marks. We supply the R10L100-PMT2HB configured and tested before dispatch.
