Winmate R15L100-CHA3 15″ Chassis Monitor with Resistive Touch and 500 Nits
Resistive
Fanless
CE
FCCR15L100-CHA3 Overview

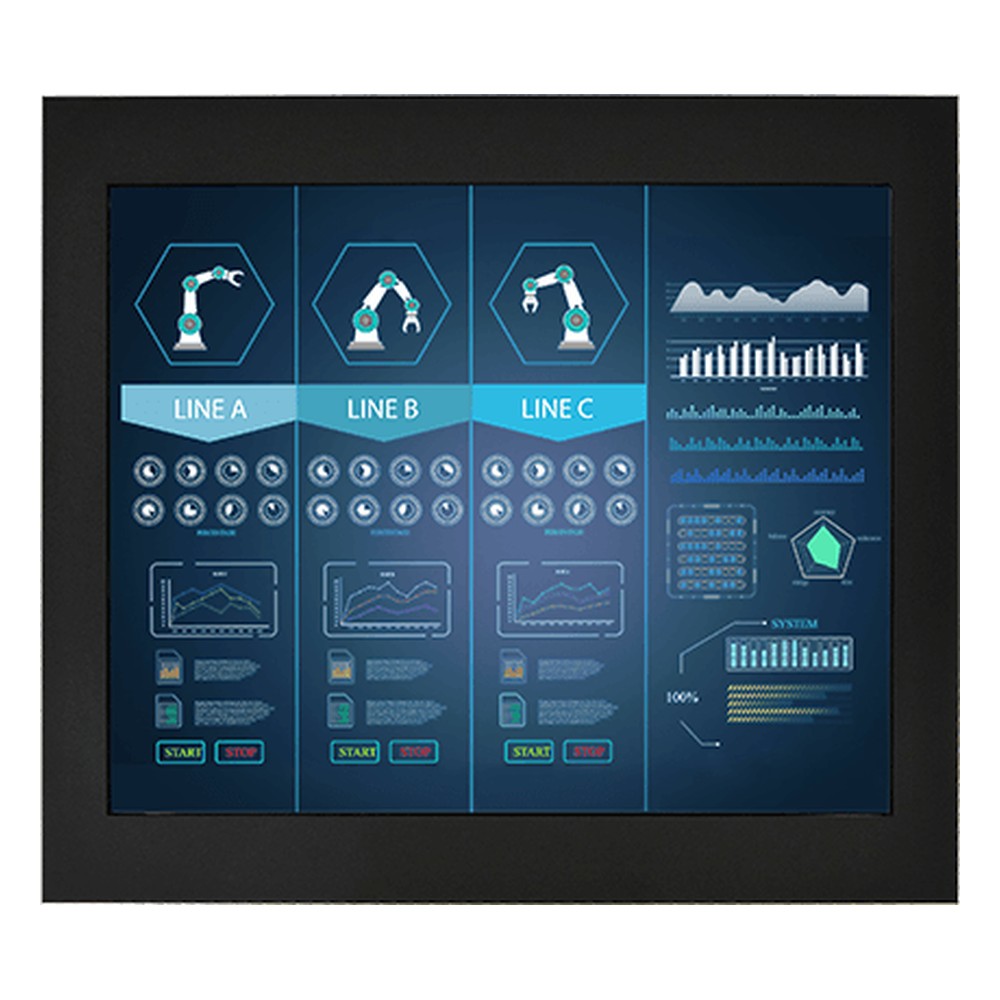

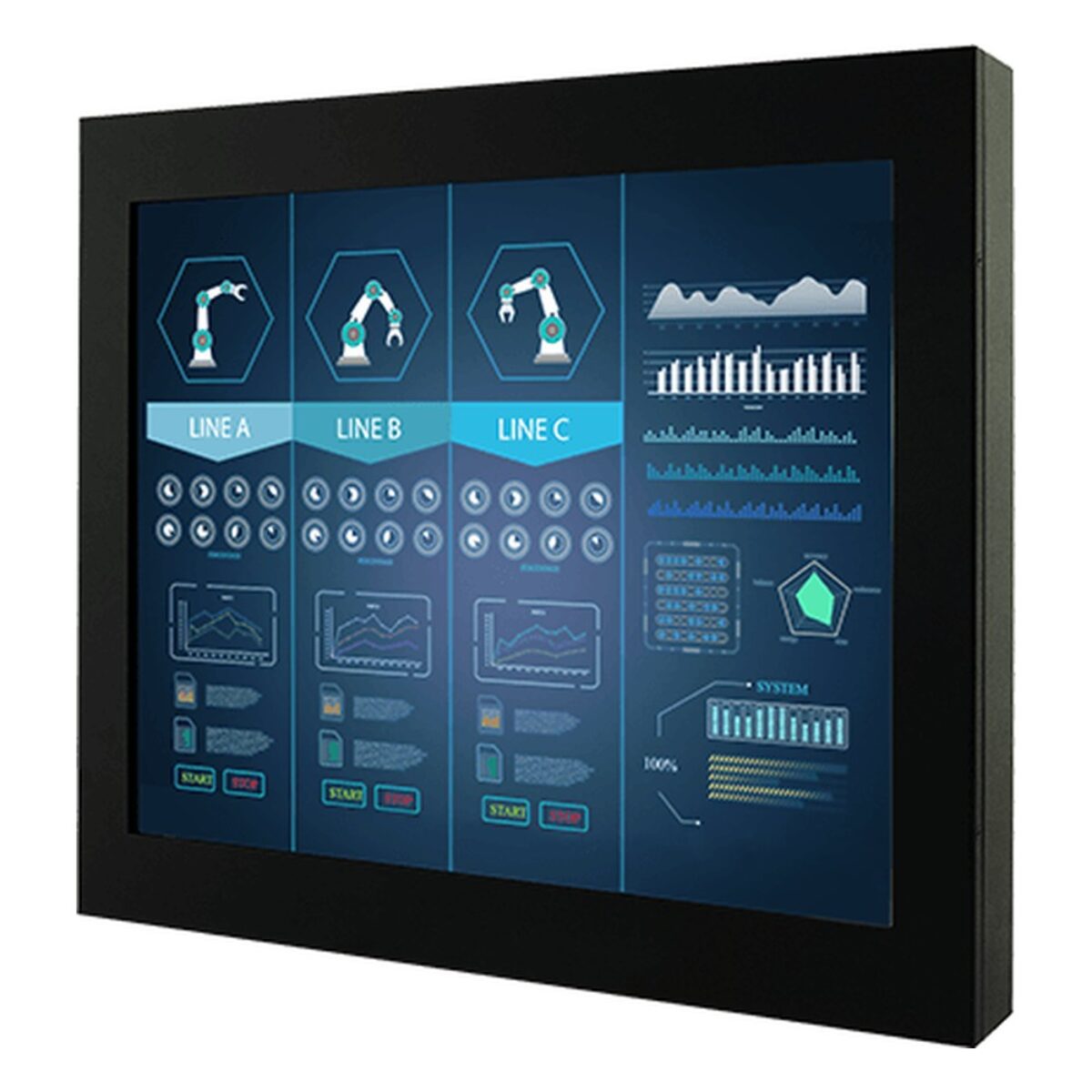

Dark-themed HMI graphics and alarm screens lose detail on a low-contrast panel. The R15L100-CHA3 is Winmate’s 15 inch chassis display for this, with a 1024 x 768 XGA panel at 500 nits, 5-wire resistive touch as standard and a fanless metal housing with an aluminium bezel. Winmate names control rooms, kiosks and manufacturing as its uses.
The 15″ LCD shows 1024 x 768 at 500 nits with a 2500:1 contrast ratio and 176° viewing angles. Resistive touch is fitted as standard and works with gloves or a stylus; SAW touch can be specified instead, or plain protection glass where the screen only needs to display. The 2500:1 contrast ratio keeps dark backgrounds dark and coloured status indicators distinct.
Video comes in over VGA as standard, with HDMI and DVI inputs as options, and a USB port carries touch data back to the host computer. An audio line-in, two speakers and a remote controller are optional. The R15L100-CHA3WT is the wide temperature version for -20 °C to 60 °C, and the R15L100-OFA3 is the open frame model with the same 500 nit panel.
Power is 12 V DC, with 24 V DC as an option, and Winmate supplies a 100 to 240 V AC adapter with a power cord, VGA and HDMI cables and VESA screws. The R15L100-CHA3 operates from 0 °C to 50 °C and stores from -10 °C to 60 °C at 10 to 90% humidity, non-condensing, cools without a fan, mounts on VESA holes and carries CE and FCC marks. We supply it configured and tested, ready to connect to the computer you specify.
R15L100-CHA3 Specifications
| Overview | |
|---|---|
| Brand & Model | Winmate R15L100-CHA3 |
| Features | Fanless Industrial |
| Display | |
| Display | 15"[4:3, 1024 x 768, XGA] |
| Display Treatment | Protective Glass |
| Touch Interface | USB |
| Touch Controller | Optional Surface Acoustic Wave Touch Resistive Touch |
| Brightness | 500 Nits |
| Viewing Angle | Wide Viewing Angle |
| 176° Horizontal, 176° Vertical | |
| Aspect Ratio | 4:3 |
| Format | Standard |
| Contrast | 2500:1 |
| Number of Display Inputs | 3x Display Ports |
| Video Inputs | 1x Optional DVI Input 1x Optional HDMI Input 1x VGA Input |
| Power | |
| Power Input | 12V DC AC Power Supply Included |
| Environmental Conditions | |
| Thermal Dissipation | Fanless Passively Cooled Chassis |
| Operating Temperature | 0°C to 50°C [32°F to 122°F] |
| Storage Temperature | -10°C to 60°C [14°F to 140°F] |
| Humidity | 10-90% (Non-condensing) |
| Certification | CE FCC |
| Mechanical Properties | |
| Dimensions | 370mm x 290mm x 47mm (14.55" x 11.40" x 1.85") |
| Mounting Options | VESA Mount |
- R15L100-CHA3 Datasheet Download
Official Winmate UK Distributor
Things Embedded is an official Winmate UK distributor, supplying the R15L100-CHA3 configured and tested for UK control panel, kiosk and machine projects. Within the Winmate range the R15L100-CHA3WT is the wide temperature version of this chassis.
The R15L100-CHA3 sits among our 15 inch monitors, our chassis displays and our resistive touch monitors. Where a 15 inch XGA screen needs to sit in a chassis of its own beside the host computer, this is the model to specify.
