Winmate R19IAD7T-RKA1 19″ Rack Mount Panel PC with Intel Core i3 to i9 LGA1700 and Resistive Touch
Resistive
Intel
Linux
Windows
Dual Display Support
2.5GbE
USB3
2x M.2
Wi-Fi
NVMe SSD
CE
FCCR19IAD7T-RKA1 Overview

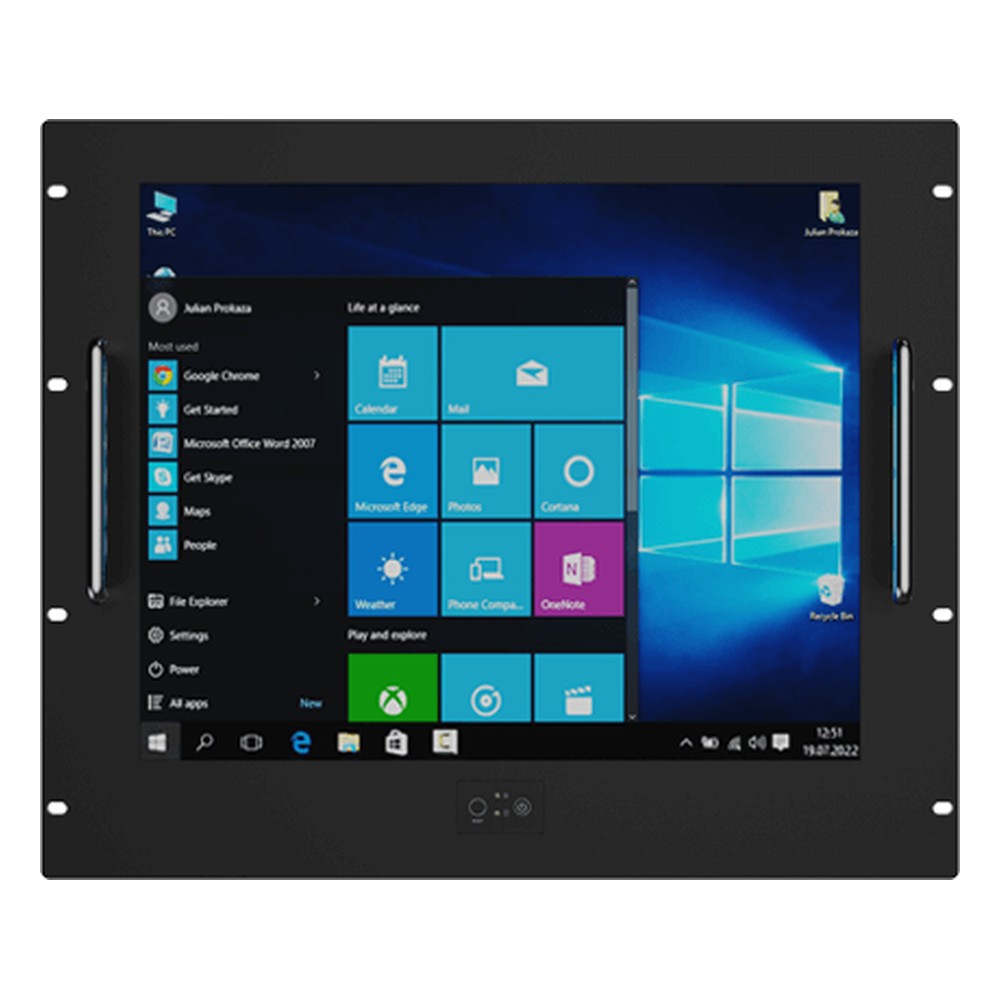

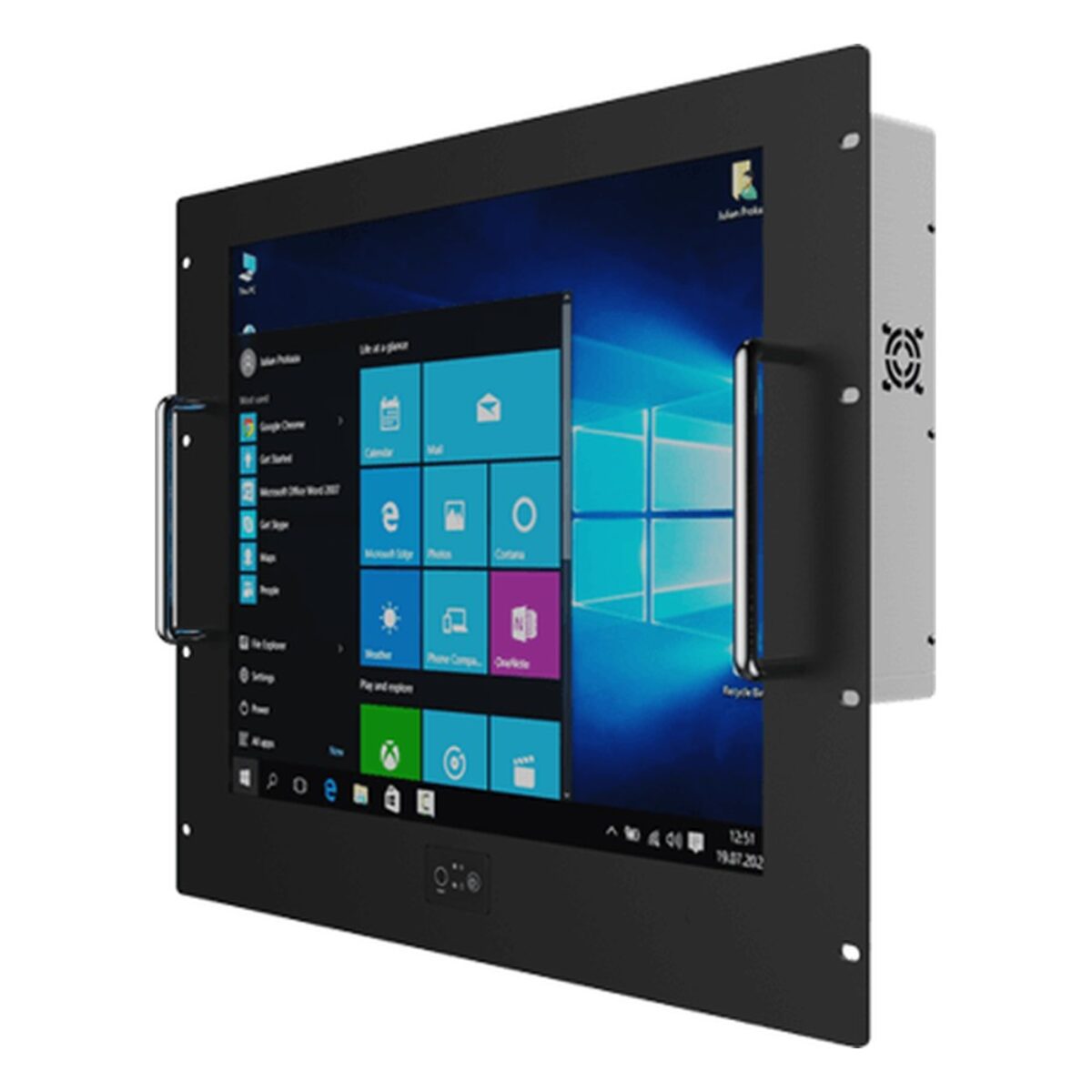

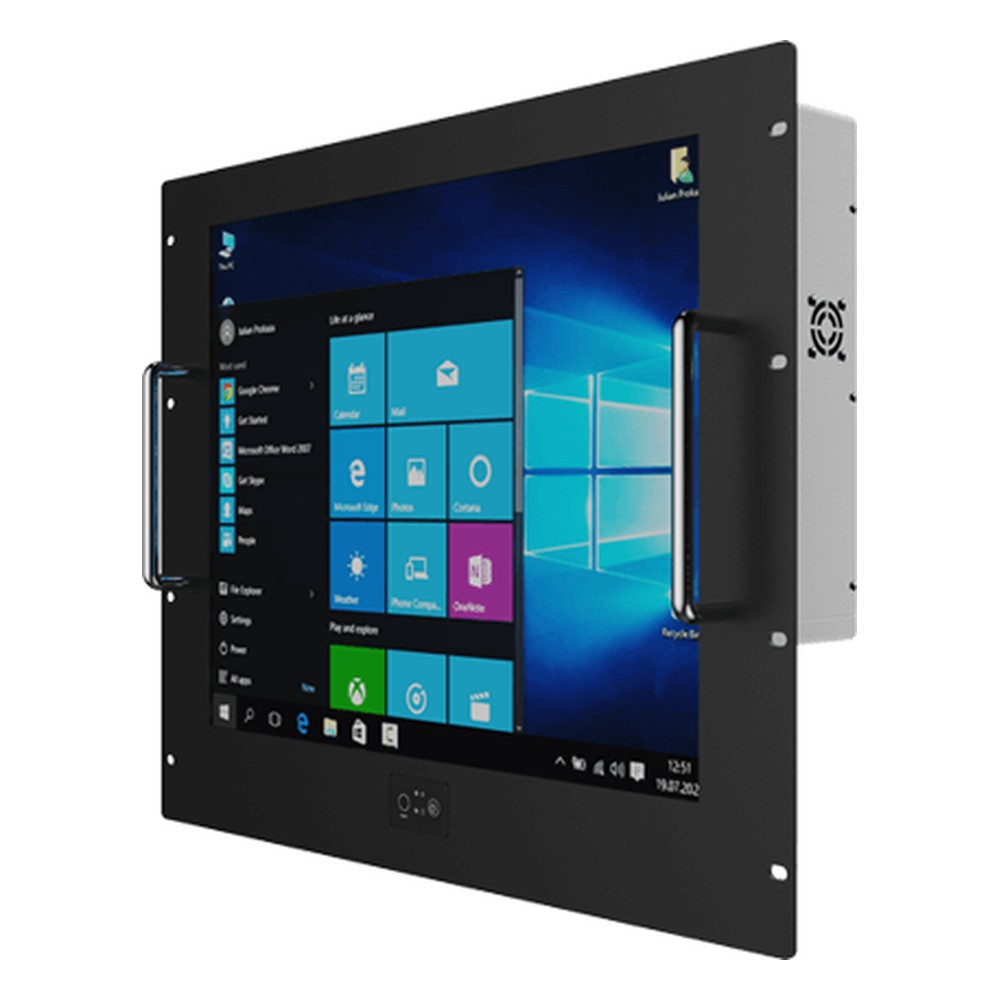

Server rooms, industrial control systems and data centres often need a local screen and computer in the rack. The R19IAD7T-RKA1 is Winmate’s 19 inch rack mount panel PC: a 19″ 5:4 display and an LGA1700 Intel Core computer in one metal housing.
It takes a choice of 12th Gen Intel Core TE (Alder Lake-S) and 14th Gen Intel Core T (Raptor Lake Refresh) processors on the Intel R680E chipset, from the Core i3-12100TE as standard to the Core i9-14900T, so one design can suit a simple operator screen or heavier visualisation. Two DDR5-4800 SO-DIMM sockets take up to 64 GB, and a 128 GB M.2 NVMe SSD can grow to 4 TB, with two optional 2.5″ SATA III bays supporting RAID. The 19″ panel is 1280 x 1024 at 250 nits with 1000:1 contrast, with resistive touch or protection glass as options.
Two Intel 2.5GbE ports can separate control and plant networks, and four USB 3.2 Gen 2 Type-A ports at 10 Gbps take scanners and storage. One RS-232/422/485 port and one RS-232 port link PLCs and serial instruments. DisplayPort 1.4a drives a second screen at up to 4096 x 2160 at 60 Hz, with HDMI 2.0b optional, plus mic-in and line-out. Optional Wi-Fi and Bluetooth fit an M.2 E-key slot, and TPM 2.0 is on board. The R19IAD7T-CHA1 is the VESA chassis version with a 400 nit screen, and the R19IAD7T-OFA1 is the open frame version for building into an enclosure.

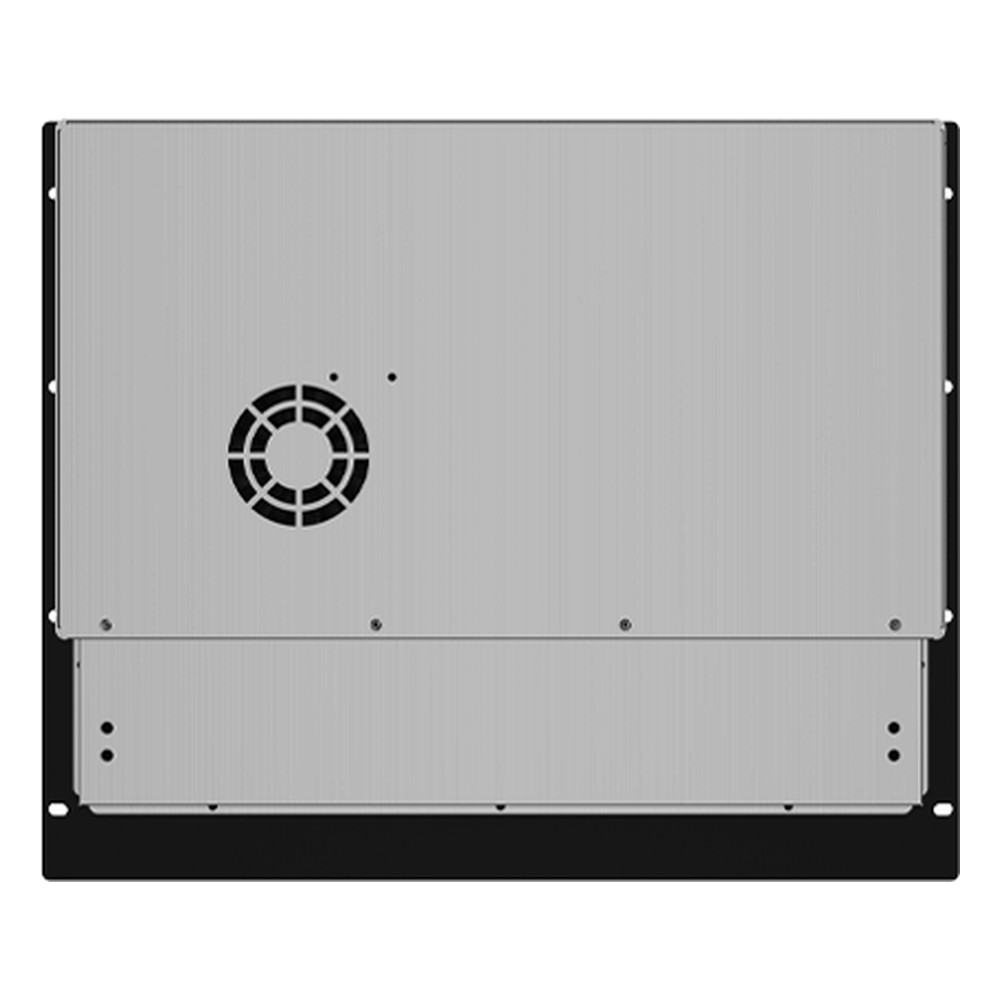

Power is 12 V DC on a four-pin DIN connector, and it comes with a 220 W AC adapter. The R19IAD7T-RKA1 is fan cooled, runs from 0 to 50 °C at 10 to 90% humidity non-condensing and carries CE and FCC marks. VESA mounting is standard and a 9U rack mount is optional. We supply it configured, with Windows 11 IoT Enterprise, Windows 11 Pro or Ubuntu 22.04 installed, and tested before dispatch.
R19IAD7T-RKA1 Specifications
| Overview | |
|---|---|
| Brand & Model | Winmate R19IAD7T-RKA1 |
| Features | Industrial |
| Display | |
| Display | 19"[5:4, 1280 x 1024, SXGA] |
| Display Treatment | Protective Glass |
| Touch Controller | Optional Resistive Touch |
| Brightness | 250 Nits |
| Viewing Angle | Wide Viewing Angle |
| 170° Horizontal, 160° Vertical | |
| Aspect Ratio | 5:4 |
| Format | Standard |
| Contrast | 1000:1 |
| Performance | |
| Processor Series | Intel Core 14th Gen Raptor Lake Refresh Intel Core 12th Gen Alder Lake |
| Processor Models | Intel Core i3-14100T: 2.7~4.4GHz, 4 Cores, 8 Threads, 12MB Cache, 35W Intel Core i5-14500T: 1.7~4.8GHz, 14 Cores, 20 Threads, 24MB Cache, 35W Intel Core i7-14700T: 1.3~5.2GHz, 20 Cores, 28 Threads, 33MB Cache, 35W Intel Core i9-14900T: 1.1~5.5GHz, 24 Cores, 32 Threads, 36MB Cache, 35W Intel Core i3-12100TE: 2.1~4.0GHz, 4 Cores, 8 Threads, 12MB Cache, 35W Intel Core i5-12500TE: 1.9~4.3GHz, 6 Cores, 12 Threads, 18MB Cache, 35W Intel Core i7-12700TE: 1.4~4.6GHz, 12 Cores, 20 Threads, 25MB Cache, 35W Intel Core i9-12900TE: 1.1~4.8GHz, 16 Cores, 24 Threads, 30MB Cache, 35W |
| Performance Cores | 4 Cores 6 Cores 12 Cores 14 Cores 16 Cores 20 Cores 24 Cores |
| Memory | 2x DDR5 4800MHz SO-DIMM Slot, 64GB |
| Chipset | Intel R680E |
| Secure Crypto Processor | TPM 2.0 (Trusted Platform Module) |
| Operating System | Linux Ubuntu 22.04 Windows 11 |
| Graphics | |
| Integrated GPU | Intel UHD Series |
| Multi Display Support | Dual Display Support |
| Display Outputs | 1x Display Port |
| Audio | |
| Interface | Line-Out Mic-In |
| I/O | |
| Ethernet | 2x Ethernet Ports |
| 2x 2.5 GbE LAN [RJ45] | |
| USB | 4x USB Ports |
| 4x USB 3.2 Gen 2 [Type A] | |
| Serial | 2x Serial Ports |
| 1x RS232 [DB9] 1x RS232/422/485 [DB9] | |
| Expansion | |
| M.2 | 2x M.2 Expansion Slots |
| 1x M.2 E-Key [2230] 1x M.2 M-Key [PCIe] [2280] | |
| Wireless Connectivity | Optional WiFi/Bluetooth |
| Storage | |
| Storage | 1x M.2 SSD 2x 2.5" HDD/SSD |
| NVMe | NVMe SSD Support |
| Power | |
| Power Input | 12V DC [4-Pin] AC Power Supply Included |
| Environmental Conditions | |
| Thermal Dissipation | Onboard Fan |
| Operating Temperature | 0°C to 50°C [32°F to 122°F] |
| Storage Temperature | -10°C to 60°C [14°F to 140°F] |
| Humidity | 10-90% (Non-condensing) |
| Certification | CE FCC |
| Mechanical Properties | |
| Weight | 6.9 Kg (15.2 Lbs) |
| Dimensions | 482mm x 399mm x 89mm (18.98" x 15.71" x 3.50") |
- R19IAD7T-RKA1 Datasheet Download
Official Winmate UK Distributor
Things Embedded is an official Winmate UK distributor, supplying the R19IAD7T-RKA1 configured, with the OS installed, and tested for UK control room projects. Within the Winmate range the R19IAD7T-CHA1 is the VESA chassis version with a 400 nit screen, and the R19IAD7T-PMA1 fits a panel cut-out.
In a 19 inch rack, the R19IAD7T-RKA1 sits among our rack mount panel PCs, our 19 inch panel PCs and our Intel panel PCs. Where a control room needs a 19 inch screen and Intel Core computer in the rack, this is a good model to specify.
