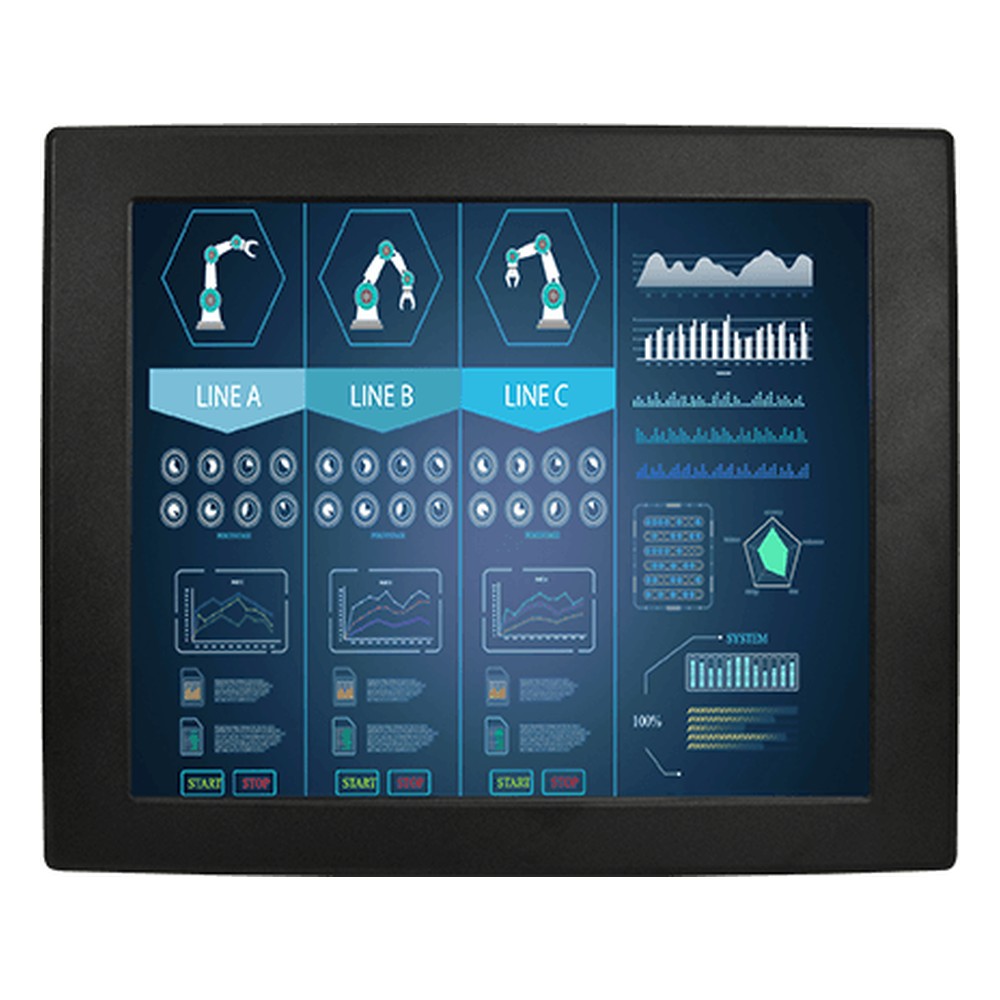

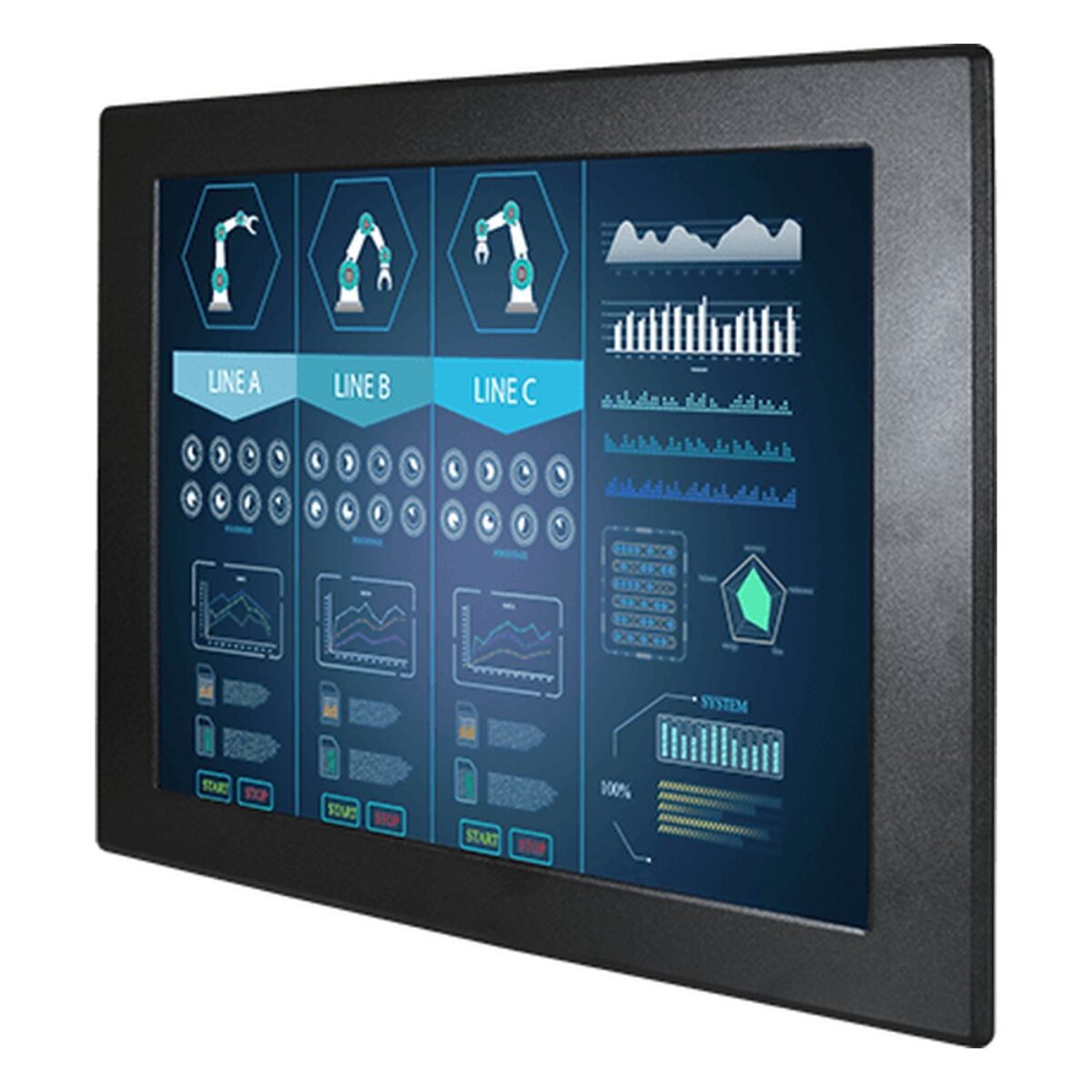

Winmate R19L300-IPA3WT 19″ Front IP65 Monitor with Wide Temperature and Resistive Touch

Cold stores, unheated warehouses and outdoor cabinets take an ordinary monitor outside its temperature range, and they rarely keep the front dry either. The R19L300-IPA3WT is Winmate’s 19 inch industrial monitor for that job: an SXGA panel, with front IP65 protection against dust and low-pressure water jets in a fanless metal housing with an aluminium bezel. It connects to a separate industrial computer or controller and fits into cabinets, racks and fixtures.

The 19″ 1280 x 1024 panel runs at 350 nits with 1000:1 contrast and 170 degree horizontal and 160 degree vertical viewing angles, and the whole monitor is rated for wide temperatures. The 5:4 format matches many existing HMI and SCADA screen layouts. Resistive touch is fitted as standard, and it works with gloved fingers or a stylus. SAW touch or a plain protection glass without touch can be specified instead.

Video comes in over VGA as standard, with HDMI or DVI inputs as options. Touch connects over a single USB port. Set-up is through a five-key OSD. An audio line-in and two speakers are optional, as is a remote controller. The R19L300-IPM1 is the standard 0 °C to 50 °C version with a 250 nit panel, and the R19L300-IPA1HB is the 1000 nit model for bright sites.

The 19 inch monitor is rated IP65 at the front and mounts into a panel cut-out or on VESA. It runs from 12 V DC, with a 24 V DC input as an option, and a 100 to 240 V AC adapter, power cord and VGA and HDMI cables are supplied. It operates from -20 °C to 60 °C at 30 to 90% humidity, non-condensing, and stores from -25 °C to 65 °C, and it carries CE and FCC marks. We supply the R19L300-IPA3WT configured and tested before dispatch, ready to pair with the computer that drives it.
