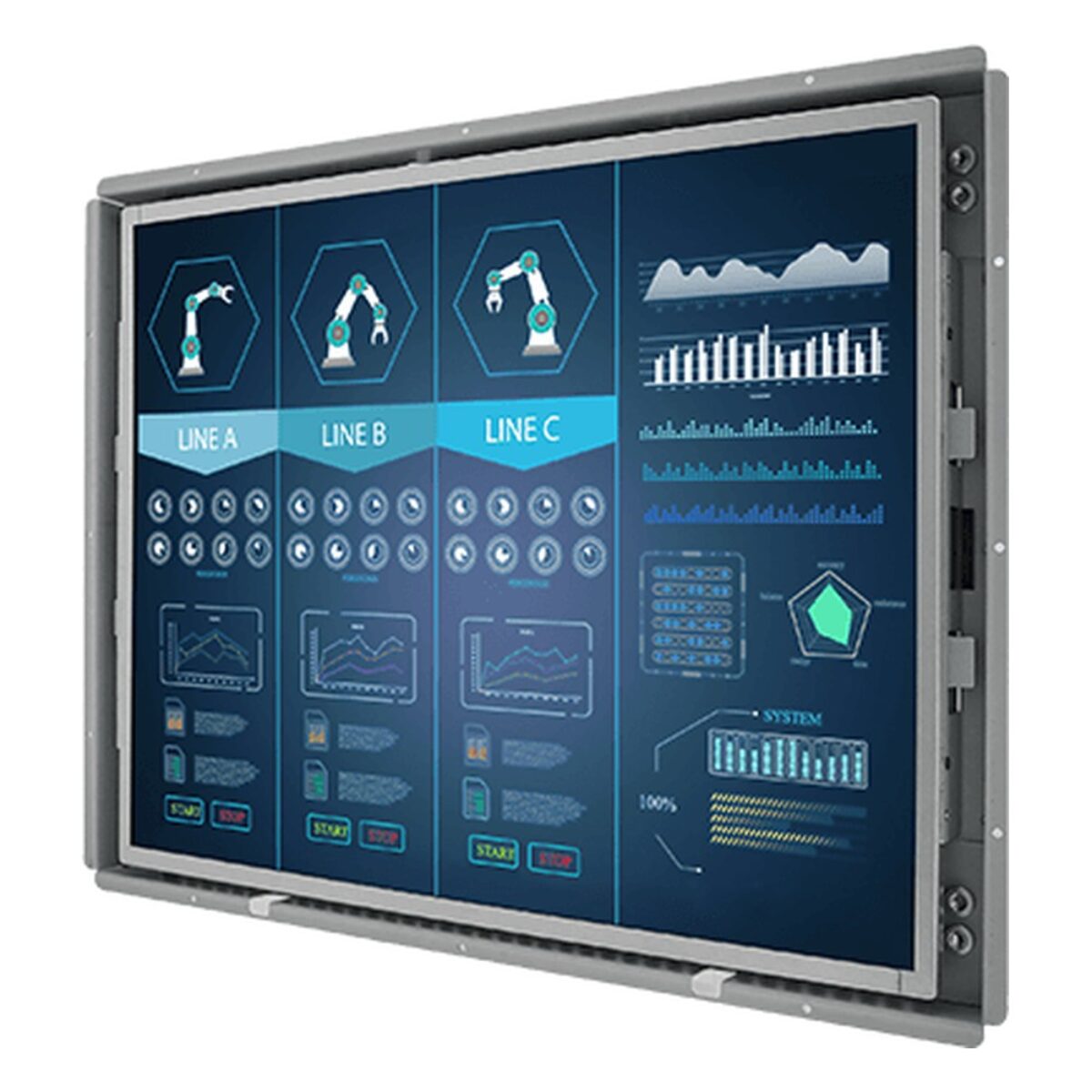

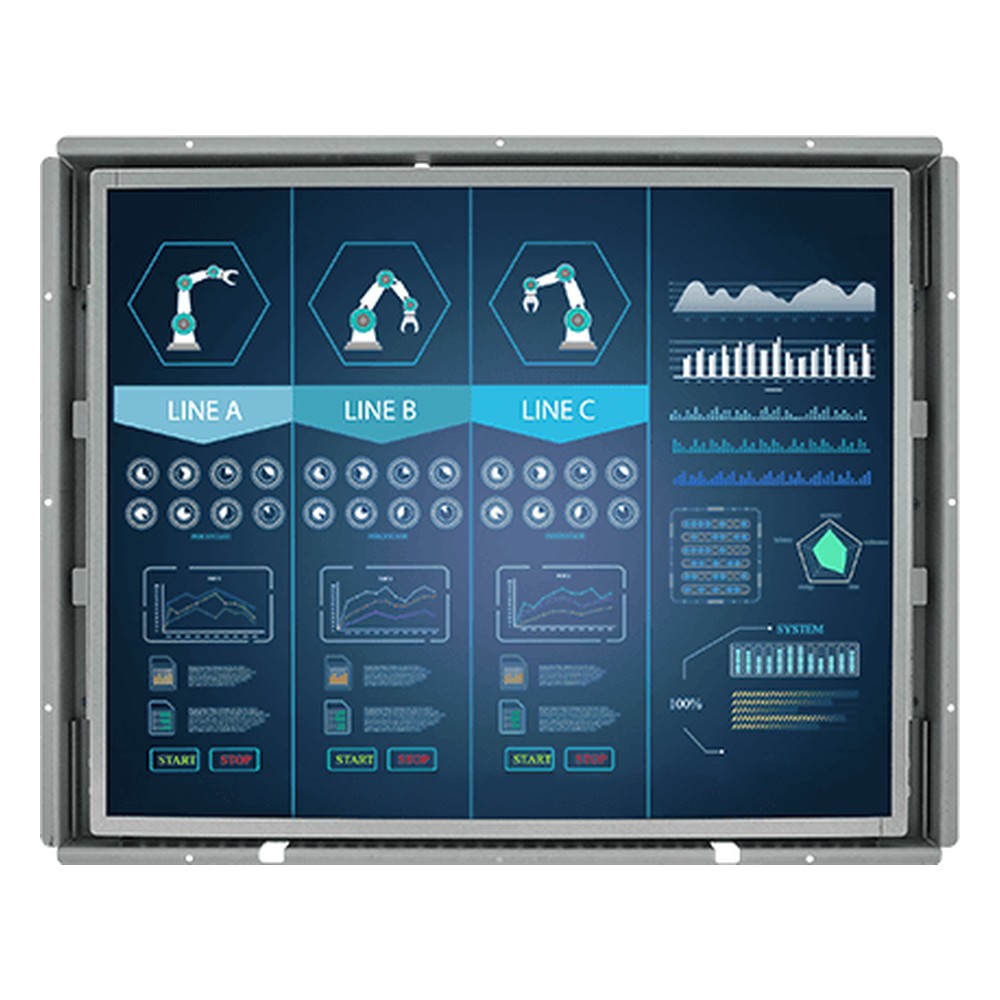

Winmate R19L300-OFA1 19″ Open Frame Monitor with Resistive Touch and SXGA LCD

Kiosk makers and machine builders often want the display without a finished bezel, so it sits behind a front panel they have designed themselves. The R19L300-OFA1 is Winmate’s 19 inch open frame monitor for that job, with a 19″ SXGA panel at 400 nits and optional resistive or SAW touch. It connects to a separate computer over VGA, with HDMI or DVI as options.

The 19″ SXGA panel runs at 400 nits with 1000:1 contrast, 16.7 million colours and 170 degree horizontal and 160 degree vertical viewing angles, which suits indoor lighting in control rooms and enclosures. Resistive touch, SAW touch and protection glass without touch are all options, with a USB port for the touchscreen where one is fitted.

Video comes in on VGA as standard, with HDMI and DVI inputs as options, so the R19L300-OFA1 pairs with most industrial PCs and box PCs. An audio line in and two speakers are optional, and five keys (power, plus, minus, Esc and Enter) run the on-screen menu. VGA and HDMI cables and a manual come in the box. Within the Winmate range the R19IT3S-OFA1 is the open frame panel PC version with an Intel Core i5-1135G7 built in, and the W43L300-OFA1 is the 42.5 inch Full HD open frame monitor at 500 nits.

Power is 12 V DC in, with a 24 V DC input as an option, and an AC adapter and power cord are supplied. The fanless metal housing runs from 0 to 50 °C and stores from -10 °C to 60 °C, at 10 to 90% humidity, non-condensing, which suits indoor cabinets and control rooms. It takes VESA or rear mounting behind your own bezel, and it carries CE and FCC marks. We supply the R19L300-OFA1 configured and tested before dispatch.
