Winmate R19L300-OFM2 19″ Open Frame Monitor with 2000:1 Contrast SXGA LCD and Optional Touch
Resistive
Fanless
CE
FCCR19L300-OFM2 Overview

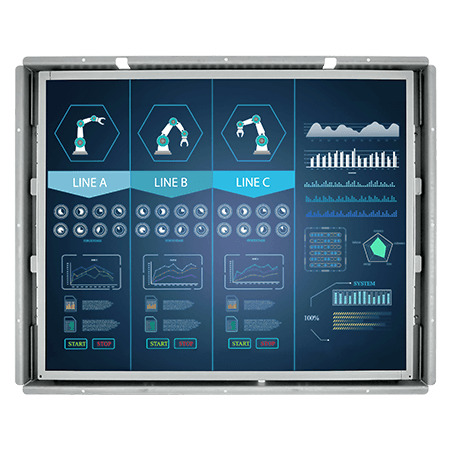

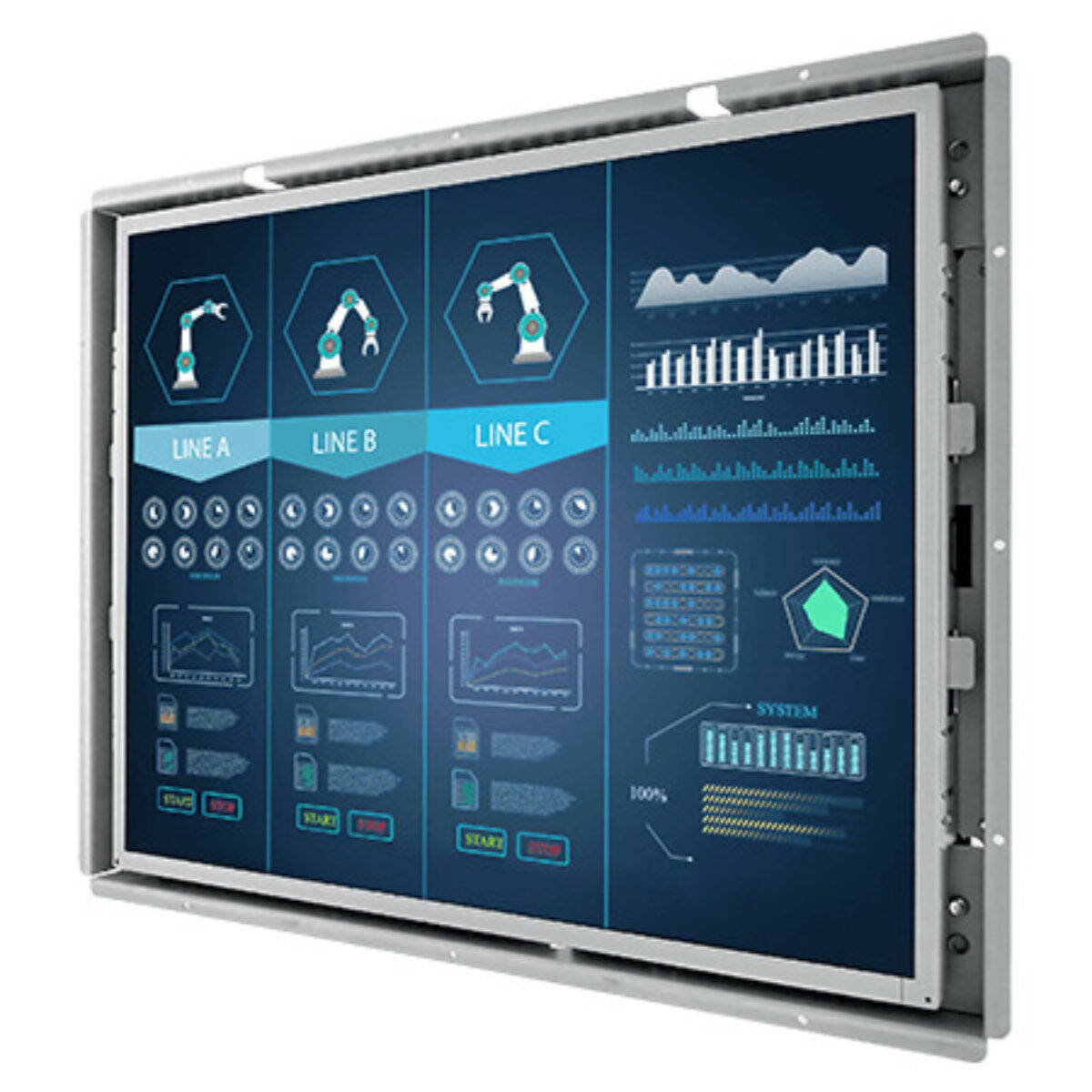

Where several people read the same screen from different positions, a narrow viewing angle means some of them see a washed-out picture. The R19L300-OFM2 is Winmate’s 19 inch open frame monitor built around a wider-angle panel: a 1280 x 1024 SXGA LCD at 300 nits with 2000:1 contrast and 89° viewing angles in every direction, in a metal frame for building into your own enclosure.
The panel shows 16.7 million colours across an active area of 376.32 x 301.06 mm, and the 2000:1 contrast ratio keeps dark interface themes and fine trend lines easy to separate. Touch is optional: resistive touch for gloves and styluses, SAW touch for a clear glass surface, or protection glass without touch for a display-only screen.
VGA is the standard video input, with HDMI and DVI available as options, and a USB port carries the touch signal to the host. An optional audio line-in and twin speakers add sound for kiosk prompts, and a five-key OSD panel on the rear sets brightness and picture. The R19L300-OFM2TR offers this panel with a transflective layer at 350 nits, and the R19L300-OFM1 is the 1000:1 contrast version at 250 nits.
The R19L300-OFM2 runs from 12 V DC and ships with a 100 to 240 V AC to DC adapter and VGA and HDMI cables. It is fanless, operates from 0 °C to 50 °C and 10 to 90% non-condensing humidity, and stores from -10 °C to 60 °C. The metal frame measures 445 x 355 x 56 mm and mounts by VESA or rear fixing. It carries CE and FCC marks. Winmate lists industrial visualisation, control rooms and equipment monitoring as typical uses for its open frame range, along with ATMs, vending machines, airport information displays and mall kiosks.
R19L300-OFM2 Specifications
| Overview | |
|---|---|
| Brand & Model | Winmate R19L300-OFM2 |
| Features | Fanless Industrial |
| Display | |
| Display | 19"[5:4, 1280 x 1024, SXGA] |
| Display Treatment | Protective Glass |
| Touch Interface | USB |
| Touch Controller | Optional Resistive Touch Optional Surface Acoustic Wave Touch |
| Brightness | 300 Nits |
| Viewing Angle | Wide Viewing Angle |
| 178° Horizontal, 178° Vertical | |
| Aspect Ratio | 5:4 |
| Format | Standard |
| Contrast | 2000:1 |
| Number of Display Inputs | 3x Display Ports |
| Video Inputs | 1x DVI Input 1x HDMI Input 1x VGA Input |
| Power | |
| Power Input | 12V DC |
| Environmental Conditions | |
| Thermal Dissipation | Fanless Passively Cooled Chassis |
| Operating Temperature | 0°C to 50°C [32°F to 122°F] |
| Storage Temperature | -10°C to 60°C [14°F to 140°F] |
| Humidity | 10-90% (Non-condensing) |
| Certification | CE FCC |
| Mechanical Properties | |
| Dimensions | 445mm x 355mm x 56mm (17.52" x 13.98" x 2.2") |
- R19L300-OFM2 Datasheet Download
Official Winmate UK Distributor
Things Embedded is an official Winmate UK distributor, supplying the R19L300-OFM2 for UK control room and kiosk projects. Within the Winmate range the R19L300-OFM2TR adds a transflective layer to the same panel, and the R19L300-OFM1 is the 1000:1 contrast version at 250 nits.
With its wide-angle 5:4 panel the R19L300-OFM2 sits among our open frame displays, our 5:4 industrial displays and our resistive touch monitors. Where a 19 inch screen is read from several positions, this is the Winmate model to specify.
